KitchenAid KESMK5 User manual

Milk Frother Attachment

KESMK4, KESMK5

W11418293A.indb 1W11418293A.indb 1 4/7/2020 1:15:32 PM4/7/2020 1:15:32 PM

PARTS AND FEATURES

1Storage container

2Milk dispenser tube

3Function knob

4Steam port

5Froth level adjustment knob

6Brush

7Milk tank lid

8Milk hose

9Milk tank

10 Milk hose connector

11 Milk hose clip

12 Hot water function

13 Hot milk function

14 Froth milk function

12 13 14

W11418293A.indb 2W11418293A.indb 2 4/7/2020 1:15:32 PM4/7/2020 1:15:32 PM

ENGLISH

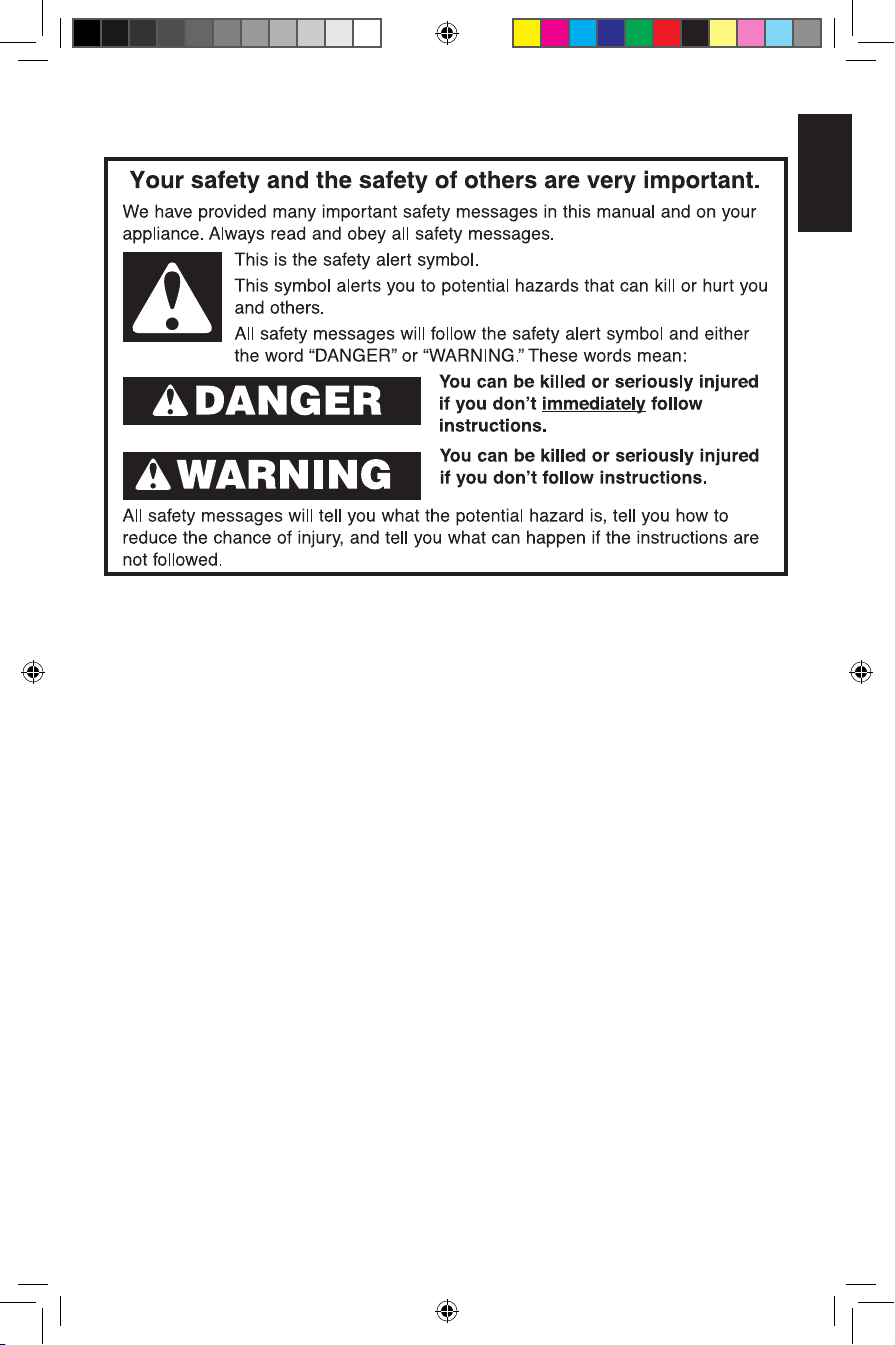

PRODUCT SAFETY

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be

followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. Turn the Espresso Machine OFF (and detach the Milk Frother Attachment from

the Espresso Machine) before cleaning. Make sure the steam/water ow stops

completely before disassembling.

4. This appliance is not intended for use by persons (including children) with

reduced physical, sensory, or mental capabilities, or lack of experience or

knowledge, unless they are closely supervised and instructed concerning use

of the appliance by a person responsible for their safety. Close supervision is

necessary when any appliance is used by or near children. Children should be

supervised to ensure that they do not play with the appliance.

5. Close supervision is necessary when any appliance is used by or near children.

6. Allow to cool before putting on or taking off parts, and before cleaning.

7. The use of accessory attachments not recommended by the appliance

manufacturer may result in re, electric shock, or personal injury.

8. Do not use outdoors.

9. Do not clean the Milk Frother Attachment with abrasive cleaners, steel wool, or

other abrasive materials.

10. Use extreme caution when using hot steam.

11. Do not use appliance for other than intended use.

12. Also see the Important Safeguards section included in the Espresso Machine

Use and Care guide.

SAVE THESE INSTRUCTIONS

This product is designed for household use only.

W11418293A.indb 3W11418293A.indb 3 4/7/2020 1:15:32 PM4/7/2020 1:15:32 PM

PRODUCT ASSEMBLY

Before rst use, clean all parts and accessories. (See “Care and Cleaning” section).

Remove the Milk tank lid. Insert the Milk

hose connector in the Milk inlet hole.

Firmly insert the Milk hose in the Milk hose

connector. Immerse the Milk hose into the

Milk tank.

As desired, fill the Milk Tank (max. 17 oz)

with the cold milk and replace the Milk

tank lid.

Also, you can directly immerse the Milk

hose in any milk container or milk bottle.

Your Espresso Machine with the Milk

Frother Attachment is now ready to use.

Assembling Milk dispenser: Remove

the Storage container and insert the Milk

dispenser tube. Then, replace the Storage

container.

Tip: Wet end of the Milk dispenser tube

with fresh water to aid in assembly.

On the Espresso Machine, press the Steam

wand release button to remove the Steam

wand.

Align Steam port to the machine, press

together until you hear a click. Direct the

Milk dispenser tube towards the cup.

W11418293A.indb 4W11418293A.indb 4 4/7/2020 1:15:33 PM4/7/2020 1:15:33 PM

ENGLISH

PRODUCT USAGE

1 2

Turn On the Espresso Machine and toggle

the Mode button to select Steam.

Toggle the Dose button to 1 or 2 (1 for

less milk and 2 for more milk).

1 2

Place the desired cup below the Portafilter

and Milk dispenser.

Press button on the Espresso Machine

to start the cycle.

Froth level can be adjusted throughout the

automatic frothing cycle by rotating the

Froth level adjustment knob.

Align the Function knob to Froth milk

function. Rotate the Froth level adjustment

knob to desired level.

NOTE: For the Froth level adjustment

knob, it is suggested to start with 90

Degrees rotation from the screwed

down location.

FOR FROTH MILK

FOR HOT MILK

Align Function knob on Milk Frother

Attachment to the Hot milk function.

1 2

Turn On the Espresso Machine and toggle

the Mode button to Steam. Toggle the

Dose button mode to 1 or 2 (1 for less

milk and 2 for more milk).

W11418293A.indb 5W11418293A.indb 5 4/7/2020 1:15:34 PM4/7/2020 1:15:34 PM

PRODUCT USAGE

Place the desired cup below the Portafilter

and Milk dispenser.

FOR HOT WATER

Align the Function knob on the Milk

Frother Attachment to the Hot water

function.

1 2

Turn On the Espresso Machine and toggle

the Mode button to Water. Toggle the

Dose button to 1 or 2 (1 for less water and

2 for more water).

1 2

Press button on the Espresso Machine

to start the cycle.

Place the desired cup below the Portafilter

and Milk dispenser.

1 2

Press button on the Espresso Machine

to start the cycle.

W11418293A.indb 6W11418293A.indb 6 4/7/2020 1:15:35 PM4/7/2020 1:15:35 PM

ENGLISH

CLEANING AFTER EVERY USE

CARE AND CLEANING

Remove the Milk tank and lid and store in

a refrigerator.

Wipe down the exterior of Milk hose with a

damp soft cloth. Insert the Milk hose into a

cup of clean water.

1 2

Place a cup beneath the Milk dispenser.

Repeat the last used cycle(s) to ush the

system with the clean water.

To store the Milk hose, bend the Milk hose

and attach it into the Milk hose clip.

PROGRAMMING FUNCTION

The Espresso Machine is equipped with programming functionality for customized milk and

water doses (1 and 2).

NOTE: Milk Frother Attachment must be assembled to the Espresso Machine for any

customized settings to be saved.

Beverage Select Function Select Dose Preparation

Foam or Milk Steam ( ) 1 or 2 Press and hold button on the

Espresso Machine until desired volume is

dispensed into your cup.

Hot Water Water ( ) 1 or 2

PRODUCT USAGE

W11418293A.indb 7W11418293A.indb 7 4/7/2020 1:15:35 PM4/7/2020 1:15:35 PM

DEEP CLEANING THE MILK FROTHER ATTACHMENT

CARE AND CLEANING

Press the Steam wand release button on

Espresso Machine to release Milk Frother

Attachment.

Remove the Milk tank and clean it with

warm soapy water. Remove the Storage

container.

Wash the Froth level adjustment knob,

Function knob, Milk hose connector, Milk

hose, Milk dispenser, and the Black rubber

frother component in warm, soapy water

or cleaning solution designed for Milk

Frothers. Thoroughly rinse with clean water

and dry with a soft cloth.

5NOTE: Use the provided cleaning brush

to reach any small areas for thorough

cleaning.

Remove the Milk hose and Hose

connector.

Remove the Froth level adjustment knob

by unscrewing it counterclockwise. Pull out

the Function knob.

Remove the Decorative plate. Remove the

Milk dispenser by pulling and twisting in a

downward direction.

Remove the Black rubber frother

component by pushing down from the top

and pulling from the bottom.

W11418293A.indb 8W11418293A.indb 8 4/7/2020 1:15:36 PM4/7/2020 1:15:36 PM

ENGLISH

REASSEMBLING THE PRODUCT

TROUBLESHOOTING GUIDE

Problem Solution

If Steam and Hot water is

not getting selected: The Milk Frother Attachment may not be correctly attached in

place. Please refer to the “Product Assembly” section.

If the problem is not due

to one of the above items:

See the “Arranging for Service” chapter in the “Warranty and

Service” section. Do not return the Espresso Machine to the

retailer as they do not provide service.

If milk is not being

dispensed: The Milk hose and Milk hose connector may not be properly

assembled. Please refer to the “Product Assembly” section.

Follow the steps of disassembly to

assemble again. Press the Black rubber

frother component into the main housing.

Insert the Milk dispenser tube in place and

push upward and rotate until it clicks.

Replace the Decorative plate.

Insert and rotate the Froth level

adjustment knob in its place.

Replace the Function knob in its place.

W11418293A.indb 9W11418293A.indb 9 4/7/2020 1:15:37 PM4/7/2020 1:15:37 PM

WARRANTY AND SERVICE

KITCHENAID®MILK FROTHER ATTACHMENT WARRANTY FOR THE 50

UNITED STATES, THE DISTRICT OF COLUMBIA, PUERTO RICO, AND

CANADA

This warranty extends to the purchaser and any succeeding owner for Milk Frother

Attachment operated in the 50 United States, the District of Columbia, Puerto Rico, and

Canada.

Length of Warranty: One Year Full Warranty from date of purchase.

KitchenAid Will Pay

for Your Choice of: Hassle-Free Replacement of your Milk Frother

Attachment. See the next page for details on how to

arrange for service, or call the Customer eXperience

Center toll-free at 1-800-541-6390.

The replacement parts and repair labor costs to correct

defects in materials and workmanship.

Service must be provided by an Authorized

KitchenAid Service Center.

KitchenAid Will

Not Pay for: A. Repairs when your Milk Frother Attachment is used in

other than normal single family home use.

B. Damage resulting from accident, alteration,

misuse or abuse.

C. Any shipping or handling costs to deliver

your Milk Frother Attachment to an Authorized

Service Center.

D. Replacement parts or repair labor costs for

Milk Frother Attachment operated outside the 50

United States, District of Columbia, Puerto Rico,

and Canada.

DISCLAIMER OF IMPLIED WARRANTIES; LIMITATION OF REMEDIES

IMPLIED WARRANTIES, INCLUDING TO THE EXTENT APPLICABLE WARRANTIES

OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDED

TO THE EXTENT LEGALLY PERMISSIBLE. ANY IMPLIED WARRANTIES THAT MAY

BE IMPOSED BY LAW ARE LIMITED TO ONE YEAR, OR THE SHORTEST PERIOD

ALLOWED BY LAW. SOME STATES AND PROVINCES DO NOT ALLOW LIMITATIONS

OR EXCLUSIONS ON HOW LONG AN IMPLIED WARRANTY OF MERCHANTABILITY

OR FITNESS LASTS, SO THE ABOVE LIMITATIONS OR EXCLUSIONS MAY NOT APPLY

TO YOU.

IF THIS PRODUCT FAILS TO WORK AS WARRANTED, CUSTOMER’S SOLE AND

EXCLUSIVE REMEDY SHALL BE REPAIR OR REPLACEMENT ACCORDING TO THE

TERMS OF THIS LIMITED WARRANTY. KITCHENAID AND KITCHENAID CANADA

DO NOT ASSUME ANY RESPONSIBILITY FOR INCIDENTAL OR CONSEQUENTIAL

DAMAGES. This warranty gives you specic legal rights and you may also have other

rights which vary from state to state or province to province.

W11418293A.indb 10W11418293A.indb 10 4/7/2020 1:15:37 PM4/7/2020 1:15:37 PM

This manual suits for next models

Table of contents

Languages:

Other KitchenAid Kitchen Appliance manuals

KitchenAid

KitchenAid KMC4241 User manual

KitchenAid

KitchenAid 5KSM2CB5B Series User manual

KitchenAid

KitchenAid KSBC1B2CU User manual

KitchenAid

KitchenAid 790-0007A Product information sheet

KitchenAid

KitchenAid 5KSM5SSBCE User manual

KitchenAid

KitchenAid KHB1231 User manual

KitchenAid

KitchenAid 5KSM3310X User manual

KitchenAid

KitchenAid KSM3300 Series User manual

KitchenAid

KitchenAid KSM2SCA User manual

KitchenAid

KitchenAid KST4054 User manual

KitchenAid

KitchenAid KST4054 User manual

KitchenAid

KitchenAid KSM45-KSM200 Series User manual

KitchenAid

KitchenAid 5KSMVSA User manual

KitchenAid

KitchenAid 5KSM1APC User manual

KitchenAid

KitchenAid 5KMC4244 User manual

KitchenAid

KitchenAid 5KGM User manual

KitchenAid

KitchenAid KP User manual

KitchenAid

KitchenAid KSMMGA User manual

KitchenAid

KitchenAid 5KSMCB5N User manual

KitchenAid

KitchenAid KHIP365510 User manual

KitchenAid

KitchenAid KAC-22 User manual

KitchenAid

KitchenAid KGMA Quick guide

KitchenAid

KitchenAid 5KSB13 Series User manual

KitchenAid

KitchenAid KSM60SPX User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
