Electrolux GHGL4-4.5 User manual

user manual

Gas Cooker

GH GL4-4.5 (GH GL40-4.5)

Electrolux. Thinking of you.

Share more of our thinking at www.electrolux.com

Contents

Safety information 2

Product description 5

Before first use 6

Using the rings 9

Using the oven 10

Using the grill 12

Cooking tables 14

Care and cleaning 20

What to do if… 23

Technical data 24

Service and spare parts 24

Environment concerns 24

Garantie, Garanzia, Guarantee 25

Subject to change without notice

Safety information

For your safety and correct operation of the

appliance, read this manual carefully before

installation and use. Always keep these in-

structions with the appliance even if you

move or sell it. Users must fully know the op-

eration and safety features of the appliance.

The manufacturer is not responsible for dam-

ages caused by incorrect installation and

use.

ONLY use this appliance:

• As oven for cooking, frying, slow cooking

and grilling.

• Fixed installed, indoors.

NEVER use this appliance:

• For heating purposes or other purposes

than described above.

• In case or suspicion of defect/damage.

Children and vulnerable people safety

• This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given super-

vision or instruction concerning use of the

appliance in a safe way and understand

the hazards involved. Children shall not

play with the appliance.

• Keep all packaging well away from chil-

dren. There is risk of suffocation.

• Keep children away from the appliance.

There is risk of injury or other permanent

disability.

During use

• This appliance is intended for domestic

cooking only. It is not designed for com-

mercial or industrial purposes.

• Ensure a good ventilation around the ap-

pliance. A poor air supply could cause lack

of oxygen.

• When in use the appliance will produce

heat and moisture in the room in which it

has been installed. Ensure there is a con-

tinuous air supply, keeping air vents in

good condition or installing a cooker hood

with a venting hose.

• When using the appliance for a long period

of time, the ventilation should be improved,

by opening a window or increasing the ex-

tractor speed.

• Ensure the control knobs are in the OFF

position when not in use or before remov-

ing hot cooking utensils.

• Close main gas tap behind lower flap on

longer absence.

• Do not cover rear air outlet (only for model

GHL2-4.5).

• During use the appliance becomes hot.

Care should be taken to avoid touching

heating elements inside the oven. There is

a danger of burns!

• Touch hot cooking utensils only with an

oven cloths or thermo gloves

• Always stand back from the oven when

opening the oven door, to allow any build

up of steam or heat to release.

2 electrolux

• When using other electrical appliances,

ensure the cable does not come into con-

tact with the hot surfaces of the appliance.

• Unstable or misshapen pans should not be

used on the hob burners as unstable pans

can cause an accident by tipping or spill-

age.

•To facilitate ignition, light the burners

before placing pans on the grid . After

having lit the burners check that the flame

is regular.

• Always lower the flame or turn it off before

removing the pan.

• Never leave the appliance unattended

when cooking with oil and fats. Do not

overheat a fat/oil - it can inflame: Risk of

fire! Put fire out with extinguishing cloth or

foam extinguisher.

• This appliance should be kept clean at all

times. A build-up of fats or foodstuffs could

result in a fire.

• Never use plastic dishes in the oven or on

the hob burners. Never line any part of the

oven with aluminium foil.

• Use only heat resistant baking/cooking

utensils, follow manufacturer's advices.

• Perishable food, plastic items and areosols

may be affected by heat and should not be

stored above the appliance.

• Never use steam or high pressure steam

cleaners to clean the appliance.

• Do not use harsh abrasive cleaners or

sharp metal scraper to clean the oven door

glass since they can scratch the surface,

which may result in shattering of the glass.

• Do not mechanically weight open oven

door, do not stand or sit on it.

• There is a risk of injury in the area of the

ovens door hinges.

In case of smell of gas:

1. Do not light fire, do not smoke.

Do not activate any electrical switches,

devices, etc.

Do not use any telephone in the same

house.

2. Close main gas tap and all burner regu-

lators, no other manipulations!

A) Press in lower flap (1) and open (2):

B) Inside press in main gas tap (1) and

close (2):

3. Open doors and windows, air the room.

Call gas supplying emergency service

from outside the house (possibly Electro-

lux service center).

Do not alarm occupants by telephone or

door bell.

Assembly/Installation:

• Distance cooking hollow to lateral tall up-

board min. 200 mm, to wall behind device

min. 50 mm and above device min. 650

mm.

electrolux 3

Electric supply:

• The electric contact-voltage proof must be

ensured by installation.

• Screws of the saucepan carrier holder

must be firmly tightened, because they

serve as protective earth connection.

• Mains cable may not cling to back wall of

device or other hot spots.

• Used wall socket (230 V, 50 Hz, min. 10 A)

must be installed by a qualified person and

conforming to standards. The wall socket

has to be accessible.

• Do not lay mains cable of other devices

over gas burner or squeeze between oven

door.

Recommendation: Let have device connec-

ted via residual current operated device 30

mA.

Gas connection:

• Let have connection and commissioning,

as well as change over to another type of

gas have made according to regional reg-

ulations by gas supplying company or li-

censed installer.

• Only a qualified person is allowed to work

on gas leading screw fittings.

• Change over to liquefied petroleum gas:

Affix adhesive label corresponding to noz-

zle set at type plate.

• Change back to natural gas: Reseal full

burning nozzle, small burning adjusting

nozzle and initial air screw.

Defect:

• Close all regulators on the device. Close

main gas tap. For all kind of repairs charge

Electrolux customer service or other ex-

perts.

• To avoid dangers, let have defective mains

cable replaced only by customer service.

• Do not open housing (except oven door

and lower flap).

• Do not use the appliance if warning lamp

operates. It shows breakdown of the oven

cooling system. Turn off the appliance im-

mediately! Call service.

Service/Maintenance:

• Close all regulators on the device. Close

main gas tap. For all kind of repairs charge

Electrolux customer service or other ex-

perts.

• Before replacing the oven lamp disconnect

device from mains, unplug mains plug or

interrupt mains fuse.

• Do not clean device with steam or high-

pressure device. Do not use combustible

cleaning agents.

• Do not insert objects into the device

through the ventilating slots.

Spare parts:

• Use only genuine spare part and accesso-

ries.

4 electrolux

Product description

General overview

1Hob

2Control knobs for cooking zones

3Control knob for the oven functions

4Door handle

5Oven door

6Warning lamp

7Light/Fan/Grill

8Temperature control knob

Cooking surface layout

1High capacity burner (2.4 kW)/Pot size:

14-20 cm

2Normal burner (1.8 kW)/Pot size: 10-18

electrolux 5

3High capacity burner (2.4 kW)/Pot size:

14-20 cm

4Low capacity burner (1 kW)/Pot size:

10-16 cm

Oven features

1Heating element

2Oven lamp

3Oven fan

4Turn spit drive mechanism

5Oven lamp

6Oven burner

7Shelf runners, removable

Accessories

Oven Shelf

For cookware, cake tins, roast and grilled

foods.

Baking tray

For cakes and biscuits.

Turn spit

For roasting larger joints of meat and poul-

try.

Before first use

Important! Before using the appliance for

the first time remove all packaging, both

inside and outside the appliance, including

the advertising labels and any protective film.

Do not remove rating plate.

6 electrolux

Important! Do not use any sharp or abrasive

cleaning materials! These could damage the

surface.

For metal fronts, use normal commer-

cially available cleaning agents.

Initial cleaning of the hob

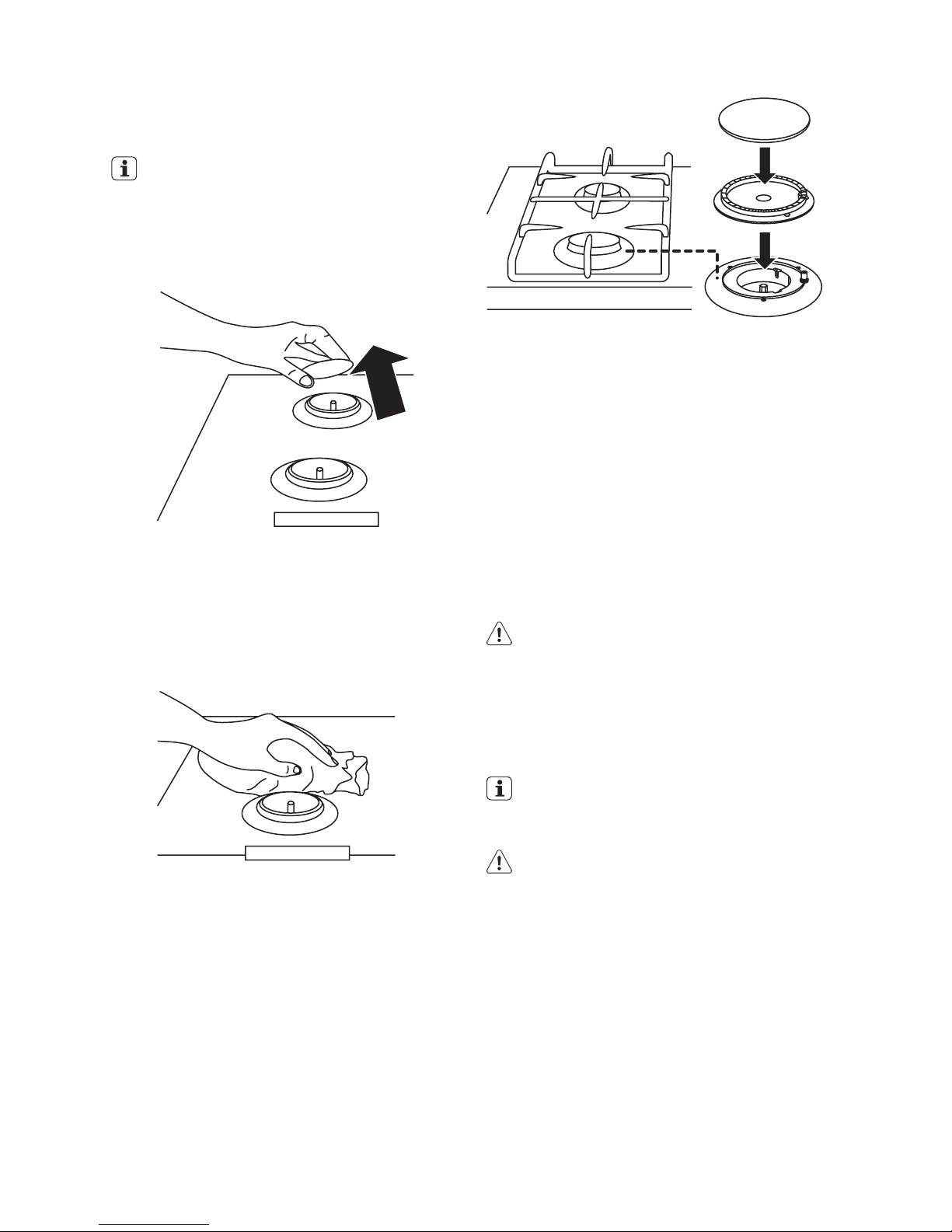

1. Remove the pan support(s), burner caps,

burner crowns.

2. Sprinkle a few drops of a ceramic clean-

ing agent onto a piece of kitchen paper

and rub into the whole surface.

3. Polish the hob with a clean cloth until dry.

4. Insert the pan support(s), burner caps,

burner crowns.

Clean the burner

Wash the pan supports, burner caps and

burner crowns in hot water and washing-up

liquid.

Initial cleaning of the oven

Important! The oven roof and walls have a

catalytic self-cleaning surface (rough, porous

surface), from which small food deposits are

burnt off at the temperatures over 200 °C.

Please observe the following instructions to

ensure the best working of this self-cleaning

surface.

Caution! Do not use cleaning agents,

oven sprays or steel wool that may

scratch or scour the surface. Do not use

soap or other detergents. These destroy

the catalytic self-cleaning surface. If any

residues remain, wipe them off with a

damp, soft sponge.

It is best for the catalytic self-cleaning

surface that the oven is only opened for

short periods.

Caution! Do not use cloths made of

fabric. The lint catches and sticks on the

rough surface.

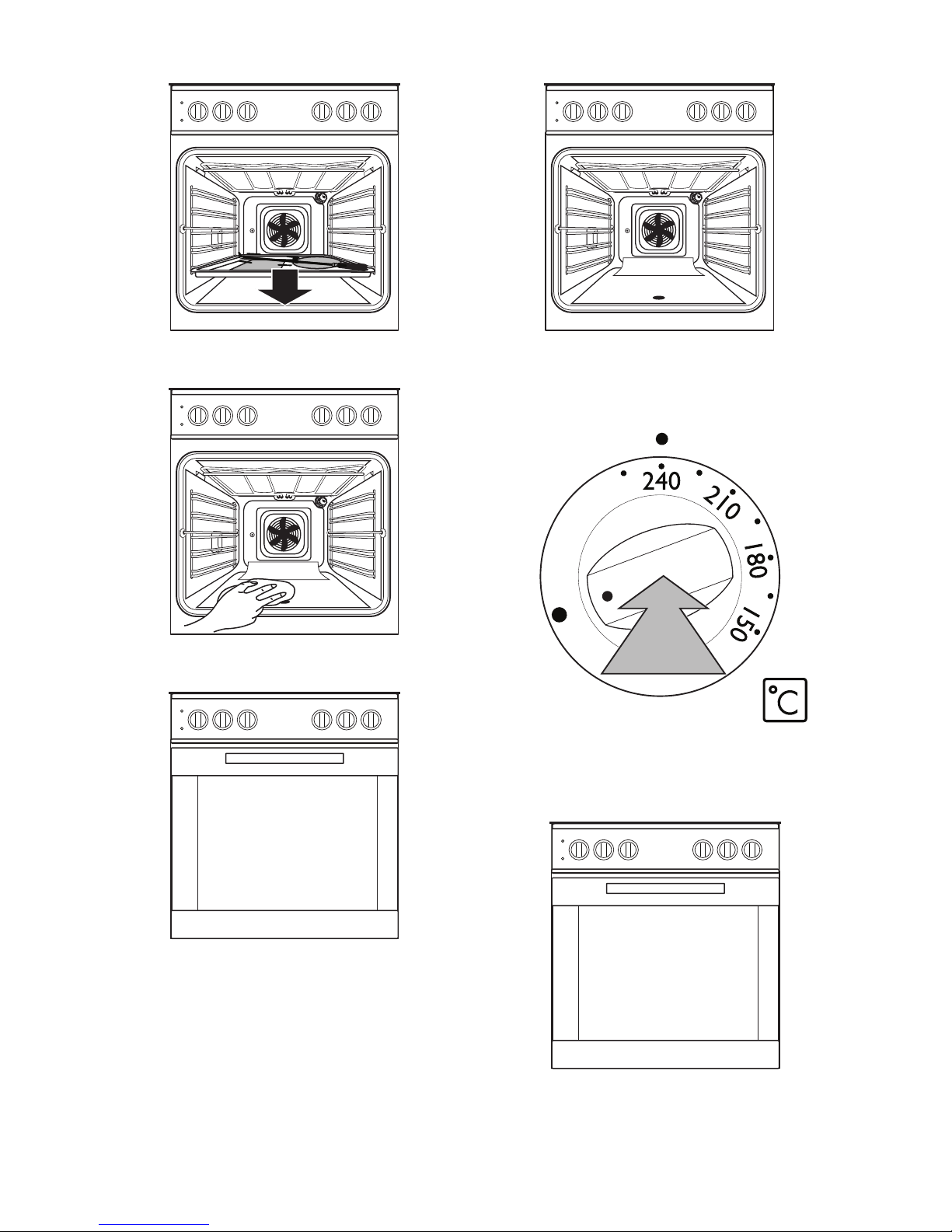

1. Switch on the oven lamp using the oven

function control knob.

2. Remove all accessories and side rails

from the oven interior.

electrolux 7

3. Clean the oven bottom with a solution of

water and washing up liquid.

4. Wipe the front of the appliance with a

damp cloth.

Clean all accessories with a water solution of

water and washing up liquid.

Heating the empty oven

During prehaeting the oven and after the

process make sure that the room is well ven-

tilated.

1. Open the oven door.

2. Push the oven knob in completely and

turn in an anticlockwise direction to the

maximum position.

3. Keep the knob pushed for about 15 sec-

onds.

4. Close the oven door and let the oven op-

erate for about 1 hour.

8 electrolux

Using the rings

Warning! Make quite sure the burner

crown and burner cap are positioned

correctly over the burner top.

For correct combustion the burner crowns

and burner caps must be positioned correct-

ly over the burner body. If the burner crown

and caps are off-centre, the gas flame will

burn incorrectly and the burner caps may be

ruined in a short space of time.

Control knobs on the gas hob

The knobs for using the gas hob of the cook-

er are found on the control panel. The regu-

lation knobs could be turned in anti clockwise

direction until the small flame symbol.

Off

Maximum gas supply

Minimum gas supply

Ignition of hob burners

1. Push the control knob in completely and

turn in an anticlockwise direction to the

maximum position marked by .

2. Keep the knob pushed for about 10 sec-

onds. This will allow the thermocouple to

be heated and the safety device to be

switched off, otherwise the gas supply

would be interrupted.

3. Upon ignition regulate the flame as re-

quired.

If after a few attempts the burner does not

ignite, check that the burner cap and crown

are correctly positioned (picture below, point

1 and 2).

1Burner cap

electrolux 9

2Burner crown

3Spark generator

4Thermocouple

To interrupt the supply of gas, turn the knob

in a clockwise direction to the position .

Warning! Do not keep the control knob

pressed for more than 15 seconds. If the

burner does not light even after 15

seconds, release the control knob, turn

it to the off position and wait for at least

1 minute before trying to light the burner

again.

Warning! Fire hazard! Overheated fats

and oils ignite very quickly.

Lighting the hob manually

When lighting the hob manually (in case of

lack of electricity) keep the knob pushed for

about 10 seconds and hold a flame near the

burner. Never turn the control knob before

approaching the burner with the flame.

Cooking with DUROTHERM pots

The double-walled DUROTHERM pots are

equipped with keeping warm pot support

which must be removed before placing pot

on the cooking surface.

Important! Before cooking with DURO-

THERM pots always check if the pot support

is removed.

Caution! Make sure to adjust flame size

with the pot size. Flame should heat only

the bottom of the pot.

Using the oven

Ignition of gas oven burner

To ignite a burner of the oven:

10 electrolux

This manual suits for next models

Table of contents

Other Electrolux Kitchen Appliance manuals

Electrolux

Electrolux EKM 90310 X User manual

Electrolux

Electrolux EKI6762AOX User manual

Electrolux

Electrolux ESTM3 SERIES User manual

Electrolux

Electrolux EKI6762AOX User manual

Electrolux

Electrolux Dito 601560 User manual

Electrolux

Electrolux EKM11440CN User manual

Electrolux

Electrolux EKG 6700 X User manual

Electrolux

Electrolux ACC072 User manual

Electrolux

Electrolux EKC603601X User manual

Electrolux

Electrolux EKD60760 User manual

Electrolux

Electrolux Dito CT5 How to use

Electrolux

Electrolux THERMALINE 900 User manual

Electrolux

Electrolux ULTRAMIX PROFESSIONAL EKM9 Series User manual

Electrolux

Electrolux Dito 601305 User manual

Electrolux

Electrolux ETG340 User manual

Electrolux

Electrolux EKM11340CN User manual

Electrolux

Electrolux GH GL 4-4.5 User manual

Electrolux

Electrolux EVEP916 Instruction Manual

Electrolux

Electrolux VARIO STEAM S33-E Product guide

Electrolux

Electrolux FM4863K-AN User manual

Electrolux

Electrolux Create 3 EVSK1 User manual

Electrolux

Electrolux EKC5044 User manual

Electrolux

Electrolux Insight 349095801 User manual

Electrolux

Electrolux EKG6120AOK User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
