Electrolux Dito 601579 User manual

Approval: ___________________________________________

601579 (DSLHD14) 14″Heavy Duty Food Slicer

120 V/1p/60Hz

Item No. ___________________________________

Unit to be Electrolux Dito 14″Heavy Duty Food Slicer. Electrical

characteristics to be 120 V SINGLE-phase operation with Ad-

justable speeds at 300 rpm. Especially designed to slice easily

sausages, hams, cooked meats, cheese, fish, tough meats, etc.

Large-sized hoppers mounted on noiseless sliding carriages

that run on self-lubricating bushes and ball bearings. Polished

hygienic rustproof casting of special anodized aluminum alloy.

Poly V belt drive. Powerful, noiseless single-phase motor. Spe-

cial chromium-plated steel blades are ground and hardened for

long service life. Built-in sharpening device with adjustable emery

grindstones. Cam control knob with various settings adjusts cut

thickness from 0 to 14 mm. Carriage and blade cover can be

removed simply by unscrewing a hand wheel.

Short Form Specification

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

ITEM # _______________________________________________

MODEL # _____________________________________________

PROJECT NAME # ______________________________________

SIS # _________________________________________________

AIA # _________________________________________________

Heavy Duty 14″Food Slicer

DSLHD Series

Main features

• Adjustable speed control knob.

• Cut thickness-adjusting knob (millimeter adjustment).

• Power: 1/2 HP – single phase.

• Motor speed: 300 rpm.

• 373 watts.

• Compact design.

• Highest degree of safety in functioning, cleaning and maintenance.

• Belt drive mechanics.

• Made of an aluminum alloy treated by anodic oxidation. This procedure

guarantees high hygienic standards of the parts interested by the cut and

resistance to acids, salts and oxidation processes.

• The blade is made of chromium plated steel 100Cr6; it is grinded and

hardened to guarantee an accurate and sharp cut of products also after it

has been re-sharpened.

• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS

and stainless steel AISI 430 or 304.

• Dimensions: (H×L×W): 27.25″× 29.75″× 28″.

• Approximate shipping weight—101 lbs.

• UL electrical and NSF sanitation listed.

• NEMA # : 5-15P.

• 2 year parts warranty, 1 year labor.

Optional Accessories

• Blade 14″for Food Slicer (PNC 653648)

• Blade (Teflon Coated) 14″for Food Slicer (PNC 653652)

• Vegetable Cutter Adapter for 14″Slicer (PNC 653655)

Heavy Duty 14″Food Slicer

DSLHD Series

Heavy Duty 14″Food Slicer

DSLHD Series

5-15P

Heavy Duty 14″Food Slicer

DSLHD Series

Supply voltage:

601579 (DSLHD14) 120 V/1p/60Hz – 3.1A

Electric

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

6-30-09

Key Information

Heavy Duty 14″″

″″

″Food Slicer

DSLHD Series

The MECHANICAL SAFETY system includes:

- Blade guard

- Cover

- Meat pusher

- Hand cover on meat hopper

- Meat hopper + finger protection

The ELECTRICAL SAFETY system includes:

The slicer is equipped with: a micro-switch which stops the

slicer in case the tie rod for blade guard is removed; the micro-

switch prevents from restarting the slicer if the guard has not

been set in the switch-off position.

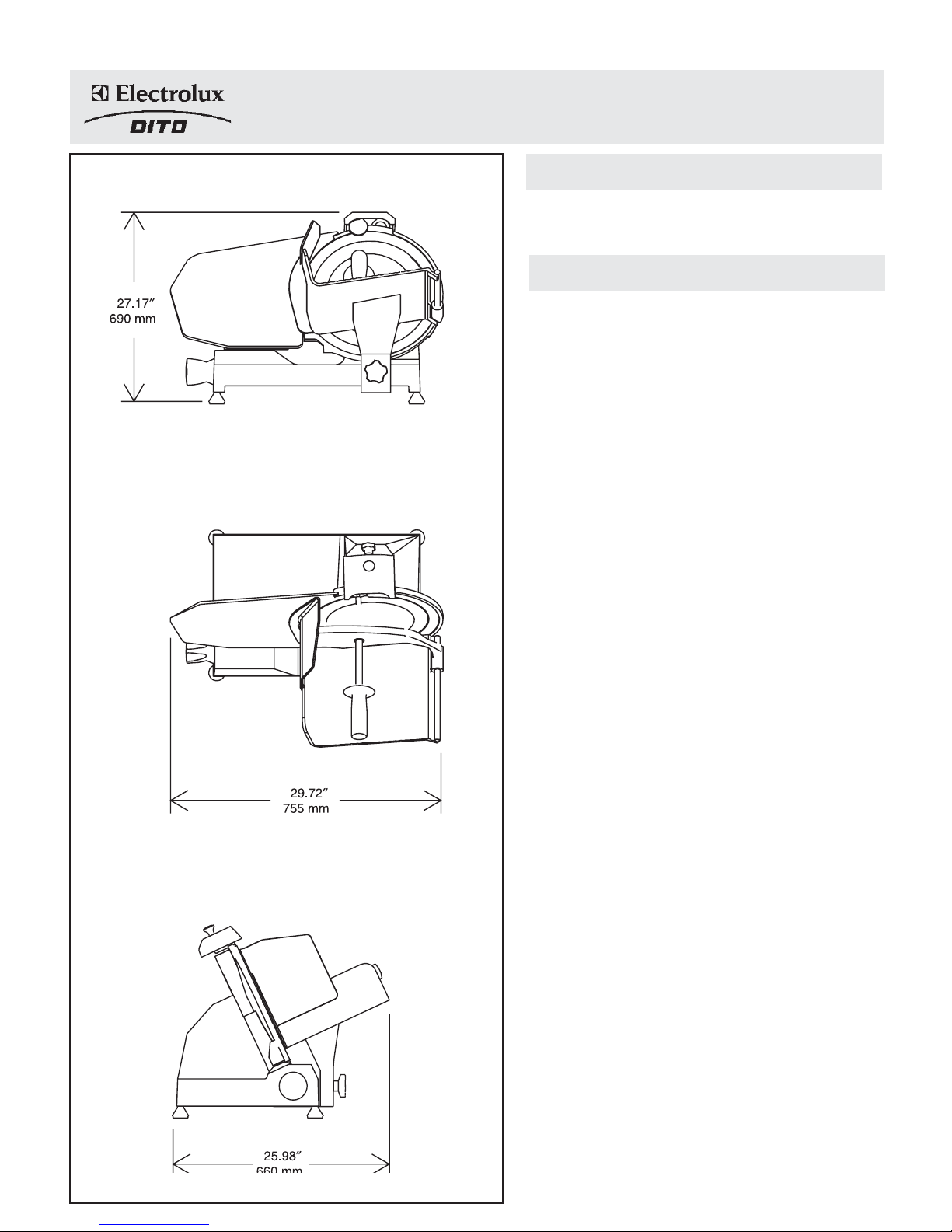

Front View

To p V i e w

Side View
