Zennio FANinBOX 230V 1CH Guide
© Zennio Avance y Tecnología S.L. Edition 4 Futher information www.zennio.com Page 1/2
FANinBOX 230V 1CH
3-speed ceiling fan controler @230VAC
ZCLFB230C1 TECHNICAL DOCUMENTATION
FEATURES
•External 230V 50/60Hz power supply.
•Up to 3 speeds control for ceiling fans.
•Manual control through push button and LED indicator.
•10 logic functions.
•Total data saving on KNX bus failure.
•Integrated KNX BCU.
•Dimensions 67 x 90 x 35mm (2 DIN units).
•DIN rail mounting (EN 50022), through pressure.
•Conformity with the CE directives (CE-mark on the right side).
1. Power supply input
2. Fan output
3. Speed control buttons
4. Speed indicator LEDs
5. Programming/Test button
6. Programming/Test LED
7. KNX Connector
3
2
7
5
4
6
1
Figure 1: FANinBOX 230V 1CH
Programming/Test button: short press to set programming mode. If this button is held while plugging the device into the KNX bus, it enters the safe
mode. If this button is held for more than 3 seconds, the device enters the test mode.
Programming/Test LED: programming mode indicator (red). When the device enters the safe mode, it blinks (red) every half second. The manual mode
is indicated by the green color. During the start-up (reset or after KNX bus failure) and if the device is not in safe mode, it starts a blue blinking sequence.
GENERAL SPECIFICATIONS
CONCEPT
DESCRIPTION
Type of device
Electric operation control device
KNX supply
Voltage (typical)
29VDC SELV
Voltage range
21..31VDC
Maximum
consumption
Voltage
mA
mW
29VDC (typical)
3.9
113.1
24VDC¹
10
240
Connection type
Typical TP1 bus connector for 0.80mm Ø rigid cable
External power supply
230VAC 50/60Hz
Operation temperature
0°C .. +55°C
Storage temperature
-20°C .. +55°C
Operation humidity
5 .. 95%
Storage humidity
5 .. 95%
Complementary characteristics
Class B
Protection class / Overvoltage category
II / III (4000V)
Operation type
Continuous operation
Device action type
Type 1
Electrical stress period
Long
Degree of protection / Pollution degree
IP20 / 2 (clean environment)
Installation
Independent device to be mounted inside electrical panels with DIN rail (EN
50022)
Minimum clearances
Not required
Response on KNX bus failure
Data saving according to parameterization
Response on KNX bus restart
Data recovery according to parameterization
Operation indicator
The programming LED indicates programming mode (red) and test mode
(green). The output LEDs indicate its status (fixed = full speed; fast/slow
flashing = high/slow speed; off = stoped)
Weight
109g
PCB CTI index
175V
Housing material / Ball pressure test temperature
PC FR V0 halogen free / 75ºC (housing) - 125ºC (connectors)
¹ Maximum consumption in the worst case scenario (KNX Fan-In model)
© Zennio Avance y Tecnología S.L. Edition 4 Futher information www.zennio.com Page 2/2
SAFETY INSTRUCTIONS
•Installation should only be performed by qualified professionals according to the laws and regulations applicable in each country.
•Do not connect the mains voltage nor any other external voltage to any point of the KNX bus; it would represent a risk for the entire
KNX system. The facility must have enough insulation between the mains (or auxiliary) voltage and the KNX bus or the wires of other
accessories, in case of being installed.
•The facility must be equipped with a device that ensures the omnipolar sectioning. Installation of a 10A mini-circuit-breaker is
recommended. To prevent accidents, it must remain open in case of manipulation of the device.
•Once the device is installed (in the panel or box), it must not be accessible from outside.
•Keep the device away from water (condensation over the device included) and do not cover it with clothes, paper or any other material
while in use.
•The WEEE logo means that this device contains electronic parts and it must be properly disposed of by following the instructions at
http://zennio.com/weee-regulation.
OUTPUTS SPECIFICATIONS AND CONNECTIONS
CONCEPT
DESCRIPTION
Number of outputs
1
Output type
Relays based control device
Maximum recommended load per output
100W
Minimum load per output
30W
Short-circuit protection
NO
Overload protection
NO
Connection method
Screw terminal block
Cable cross-section
0.5-2,5mm² (IEC) / 26-12AWG (UL)
Outputs per common
1
Maximum response time
15ms
Mechanical lifetime (min. cycles)
3 000 000
Electrical lifetime (min. cycles)
100000 @ 8A / 25000 @ 16A (VAC)
¹ Lifetime values could change depending on the load type.
EXTERNAL POWER SUPPLY SPECIFICATIONS AND CONNECTIONS
CONCEPT
DESCRIPTION
Voltage
230VAC
Connection method
Screw terminal block
Cable cross-section
0.5-2,5mm² (IEC) / 26-12AWG (UL)
⚠In order to ensure the expected
status of the relays, please check
that the device is connected to the
KNX bus before energizing the
power circuit.
⚠Use for ceiling fans. Do not
use other load to avoid
damages.

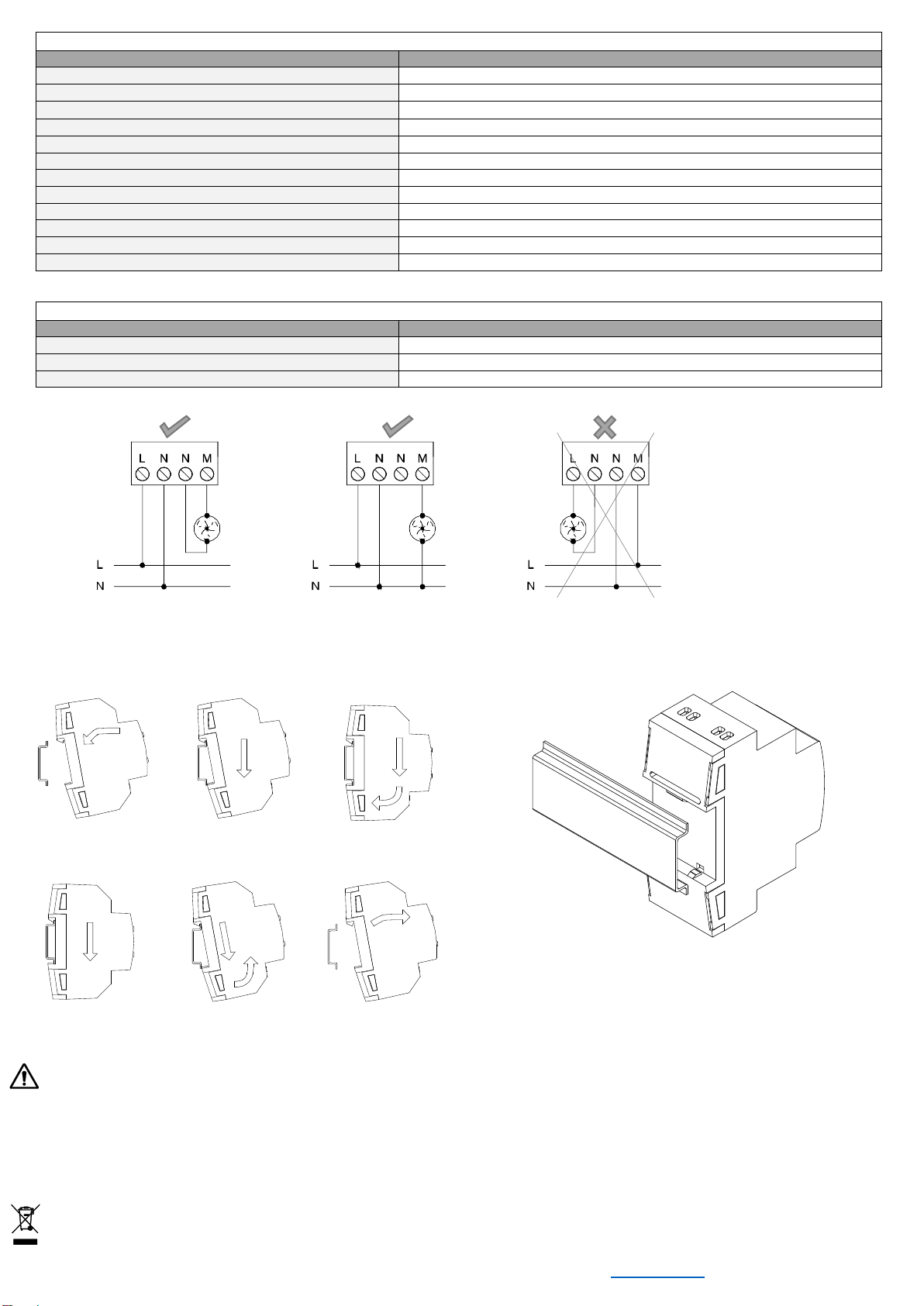

WIRINGDIAGRAMS
Figure 2: Wiring diagram of a fan
Figure 3: Mounting FANinBOX 230V 1CH on
DIN rail
Attaching FANinBOX 230V 1CH to DIN rail:
Removing FANinBOX 230V 1CH from DIN rail:
