Tricity Bendix SE500/1 User manual

Model

SE500/1

SE501/1

User

Manual

Cooker

The following symbols are used in this user manual:

WARNING!

Important information concerning your

personal safety and information on

how to avoid damaging the appliance.

IMPORTANT!

General information and tips

Environmental information

Contents

Important safety instructions 3

Product description 5

Controls and their functions 5

Before first use 6

Grill and oven furniture 7

The hob 8

The grill 9

Grilling chart 11

The top oven 12

The main oven 14

Oven cooking chart 16

Roasting chart 18

Defrost 19

Main oven light 20

Slow cook 20

Care and cleaning 22

Troubleshooting 27

Installation instructions 28

Technical data 30

Environment 30

Guarantee / Custormer care 31

Important safety instructions

These warnings are provided in the interests of

your safety. Ensure that you understand them

all before installing or using the appliance.

Your safety is of paramount importance. If you

are unsure about any of the meanings of these

warnings please contact customer care.

Installation

•The appliance must be installed according to

the instructions supplied.

•The installation work must be undertaken by

a qualified electrician or competent person.

•The appliance should be serviced by an

authorised service engineer and only genuine

approved spare parts should be used.

•The appliance must be installed in an

adequately ventilated room.

•If the appliance is to be placed on a base,

measures must be taken to prevent the

appliance from slipping.

•This appliance is heavy and care must be

taken when moving it.

•Do not attempt to lift or move this appliance

by the handles.

•All packaging, both inside and outside the

appliance must be removed before the

appliance is used.

•It is dangerous to alter the specifications or

modify the appliance in any way.

Child safety

•Do not allow children to play with any part of

the packaging.

•Do not allow children to sit or climb on the

drop down doors.

•This appliance is not intended for use by

children and other persons whose physical,

sensory or mental capabilities or lack of

experience and knowledge prevents them

from using the appliance safely without

supervision or instruction by a responsible

person to ensure that they can use the

appliance safely.

•Children should be supervised to ensure that

they do not play with the appliance.

WARNING!

Accessible parts may be hot during use.

Young children should be kept away.

During use

•This appliance is not intended to be operated

by means of an external timer or separate

remote control system.

•This appliance has been designed for

domestic use to cook edible foodstuffs only

and must not be used for any other purposes.

•Take great care when heating fats and oils,

as they will ignite if they become too hot.

•Never place plastic or any other material,

which may melt in or on the oven.

•Do not leave the grill pan handle in position

when grilling, as it will become hot.

•Always support the grill pan when it is in the

withdrawn or partially withdrawn position.

•Always use oven gloves to remove and

replace the grill pan handle when grilling.

•Always use oven gloves to remove and place

food in the oven.

•Ensure cooking utensils are large enough to

contain foods to prevent spillage and boil

over.

•The handles of saucepans, which are smaller

than the heated area on the hob, will become

hot.

•Ensure your hand is protected before

handling the pan.

•Do not use the appliance if the ceramic glass

is damaged. If a fault or crack becomes

visible, disconnect the appliance immediately

from the electricity supply and contact your

local service force centre.

•During use the appliance becomes hot. Care

should be taken to avoid touching heating

elements inside the oven.

•Ensure that all vents are not obstructed to

ensure ventilation of the oven cavity.

•Never line any part of the appliance with foil.

•Always stand back from the appliance when

opening the doors to allow any build up of

steam or heat to release.

WARNING!

Never leave the appliance unattended when

the oven door is open.

•Do not place sealed cans or aerosols inside

the oven. They may explode if they are

heated.

•Ensure that all control knobs are in the off

position when not in use.

•Do not stand on the appliance or on the open

oven doors.

•Do not hang towels, dishcloths or clothes

from the appliance or its handles.

•Do not use this appliance if it is in contact

with water.

•Never operate it with wet hands.

Cleaning and maintenance

WARNING!

For hygiene and safety reasons this

appliance should be kept clean at all times.

A build-up of fat or other foodstuff could

result in a fire especially in the grill pan.

•Do not leave the cookware containing

foodstuff, e.g. fat or oil in the appliance in

case it is inadvertently switched on.

•Extreme care must be taken when using a

ceramic hob scraper.

•Always allow the appliance to cool before

switching off at the wall prior to carrying out

any cleaning/maintenance work.

•Only clean this appliance in accordance with

the instructions given in this book.

•Never use steam or high-pressure steam

cleaners to clean the appliance.

Product description

Controls and their functions

Hob controls Hob controls

Main oven

temperature control Top oven / Grill

control

Top oven / Grill indicator neonMain oven indicator neon

Control panel

Top oven / Grill

Main oven

Before using the appliance

Rating plate

•This is situated on the lower front frame of the

appliance and can be seen upon opening the

door. Alternatively the rating plate may also be

found on the back or top of some models

(where applicable).

•The appliance must be protected by a suitably

rated fuse or circuit breaker.

•The rating of the appliance is given on the

rating plate.

•Do not remove the rating plate from the

appliance as this may invalidate the

guarantee.

Preparing to use your appliance

•Wipe over the base of the oven(s) with a soft

cloth using hot soapy water. Wash the furniture

before use.

•We suggest that you run the oven(s) and grill

for 10 – 15 minutes at maximum temperature,

to burn off any residue from their surfaces.

Accessible parts may become hotter than in

normal use. Children should be kept away.

During this period an odour may be emitted, it

is therefore advisable to open a window for

ventilation.

The cooling fan for the controls

•The cooling fan comes on immediately when

the grill/top oven is switched on and after a

short time when the main oven is in use. It may

run on after the controls are switched off until

the appliance has cooled.

•During the initial period the cooling fan may

turn on and off, this is quite normal.

WARNING!

Always allow the cooling fan to cool the

appliance down before switching offat the wall

prior to carrying out any cleaning or maintenance

work.

Control panel indicator neon(s)

•The indicator neon will operate when the grill

(where applicable) or oven(s) is switched on.

The indicator neon will glow. It may turn on

and off during use to show that the setting is

being maintained. If the neon does not operate

as the instructions indicate the controls have

been incorrectly set. Return all controls to zero

and reset following the instructions for the

required setting.

Condensation and steam

•When food is heated it produces steam similar

to a boiling kettle. The vents allow some of this

steam to escape. However, always stand back

from the appliance when opening the door(s) to

allow any build up of steam or heat to release.

•If the steam comes into contact with a cool

surface on the outside of the appliance, e.g. a

trim, it will condense and produce water

droplets. This is quite normal and is not

caused by a fault on the appliance.

•To prevent discolouration, regularly wipe away

condensation and foodstuff from surfaces.

•For your safety wall coverings at the rear of the

appliance should be securely fixed to the wall.

Cookware

•Baking trays, dishes etc., should not be placed

directly against the grid covering the fan at the

back of the oven.

•Do not use baking trays larger than 30cm x

35cm (12” x 14”) as they will restrict the

circulation of heat and may affect performance.

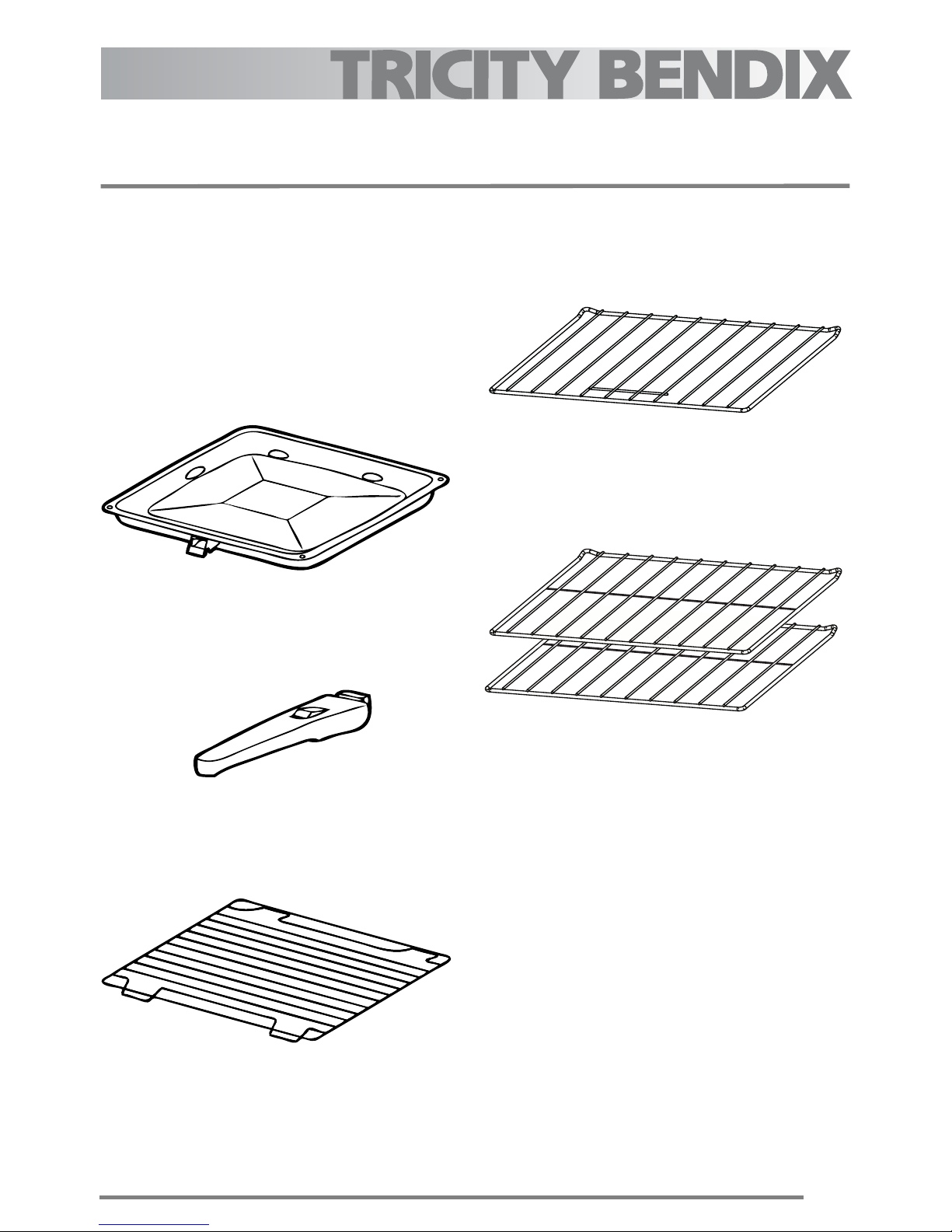

Grill and oven furniture

•The following items of grill and oven furniture

have been supplied with the appliance. If

you require replacements of any of the items

listed below please contact your local service

force centre.

1 grill pan

1 grill pan handle

1 grill pan grid

1 straight shelf

(For grilling and top oven cooking)

2 straight shelves

(For main oven cooking)

The hob

WARNING!

Do not use the appliance if the ceramic glass

is damaged. If a fault or crack becomes

visible, disconnect the appliance

immediately from the electricity supply and

contact your local service force centre.

Using the hob

Turn the hob control

knob to the required

setting.

The highest number represents the hottest

setting and the lowest number represents the

coolest setting. Choose a setting appropriate to

the quantity and type of food to be cooked.

Recommended saucepans

•Only saucepans with flat bases and close fitting

lids are recommended. The saucepan base

should be approximately the same size as the

cooking area.

•Ensure that new saucepans are well scrubbed

to remove edges and take off any deposits left

from manufacture.

•Traditional round-bottomed Woks must not be

used even with a stand. Woks with flat-

bottomed bases are available and do comply

with the above recommendations.

IMPORTANT!

Occasionally the heated areas may be seen

to switch on and off when higher heat

settings are being used. This is due to a

safety device, which prevents the glass from

overheating.

•Some switching on and off when cooking at

high temperatures, e.g. deep fat frying is quite

normal, causes no damage to the hob and little

delay in cooking times.

•Excessive switching may however be caused

by the use of an unsuitable saucepan or a

saucepan which is smaller than the heated

area. If excessive switching occurs,

discontinue use of the saucepan.

Hints and tips when using the

hob

•Lift, rather than slide saucepans on and off the

hob. This will reduce the risk of scratches and

metal marks from saucepans with aluminium

bases. Metal marks can be easily cleaned off

providing they are not allowed to burn on.

•Follow any guidelines provided by the

saucepan manufacturer, particularly those

relating to recommended heat settings.

•Avoid using thin, badly dented or distorted

saucepans. Those with uneven bases should

not be used.

•Never leave the hotplates on when not covered

with a saucepan.

•Ensure that the hob and saucepans are clean

and dry before the start of cooking.

•Follow the cleaning instructions very closely to

keep the hob looking like new.

•If spillage occurs with sugar solutions, e.g.

jams and syrups, it must be wiped from the hob

before it sets and becomes hard otherwise

damage to the hob will occur.

IMPORTANT!

Do not allow hot pans or baking trays to

touch the controls as dammage may occur.

The grill

CAUTION!

Accessible parts may be hot when the grill is

in use. Young children should be kept away.

The grill is a dual circuit grill which means that

the full area of the grill can be used, or for

economy purposes, the centre section only can

be used when cooking smaller quantities of

food.

Using the grill

Turn the top oven/grill

grill to the required

setting.

The grill settings are as follows:-

Full grill area at ¼ power.

Centre grill area at full power.

Full grill area at full power.

Things to note

•To ensure optimal cooking performance

the elements have been carefully

designed, so that only the inner element

glows red. The outer element is hot, but

will remain dark in colour. This gives you

the best possible cooking results.

•The cooling fan for the controls may operate

after a time.

•Some smoke from fat splashes may be

evident as the grill cleans itself.

WARNING!

Never cover the grill pan or grid with foil as

this can lead to grill fires.

The grill pan and handle

The grill pan has a removable handle. Attach and remove as described below

To attach. Press the

button on the handle

with the thumb and

insert the lip into the

widest part of the

bracket.

Slide the handle

towards the left and

release the button.

To Remove. Press

the button on the

handle with the thumb

and slide the handle

towards the right.

Release the button.

WARNING!

Ensure the handle is properly located.

Place the grill pan on the shelf so that the pan is

positioned centrally beneath the grill. Ensure

that the cut out on the underside of the handle

bracket locates between the bars of the shelf

and over the cross bar on the shelf.

WARNING!

Protect your hands when removing the grill

pan handle. Always remove the grill pan

handle during grilling.

IMPORTANT!

To check the progress of the food being grilled,

the grill pan should be withdrawn on the shelf to

attend to food during cooking.

Other manuals for SE500/1

This manual suits for next models

Table of contents

Other Tricity Bendix Kitchen Appliance manuals

Tricity Bendix

Tricity Bendix Electric Cooker User manual

Tricity Bendix

Tricity Bendix CSIE 510 User manual

Tricity Bendix

Tricity Bendix DSIE 456 User manual

Tricity Bendix

Tricity Bendix SI 452 User manual

Tricity Bendix

Tricity Bendix DSiE328W User manual

Tricity Bendix

Tricity Bendix Cooker User manual

Tricity Bendix

Tricity Bendix R-238A Instruction Manual

Tricity Bendix

Tricity Bendix CSIE317 User manual

Tricity Bendix

Tricity Bendix TDB950 User manual

Tricity Bendix

Tricity Bendix SI4023 User manual

Tricity Bendix

Tricity Bendix SIE326 User manual

Tricity Bendix

Tricity Bendix CSIE 452 User manual

Tricity Bendix

Tricity Bendix CSIE 501 User manual

Tricity Bendix

Tricity Bendix SIE401 User manual

Tricity Bendix

Tricity Bendix SI 222 Popular User manual

Tricity Bendix

Tricity Bendix RE50MW User manual

Tricity Bendix

Tricity Bendix SE326 User manual

Tricity Bendix

Tricity Bendix SI 222 Popular User manual

Tricity Bendix

Tricity Bendix SG210 Product guide

Tricity Bendix

Tricity Bendix Electric Cooker User manual

Tricity Bendix

Tricity Bendix SI 453 User manual

Tricity Bendix

Tricity Bendix SI 322 User manual

Tricity Bendix

Tricity Bendix SG 211 Product guide

Tricity Bendix

Tricity Bendix SG558 User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
