Silvercrest SSM 200 A1 User manual

IAN 96255

SORBET MAKER SSM 200 A1

SORBET-MAKER

Bedienungsanleitung

SORBET MAKER

Operating instructions SORBET-KÉSZÍTŐ

Használati utasítás

NAPRAVA ZA PRIPRAVO SORBETOV

Navodila za uporabo VÝROBNÍK SORBETU

Návod k obsluze

PRÍSTROJ NA PRÍPRAVU ZMRZLINY

Návod na obsluhu

GB Operating instructions Page 1

HU Használati utasítás Oldal 11

SI Navodila za uporabo Stran 21

CZ Návod k obsluze Strana 31

SK Návod na obsluhu Strana 41

DE/AT/CH Bedienungsanleitung Seite 51

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of

the device.

Olvasás előtt kattintson az ábrát tartalmazó oldalra és végezetül ismerje meg a készülék mindegyik

funkcióját.

Pred branjem odprite stran s slikami in se nato seznanite z vsemi funkcijami naprave.

Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.

Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami prístroja.

Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend mit allen

Funktionen des Gerätes vertraut.

B C

SSM 200 A1

Contents

Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Description of the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Assembly. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Preparing ingredients . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using the appliance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Cleaning and care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Warranty and service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Importer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Recipes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Tropicana sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Melon & berry sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Banana & pineapple sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Banana sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Kiwi-Mango Sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Strawberry and pineapple sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Pistachio & berry sorbet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Chocolate kiwi sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Raspberry & pear sorbet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Peach & banana sorbet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

2SSM 200 A1

Introduction

Congratulations on the purchase of your new

appliance.

You have selected a high-quality product.

The operating instructions are part of this product.

They contain important information on safety, usage

and disposal. Before using the product, familiarise

yourself with all handling and safety guidelines.

Use the product only as described and for the range

of applications speciﬁed. Please also pass these

operating instructions on to any future owner(s).

Intended use

This appliance is intended exclusively for making

sorbet from frozen fruit. This appliance is intended

solely for use in private households. Do not use it

for commercial purposes.

Package contents

Sorbet Maker

Operating instructions

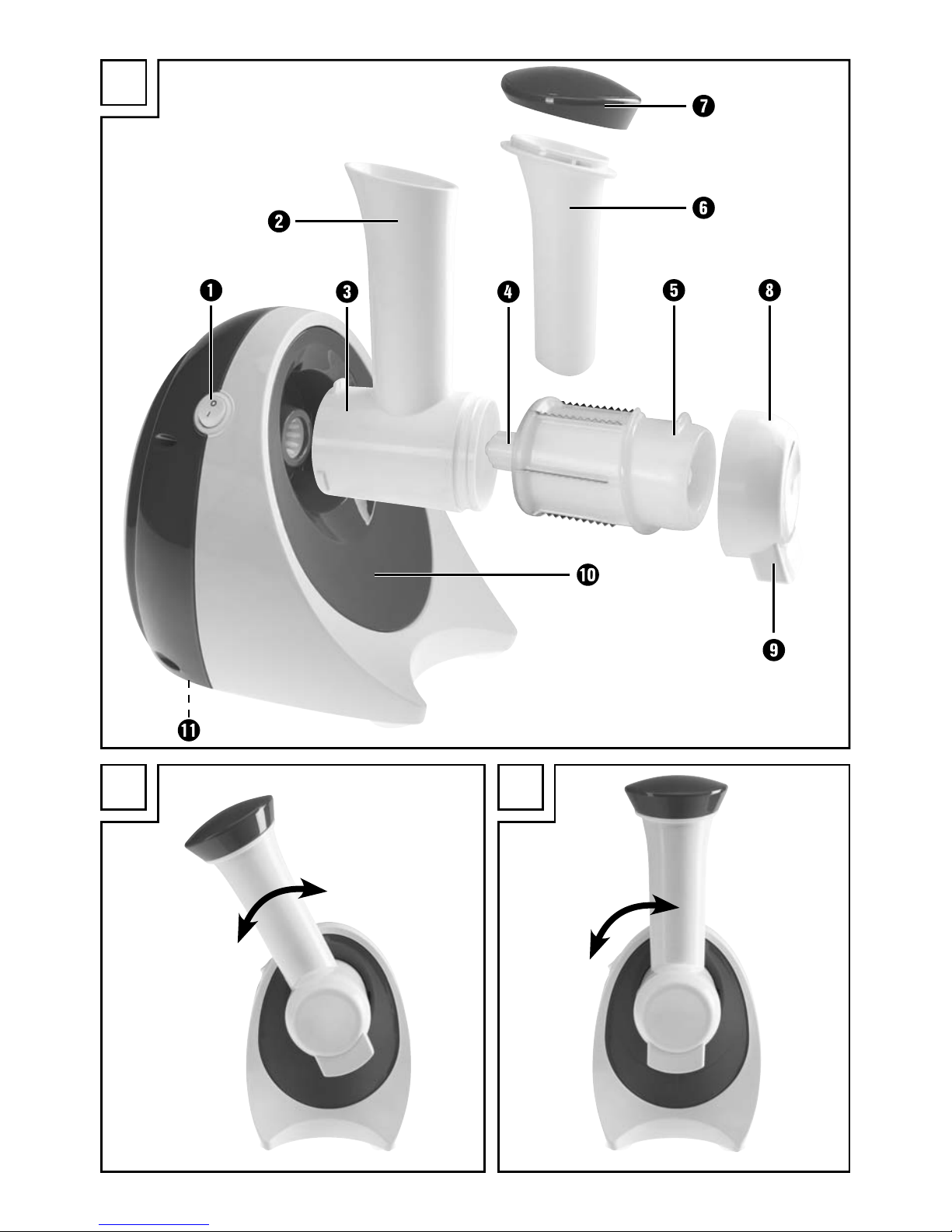

Description of the appliance

1On/Oﬀ switch

2Feeding tube

3Roller housing

4Drive shaft

5Blade roller

6Pusher

7Pusher lid

8End cap

9Outlet

0Motor unit

qCable storage compartment

Technical data

Rated voltage: 220 - 240 V ∼, 50 Hz

Rated input: 200 W

Protection class: II

CO time: 2 minutes

CO time

The CO time (continuous operation time) is the

amount of time an appliance can be operated

without the motor overheating and becoming dam-

aged. After the appliance has run for this length of

time, it must be switched oﬀ for about 1 minute to

allow the motor to cool down.

SSM 200 A1

Safety guidelines

RISK OF ELECTRIC SHOCK

► Connect the appliance only to mains power sockets supplying a mains

power voltage of 220 - 240 V ~, 50 Hz.

► To prevent accidents, have defective plugs and/or power cables replaced

immediately by an authorised specialist technician or our Customer Service

department.

► In event of operating malfunctions and before cleaning the appliance,

remove the power plug from the mains power socket.

► Always remove the power cable from the socket by pulling on the plug, not

on the power cable itself.

► Do not kink or crush the power cable, and route the cable so that it cannot

be stepped on or tripped over.

► Do not expose the appliance to humidity and do not use it outdoors.

If liquid gets into the housing, disconnect the appliance from the mains

power socket immediately and have it repaired by a qualiﬁed technician.

► NEVER take hold the motor unit, the power cable or the power plug with

wet hands.

► If the power cable or the motor unit are damaged, you must have the appli-

ance repaired by qualiﬁed technicians before using it again.

► Do not open the housing of the appliance motor unit. Doing so can lead

to risks and also invalidates the warranty.

► Disconnect the appliance from the mains power source immediately after

use. The appliance is completely free of electrical power ONLY when

unplugged.

Never immerse the motor unit of the appliance in liquid and do not allow

any liquids to enter the housing of the motor unit.

4SSM 200 A1

GB WARNING! RISK OF INJURY!

► This appliance should not be used by children.

► Keep the appliance and its cord out of reach of children.

► This appliance may be used by persons with limited physical, sensory or

mental capabilities or lack of experience and knowledge, provided that

they are under supervision or have been told how to use the appliance

safely and are aware of the potential risks.

► Children must not use the appliance as a plaything.

► Handle the sharp blades with caution as they could cause injuries.

Reassemble the appliance after using and/or cleaning it so that you do not

injure yourself with the exposed blades. Keep the blades out of the reach

of children.

► The appliance and its connecting cable must be kept away from children.

► The appliance should always be disconnected from the mains when un-

attended and before assembly, disassembly or cleaning.

► Never put your hand into the openings of the appliance. Do not insert any

objects of any kind into the openings – except for the pusher and the food-

stuﬀs to be processed. If you do, there will be a serious risk of accidents!

► Before changing accessories or additional parts that are in motion dur-

ing operation, the appliance must be switched oﬀ and disconnected from

mains power.

CAUTION! MATERIAL DAMAGE!

► Do not try to use the appliance to crush ice cubes! This will irreparably

damage the appliance!

SSM 200 A1

Assembly

1) Remove all packaging materials and any stickers

from the appliance.

2) Clean the appliance as described in the section

“Cleaning and Care”.

3) Place the motor unit 0on a ﬂat surface.

4) Push the knife roller 5into the roller housing 3.

The drive shaft 4must project into the opening

of the roller housing 3.

5) Screw the end cap 8onto the roller housing 3,

until the outlet 9is pointing downwards and

the end cap 8no longer turns. In doing so,

turn the end cap 8in clockwise direction.

6) Push the assembled roller housing 3into the

motor unit 0, so that the feed tube 2is slightly

oﬀset (see Figure B on the fold-out page). The

locking mechanisms on the roller housing 3

must reach into the slots on the motor unit 0.

Turn the roller housing 3, so that the feed tube 2

is facing upwards and the roller housing 3

snaps into place (see Figure C on the fold-out

page).

7) Place the pusher 6into the feed tube 2.

NOTE

► The pusher lid 7can be removed.

For removal:

–Turn the pusher lid 7anticlockwise until it

allows itself to be removed.

For set up:

–Place the pusher lid 7on the pusher 6,

so that both locking mechanisms on the

pusher lid 7slide through the slots on the

pusher 6and then turn the pusher lid 7

in clockwise direction so that it is ﬁrmly

held in place.

8) Insert the plug into a mains power socket.

The appliance is now ready for use.

Preparing ingredients

CAUTION! MATERIAL DAMAGE!

► Do not process fruits with stones or cores.

► Do not process whole nuts.

► Do not process ice cubes.

♦ Peel fruits such as bananas or kiwis.

♦ Remove cores, stones or stems from the fruit.

♦ Cut the fruit into small pieces so that it will easily

ﬁ

t through the feed tube 2.

♦ Ingredients such as such as cooking chocolate

must be crushed into small pieces.

♦ Put the prepared fruit in freezer bags or plastic

tubs and place them into the freezer for approxi-

mately 24 hours (-18°C).

NOTE

► Instead of freezing fresh fruit, you can use fruit

that has already frozen from the deep-freezer.

Using the appliance

1) Take the fruits out of the freezer about 10–

20 minutes before use.

2) Place a suitable bowl under the outlet 9.

3) Remove the pusher 6from the feed tube 2.

4) Add the prepared fruits into the feed tube 2.

5) Switch on the appliance using the on/oﬀ

switch 1(position I).

6SSM 200 A1

6) Applying light pressure, use the pusher 6to

push the fruit into the appliance. The chopped

fruit will come out of the outlet 9after a short

time. If the pusher 6cannot be pressed further

down, remove it and add a little more fruit or

ingredients.

NOTE

► If you want to make a sorbet from several

diﬀerent fruits/ingredients, add the diﬀerent

fruits alternately into the feed tube 2. In this

way, the fruits will be mixed directly.

7) Once all the fruits are chopped, stop the appli-

ance by moving the on/oﬀ switch 1to the O

position.

8) Remove the power plug from the socket.

9) Unscrew the end cap 8and pull the blade

roller 5carefully out of the roller housing 3.

10) Use a knife to scrape any remaining fruit

residue from between the blades on the blade

roller 5and add this to the bowl.

11) Mix the fruit in the bowl.

You can now serve the sorbet.

Cleaning and care

RISK OF ELECTRIC SHOCK

► Always remove the plug from the mains power

socket before you clean the appliance.

Ensure you never submerse the motor unit 0

in liquid, and never allow liquid to enter the

motor unit housing 0.

WARNING! RISK OF INJURY!

► Take great care when handling the blade

roller 5.

♦ Clean the motor unit 0with a moist cloth after

every use . If there is heavy soiling, add mild

detergent to the cloth. Rinse detergent residues

oﬀ with clear water. Ensure that there are no

detergent residues on the appliance, and that the

appliance is completely dry before renewed use.

♦ Remove the pusher lid 7from the pusher 6for

cleaning purposes.

♦ Wash the pusher 6, the pusher lid 7, the

blade roller 5, the end cap 8and the roller

housing 3in lukewarm water with a little

detergent.

♦ Ensure that all parts are completely dry before

re-use.

NOTE

► You can also wash the pusher 6, the pusher

lid 7, the end cap 8and the roller housing 3

in the dishwasher.

Place the parts, where possible, in the upper

basket and ensure that none of the parts can

get stuck. Otherwise they could get bent or

otherwise deformed.

SSM 200 A1

Storage

♦ Always clean the appliance thoroughly before

storing.

♦ Push the power cable and plug into the cable

storage compartment qon the underside of the

appliance.

♦ Store the appliance in a clean and dry location.

Warranty and service

You are provided a 3-year warranty on this

appliance, valid from the date of purchase.

This appliance has been manufactured with care

and inspected meticulously prior to delivery.

Please retain your receipt as proof of purchase. In

the event of a warranty claim, please contact your

Customer Service unit by telephone. This is the

only way to guarantee free return of your goods.

The warranty only covers claims for material and

manufacturing defects, not for damage sustained

during carriage, components subject to wear and

tear or damage to fragile components such as

switches or rechargeable batteries. This appliance

is intended solely for private use and not for com-

mercial purposes.

The warranty shall be deemed void in cases of

misuse or improper handling, use of force and

interventions which have not been carried out by

one of our authorised Service centres.

Your statutory rights are not restricted by this

warranty.

The warranty period is not prolonged by repairs

eﬀected under the warranty. This also applies to

replaced and repaired components. Any damage

and defects present at the time of purchase must be

reported immediately after unpacking, but no later

than two days after the date of purchase. Repairs

carried out after expiry of the warranty period shall

be subject to charge.

Service Great Britain

Tel.: 0871 5000 720 (£ 0.10/Min.)

E-Mail: k[email protected]

IAN 96255

Hotline availability:

Monday to Friday 08:00 - 20:00 (CET)

Disposal

Never dispose of the appli-

ance in the normal domestic

waste. This product is subject

to the provisions of European

Directive 2012/19/EU.

Dispose of the appliance via an approved waste

disposal company or your municipal waste disposal

facility. Please observe applicable regulations.

Please contact your waste disposal facility if you

are in any doubt.

The packaging is made from environ-

mentally friendly material and can be

disposed of at your local recycling plant.

Importer

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Other manuals for SSM 200 A1

Table of contents

Languages:

Other Silvercrest Kitchen Appliance manuals

Silvercrest

Silvercrest SFW 350 D2 User manual

Silvercrest

Silvercrest SMUK 1500 A1 User manual

Silvercrest

Silvercrest PIZZA RACLETTE User manual

Silvercrest

Silvercrest SMK 2500 A1 User manual

Silvercrest

Silvercrest SMA 500 F1 User manual

Silvercrest

Silvercrest SEAD 1800 B1 User manual

Silvercrest

Silvercrest SCM 1400 A1 User manual

Silvercrest

Silvercrest 87712 User manual

Silvercrest

Silvercrest SFW 350 C1 User manual

Silvercrest

Silvercrest SWWS 240 C2 User manual

Silvercrest

Silvercrest 86510 User manual

Silvercrest

Silvercrest SDA 350 A2 User manual

Silvercrest

Silvercrest SMA 500 A1 User manual

Silvercrest

Silvercrest SPM 2000 A2 User manual

Silvercrest

Silvercrest SFW 350 C1 User manual

Silvercrest

Silvercrest SGR 150 A1 User manual

Silvercrest

Silvercrest SMA 500 A1 User manual

Silvercrest

Silvercrest SPCM 1200 B1 User manual

Silvercrest

Silvercrest 96281 User manual

Silvercrest

Silvercrest SDA 350 A2 User manual

Silvercrest

Silvercrest SPCM 1200 A1 User manual

Silvercrest

Silvercrest SFW 350 E5 User manual

Silvercrest

Silvercrest SGR 150 C2 Product information sheet

Silvercrest

Silvercrest 388898 2107 User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
