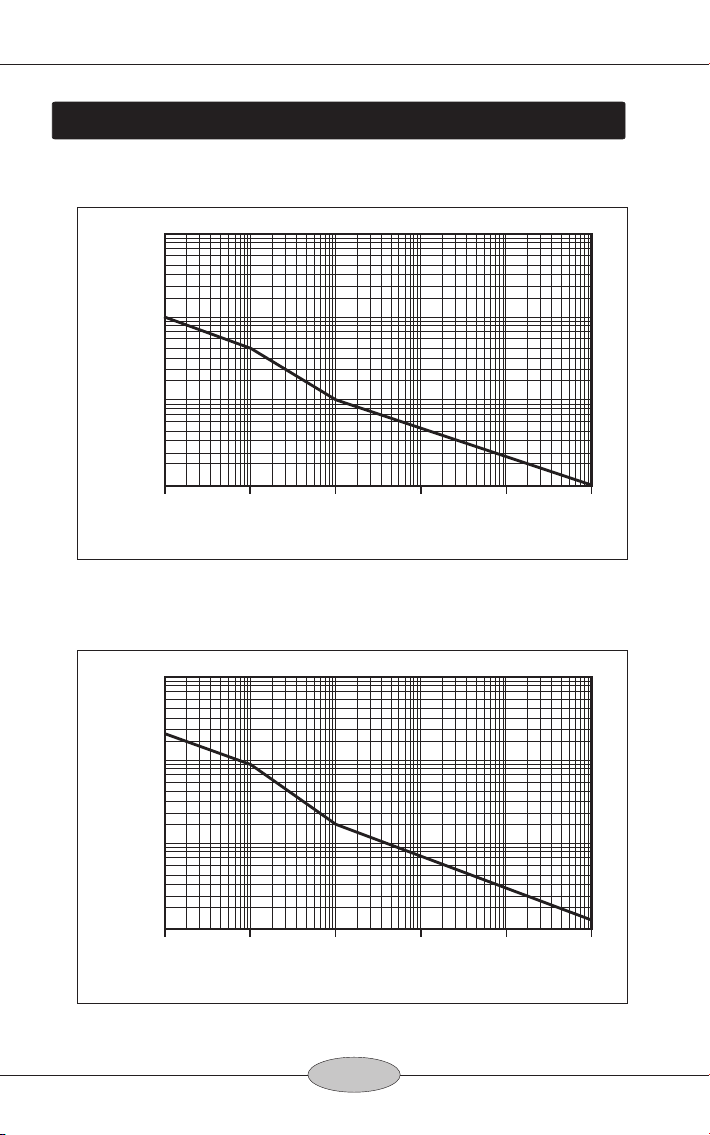

High Frequence High Voltage Probe Instruction Manual
2.SAFETY PRECAUTIONS
This high voltage probe only for the person who are trained,
experienced, or otherwise qualified to recognize hazardous
situations and who trained in the safety precautions that necessary
to avoid possible injury when using such a device.
Do not work alone when working with high voltage circuits.
For your own safety, inspect the probes for cracks and frayed or
broken leads before each use. If defects are noted, DO NOT USE the
probe.
Hands, shoes, floor and work bench must be dry. Avoid making
measurements under humid, damp or other environmental
conditions that might affect the safety of the measurement situation.
If possible, always turn the high voltage source off before connection
or disconnection the probe.
The probe body should be kept clean and free of any conductive
contamination.
The probe is for indoor use only.
Note:
Please hold the handle when in use. Do not pull the wire.
Replacement or refund is not possible if the co-axis wire is broken
caused by the pulling of wire.

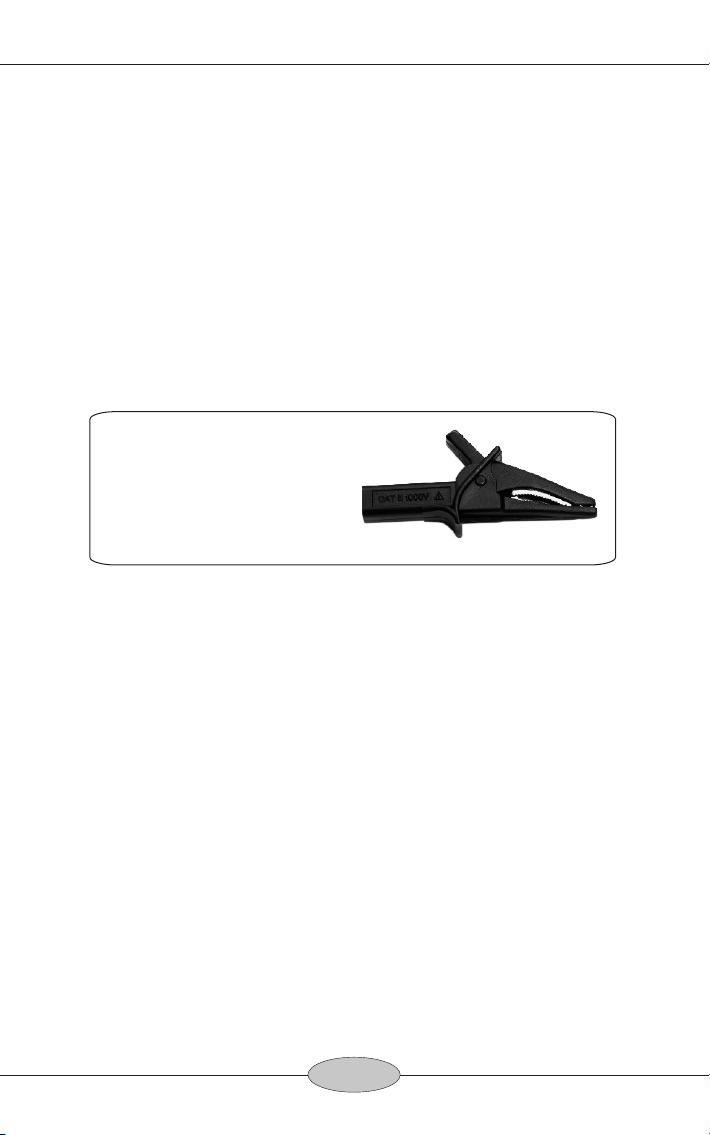

Connect the divider probe common lead(alligator clip) to a good
earth ground or reliable ground.
Connect the BNC connector to the BNC input of your oscilloscope.
Select the desired range of your oscilloscope. Whenever possible,
turn the high voltage source off before making any connections.

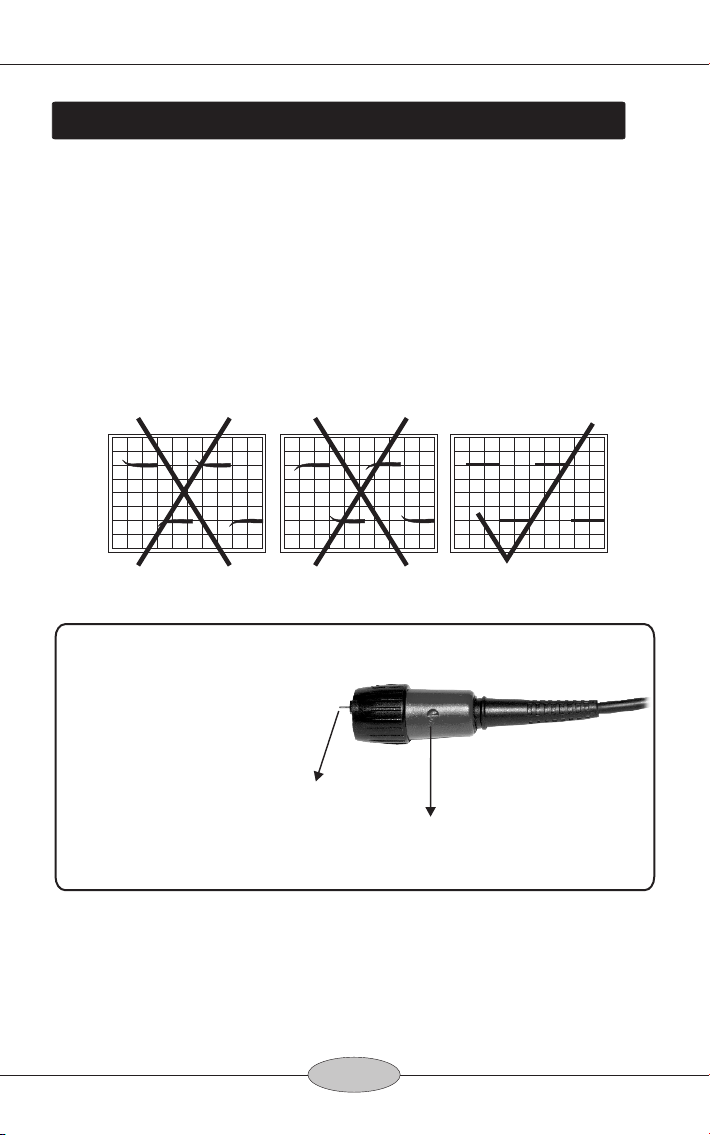

3.OPERATION
