Goldmedal 5550 User manual

Part No. 42687

Revised March 2003

HOLDING CABINETS

Instruction Manual

Model #5550 AND #5551

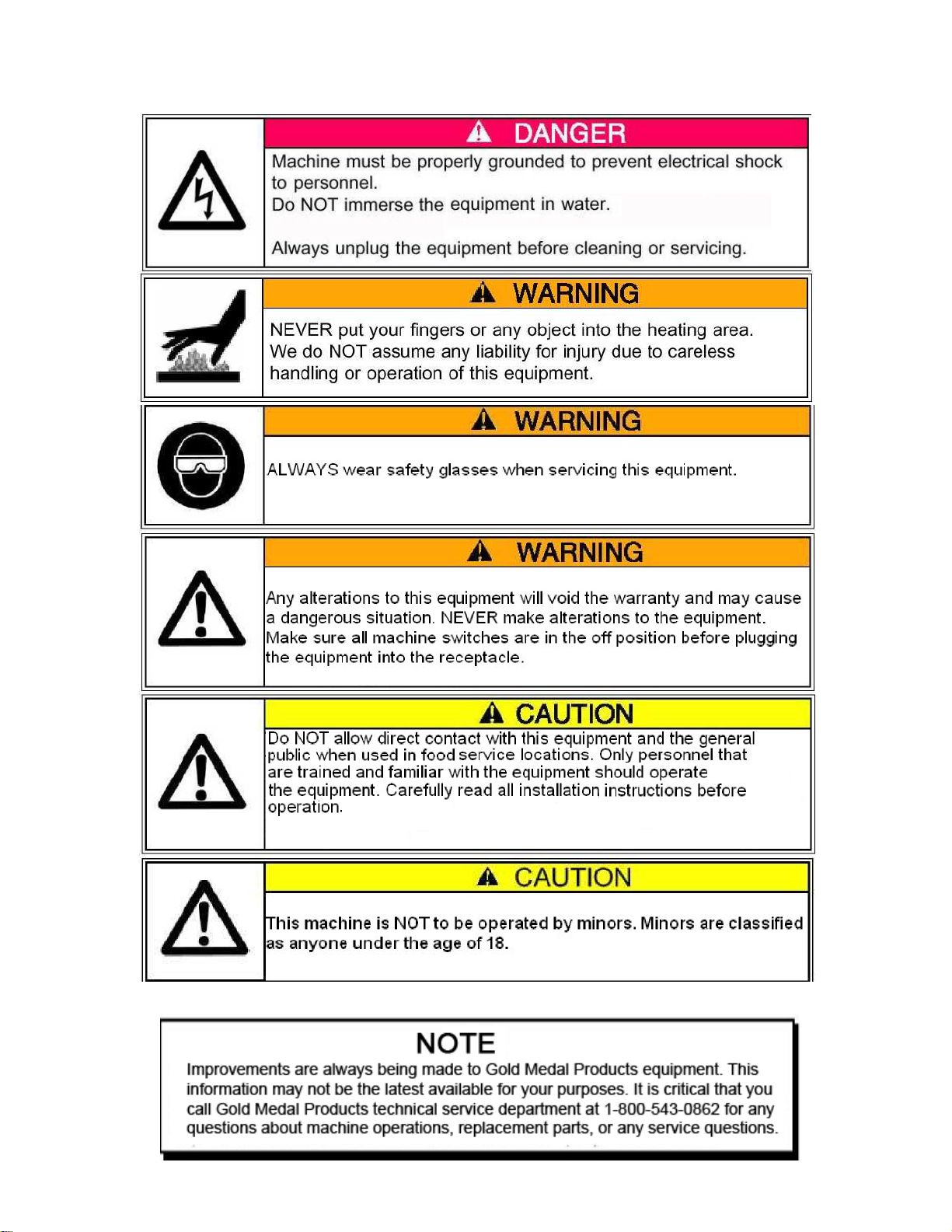

SAFETY PRECAUTIONS

Holding Cabinets

All Models #5550 and #5551

FORWARD

This manual covers the all models #5550 and #5551 product holding cabinets. You can be very proud of

your 5550 or 5551 Holding Cabinet. In addition to being an attractive "eye catcher", it contains various

engineering innovations which make it the leader in the industry. The exterior of the machine is designed

and built-up to present an attractive appearance for many years.

INSTALLATION

CHECKING SHIPMENT

Unpack the shipping crate and check thoroughly for any damage which may have occurred in transit. Any

claims should be filed immediately with the transportation company.

ELECTRICAL REQUIREMENTS

Voltage for your warmer is 120 Volt, 60 Cycle. The Holding Cabinets will draw 1020 Watts. Your electrician

must furnish sufficient current for the proper operation of your machine. We recommend that this machine

be fused on a line by itself. The switches and controls which operate the warmer are located on the top front

of the machine.

Holding Cabinets

All Models #5550 and #5551

OPERATING INSTRUCTIONS

CONTROLS AND THEIR FUNCTIONS

LIGHT SWITCH

Flipping this switch to the "ON" position energizes the light and rotisserie motor.

Note: The rotisserie will only function with the door closed

HEAT SWITCH

Flipping this switch to the "ON" position energizes the heat element.

Note: The is heat element is controlled by the temperature control.

HEAT CONTROL

The machine comes with a variable heat control. The control is graduated from OFF to HIGH. The proper

setting of this control will depend on the temperature of the items being placed inside and how many times

the door is opened.

EASY STEPS FOR USING UNIT

1. Fill one or both pans to provide humidity as needed

2. Turn heat switch to on position

3. Turn heat control to high and preheat unit approximately 1 hour.

4. Turn temperature control to 170 DEG. F to maintain 150 DEG. F product temperature.

5. Load food products when preheat is complete. If loading pizza, place in cabinet straight from cooking

oven.

6. Turn on light switch for light and rotating rack if equipped.

CARE AND CLEANING

The stainless steel body of the Warmer is easy to keep clean. Usually a damp cloth will remove all dirt and

grease spots. NEVER USE ABRASIVES on the stainless steel body. The glass should always be clean

and sparkling. Remember the inside of the glass must be cleaned too.

Holding Cabinets

All Models #5550 and #5551

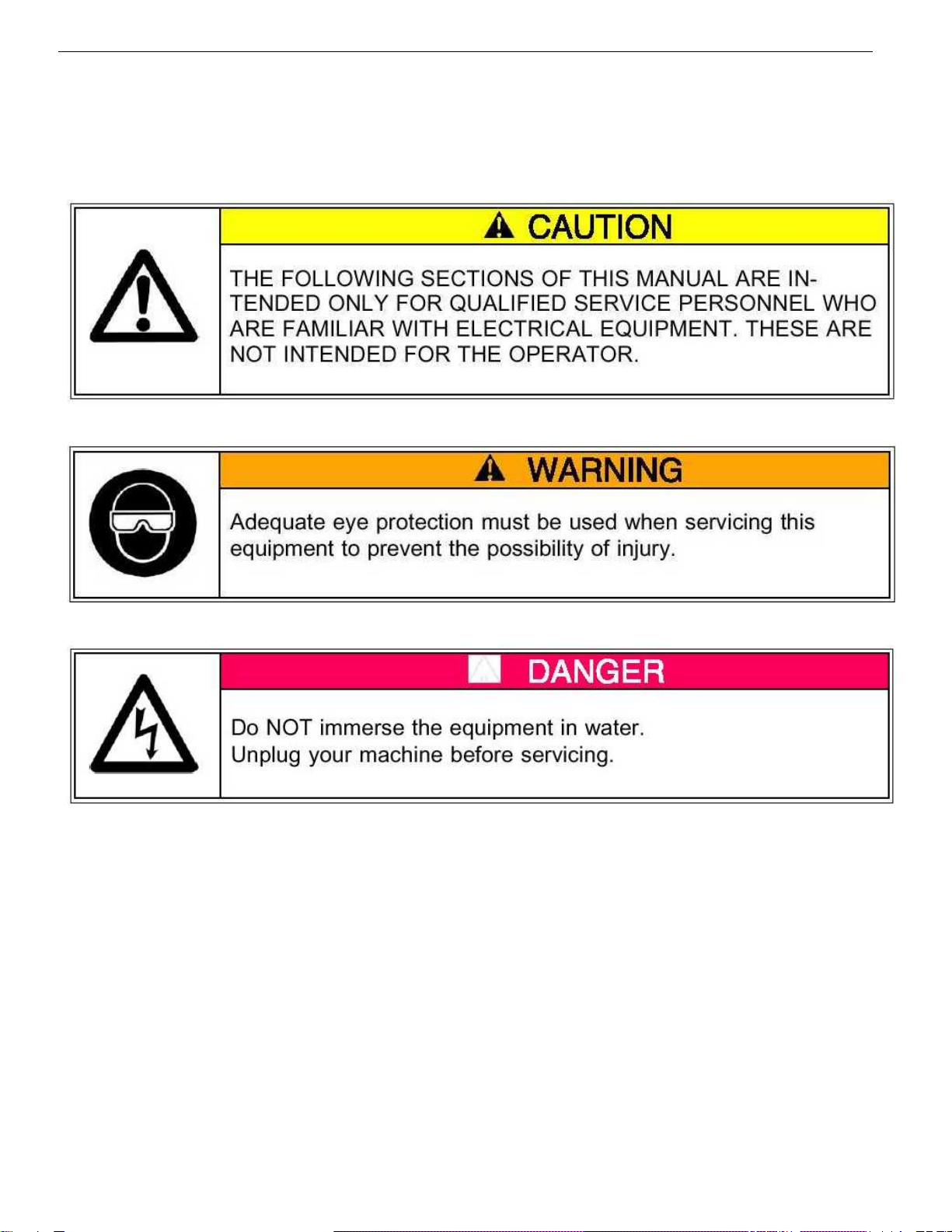

MAINTENANCE INSTRUCTIONS

Holding Cabinets

All Models #5550 and #5551

ORDERING SPARE PARTS

*Always speak to a Gold Medal Products Technical Service Advisor before ordering any

parts to help ensure accuracy for your product. Include diagrams may not be the latest

information.

1. Identify the needed part by checking it against the photos, illustrations, and/or parts list.

2. When ordering, please include part number, part name, and quantity needed.

3. Please include your model name, serial number, and date of manufacture (located on the machine

nameplate) with your order.

4. Address all parts orders to:

Parts Department

Gold Medal Products Co.

10700 Medallion Drive

Cincinnati, Ohio 45241-4807

Or, place orders by phone or online:

(800) 543-0862

(513) 769-7676

Fax: (513) 769-8500

E-mail: [email protected]:

Web Page: www.gmpopcorn.com

Holding Cabinets

All Models #5550 and #5551

PARTS LIST

MODEL #5550

Model # Model # Model #

5550PR 5550PZ 5550FR

Item No Part No Part No Part No Description

1 22038 22038 22038 Lead-In Cord*

2 17626 17626 17626 Heat Element

3 40712 40712 ~~ Plunger Switch

4 41033 41033 41033 Pilot Light

5 42798 42798 42798 Rocker On/Off Switch

6 50296 50296 ~~ Drive Motor

7 42653 ~~ ~~ Preztel Rack

~~ 43242 ~~ Pizza Rack *

~~ ~~ 43417 Flat Rack *

8 42617 42617 42617 Heat Control

9 42619 42619 42619 Thermometer

10 42620 42620 42620 Dome

11 42621 42621 42621 Pan Cover

12 42622 42622 42622 Bottom Pan

13 42625 42625 42625 Wire Cover

14 42628 42628 42628 Hinge

15 42627 42627 42627 HingePin

16 42629 42629 42629 Element PanWeldment

17 42630 42630 42630 Drive Connector

18 42643 42643 42643 Inner Door Weldment

19 42644 42644 42644 Outer Door Weldment

20 42648 42648 42648 Frame Weldment

21 42654 42654 42654 Bottom Plate

22 67512 67512 67512 Door Magnet *

23 87049 87049 87049 Knob, Heat Control

24 42650 42650 42650 Front and Side Glass

25 42659 42659 42659 Door Glass

26 42626 42626 42626 Door Handle

27 44073 44073 44073 StrainRelief *

28 42616 42616 42616 4" Plastic NSF Legs

29 42660 42659 Side Graphics

30 42651 42651 42651 Side Glass Channel

31 42652 42652 42652 Top Glass Channel

32 42655 42655 42655 Front Label

33 74142 74142 74142 #8-32X 1/4Pan HD PH(34)

34 43208 43208 43208 Theromstat

35 42006 42006 42006 Terminal Block

* Not Shown

Holding Cabinets

All Models #5550 and #5551

PARTS LIST

MODEL #5551

Model # Model # Model #

5551PR 5551PZ 5551FR

Item No Part No Part No Part No Description

1 22038 22038 22038 Lead-In Cord *

2 17626 17626 17626 Heat Element

3 40712 40712 ~~ Plunger Switch

4 41033 41033 41033 Pilot Light

5 42798 42798 42798 Rocker On/Off Switch

6 50296 50296 ~~ Drive Motor

7 42779 ~~ ~~ Preztel Rack

~~ 42780 ~~ Pizza Rack *

~~ ~~ 43209 Flat Rack *

8 42617 42617 42617 Heat Control

9 42619 42619 42619 Thermometer

10 42763 42763 42763 Dome

11 42621 42621 42621 Pan Cover

12 42764 42764 42764 Bottom Pan

13 42767 42767 42767 Wire Cover

14 42628 42628 42628 Hinge

15 42627 42627 42627 Hinge Pin

16 42768 42768 42768 Element Pan Weldment

17 42630 42630 42630 Drive Connector

18 42774 42774 42774 Inner Door Weldment

19 42775 42775 42775 Outer Door Weldment

20 42776 42776 42776 Frame Weldment

21 42781 42781 42781 Bottom Plate

22 67512 67512 67512 Door Magnet *

23 87049 87049 87049 Knob, Heat Control

24 42778 42778 42778 Side Glass

25 42777 42777 42777 Door Glass

26 42626 42626 42626 Door Handle

27 87163 87163 87163 Strain Relief *

28 47155 47155 47155 Rubber Feet 3/4" High

29 43270 43271 SideGraphics

30 42651 42651 42651 Side Glass Channel

31 42652 42652 42652 Top Glass Channel

32 42782 42782 42782 Front Label

33 74142 74142 74142 #8-32 X 1/4 Pan HD PH (34)

34 43208 43208 43208 Thermostat

35 42006 42006 42006 Terminal Block

* Not Shown

Holding Cabinets

All Models #5550 and #5551

Model # Model # Model#

5550PRD 5550PZD 5550FRD

Item No Part No Part No Part No Description

1 22038 22038 22038 Lead-In Cord *

2 17626 17626 17626 Heat Element

3 40712 40712 ~~ Plunger Switch (2)

4 41033 41033 41033 Pilot Light

5 42798 42798 42798 Rocker On/Off Switch

6 50296 50296 ~~ Drive Motor

7 42653 ~~ ~~ Preztel Rack

~~ 43242 ~~ Pizza Rack *

~~ ~~ 43417 Flat Rack *

8 42617 42617 42617 Heat Control

9 42619 42619 42619 Thermometer

10 43243 43243 42620 Dome

11 42621 42621 42621 Pan Cover

12 43250 43250 42622 Bottom Pan

13 42625 42625 42625 Wire Cover

14 42628 42628 42628 Hinge (4)

15 42627 42627 42627 Hinge Pin (4)

16 42629 42629 42629 Element Pan Weldment

17 42630 42630 42630 Drive Connector

18 42643 42643 42643 Inner Door Weldment (2)

19 42644 42644 42644 Outer Door Weldment (2)

20 42648 42648 42648 Frame Weldment

21 42654 42654 42654 Bottom Plate

22 67512 67512 67512 Door Magnet *

23 87049 87049 87049 Knob, Heat Control

24 42650 42650 42650 Front and Side Glass (2)

25 42659 42659 42659 Door Glass (2)

26 42626 42626 42626 Door Handle

27 44073 44073 44073 Strain Relief *

28 42616 42616 42616 4" Plastic NSF Legs

29 42660 42659 Side Graphics

30 42651 42651 42651 Side Glass Channel

31 42652 42652 42652 Top Glass Channel

32 42655 42655 42655 Front Label

33 74142 74142 74142 #8-32 X 1/4 Pan HD PH (34)

34 43208 43208 43208 Thermostat

35 42006 42006 42006 Terminal Block

* Not Shown

DOUBLE DOOR PARTS LIST

MODEL #5550

Holding Cabinets

All Models #5550 and #5551

DOUBLE DOOR PARTS LIST

MODEL #5551

Model # Model # Model #

5551PRD 5551PZD 5551FRD

Item No Part No Part No Part No Description

1 22038 22038 22038 Lead-In Cord*

2 17626 17626 17626 Heat Element

3 40712 40712 ~~ Plunger Switch (2)

4 41033 41033 41033 Pilot Light

5 42798 42798 42798 Rocker On/Off Switch

6 50296 50296 ~~ Drive Motor

7 42779 ~~ ~~ Preztel Rack

~~ 42780 ~~ Pizza Rack *

~~ ~~ 43209 Flat Rack *

8 42617 42617 42617 Heat Control

9 42619 42619 42619 Thermometer

10 43244 43244 43244 Dome

11 42621 42621 42621 Pan Cover

12 43249 43249 43249 Bottom Pan

13 42767 42767 42767 Wire Cover

14 42628 42628 42628 Hinge (4)

15 42627 42627 42627 Hinge Pin (4)

16 42768 42768 42768 Element Pan Weldment

17 42630 42630 42630 Drive Connector

18 42774 42774 42774 Inner Door Weldment (2)

19 42775 42775 42775 Outer Door Weldment (2)

20 42776 42776 42776 Frame Weldment

21 42781 42781 42781 Bottom Plate

22 67512 67512 67512 Door Magnet (2) *

23 87049 87049 87049 Knob, Heat Control

24 42778 42778 42778 Side Glass (2)

25 42777 42777 42777 Door Glass (2)

26 42626 42626 42626 Door Handle

27 87163 87163 87163 StrainRelief *

28 47155 47155 47155 Rubber Feet 3/4" High

29 43270 43271 Side Graphics

30 42651 42651 42651 Side Glass Channel

31 42652 42652 42652 Top Glass Channel

32 42782 42782 42782 Front Label

33 74142 74142 74142 #8-32 X 1/4 Pan HD PH (34)

34 43208 43208 43208 Thermostat

35 42006 42006 42006 Terminal Block

* Not Shown
