Goldmedal 2033EX User manual

Instruction Manual

10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

Jumbo 360

Model No. 2033BG, 2033EX, 2033DC

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 2

gmpopcorn.com

SAFETY PRECAUTIONS

DANGER

Gas is safe when used properly, but can be very dangerous when used

improperly. We suggest that installation be carefully made by qualified

personnel only. Gas companies have competent service personnel to

provide safe installation.

001_010914

DANGER

DO NOT use a match or flame to check for gas leaks – you may cause a fire

or explosion!

003_010914

DANGER

Never add water to hot oil. When water is added to hot oil a stream explosion

may ensue spattering hot oil resulting in serious burns or more seriously hot

oil in someone’s eyes.

024_010914

DANGER

Hot oil is dangerous – severe burns can result when hot oil contacts the skin.

Hot oil is flammable – keep open flames away from hot oil and its vapors.

Keep a fire extinguisher near this unit.

Instruct personnel on what to do if there is a grease fire. DO NOT USE

WATER ON A GREASE FIRE! Use only fire extinguishers approved for

grease, oil, and electric fire.

002_102214

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 3

gmpopcorn.com

SAFETY PRECAUTIONS (continued)

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

DO NOT store or use gasoline, or other flammable vapors and liquids, in the

vicinity of this equipment.

004_010914

WARNING

Instructions on what to do when a user smells gas can be obtained from the

local gas supplier. These instructions must be posted in a prominent location

where the unit is to be operated.

005_010914

WARNING

To avoid burns, DO NOT touch the kettle or any heated surface.

DO NOT place or leave objects in contact with heated surfaces.

013_092414

WARNING

ALWAYS wear safety glasses when servicing this equipment.

010_010914

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

WARNING

Read and understand operator’s manual and all other safety instructions

before using this equipment. To order copies of the operator’s manual go to

gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,

Cincinnati, OH 45241 USA 1-(800)-543-0862

022_060215

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 4

gmpopcorn.com

SAFETY PRECAUTIONS (continued)

WARNING

DO NOT allow direct contact of this equipment by the public when used in

food service locations. Only personnel trained and experienced in the

equipment operation may operate this equipment.

Carefully read all instructions before operation.

012_010914

WARNING

This machine is NOT to be operated by minors.

007_010914

Note: Improvements are always being made to Gold Medal’s equipment. This

information may not be the latest available for your purposes. It is critical that

you call Gold Medal’s Technical Service Department at -800-543-0862 for any

questions about your machine operations, replacement parts, or any service

questions. (Gold Medal Products Co. does not assume any liability for injury due

to careless handling and/or reckless operation of this equipment.)

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 5

gmpopcorn.com

INSTALLATION INSTRUCTIONS

Inspection of Shipment

After unpacking, check thoroughly for any damage which may have occurred in transit. Claims

should be filed immediately with the transportation company. The warranty does not cover

damage that occurs in transit, or damage caused by abuse, or consequential damage due to the

operation of this machine, since it is beyond our control (reference warranty in back of manual).

Manual

Read and understand the operator’s manual and all other safety instructions before using this

equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold

Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.

Model Description

2033BG: 36 oz. Jumbo 360 Popper, LP Gas, utilizes an electric kettle drive motor.

2033EX: Export, 36 oz. Jumbo 360 Popper, LP Gas, utilizes an electric kettle drive motor.

2033DC: 36 oz. Jumbo 360 Popper, LP Gas, utilizes a DC powered kettle drive motor

(battery is not included with this unit).

Items Included with this Unit

Perforated

Jet Scoop

Tank Regulator Tank ose

1/4 Cup Measure

36 oz. Corn

Measure

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 6

gmpopcorn.com

Setup

This unit has been tested at the factory.

. Remove all packaging and tape prior to operation.

2. This unit is for outdoor use only.

3. Place popper on a level, sufficiently stable base or counter that is strong enough to

safely support it when in use. This unit is certified for use on combustible surfaces.

4. Observe the following clearances to ensure proper air supply and maintenance:

•Minimum of 0 inches clearance on each side of unit.

•Minimum of 30 inches clearance for the front, back, and top of unit.

5. Bolt the popper to the counter to secure it from tipping.

6. Attach the counterweight assembly per illustration below.

7. After setup, the unit should be cleaned prior to use (see Care and Cleaning section of

this manual).

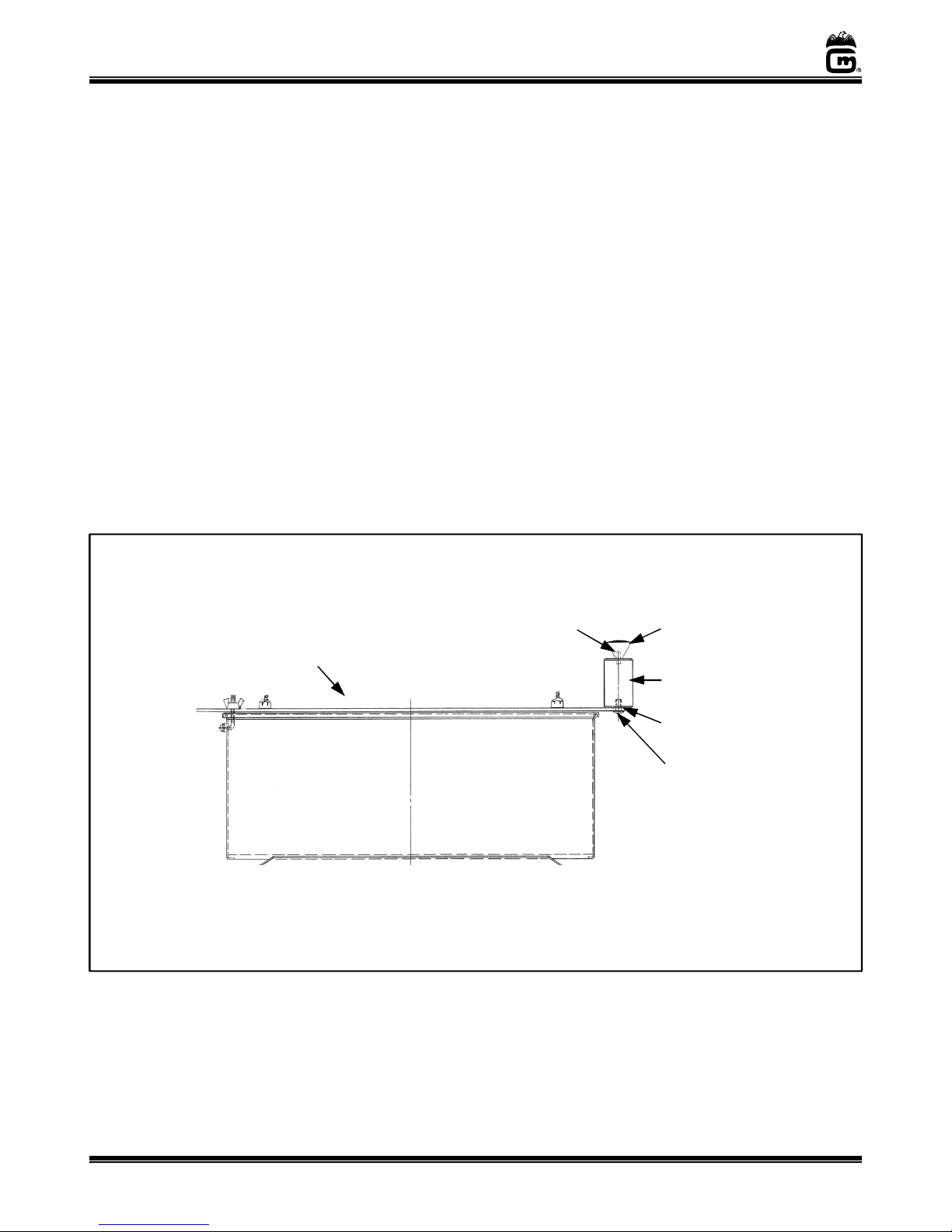

Counterweight Assembly

1/4

20 ex ead bolt

Counterweight

Knob

Set Screw

Counterweight Bar

Kettle

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 7

gmpopcorn.com

Gas Installation Instructions

DO NOT connect the unit to a power source before gas connection is complete.

Gas Requirements

Converting the unit to an alternate fuel source will void the warranty and may cause a dangerous

condition.

2033BG, 2033EX, and 2033DC: Propane Gas, 33,500 BTU/HR

NOTE: For outdoor use only.

Gas Installation

DANGER

Gas is safe when used properly, but can be very dangerous when used

improperly. We suggest that installation be carefully made by qualified

personnel only. Gas companies have competent service personnel to

provide safe installation.

001_010914

When installing this gas unit in the United States, you must conform with local codes, or in the

absence of local codes, with National Fuel Gas Code, ANSI Z223. (latest edition).

NOTE: Some local codes may require ventilation hoods or automatic fire systems. During

any pressure testing of the gas supply piping system at pressure equal to or less

than /2 psig (3.45 kPa), the appliance must be isolated from the gas supply piping

system by closing its individual manual shutoff valve.

After installation, all gas connections must be checked for leaks with a soap

solution (see Checking for Gas Leaks section of this manual).

CAUTION

Be sure to observe all clearances for this unit. Refer to the Setup Section of

this manual to ensure proper air supply and adequate clearance for servicing

and installation of this gas unit.

033_042814

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 8

gmpopcorn.com

Important Fire Safety Notice

Consult your local fire protection agency for your area’s requirements. Check local fire protection

requirements regularly to ensure compliance with local codes and proper operation. Have a fire

extinguisher near the unit. (Use only fire extinguishers approved for grease, oil, and electrical fires.)

DANGER

Hot oil is dangerous – severe burns can result when hot oil contacts the skin.

Hot oil is flammable – keep open flames away from hot oil and its vapors.

Keep a fire extinguisher near this unit.

Instruct personnel on what to do if there is a grease fire. DO NOT USE

WATER ON A GREASE FIRE! Use only fire extinguishers approved for

grease, oil, and electric fire.

002_102214

Checking For Gas Leaks

After making any gas connection, or after performing any work on the gas train, ALWAYS check

ALL gas connections for leaks with a soap solution.

DANGER

DO NOT use a match or flame to check for gas leaks – you may cause a fire

or explosion! When gas connections are complete, have a qualified

professional wire the unit to a power source which will carry the current

specified on the unit’s data plate.

034_042814

. Apply SOAP BUBBLES to all connections and pressurize the gas line to check for leaks.

Perform this test outdoors away from any flames or sparks.

DO NOT use a flame to check for gas leaks.

2. It is recommended to check your flexible gas lines and gas fittings for wear and tear on

a frequent basis. Stop using the appliance immediately if damage is found, and contact

a qualified professional to inspect and correct any issue.

3. Securely route all gas lines away from flames and high temperature areas.

4. Contact Gold Medal Technical Support, or a qualified Gas Service Technician with any

questions.

Gas Pressure

We have determined that optimum popping occurs when the gas pressure is adequate. For

propane gas, we recommend a manifold pressure setting of 0 inches of water column. The

pressure is measured at the appliance when the main burner is ignited.

Lighting and Shutdown Instructions

When gas installation is complete, the unit must be connected to a power source prior to lighting

the unit (reference the Electrical Installation Instruction section). For pilot and burner lighting

and shutdown instructions, refer to the Operating Instruction section of this manual.

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 9

gmpopcorn.com

Jumbo 360 Model No. 2033BG, 2033EX, 2033DC

Page 10

gmpopcorn.com
