Goldmedal 4008 User manual

Apple Cooker Pot

Instruction Manual

Model #4008EX and Model #4016EX

PartNo.38251EX

RevisedJune 1996

Cincinnati, OH 45241-4807 USA

Model #4008EX

Model #4016EX

SAFETY PRECAUTIONS

NOTE

The information, specifications and illustrations contained in this manual represent

the latest data available at time of publication. Right is reserved to make changes as

required at the discretion of Gold Medal Products Company without notice.

Any alterations to this equipment will void the warranty and

may cause a dangerous situation. NEVER make alterations

to the equipment.

Always wear safety glasses when servicing this equipment.

Machine must be properly grounded to prevent electrical shock

to personnel.

Do NOT immerse the equipment in water.

Always unplug the equipment before cleaning or servicing.

This equipment is designed and sold for commercial use only. This

equipment is not to be used by the consumer in home use. Do not allow

direct contact of this equipment by the public when used in food service

locations. Only personnel trained and experienced in the equipment

operation may operate this equipment.

Carefully read all installation instructions before operating the equipment.

NEVER put your fingers or any object into the heating area.

We do NOT assume any liability for injury due to careless

handling or operation of this equipment.

Apple Cooker Pot

ALL MODELS #4008 AND #4016

ELECTRICAL REQUIREMENTS

Model No. Voltage Amperage Cycles

4008 120 12.5 60

4016 120 15.0 60

COOKING INSTRUCTIONS

MODEL #4008

1. Plug unit into a 120 Volt outlet.

2. Mix one package of Gold Medal REDDY APPLE MIX (Catalog #4146) and 6 ounces of water

into the apple cooker pot. Stir the mix until it is completely saturated with water.

3. Turn the knob clockwise to the setting marked “HIGH”. It should fall into position when

engaged.

4. Insert a Gold Medal Thermometer (Catalog #4300) into the mixture.

5. Stir the mixture occasionally until the mix begins to boil rapidly. Once the

candy boils rapidly no mixing will be necessary. Now you can begin to

prepare your apples using Gold Medal candy apple sticks by inserting the

sticks into the top of the apple. NOTE: Apples must be dry and room

temperature for candy to stick properly.

6. In about 20 minutes the candy mixture will reach 290 degrees F, turn the

unit "OFF" once this temperature is reached.

7. Using oven mitts or pot holders carefully lift the Reddy Apple pot out of the

well and tilt it under the clip.

Machine must be properly grounded to prevent shock in case

of electrical problems.

Be careful,

apple solution

is extremely

hot and can

cause severe

burns.

Apple Cooker Pot

ALL MODELS #4008 AND #4016

COOKING INSTRUCTIONS

MODEL #4016

1. Plug unit into an appropriate 120 or 230 Volt outlet.

2. Mix two packages of Gold Medal REDDY APPLE MIX (Catalog #4146) and 12 ounces of

water into the apple cooker pot. Stir the mix until it is completely saturated with water. Or use

Gold Medal’s APPL–EZ, following instruction on the bag.

3. Turn the knob clockwise to the setting marked “HIGH”. It should fall into position when

engaged.

4. Insert a Gold Medal Thermometer (Catalog #4300) into the mixture.

5. Stir the mixture occasionally until the mix begins to boil rapidly. Once the

candy boils rapidly no mixing will be necessary until candy reaches 290

degrees F. Now you can begin to prepare your apples using Gold Medal

candy apple sticks by inserting the sticks into the top of the apple.

NOTE:

Apples must be dry and room temperature for candy to stick properly.

6. In about 20 minutes the candy mixture will reach 290 degrees F, turn the

unit "OFF" once this temperature is reached.

7. Holding the prepared apples by the stick, dip into candy mixture twisting

until completely covered. Place coated apples onto a clean flat surface. Do

not let apples touch one another or they will stick together. Once you are

finished dipping your apples, pour the remainder of mix onto a flat cookie

sheet so it can hardened and broken into pieces.

8. Using oven mitts or pot holders return the Apple Cooker pot into the well.

9. Pour approximately 2 cups of water in the Apple Cooker pot. Cover the pot

with the Steam-n-clean lid and turn the unit to “HI”. Allow the water to boil

so the steam will clean the inside of the pot.

10. Turn unit "OFF". Using oven mitts or pot holders empty the pot.

Be careful,

apple solution

is extremely

hot and can

cause severe

burns.

Apple Cooker Pot

ALL MODELS #4008 AND #4016

HEAT ELEMENT AND HEAT CONTROL REPLACEMENT

1. Remove Apple Cooker pot from the unit. Turn unit upside down, be careful not to bend the

clip on the side.

2. Remove the (9) screws that secure the bottom plate to the cabinet.

3. Carefully place the insulation cover to the side, away from any food products.

4. Disconnect wire from heat element and/or heat control.

5. Loosen the (2) nuts from the element, pay close attention to the placement of all parts for

correct re-assembly.

6. Replace with new element installing all pieces correctly.

7. Replace new heat control by removing knob and loosing nut.

8. Refer to wiring diagram for proper wiring of unit.

9. Replace insulation so that cabinet will remain cool during cooking.

MAINTENANCE INSTRUCTIONS

THE FOLLOWING SECTIONS OF THIS MANUAL ARE IN-

TENDED ONLY FOR QUALIFIED SERVICE PERSONNEL WHO

ARE FAMILIAR WITH ELECTRICAL EQUIPMENT. THESE ARE

NOT INTENDED FOR THE OPERATOR.

Adequate eye protection must be used when servicing this

equipment to prevent the possibility of injury.

Do NOT immerse the equipment in water.

Unplug your machine before servicing.

Apple Cooker Pot

ALLMODELS #4008 AND#4016

ORDERING SPARE PARTS

1.Identify the desired part by checking it against the photos, illustrations, and/or the parts list.

2.When ordering, please include part number, part name, and quantity desired.

3.Please include your model name and machine serial number (located on the machine

nameplate) with your order.

4.Address all parts orders to:

Parts Department

Gold Medal Products Co.

10700 Medallion Drive

Cincinnati, Ohio 45241-4807

or, place orders at:

(513) 769-7676

Fax: (513) 3769-8500

E-mail: [email protected]

Apple Cooker Pot

ALL MODELS #4008 AND #4016

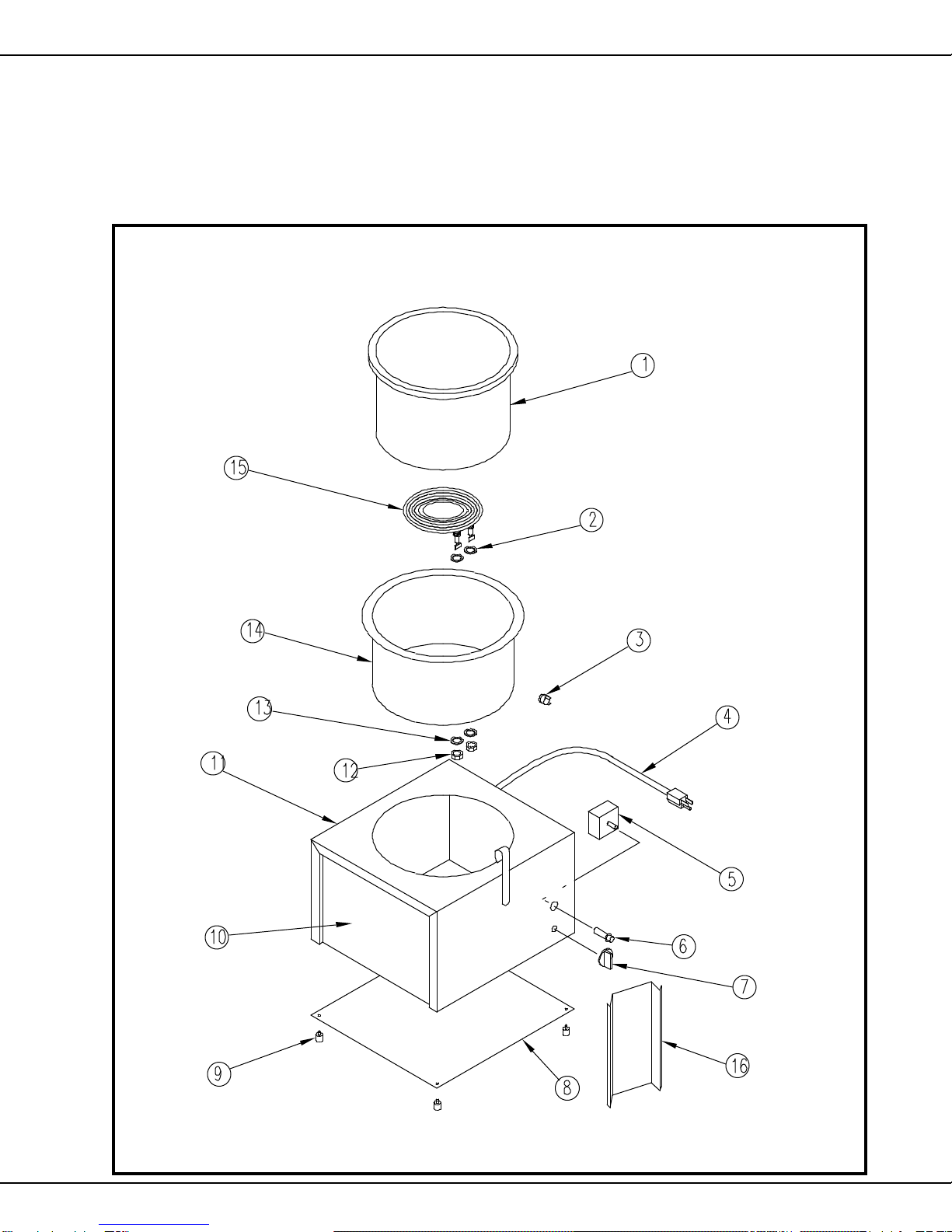

REDDY APPLE COOKER ASSEMBLY

Apple Cooker Pot

ALL MODELS #4008 AND #4016

PARTS LIST - REDDY APPLE COOKER ASSEMBLY

Model 4008 Model 4016

Item No. Part No. Part No. Description

1 38236 38236 Pot, Apple Cooker

2 n/a n/a Copper Washer, Supplied w/ Element

3 38109 38109 High Limit Thermostat

4 87085 87085 Lead-in Cord, 120 Volt

5 87048 87048 Heat Control, 120 Volt

6 41033 41033 Pilot Light, 120 Volt

7 87049 87049 Knob, Heat Control

8 38176 38176 Bottom Plate

9 87247 87247 Rubber Feet (4)

10 38202 38202 Front Panel, Removable

11 38256 38256 Welded Cabinet

12 n/a n/a Nut, Supplied w/ Element

13 n/a n/a Steel Washer, Supplied w/ Element

14 38253 n/a Well Body

15 38235 n/a 1500 Watt Heat Element, 120 Volt

n/a 38310 1800 Watt Heat Element, 120 Volt

16 n/a 38312 Heat Deflector

PARTS NOT SHOWN

38220 38220 Blanket Insulation

38188 38188 Bottom Insulation

38314 38314 Steam-n-clean Lid

38261 38261 Shipping Carton

Apple Cooker Pot

ALL MODELS #4008 AND #4016

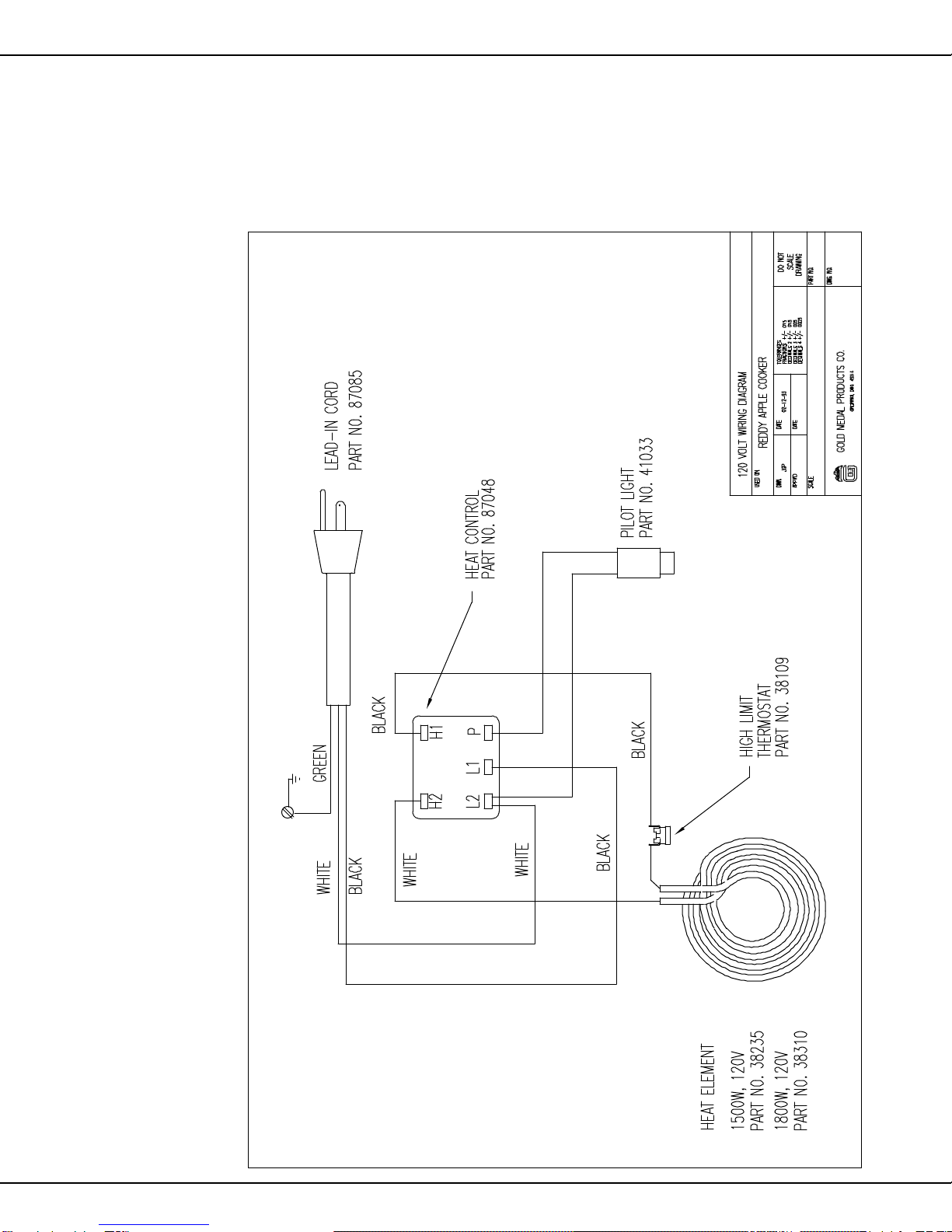

ELECTRICAL SCHEMATIC

WARRANTY

WE WARRANT to the original purchaser the Gold Medal equipment sold by us to

be free from defects in material or workmanship under normal use and service. Our

obligation under this warranty shall be limited to the repair or replacement of any

defective part for a period of six (6) months from the date of sale to the Original

Purchaser with regard to labor and two (2) years with regard to parts and does not

cover damage to the equipment caused by accident, alteration, improper use, volt-

age, abuse, or failure to follow instructions.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED

ORIMPLIED,ANDOFALLOTHEROBLIGATIONS OR LIABILITIES ON OUR

PART, INCLUDING THE IMPLIED WARRANTY OF MERCHANTIBILITY.

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIP-

TION ON THE FACE HEREOF. We neither assume, nor authorize any other person

to assume for us, any other obligation or liability in connection with the sale of said

GOLD MEDAL equipment or any part thereof.

The term “Original Purchaser” as used in this warranty shall be deemed to mean that

person, firm, association, or corporation who was billed by the GOLD MEDAL

PRODUCTS COMPANY, or their authorized distributor for the equipment.

THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL

PURCHASERFIRSTCALLSGOLDMEDALPRODUCTSCOMPANY AT 1-800-

428-2676 TO DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIP-

MENT PROBLEM, AND, IF NECESSARY, FOR INSTRUCTIONS CONCERN-

ING THE REPAIR OR REPLACEMENT OF PARTS.

NOTE: This equipment is manufactured and sold for commercial use only.

GOLD MEDAL PRODUCTS COMPANY

10700 Medallion Drive

Cincinnati, OH 45241-4807 USA
