Instruction Manual

10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

Staging Cabinets

Model No.: 2016, 2025, and 2025ST

Model 2016 shown

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 2

gmpopcorn.com

SAFETY PRECAUTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

To avoid burns, DO NOT touch heated surfaces.

DO NOT place or leave objects in contact with heated surfaces.

009_092414

WARNING

ALWAYS wear safety glasses when servicing this equipment.

010_010914

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

WARNING

Read and understand operator’s manual and all other safety instructions

before using this equipment. To order copies of the operator’s manual go to

gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,

Cincinnati, OH 45241 USA 1-(800)-543-0862

022_060215

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 3

gmpopcorn.com

WARNING

DO NOT allow direct contact of this equipment by the public when used in

food service locations. Only personnel trained and experienced in the

equipment operation may operate this equipment.

Carefully read all instructions before operation.

012_010914

WARNING

This machine is NOT to be operated by minors.

007_010914

Note: Improvements are always being made to Gold Medal’s equipment. This information

may not be the latest available for your purposes. It is critical that you call Gold Medal’s

Technical Service Department at -800-543-0862 for any questions about your

machine operations, replacement parts, or any service questions. (Gold Medal

Products Co. does not assume any liability for injury due to careless handling and/or

reckless operation of this equipment.) General images may be used in manual for

reference only.

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 4

gmpopcorn.com

INSTALLATION INSTRUCTIONS

Inspection of Shipment

After unpacking, check thoroughly for any damage which may have occurred in transit. Claims

should be filed immediately with the transportation company. The warranty does not cover

damage that occurs in transit, or damage caused by abuse, or consequential damage due to the

operation of this machine, since it is beyond our control (reference warranty in back of manual).

Manual

Read and understand the operator’s manual and all other safety instructions before using this

equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold

Medal Products Co., 0700 Medallion Drive, Cincinnati, OH 4524 USA -(800)-543-0862.

Model Description

2016: Pop-A-Lot Staging Cabinet with white molded dome, LED lighting, and a heated

corn pan crisper.

2025: Citation Staging Cabinet with white molded dome, LED lighting, and a forced air

popcorn crisper.

2025ST: Citation Staging Cabinet with stainless steel dome, LED lighting, and a forced air

popcorn crisper.

Setup

This unit has been tested at the factory.

. Remove all packaging and tape prior to operation.

2. Place unit on a sturdy, level base for use.

3. The door knobs are shipped facing the inside of the machine. Re-adjust knobs to face

the outside of the machine.

4. After setup, the unit should be cleaned prior to use (see Care and Cleaning section).

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 5

gmpopcorn.com

Electrical Requirements

The following power supply must be provided (reference unit Data Plate for Wattage requirement):

120 V~, 60 Hz

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

A certified electrician must furnish sufficient power for proper machine operation and install any

supplied receptacle (reference unit Data Plate for model specific Volts AC, Hertz, and Wattage

requirements). We recommend this equipment be on a dedicated and protected circuit. Failure

to wire properly will void the warranty and may result in damage to the machine. It is Gold Medal

Products Co.’s recommendation that this machine be plugged directly into a wall outlet. The use of

extension cords is not recommended due to safety concerns, and may cause sacrificed and/or

reduced performance. Make sure cord is located to prevent a trip hazard or unit upset.

Before You Plug In Machine

. Make sure all machine switches are in the OFF position before plugging the equipment

into the receptacle.

2. Make sure the wall outlet can accept the grounded plugs (where applicable) on the

power supply cord.

3. The wall outlet must have the proper polarity. If in doubt, have a competent

electrician inspect the outlet and correct if necessary.

4. DO NOT use a grounded to un-grounded receptacle adapter (where applicable).

5. Install the unit in a level position.

CAUTION

If the supply cord is damaged, it must be replaced by Gold Medal Products Co.,

its service agent or similarly qualified persons in order to avoid a hazard.

039_080614

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 6

gmpopcorn.com

OPERATING INSTRUCTIONS

Controls and Their Functions

POWER SWIT H

Two position, ON-OFF toggle switch, provides power to the crisper system and to the

cabinet lighting and sign.

Operating Instructions

Follow the instructions below to operate the Staging Cabinet:

. Turn the Power Switch ON approximately 30 minutes prior to use for optimal pre-

warming of cabinet and to turn on the lighting and sign.

2. Once preheated, place popcorn in cabinet for use.

Power Switch

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 7

gmpopcorn.com

Care and Cleaning

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

DO NOT immerse in water. DO NOT clean appliance with a water jet.

Always unplug the equipment before cleaning or servicing.

025_111616

WARNING

To avoid burns, DO NOT touch heated surfaces.

DO NOT place or leave objects in contact with heated surfaces.

009_092414

Good sanitation practice demands that all food preparation equipment be cleaned regularly (only

use non-toxic, food grade cleaners). A clean looking, well-kept machine is one of the best ways of

advertising your product.

Follow the directions below to clean the unit each day after use.

. Turn machine OFF, unplug unit and allow it to cool before attempting to clean.

2. Remove any remaining popcorn.

3. Remove all pans/accessories and take them to the sink to clean with soap and water,

then rinse and dry.

4. Clean under corn pan to remove all popcorn bits and seeds with a vacuum as needed,

then wipe the area with a clean dry cloth to remove any excess grease.

5. Clean area above the corn pan using a clean, SLIGHTLY damp cloth and wipe any

excess grease from glass and cabinet.

6. Wipe stainless steel parts clean using a clean cloth and stainless steel cleaner, such as

Gold Medal Watchdog Stainless Cleaner (Item No. 2088).

DO NOT use oven cleaners or abrasive materials as they will damage parts of machine.

7. Clean glass panels with glass cleaner. Gold Medal Watchdog Glass Cleaner (Item No.

2588) is recommended.

Ammonia cleaners will damage plastic doors/panels. Only use a non-ammonia cleaner,

such as Gold Medal Watchdog Glass Cleaner (Item No. 2588).

8. Reinstall the clean and dry pans/accessories.

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 8

gmpopcorn.com

MAINTENANCE INSTRUCTIONS

DANGER

Machine must be properly grounded to prevent electrical shock to personnel.

Failure to do so could result in serious injury, or death.

DO NOT immerse any part of this equipment in water.

DO NOT use excessive water when cleaning.

Keep cord and plug off the ground and away from moisture.

Always unplug the equipment before cleaning or servicing.

Make sure all machine switches are in the OFF position before plugging the

equipment into the receptacle.

008_051514

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

CAUTION

THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY

FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH

ELECTRICAL EQUIPMENT. THESE ARE NOT INTENDED FOR THE

OPERATOR.

027_010914

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 9

gmpopcorn.com

ORDERING SPARE PARTS

. Identify the needed part by checking it against the photos, illustrations, and/or

parts list. (General images may be used in manual for reference only.)

2. Use only approved replacement parts when servicing this unit.

3. When ordering, please include part number, part name, and quantity needed.

4. Please include your model number, serial number, and date of manufacture (located

on the machine nameplate/data plate) with your order.

5. Address all parts orders to Parts Department, Gold Medal Products Co., 0700

Medallion Drive, Cincinnati, Ohio 4524 -4807

or place orders by phone or online:

Phone: (800) 543-0862

(5 3) 769-7676

Fax: (800) 542- 496

(5 3) 769-8500

E-mail: info@gmpopcorn.com

Web Page: gmpopcorn.com

Replacing Broken Glass

Broken glass panels can be easily replaced. Gold Medal Products Co. does not ship glass. It can be

obtained from a local glass shop, always purchase tempered glass.

GLASS DIMENSIONS (Height x Width x Thickness)

Model Front Glass Side Glass

2016, 2025 24. 88 x 24. 88 x . 25 24. 88 x 6.75 x . 25

2025ST 28. 88 x 22.938 x . 25 28. 88 x 5.5 x . 25

. Turn machine OFF, unplug unit and allow it to cool before attempting to replace glass.

2. Carefully remove all loose pieces of broken glass.

3. Lift out the corn pan (bottom pan).

4. Locate the Glass Retainer Strips on each corner post holding in the glass panel, and

remove the screws to unfasten the retainers.

5. Carefully remove the rest of the broken glass.

6. Remove all rigid glass channels from around the glass to be replaced, set channels

aside for reuse.

7. Apply decals (if desired) to new glass panel.

8. Slide rigid glass channels over the exposed sides and bottom of new glass panel.

9. Fasten new glass panel in machine with existing glass strips and screws.

0. Reinstall corn pan (bottom pan).

Staging Cabinets Model No.: 2016, 2025, and 2025ST

Page 10

gmpopcorn.com

Cabinet Assembly

Item

Part Description Part Number

2016, 2025 2025ST

DOME 7700 4 8

2 GLIDE (4 required) 47328 47328

3* POWER SUPPLY CORD 5 AMP 22038 22038

4 STRAIN RELIEF SR-6P3-4 76026 76026

5 DOOR 77058 47600

DROP PANEL

540 5

4732

7 OLD MAID PAN 47336 47336

8 SWITCH, TOGGLE DPST 4720 4720

For Glass, see

Replacing

Glass section.

3*, 4

* AUTION: If supply cord is damaged, it

must be replaced by Gold Medal Products

o., its service agent, or similarly qualified

persons in order to avoid a hazard.

*Power Supply ord and Strain Relief

See next page for Door Hardware parts breakdown.

7 6

Model 2016 shown (Model 2025ST has

a Stainless Steel Dome.

Other manuals for 2016

This manual suits for next models

Table of contents

Other Goldmedal Kitchen Appliance manuals

Goldmedal

Goldmedal 2343 User manual

Goldmedal

Goldmedal G-Whiz 5908 User manual

Goldmedal

Goldmedal Tornado 3005SS User manual

Goldmedal

Goldmedal Karmel King 2620 User manual

Goldmedal

Goldmedal Tornado SHO 3007 User manual

Goldmedal

Goldmedal Antique Deluxe 60 Special User manual

Goldmedal

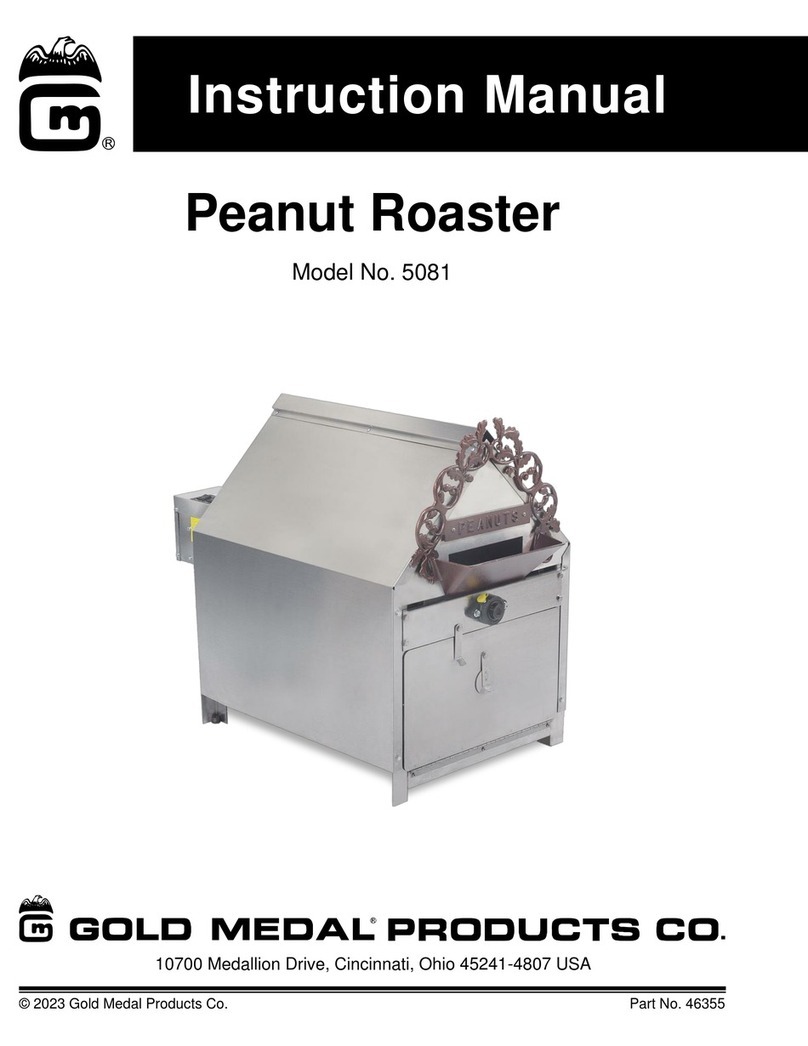

Goldmedal 5081 User manual

Goldmedal

Goldmedal 2404SC Configuration guide

Goldmedal

Goldmedal Floss-Maxx User manual

Goldmedal

Goldmedal 4110BG User manual

Goldmedal

Goldmedal 5024 Series User manual

Goldmedal

Goldmedal 5021 Series User manual

Goldmedal

Goldmedal ReadyPop Jr. 2793 Series User manual

Goldmedal

Goldmedal Mark 10 User manual

Goldmedal

Goldmedal Econo 8 User manual

Goldmedal

Goldmedal Deluxe 60 Special 2660 User manual

Goldmedal

Goldmedal Econo 8 2388 User manual

Goldmedal

Goldmedal PINTO POP User manual

Goldmedal

Goldmedal 2408 User manual

Goldmedal

Goldmedal Econo-Floss User manual

Goldmedal

Goldmedal 8150 User manual

Goldmedal

Goldmedal 1617 User manual

Goldmedal

Goldmedal Cheddar Easy Deluxe Tumbler User manual

Goldmedal

Goldmedal Fun Pop 8 Oz. Popper User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
