601577 (DSL12) 12″Food Slicer 120 V/1p/60Hz

Item No. ___________________________________

Unit to be Electrolux Dito 12″Food Slicer. Electrical character-

istics to be 120 V SINGLE-phase operation with adjustable

speeds at 300 rpm. The slicing machine is made of anodized

aluminum alloy and has the advantage of being easy to clean

and is very hygienic. The cut thickness-adjusting knob is very

sensitive and enables a millimeter adjustment. The easy and

precise sharpening tool makes the work of the user easier by

keeping the edge of the blade always sharp. The carriage, run-

ning on self-lubricating bushes, has an exceptional fluency and

you can cut also heavy sausages, roast-beef, cheese and fish.

Though this is a small slicer, it has all the advantages and the

features of a big slicer.

Short Form Specification

Electrolux Professional, Inc.

www.electroluxusa.com/professional

3225 SW 42nd Street, Fort Lauderdale, Florida, 33312 • Telephone Number: 866-449-4200 • Fax Number: 954-327-6789

ITEM # _______________________________________________

MODEL # _____________________________________________

PROJECT NAME # ______________________________________

SIS # _________________________________________________

AIA # _________________________________________________

12″Food Slicer

DSL Series

Main features

• Adjustable speed control knob.

• Cut thickness-adjusting knob (millimeter adjustment).

• Power: 1/2 HP – single phase.

• Motor speed: 300 rpm.

• 373 watts.

• Compact design

• A highly sensitive cam mechanism permits the user to regulate the

thickness slicing down to millimeters.

• 24 V wiring and NVR device

• Plexiglas hand protection

• Microswitch mounted on blade protection

• Electronic push-button panel has a class IP 54 silicone protection

• Blade ring protection

• Mechanism for locking the trolley in place when removing the mobile block.

• Belt drive mechanics

• Made of an aluminum alloy treated by anodic oxidation. This procedure

guarantees high hygienic standards of the parts interested by the cut and

resistance to acids, salts and oxidation processes.

• The blade is made of chromium plated steel 100Cr6; it is grinded and

hardened to guarantee an accurate and sharp cut of products also after it

has been re-sharpened.

• The other components of the slicer are made of ABS, LEXAN, PLEXIGLAS

and stainless steel AISI 430 or 304.

• Dimensions: (H×L×W): 23.75″× 23″× 23.75″

• Approx. shipping weight—50 lbs

• UL electrical and NSF sanitation listed.

• NEMA # : 5-15P

• 2 year parts warranty, 1 year labor.

Optional Accessories

• Blade 12" for food slicer (PNC 653646)

• Blade (teflon coated) 10"for food slicer (PNC 653651)

12″Food Slicer

DSL Series

12″Food Slicer

DSL Series

5-15P

12″Food Slicer

DSL Series

Supply voltage:

601577 (DSL12) 120 V/1p/60Hz – 3.1A

Electric

The company reserves the right to make modifications to the products

without prior notice. All information correct at time of printing.

7-22-09

Key Information

12″″

″″

″Food Slicer

DSL Series

The MECHANICAL SAFETY system includes:

- Blade guard;

- Cover;

- Meat pusher;

- Hand cover on meat hopper;

- Meat hopper + finger protection.

The ELECTRICAL SAFETY system includes:

The slicer is equipped with: a micro-switch which stops the

slicer in case the tie rod for blade guard is removed; the micro-

switch prevents from restarting the slicer if the guard has not

been set in the switch-off position.

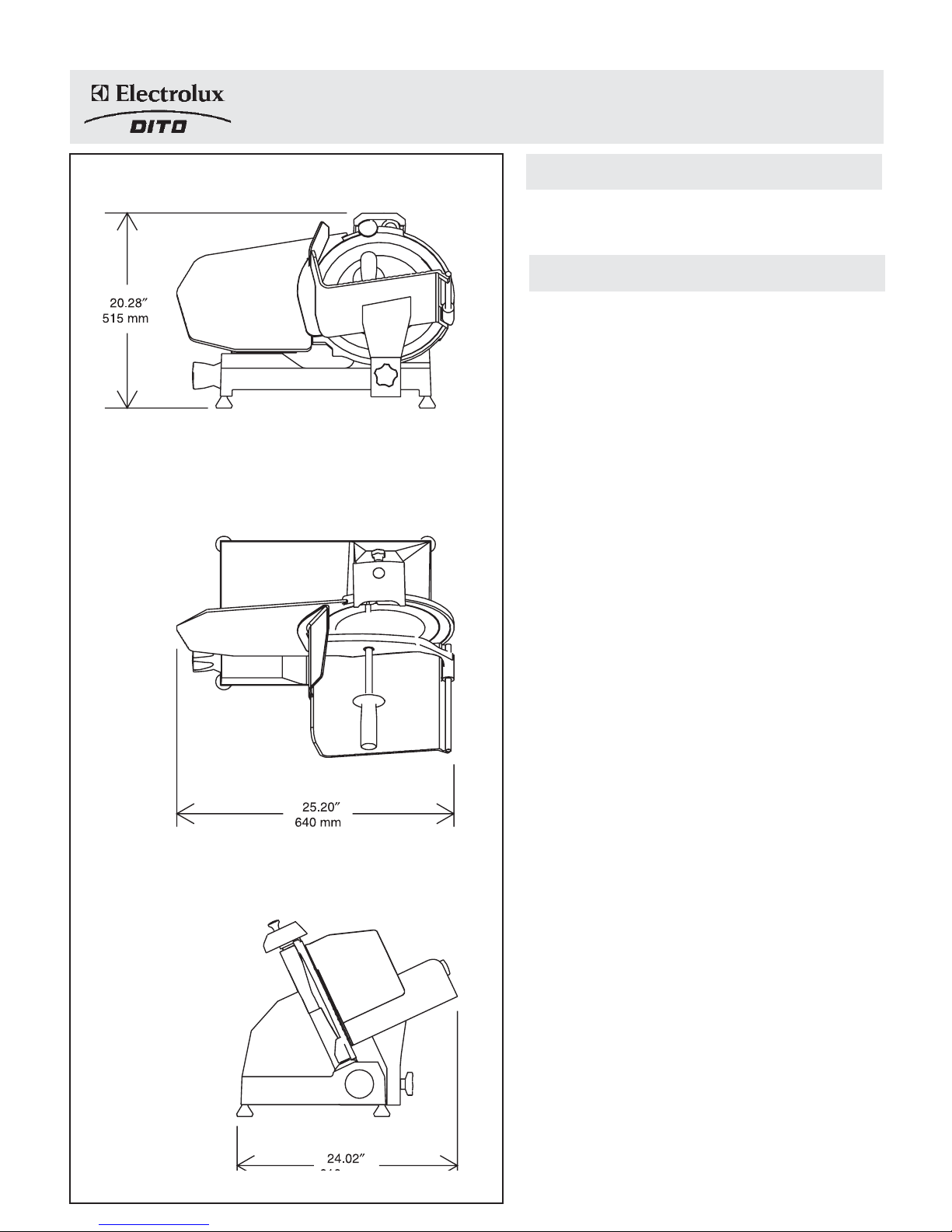

Front View

To p V i e w

Side View
