Black & Decker SB2200 User manual

SB2200

SB3200

SB3220

SB3240

www.blackanddecker.ae

ENAR

ENGLISH

(Original instructions)

Fig.1

Fig.2

ENGLISH

(Original instructions)

ENGLISH

(Original instructions)

Intended use

Your BLACK+DECKER stick blender has

been designed for blending, mixing,

beating, whipping, whisking and chopping

food and beverage ingredients depending

on the product. Do not use this appliance

for any other purpose. This product is

intended for household use only.

Safety instructions

Warning! When using

mains-powered appliances, basic

safety precautions, including the

following, should always be followed to

reduce the risk of ﬁre, electric shock,

personal injury and material damage.

• Read all of this manual carefully before

using the appliance.

• The intended use is described in this

manual. The use of any accessory or

attachment or the performance of any

operation with this appliance other than

those recomended in this instruction

manual may present a risk of personal

injury.

• Retain this manual for future reference.

Using your appliance

• Make sure that the appliance is switched

o before connecting to or

disconnecting from the power supply.

• Always take care when using the

appliance.

• Do not use the appliance outdoors.

• Always protect the motor unit from

water or excessive humidity.

• Do not operate the appliance if your

hands are wet.

• Do not operate the appliance if you are

barefoot.

• Do not touch moving parts. Keep long

hair and loose clothing out of the way of

the moving parts.

• Guide the power supply cord neatly so it

does not hang over the edge of a

worktop and cannot be caught

accidentally or tripped over.

• Never pull the power supply cord to

disconnect the plug from the socket.

Keep the power supply cord away from

heat, oil and sharp edges.

• Switch oﬀ and wait for the motor to stop

running before disconnecting the

appliance from the power supply.

• Never detach any part or accessory while

the appliance is still connected to the

power supply. Always disconnect the

appliance from the power supply ﬁrst.

• If the power supply cord is damaged

during use, disconnect the appliance from

the power supply immediately. Do not

touch the power supply cord before

disconnecting from the power supply.

• Do not operate the appliance if it is

damaged in any manner. Return the

complete appliance to your nearest

authorized service facility for

examination, electrical repair, mechanical

repair or adjustments to avoid any

hazard.

• The use of attachments or accessories

not recommended or sold by this

appliance manufacturer may result in ﬁre,

electric shock or personal injury.

• Disconnect the appliance from the power

supply when not in use, before ﬁtting or

removing parts and before cleaning.

ENGLISH

(Original instructions)

• Misuse could cause an injury.

• Keep loose clothing, hair, jewellery etc.

away from moving parts.

• Care is needed when handling cutting

blades, especially when removing the

blades and during cleaning.

Safety of others

• Do not allow children or any person

unfamiliar with these instructions to use

the appliance.

• Do not allow children or animals to come

near the work area or to touch the

appliance or power supply cord. Close

supervision is necessary when the

appliance is used near children.

• This appliance is not intended for use by

persons (including children) with

reduced physical, sensory or mental

capabilities, or lack of experience and

knowledge, unless they have been give

supervision or instruction concerning use

of the appliance by a person responsible

for their safety.

• Children must be supervised to make

sure that they do not play with the

appliance.

After use

• Switch oﬀ the appliance before cleaning,

changing accessories or approaching

parts which move in use.

• Switch oﬀ and remove the plug from the

socket before leaving the appliance

unattended and before changing,

cleaning or inspecting any parts of the

appliance.

• When not in use, the appliance should be

stored in a dry place. Children should not

have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for

damaged or defective parts. Check for

breakage of parts, damage to switches

and any other conditions that may aect

its operation.

• Do not use the appliance if any part is

damaged or defective.

• Have any damaged or defective parts

repaired or replaced by an authorised

repair agent.

• Before use, check the power supply cord

for signs of damage, ageing and wear.

• Do not use the appliance if the power

supply cord or mains plug is damaged or

defective.

• If the supply cord is damaged, it must be

replaced by the manufacturer or an

authorised BLACK+DECKER Service

Centre in order to avoid a hazard.

• Never attempt to remove or replace any

parts other than those speciﬁed in this

manual.

Electrical safety

Your appliance is double insulated;

therefore no earth wire is required.

Always check that the mains

voltage corresponds to the voltage on the

rating plate. Never attempt to replace the

charger unit with a regular mains plug.

To avoid the risk of electric shock,

do not immerse the cord, plug or

motor unit in water or other liquid.

ENGLISH (Original instructions)

Features

This tool may include some or all of the

following features

Unpacking

• Remove all packaging from the

appliance.

• Clean the appliance before ﬁrst use.

Assembly

Warning! Before assembly, make sure that

the appliance is switched o and

unplugged.

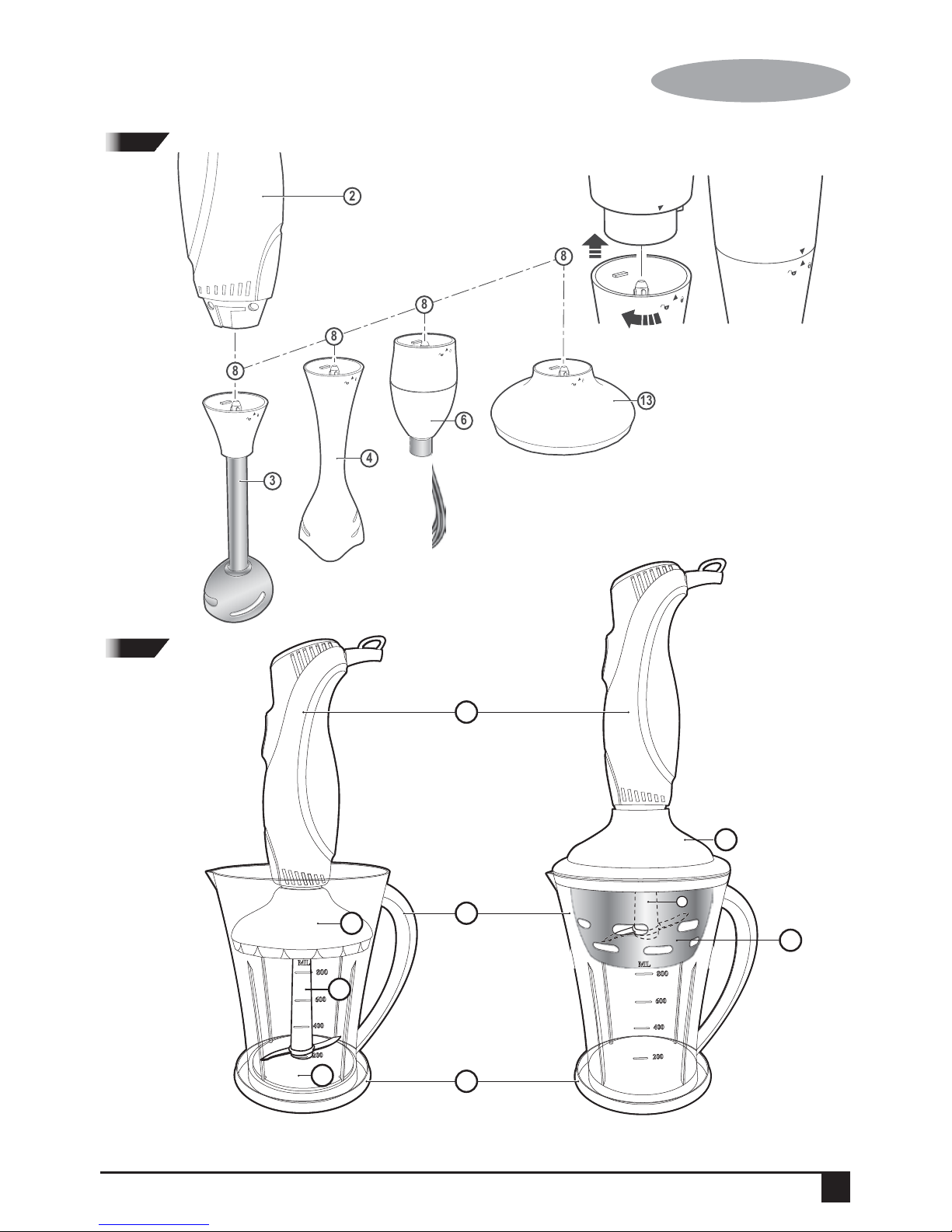

Fitting and removing an attachment (Fig.1)

• Use the blending attachment (3 or 4) for

blending liquids or mashing solids.

• Use the whisk attachment (6) for mixing,

beating, whipping and creaming liquids.

• Use the chopping blade (11), Measuring

jug (9), blade mounting base (12) and

blade housing (13) for chopping

vegetables etc.

• Use the ice chopping blade (15),

Measuring jug (9), Ice chopping bowl (12)

and blade housing (13) for chopping ice

etc.

Use

Blending

• Place the ingredients into a measuring jug

or a suitable container.

• Using a stabbing motion, push the blades

(3 or 4) into the ingredients until the

correct consistency is reached.

• When blending liquids or ﬂuid

ingredients, use short pulses to prevent

spillages.

• Keeping the blades (3 or 4) submerged

will help to prevent spillages. Take extra

care when blending hot ingredients.

Mixing

• Place the ingredients into a measuring jug

or a suitable container.

• Mix the ingredients until the correct

consistency is reached.

• Keeping the beater submerged will help

to prevent spillages. Take extra care when

mixing hot ingredients.

Chopping (Fig. 2)

Warning! The measuring jug (9) must be

used with the chopping blade (11). Do not

use the chopping blade with any other bowl.

Do not use the chopping Blade without the

supplied measuring bowl ﬁtted.

Feature SB2200 SB3200 SB3220 SB3240

1. On/Oﬀ switch

2. Motor housing

3. Stainless steel

stem

4. Plastic stem

5. All purpose

cutting blade

6. Whisk

attachment

7. Measuring cup

8. Attachment

connector

9. Measuring jug

10. Ice chopping

blade

11. Chopping

blade

12. Blade

mounting base

13. Gearbox

14. Lid/Base

15. Ice chopping

bowl

ENGLISH

(Original instructions)

• Place blade mounting base (12) in the

measuring bowl (8) Then place the

chopping (11) onto blade mounting base

(12).

• Place the ingredients in the measuring

bowl (9).

• Fit the motor housing (2) into the

gearbox (13) and rotate anti-clockwise to

lock in position. Place the motor &

gearbox into the measuring jug (9)

making sure the blade ﬁts into the recess

in the gearbox

• Chop the ingredients until the correct

consistency is reached.

• Once chopping is completed, unplug the

appliance & allow the blades to stop

moving before removing any parts or

approaching parts that move in use.

Ice Chopping (Fig. 2)

Warning! The measuring jug (9) and the ice

chopping bowl (15) must be used with the

ice chopping blade (10). Do not use the ice

chopping blade with any other bowl. Do not

use the ice chopping Blade without the

supplied ice chopping bowl ﬁtted.

• Place the ice chopping blade (10) in the

ice chopping bowl (15). Place the ice

chopping bowl into the measuring jug as

shown in (Fig.2) to catch the ice residue.

• Place the ice in the ice chopping bowl

(15).

• Fit the gearbox (13) and rotate it in an

anti-clockwise direction to lock it in

place.

• Fit the motor housing (2) into the

gearbox (13) and rotate anti-clockwise to

lock in position. Place the motor &

gearbox into the measuring jug (9)

making sure the blade ﬁts into the recess

in the gearbox

• Chop the ingredients until the correct

consistency is reached.

• Once chopping is completed, unplug the

appliance & allow the blades to stop

moving.

Switching on and o

• To switch the appliance on, press the

speed control switch (1).

• Keep the switch pressed for continuous

operation.

• To switch oﬀ, release the switch.

Warning! Do not operate the appliance

continuously for more than 30 seconds.

After operating the appliance continuously

for 30 seconds, let it cool down for at least 1

minute before operating it again. This can be

repeated up to ten times then the appliance

must be left to cool at room temperature.

Warning! After switching o always allow

the motor to stop before approaching the

blade.

Operating times and preperations

Ingredients Maximum Preperation Time

Quantity

Meat 300g 2cm cubes Dice 15 - 30s

Onions 100g Cut into 15 - 10s

8 pieces

Baby food 170g Cook and 10 - 20s

dice

Nuts 350g Remove 18 - 15s

shell

Garlic 20 pieces Cut into 10 - 20s

pieces

Dry bread 150g Cut into 10 - 20s

pieces

Parsley 1 sprig Remove 10 - 20s

stalks

Dough 200g Mix with 15 - 25s

water

(250ml)

ENGLISH

(Original instructions)

Cleaning and maintenance

Warning! Switch the appliance o and

unplug it before cleaning or maintenance.

Be careful when cleaning the blades; they

are sharp.

Warning! Do not immerse the appliance, the

cord set or the plug in water or any other

liquid.

• Wash the attachments in warm soapy

water and dry well.

• Wipe the motor unit (2) with a damp

cloth. Do not use any abrasive or

solvent-based cleaner.

Always clean the appliance immediately

after use. Do not let food dry on to the

blades as this will make cleaning dicult.

Voltage 220 - 240 Volts

Supply 50/60Hz

Power 500W

Weight 1.1kg

Technical Data

Protecting the environment

Separate collection. This product must

not be disposed of with normal

household waste.

Should you ﬁnd one day that your

Black+Decker product needs replacement,

or if it is of no further use to you, do not

dispose of it with other household waste.

Make this product available for separate

collection.

• Black+Decker provides a facility for

recycling Black+Decker products once

they have reached the end of their

working life. This service is provided free

of charge. To take advantage of this

service please return your product to any

authorised repair agent who will collect

them on our behalf.

• You can check the location of your

nearest authorised repair agent by

contacting your local Black+Decker

oce at the address indicated in this

manual. Alternatively, a list of authorized

Black+Decker repair agents and full

details of our after-sales service and

contact are available on the Internet at:

www.2helpU.com.

ENGLISH

(Original instructions)

Warranty

Black+Decker is conﬁdent of the quality of

its products and oers an outstanding

warranty.

This warranty statement is in addition to and

in no way prejudices your statutory rights.

The warranty is valid within the territories of

the Member States of the European Union

and the European Free Trade Area.

If a Black+Decker product becomes

defective due to faulty materials,

workmanship or lack of conformity, within

24 months from the date of purchase,

Black+Decker warranty to replace defective

parts, repair products subjected to fair wear

and tear or replace such products to ensure

minimum inconvenience to the customer

unless:

The product has been used for

trade, professional or hire

purposes;

The product has been subjected to

misuse or neglect;

The product has sustained damage

through foreign objects,

substances or accidents;

Repairs have been attempted by

persons other than authorised

repair agents or Black+Decker

service sta.

To claim on the warranty, you will need to

submit proof of purchase to the seller or an

authorised repair agent. You can check the

location of your nearest authorised repair

agent by contacting your local

Black+Decker oce at the address

indicated in this manual.

Alternatively, a list of authorised

Black+Decker repair agents and full details

of our after-sales service and contacts are

available on the Internet at:

www.2helpU.com.

FRANÇAIS

(Traduction des instructions d'origine)

This manual suits for next models

Table of contents

Languages:

Other Black & Decker Kitchen Appliance manuals

Black & Decker

Black & Decker SK1212BC Installation instructions

Black & Decker

Black & Decker SKG100 Installation instructions

Black & Decker

Black & Decker TS2000 User manual

Black & Decker

Black & Decker JE65 User manual

Black & Decker

Black & Decker TS4000 User manual

Black & Decker

Black & Decker SK200 Series Multi-Cuisine & Deep Dutch Installation instructions

Black & Decker

Black & Decker TS65 User manual

Black & Decker

Black & Decker VC200 Operating instructions

Black & Decker

Black & Decker GC3000B User manual

Black & Decker

Black & Decker BDPP200 User manual

Black & Decker

Black & Decker SKG111 Installation instructions

Black & Decker

Black & Decker bev BEHB101-BM User manual

Black & Decker

Black & Decker JE55 User manual

Black & Decker

Black & Decker P300S User manual

Black & Decker

Black & Decker FR220 Installation instructions

Black & Decker

Black & Decker SK1215BC User manual

Black & Decker

Black & Decker BS500 User manual

Black & Decker

Black & Decker bev BEHB101 User manual

Black & Decker

Black & Decker FM1700 User manual

Black & Decker

Black & Decker Deep Dutch SKG110C Installation instructions

Black & Decker

Black & Decker PRSM600 User manual

Black & Decker

Black & Decker FM1400 User manual

Black & Decker

Black & Decker TS54 User manual

Black & Decker

Black & Decker HST1500 User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
