Black & Decker PRSM600 User manual

Multi Purpose Kitchen Machine

PRSM600

Please read through this booklet for safe and efﬁcient use of the appliance.

We urge you to read the "Hint's" section and also follow all detailed

instructions even if you are familiar with using this appliance.

Keep this guide handy for future reference.

First Use Safety Recommendation

English Page 02

Arabic Page 25

While using electrical appliances, in order to reduce the risk of ﬁre, electric shock,

and/or injury to persons, basic safety precautions should be followed, including the

following:

• Read all instructions carefully, even if you are familiar with the appliance.

• To protect against the risk of electric shock, DO NOT IMMERSE the appliance,

cord set or plug in water or other liquids.

• To clean, wipe the exterior with a damp cloth.

• Close supervision is necessary when any appliance is used near children. Never

leave an appliance unattended when in use.

• If the supply cord is damaged, it must be replaced by the manufacturer or its

service agent or a similarly qualiﬁed person in order to avoid a hazard.

• Switch off and remove the plug from the power outlet when not in use before

assembling or disassembling parts, cleaning or carrying out any maintenance of

the appliance. Never pull the cord while unplugging out from power outlet.

• Do not operate the appliance if its damage in any manner. Return the complete

appliance to your nearest authorized service facility for examination, electrical

repair, mechanical repair or adjustments to avoid any hazard.

• The use of attachments or accessories not recommended or sold by this

appliance manufacturer may result in ﬁre, electric shock or personal injury.

• Do not let the cord hang over the edge of a table, counter, or touch hot surfaces.

• Avoid touching hot surfaces, use handles and knobs.

• Do not operate or place any part of this appliance on or near any hot surfaces

(such as gas or electric burner or in a heated oven).

• Do not abuse the cord. Never carry the appliance by the cord or yank it to

disconnect it from the outlet; instead, grasp the plug and pull to disconnect.

• When using an extension cord with your appliance, make sure the extension cord

is correctly wired, and rated for its use.

• This product is intended for household use only.

• Do not attempt to repair the appliance yourself; instead, take it to your Black &

Decker-owned or Authorized Service Centre for repair.

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS

-2-

English

-3-

Fig A

12 13

812

English

-4-

Fig C

Fig B

English

-5-

Fig D

30 34

Fig E

32 33

-6-

English

Intended use

Your Black & Decker stand mixer has been

designed for blending and mixing food and

beverage ingredients. With the attachments

provided, it is also possible to mince

ingredients & extrude cookie dough into

various shapes. Do not use this appliance

for any other purpose.

This product is intended for household use

only.

Safety instructions

Warning! When using mains-powered

appliances, basic safety precautions,

including the following, should always be

followed to reduce the risk of ﬁre, electric

shock, personal injury and material

damage.

Read all of this manual carefully

before using the appliance.

• The intended use is described in this

manual. The use of any accessory or

attachment or the performance of any

operation with this appliance other than

those recommended in this instruction

manual may present a risk of personal

injury.

• Retain this manual for future reference.

Using your appliance

• Make sure that the appliance is switched

off before connecting to or

disconnecting from the power supply.

• Always take care when using the

appliance.

• Do not use the appliance outdoors.

• Always protect the motor unit from water

or excessive humidity.

• Do not operate the appliance if your

hands are wet.

• Do not operate the appliance if you are

barefoot.

• Do not touch moving parts. Keep long

hair and loose clothing out of the way of

the moving parts.

• Guide the power supply cord neatly so it

does not hang over the edge of a work

top and cannot be caught accidentally or

tripped over.

• Never pull the power supply cord to

disconnect the plug from the socket.

Keep the power supply cord away from

heat, oil and sharp edges.

• Switch off and wait for the motor to stop

running before disconnecting the

appliance from the power supply.

• Never detach any part or accessory

while the appliance is still connected to

the power supply. Always disconnect the

appliance from the power supply ﬁrst.

• If the power supply cord is damaged

during use, disconnect the appliance

from the power supply immediately. Do

not touch the power supply cord before

disconnecting from the power supply.

• Disconnect the appliance from the power

supply when not in use, before ﬁtting or

removing parts and before cleaning.

• Misuse could cause an injury.

• Keep loose clothing, hair, jewellery etc.

away from moving parts.

Fig F

English

-7-

• Care is needed when handling cutting

blades, especially when removing the

blades and during cleaning.

• After cleaning, reﬁt the bowl. This

ensures the coupling underneath is

protected.

• This appliance is ﬁtted with overload

protection. If the unit stops working,

switch the unit off and remove the plug

from the power supply, wait for 5 minutes

then replace the plug.

• If the unit does not function please return

it to your local service agent.

Safety of others

• Do not allow children or any person

unfamiliar with these instructions to use

the appliance.

• Do not allow children or animals to come

near the work area or to touch the

appliance or power supply cord. Close

supervision is necessary when the

appliance is used near children.

• This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or mental capabilities,

or lack of experience and knowledge,

unless they have been give supervision

or instruction concerning use of the

appliance by a person responsible for

their safety.

• Children must be supervised to make

sure that they do not play with the

appliance.

After use

• Switch off the appliance before cleaning,

changing accessories or approaching

parts which move in use.

• Switch off and remove the plug from the

socket before leaving the appliance

unattended and before changing,

cleaning or inspecting any parts of the

appliance.

• When not in use, the appliance should be

stored in a dry place. Children should not

have access to stored appliances.

Inspection and repairs

• Before use, check the appliance for

damaged or defective parts. Check for

breakage of parts, damage to switches

and any other conditions that may affect

its operation.

• Do not use the appliance if any part is

damaged or defective.

• Have any damaged or defective parts

repaired or replaced by an authorised

repair agent.

• Before use, check the power supply cord

for signs of damage, ageing and wear.

• Do not use the appliance if the power

supply cord or mains plug is damaged or

defective.

• If the supply cord is damaged, it must be

replaced by the manufacturer or an

authorised Black & Decker Service Centre

in order to avoid a hazard.

• Never attempt to remove or replace any

parts other than those speciﬁed in this

manual.

Electrical safety

This product must be earthed.

Always check that the power supply

corresponds to the voltage on the rating

plate.

Power plugs must match the outlet. Never

modify the plug in any way. Do not use any

adapter plugs with earthed (Class 1)

appliances. Unmodiﬁed plugs and matching

outlets will reduce the risk of electric shock.

Extension cables & Class 1 product

A 3 core cable must be used as your

appliance is earthed and of Class 1

construction. Up to 30m (100 ft) can be

used without loss of power.

To avoid the risk of electric shock, do not

immerse the cord, plug or motor unit in

water or other liquid.

English

-8-

Features

1. Aluminium body

2. 4.5L and 3L Stainless steel bowl

3. 1.25L Blender jar

4. Electronic speed control

5. Meat mincer attachment

6. Beater, whisk and dough hook.

7. Cookie attachment

Parts Identiﬁcation

1. Mixer head

2. Outlet cover

3. peed control dial

4. Head release lever

5. Mixer base

6. Release lever

7. Coupling

8. Bowl lid holder

9. Front cap

10. Recess

11. Power cord

12 & 13. Steel bowls

14. Whisk

15. Beater

16. Dough hook

17. Bowl lid

18. Blender jar

19. Blender lid

20. Filler cap

21. Mincer

22. Blade

23. Nut

24. Slotted coupling

25. Coarse mincing die

26. Fine mincing die

27. Tray

28. Pusher

29. Spanner

30. Plastic bowl

31. Mincer feeder tube

32. Cookie cup

33. Cookie shape selector

34. Screw

35. Kebbe attachment

Unpacking

Remove the unit from the packaging.

Wash thoroughly before ﬁrst use.

Assembly

Warning! Before assembly, make sure that

the appliance is switched off and

unplugged.

Use

Figures A&B: Using the Whisk, Beater &

Dough Hook:

Place the Mixer on a ﬂat surface. With one

hand on top of the Mixer to prevent sudden

movement, rotate the head release lever (4)

to the "UNLOCKED" position & raise the

head to the upper position.

Releasing the lever "LOCKS" the bowl in

the raised position.

English

-9-

If required, the bowl lid (17) can be ﬁtted

over the location (8) on the mixer head

(making sure the door is facing you once it

is ﬁtted) & turned anti-clockwise. The

bayonet ﬁttings on the 2 parts will lock the

lid in place. Push the required attachment -

whisk (14), beater (15) or dough hook (16)

onto the coupling (7) & washer so the

horizontal pin enters the slot in the

attachment. Turning the attachment

clockwise will lock it in place. Place the

required bowl (12 or 13) in the recess (10) in

the stand & rotate it clockwise to lock it in

position

Add the required ingredients to the bowl.

Press the head release lever (4) and lower

the head. Releasing the lever will lock the

head in position.

Connect the Mixer to a suitable electrical

supply.

For short operation, hold the control dial (3)

& rotate it anti-clockwise. Once complete,

release the dial. It will automatically return

to the "0" (OFF) position.

For longer operating times, rotate the

control dial clockwise to select the

appropriate speed.

Once mixing is completed and the unit

turned off, the head can be raised and the

bowl & ingredients removed.

Never approach any moving parts until they

have come to a complete stop.

Figure C: Using the Blender:

Remove the blender lid (19) & ﬁller cap (20)

from the blender jar (18), and add the

ingredients. Replace the lid & cap.

Place the Mixer on a ﬂat surface.

Ensure the Mixer head (1) is locked in the

horizontal position.

Remove the outlet cover (2) from the Mixer

head. Place the Blender (17) onto the outlet

& rotate it anti-clockwise until it locks in

place.

Connect the appliance to a suitable

electrical supply.

For short operation, hold the control dial (3)

& rotate it anti-clockwise. Once complete,

release the dial. It will automatically return to

the "0" (OFF) position.

For longer operating times, rotate the

control dial clockwise to select the

appropriate speed.

Once blending is completed and the unit

turned off, the blender can be removed by

rotating it clockwise to overcome the

bayonet ﬁtting.

Always operate the blender with the lid

ﬁtted.

Never approach any moving parts until they

have come to a complete stop.

Figure D: Using the Mincer:

Place the Mixer on a ﬂat surface.

Ensure the Mixer head (1) is locked in the

horizontal position.

Press the attachment release lever (6) down

and lift the front cap (9) to reveal a hole and

slotted coupling.

English

-10-

Holding the release button (6) down, ﬁt the

assembled Mincer (21) into the hole, and

turn it to make sure the ﬂat on the end of

the screw engages in the slotted coupling.

Release the button, & rotate the Mincer

assembly again. The screw should be

connected to the coupling. When the pin on

the release button aligns with the hole in the

Mincer, the spring will push the pin through,

locking it in place.

The feeder tube should be facing up. Fit the

tray (30) into the feeder (31) in the Mincer

head.

Remove the nut (23) by rotating it in an

anti-clockwise direction. The spanner (29)

may be required. Remove the round die (25

or 26) & replace with the one required for

the task. Locate the cut-out in the die with

the tab on the Mincer head. Replace the

nut. Place the ingredients on the tray, and a

bowl under the Mincer head.

Connect the appliance to a suitable

electrical supply.

Rotating the control dial clockwise, select a

slow speed. Using the pusher (28), push the

ingredients into the hole in the tray & down

into the Mincer.

The screw will collect the ingredients,

compressing them & moving them forward.

The blade will cut the ingredients, which will

then be forced through the die and fall into

the bowl.

Never insert ﬁngers into the feed chute.

Only use the pusher provided.

Never approach any moving parts until they

have come to a complete stop.

The tray (27) can be used as lid on plastic

bowl (30) making it a storage bowl.

Figure E: Using the Cookie shape

selector:

Place the Mixer on a ﬂat surface.

Ensure the Mixer head (1) is locked in the

horizontal position.

Press the attachment release lever (6) down

and Lift the front cap (9) to reveal a hole and

slotted coupling.

Holding the release button (6) down, ﬁt the

Mincer (21) into the hole, and turn it to make

sure the ﬂat on the end of the screw

engages in the slotted coupling. Release the

button, & rotate the Mincer assembly again.

The screw should be connected to the

coupling. When the pin on the release

button aligns with the hole in the Mincer, the

spring will push the pin through, locking it in

place.

The feeder tube should be facing up. Fit the

tray (23) into the feeder (31) in the Mincer

head.

Remove the nut (23) by rotating it in an

anti-clockwise direction. The spanner (29)

may be required. Remove the round die (25

& 26) and blade (22).

Place the cookie cup (32) (without shape

selector (33)) in the nut, and fasten it back

onto the Mincer head.

Fit the shape selector through the 2 slots in

the cookie attachment. Fit the tray (27) into

the vertical tube (31) in the Mincer head.

Other Black & Decker Kitchen Appliance manuals

Black & Decker

Black & Decker JE2100 Installation instructions

Black & Decker

Black & Decker SK1212B Installation instructions

Black & Decker

Black & Decker JE1500 Series Installation instructions

Black & Decker

Black & Decker JE2200B User manual

Black & Decker

Black & Decker BS500 User manual

Black & Decker

Black & Decker TS75R User manual

Black & Decker

Black & Decker P300SD User manual

Black & Decker

Black & Decker Slice Right EK700 Installation instructions

Black & Decker

Black & Decker bev BEHB101 User manual

Black & Decker

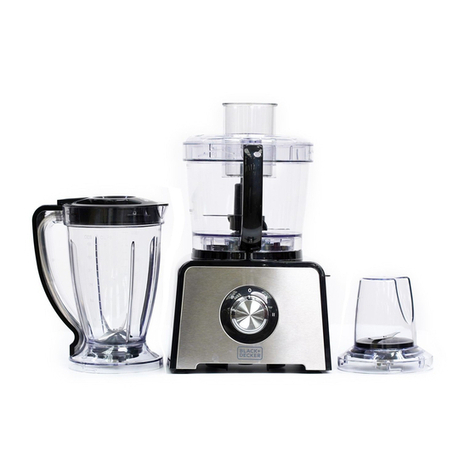

Black & Decker FX810 User manual

Black & Decker

Black & Decker TS70 User manual

Black & Decker

Black & Decker VC200 Operating instructions

Black & Decker

Black & Decker QUIET JE2500B User manual

Black & Decker

Black & Decker BWT08TB User manual

Black & Decker

Black & Decker TS2040 User manual

Black & Decker

Black & Decker SKG105 Owner's manual

Black & Decker

Black & Decker TS4000 User manual

Black & Decker

Black & Decker HST1200 User manual

Black & Decker

Black & Decker JE2200 User manual

Black & Decker

Black & Decker FM3000 User manual

Black & Decker

Black & Decker bev BEHB101-BM User manual

Black & Decker

Black & Decker TS65 User manual

Black & Decker

Black & Decker P300S User manual

Black & Decker

Black & Decker Slice Right EK300 Installation instructions

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
