Black & Decker RC3406 Installation instructions

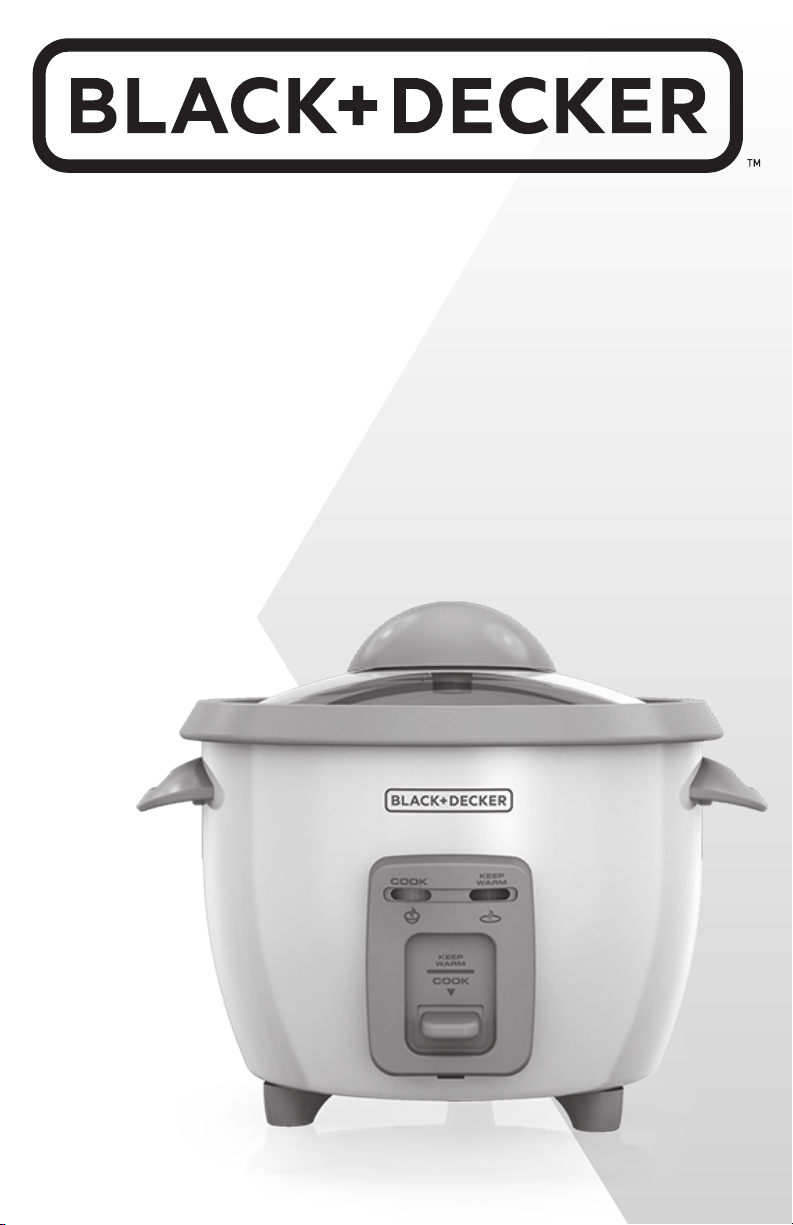

6-CUP RICE COOKER

AND STEAMER

ARROCERA Y OLLA DE VAPOR

DE 6 TAZAS

MODEL/MODELO

❍ RC3406

Customer Care Line:

USA 1-800-231-9786

Accessories/Parts (USA)

1-800-738-0245

For online customer service

and to register your product, go to

www.prodprotect.com/applica

Servicio para el cliente:

México 01-800 714-2503

Accesorios/Partes (EE.UU)

1-800-738-0245

Please Read and Save this Use and Care Book

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always

be followed, including the following:

❍

Read all instructions.

❍

Do not touch hot surfaces. Use handles or knobs.

❍

To protect against electrical shock do not immerse cord, plugs or

appliance in water or other liquid.

❍

Close supervision is necessary when any appliance is used by or near

children.

❍

Unplug from outlet when not in use and before cleaning. Allow to cool

before putting on or taking off parts.

❍

Do not operate any appliance with a damaged cord or plug, or after the

appliance malfunctions or has been damaged in any manner. Return

appliance to the nearest authorized service facility for examination,

repair or adjustment. Or, call the appropriate toll-free number on the

cover of this manual.

❍

The use of accessory attachments not recommended by the appliance

manufacturer may cause injuries.

❍

Do not use outdoors.

❍

Do not let cord hang over edge of table or counter, or touch hot surfaces.

❍

Do not place on or near a hot gas or electric burner or in a heated oven.

❍

Extreme caution must be used when moving an appliance containing hot

oil or other hot liquids.

❍

Always attach plug to appliance first, then plug cord into the wall outlet.

To disconnect remove plug from wall outlet.

❍

Do not use appliance for other than intended use.

❍

To reduce the risk of electric shock, cook only in removable container.

❍

This appliance is not intended for use by persons (including children)

with reduced physical, sensory or mental capabilities, or lack of

experience and knowledge, unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety.

❍

Children should be supervised to ensure that they do not play with the

appliance.

❍

The appliance is not intended to be operated by means of an external

timer or separate remote-control system.

SAVE THESE INSTRUCTIONS.

This product is for household use only.

POLARIZED PLUG (120V Models Only)

This appliance has a polarized plug (one blade is wider than the other). To

reduce the risk of electric shock, this plug is intended to fit into a polarized

outlet only one way. If the plug does not fit fully into the outlet, reverse the

plug. If it still does not fit, contact a qualified electrician. Do not attempt to

modify the plug in any way.

TAMPER-RESISTANT SCREW

Warning: This appliance is equipped with a tamper-resistant screw to

prevent removal of the outer cover. To reduce the risk of fire or electric

shock, do not attempt to remove the outer cover. There are no user-

serviceable parts inside. Repair should be done only by authorized service

personnel.

ELECTRICAL CORD

a) A short power-supply cord (or detachable power-supply cord) is to be

provided to reduce the risk resulting from becoming entangled in or

tripping over a longer cord.

b) Longer detachable power-supply cords or extension cords are available

and may be used if care is exercised in their use.

c) If a long detachable power-supply cord or extension cord is used,

1) The marked electrical rating of the detachable power-supply cord

or extension cord should be at least as great as the electrical rating

of the appliance,

2) If the appliance is of the grounded type, the extension cord should be

a grounding-type 3-wire cord, and

3) The longer cord should be arranged so that it will not drape over the

countertop or tabletop where it can be pulled on by children or

tripped over.

Note: If the power supply cord is damaged, it should be replaced by qualified

personnel or in Latin America by an authorized service center.

ENGLISH

COOK

KEEP

WARM

COOK

KEEP

WARM

COOK

KEEP

WARM























Product may vary slightly from what is illustrated.

1. Lid handle

† 2. Tempered glass lid with steam vent (Part # RC3406-01)

† 3. Steamer basket divider (Part# RC3406-06)

† 4. Steamer basket (Part# RC3406-05)

† 5. Cooking bowl with water level marks (inside) (Part# RC3406-02)

6. Cool-touch side handles

7. KEEP WARM indicator light

8. COOK indicator light

9. “On” switch

† 10. Rice measure (Part # RC3406-03)

† 11. Serving scoop (Part # RC3406-04)

Note: † indicates consumer replaceable/removable parts

How to Use

This appliance is for household use only.

GETTING STARTED

• Remove all packing material and stickers from the product.

• Please go to www.prodprotect.com/applica to register your warranty.

• Remove and save literature.

• Wash and dry all removable parts as instructed in CARE AND CLEANING section

of this manual.

• Place appliance on a flat, stable surface.

COOKING RICE

1. Measure desired amount of rice to be cooked using rice measure provided; do not

use 1 cup measuring cup. (The rice measure provided holds ²⁄³ cup uncooked

rice - about 5 oz. or 150 grams) This rice cooker can cook up to 3 measures of

rice and yield a maximum of about 6 cups of cooked rice.

2. Place rice in the cooking bowl.

Important: Use only the cooking bowl provided with this appliance to cook rice.

3. Using the water level markings on the inside of the cooking bowl as a guide, add

amount of water that matches the amount of rice to be cooked. For example, if

preparing 1 measure of rice, add water to the 1-cup water level mark. Adding too

much water may make the appliance boil over.

Important: Follow the instructions on the rice packaging.

4. Add butter, oil and desired seasonings.

Note: For softer, fluffy rice add a little more water; for rice that has a firmer texture

add a little less water.

5. Before placing cooking bowl into rice cooker, be sure the heating plate and outside

surface of the cooking bowl are clean and dry. Avoid having rice kernels or other

ingredients fall into the rice cooker.

6. Insert cooking bowl into rice cooker.

7. Place glass lid on the cooking bowl. For best results always keep glass lid on while

cooking.

Important: As rice cooks, steam will escape through vent in lid. Place glass lid on

rice cooker so steam vent is facing away from cabinets and walls. Do not place hand

over steam vent while rice is cooking; the hot steam may burn.

8. Uncoil cord and plug into standard electrical outlet. The KEEP WARM indicator

light comes on.

9. Press down the ON switch. The COOK indicator light comes on and cooking

begins.

10. When rice is cooked, the COOK indicator light shuts off and the switch pops up

and the rice cooker automatically switches to the KEEP WARM function. The KEEP

WARM indicator light will stay on until the appliance is unplugged.

Note: Do not try to stop the rice cooker from switching to the KEEP WARM mode. Do

not try to press the ON switch once the Warm cycle has begun.

11. For best results, let the cooked rice rest for 15 minutes, covered, to further steam

the rice. If holding cooked rice longer than 30 minutes, stir rice occasionally to

prevent browning of rice on the bottom of the cooking bowl.

12. Just before serving, remove lid and fluff rice. Use serving scoop provided with

appliance to prevent damage to nonstick surface of the cooking bowl.

Caution: When removing the lid, always lift it away from the body to prevent getting

burned from the hot steam.

STEAMER BASKET

ENGLISH

Refer to cooking chart on page 7 for suggestions on cooking time and seasonings.

1. Pour about ¾ cup cold tap water into cooking bowl using standard liquid measuring

cup. Add seasoning, if desired.

2. Place vegetables or other food in the steamer basket.

3. Place basket on top of cooking bowl. Before placing cooking bowl into rice cooker,

be sure the heating plate and outside surface of the cooking bowl are clean and dry.

Avoid having any food fall into the rice cooker.

4. Cover with glass lid. Always keep glass lid on while steaming.

Important: As food cooks, steam will escape through vent in lid. Place lid on rice

cooker so vent is facing away from cabinets and walls. Do not place hand over steam

vent while food is cooking; the hot steam may burn.

5. Plug cord into standard electrical outlet. The KEEP WARM indicator light comes on.

6. Press down the ON switch. The COOK indicator light comes on and cooking begins.

When heating prepared foods the ON switch and COOK indicator light are not

intended to be an indicator of cooking time. Always use a kitchen timer and do not

leave these foods unattended.

7. Steaming time will vary depending upon type of food and amount to be cooked.

8. Begin checking vegetables after about 8 minutes. (Cooking time will vary depending

upon type and amount of food to be cooked.)

9. When cooking is completed remove food and serve. Unplug appliance.

10. The steamer basket has a removable divider that allows you to cook two different

foods at one time.

HEATING PACKAGED FOODS

Packaged foods, such as condensed and ready-to-serve soups, pasta products and stews

may be heated in the rice cooker following these directions:

1. Place food to be heated into cooking bowl.

Important: Do not fill the cooking bowl higher than the maximum 3.5 cups marking on

the cooking bowl.

2. Before placing cooking bowl into rice cooker, be sure the heating plate and outside

surface of the cooking bowl are clean and dry. Avoid having any food fall into the rice

cooker.

3. Insert cooking bowl into rice cooker.

4. Place glass lid on the cooking bowl.

Note: For best results always keep glass lid on while cooking.

5. Uncoil cord and plug into standard electrical outlet. The KEEP WARM indicator light

comes on.

6. Press down the ON switch. The COOK indicator light comes on and cooking begins.

As the soup or stew heats, steam may come out through the vent on the glass lid.

Caution: Do not place hand over steam vent while rice is cooking; the hot steam

may burn.

7. For even heating, stir mixture occasionally during cooking. Replace lid when stirring

is completed.

8. Bring mixture to a boil. When heating prepared foods, the ON switch and the COOK

indicator light are not intended to be an indicator of cooking time. Always use a

kitchen timer and do not leave these foods unattended.

9. When cooking is completed, unplug unit. Do not keep cooked soups and stews in the

KEEP WARM cycle.

HELPFUL HINTS

ENGLISH

VEGETABLE AND FISH COOKING CHART

All steamed using ¾ cup cold tap water or room temperature broth or stock.

VEGETABLE AMOUNT PREPARATION TIME SUGGESTIONS

Fresh asparagus 5 oz. / 2 cups 2 -inch pieces 13 to 15 Season with

minutes lemon slices, salt

and pepper

Fresh green beans 7 oz. / 2 cups 2-inch pieces 17 to 19 Season with dill,

minutes salt and garlic

pepper

Fresh beets 7 oz. / 2 cups Peeled and 22 to 24 Add orange peel,

sliced minutes salt and pepper

Fresh broccoli 5 oz. / 2 cups Broken into 15 to 17 Add fresh thyme

florets minutes or marjoram

leaves

Fresh carrots 9 oz. / 2 cups Peeled and sliced 19 to 21 Season with fresh

minutes dill and parsley

Fresh cauliflower 9 oz. / 2 cups Cut into florets 21 to 23 Serve garnished

minutes with buttered

bread crumbs

Fresh celery 8 oz. / 2 cups Cut into 1/2 inch 17 to 19 Season with

slices minutes chives or parsley

Sugar snap 8 oz. / 2 cups Trimmed and 12 to 14 Serve drizzled

or snow peas left whole minutes with soy sauce

and chopped

green onions

Peppers 1 large Cut in strips 13 to 15 Season with

minutes chopped garlic

and cilantro

Potatoes 8 oz. / 2 cups Cut in wedges 21 to 23 Season with

minutes chopped

rosemary, salt

and garlic pepper

Yellow squash 8 oz. / 2 cups Sliced 17 to 19 Serve with diced

and Zucchini minutes tomatoes and

shredded

Parmesan cheese

FISH

Add lemon slices to ¾ cup water in cooking bowl

Salmon 6oz. Fillet 24 to 26 Season with fresh

minutes dill and chives

Shrimp 6 oz. Peeled and 14 to 16 Serve with tartar

deveined minutes or cocktail sauce

• Although the rice measure holds about 5 ounces of uncooked rice; the cooked rice

is given in 8 ounce cup measures.

• Kosher salt has no impurities and dissolves faster than table salt. If using kosher salt,

you may find you want to add a little more than if using table salt. Use about ¾ tsp.

kosher salt to each cup of uncooked rice.

• White rice should be stored in an airtight container in a cool dark place.

• Brown rice has a limited shelf life; store it for no more than a month before using.

• Try using broth, stock or reconstituted bouillon in place of water for additional flavor.

If you do no additional salt may be necessary.

Care and Cleaning

This product contains no user serviceable parts. Refer service to qualified service

personnel.

CLEANING

• Unplug the unit before cleaning and let it cool completely.

• Never immerse the unit in water or other liquid.

• Wash the cooking bowl, lid, serving scoop and rice measure in warm, soapy water or in

the dishwasher. Do not use abrasive cleaners or metal scouring pads-they may scratch

the nonstick surface or could result in poor contact with the heating plate.

Helpful Tip: Since the rice cooking bowl has a nonstick coating, try this method: add

warm, soapy water and allow the bowl to stand for several minutes. This releases any

food particles and with just a wipe of a sponge or plastic scrubber the bowl is perfectly

clean.

• Wipe the interior of the unit with a dry cloth. Clean the outside surface with a damp

cloth and dry thoroughly.

• If water accidentally gets into the switch area or onto the heating plate, allow to dry

thoroughly before using the rice cooker.

TROUBLESHOOTING

PROBLEM POSSIBLE CAUSE SOLUTION

Some kernels of rice The rice was not allowed Once COOK indicator light

do not seem fully cooked. to finish cooking. switches to the KEEP

WARM indicator light,

allow rice

to rest for 15 minutes

before serving.

Rice cooking bowl not Starch builds up on Fill bowl with hot soapy

as clean as I would like. sides and bottom of bowl. water and let stand several

minutes; then use a nylon

scrubber along sides and

bottom. Rinse.

Rice boils over. Too much rice Make sure to cook no more

is being cooked. than the maximum amount

suggested in the Use and

Care Manual. The amount

of rice to be cooked should

match the water markings

on the bowl.

Rice is too dry. Too much rice or not Use the rice measure cup

enough water. that comes with the

appliance. The rice

measure provided holds

²⁄³ cup uncooked rice -

about 5 oz. or 150 grams.

Rice is gummy. Too much water or not Add water to match

enough rice. markings on the rice bowl.

Do not use a liquid

measuring cup.

ENGLISH

NEED HELP?

For service, repair or any questions regarding your appliance, call the

appropriate 800 number on cover of this book. Please DO NOT return the

product to the place of purchase. Also, please DO NOT mail product back to

manufacturer, nor bring it to a service center. You may also want to consult the

website listed on the cover of this manual.

Two-Year Limited Warranty

(Applies only in the United States and Canada)

What does it cover?

• Any defect in material or workmanship provided; however, Applica’s liability

will not exceed the purchase price of product.

For how long?

• Two years from the date of original purchase with proof of such purchase.

What will we do to help you?

• Provide you with a reasonably similar replacement product that is either new

or factory refurbished.

How do you get service?

• Save your receipt as proof of date of sale.

• Visit the online service website at www.prodprotect.com/applica, or call

toll-free 1-800-231-9786, for general warranty service.

• If you need parts or accessories, please call 1-800-738-0245.

What does your warranty not cover?

• Damage from commercial use

• Damage from misuse, abuse or neglect

• Products that have been modiﬁed in any way

• Products used or serviced outside the country of purchase

• Glass parts and other accessory items that are packed with the unit

• Shipping and handling costs associated with the replacement of the unit

• Consequential or incidental damages (Please note, however, that some

states do not allow the exclusion or limitation of consequential or incidental

damages, so this limitation may not apply to you.)

How does state law relate to this warranty?

• This warranty gives you speciﬁc legal rights. You may also have other rights

that vary from state to state or province to province.

Other manuals for RC3406

Table of contents

Languages:

Other Black & Decker Kitchen Appliance manuals

Black & Decker

Black & Decker JE1500 Series User manual

Black & Decker

Black & Decker MC1100SD User manual

Black & Decker

Black & Decker PRSM600 User manual

Black & Decker

Black & Decker TS2040 User manual

Black & Decker

Black & Decker bev BEHB101 User manual

Black & Decker

Black & Decker JE2100 Installation instructions

Black & Decker

Black & Decker SKG100 Installation instructions

Black & Decker

Black & Decker Gizmo GG100 Installation instructions

Black & Decker

Black & Decker PKS100 User manual

Black & Decker

Black & Decker SKG111 Installation instructions

Black & Decker

Black & Decker TS75R User manual

Black & Decker

Black & Decker EK700 Installation instructions

Black & Decker

Black & Decker TS65 User manual

Black & Decker

Black & Decker JE55 User manual

Black & Decker

Black & Decker FM1500 User manual

Black & Decker

Black & Decker TS75 User manual

Black & Decker

Black & Decker BS500 User manual

Black & Decker

Black & Decker TS55 User manual

Black & Decker

Black & Decker FM1400 User manual

Black & Decker

Black & Decker JE2200 User manual

Black & Decker

Black & Decker Slice Right EK700 Installation instructions

Black & Decker

Black & Decker JE1500 Series Installation instructions

Black & Decker

Black & Decker SM1000W User manual

Black & Decker

Black & Decker SK200 Series Multi-Cuisine & Deep Dutch Installation instructions

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
