Avery Dennison MONARCH 9416 XL User manual

ETHERNET SETUP GUIDE

Your Monarch® 9416® XL® Thermal Transfer printer has

a factory-installed internal Ethernet print server. Use this

Setup Guide to connect the printer to your network with

the Print Server Utility (provided on the enclosed

CD-ROM).

Information in this document supercedes information in

previous versions. Check our Web site

(www.monarch.com) for the latest documentation and

release information.

Connecting the Printer

1. Turn off the printer.

2. Connect a network cable from the printer to your

network using the Ethernet port.

Ethernet Port

3. Turn on the printer.

Note: When using the internal Ethernet printer server,

the printer’s parallel port is disabled.

Using the Print Server Utility

1. Run the M0916Util.exe file. You see the main

screen.

2. Enter any changes to the real time clock or click Get

System Time to change the time. Then, click Set.

3. For DHCP, select DHCP. When using a static IP

address, select Static IP. Then, enter the IP Address,

Subnet Mask, and Gateway. Click Set IP when

finished.

4. Enter a Printer Name. Then, click Set Printer Name.

5. Click Exit when finished.

Resetting the Printer

♦ Click Factory Default from the main screen to return

the printer to factory default settings.

♦ Click Reset Printer from the web browser screen to

reset the printer. This is the same as turning off the

printer and then back on. See "Using a Web Browser"

for more information.

1. , select Ethernet from the

You see the TCP/IP

4. For DHCP, select ing a static IP

ad ter the IP Address,

Subnet Mask, Gateway, and Printer Name.

nfiguring Multiple Printers

From the main screen

InterFace box and click Setup.

Setup screen.

Click Discover Device to see the printers on your

network.

3. Highlight a printer to configure and click Change I

Address. You see the Ethernet Setup screen.

DHCP. When us

dress, select Static IP. Then, en

5. Click Set.

Click Exit when finished.

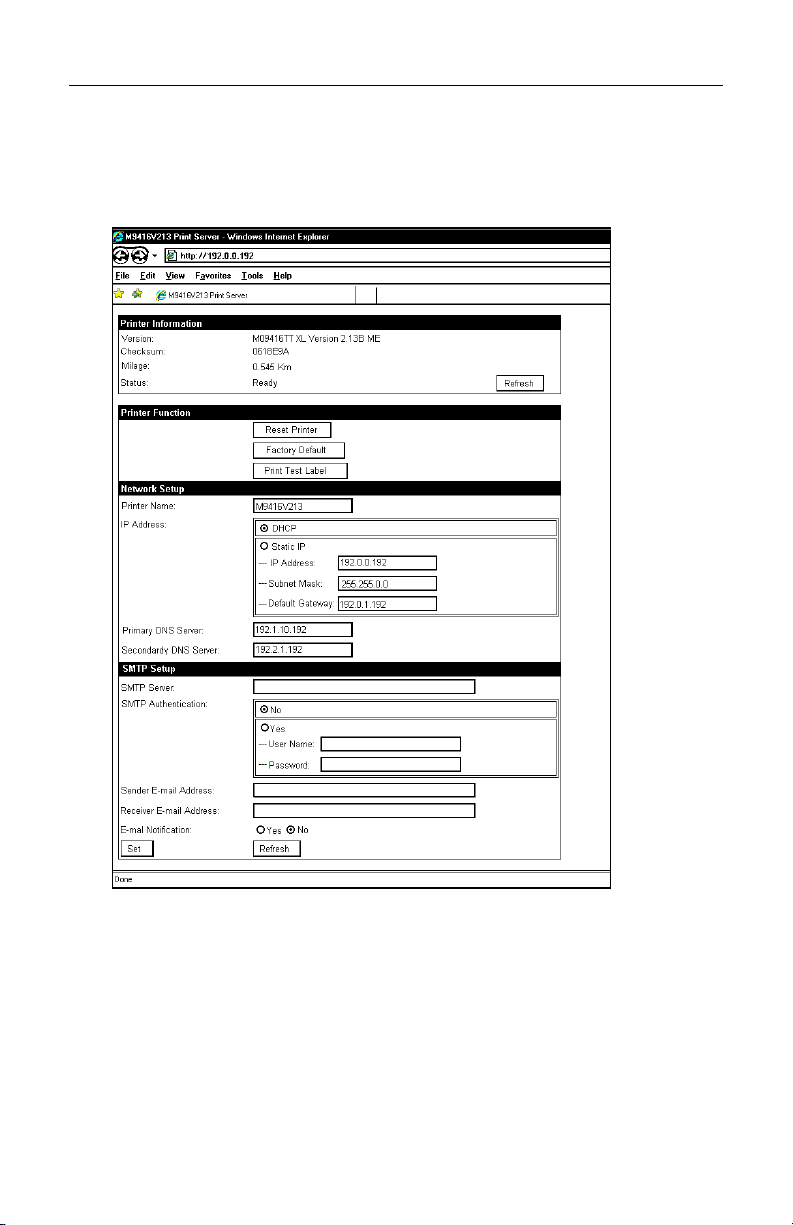

Using a Web Browser

You can configure and mana

web browser.

ge the printer by using your

e web browser screen.

2. gs.

3. Click Set to save the settings.

1. From the TCP/IP Setup screen, click Web Setup.

You see th

Enter any necessary network and SNMP settin

4. Click Refresh to refresh the browser's window.

5. Close your browser.

6. Click Exit when finished.
