Avery Dennison Monarch TC6039SA Service manual

Monarch

Pathfinder Ultra

Printer

®®

Platinum

04/18/07 7512

653258

$15.50

32232

SALE

$25.00

58523

PEARL EARRINGS

99565

$200.00

04/18/07

7512

45453

System

Administrator’s

Guide

System

Administrator’s

Guide

This device has been tested and found to comply with the limits for a Class B digital

device pursuant to Part 15 of the Federal Communications Commissions Rules and

Regulation. These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful interference to

radio communications. Operation of this equipment in a residential area is likely to

cause harmful interference in which case the user will be required to correct the

interference at his own expense. However, there is no guarantee that interference will

not occur in a particular installation.

If the equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

♦ Re-orient or relocate the receiving antenna.

♦ Increase the separation between the equipment and receiver.

♦ Connect the equipment into an outlet on a circuit different from that which the

receiver is connected.

This Class B digital apparatus meets the requirements of the Canadian Interference-

Causing Equipment Regulations.

Cet appareil numérique de la Classe B respecte toutes les exigences du Règlement sur

le Matériel Brouilleur du Canada.

Trademarks

Monarch®, Pathfinder®, Ultra®, Pathfinder® Ultra®, 6039, 9462, and 9465 are

trademarks of Paxar Americas, Inc.

Paxar® is a trademark of Paxar Corporation.

Avery Dennison® is a trademark of Avery Dennison Corporation.

Microsoft® and Windows® are trademarks of Microsoft Corporation.

Symbol® and Spectrum24® are trademarks of Symbol Technologies.

Motorola® is a trademark of Motorola, Inc.

Avery Dennison Printer Systems Division

170 Monarch Lane

Miamisburg, OH 45342

Outside the U.S., send batteries to:

Paxar EMEA, 4 Awberry Court

Croxley Business Park, Hatters Lane,

Watford, WD18 8PD

TABLE OF CONTENTS

INTRODUCTION 1-1

Using This Manual .................................................................................. 1-1

Audience................................................................................................ 1-1

ADMINISTRATIVE TOOLS 2-1

Using the Taskbar Lockdown Option ......................................................... 2-1

Locking the Taskbar............................................................................. 2-1

Removing Applications ......................................................................... 2-2

Removing Applications ......................................................................... 2-3

Unlocking the Taskbar.......................................................................... 2-3

Using Asset Tracking............................................................................... 2-3

Editing Owner Data.............................................................................. 2-3

Printing an Asset Tracking Label ........................................................... 2-4

Printing an Asset Tracking Label ........................................................... 2-5

Using Printer Passthru............................................................................. 2-5

CONFIGURING WIRELESS SETTINGS 3-1

About the 802.11b Wireless Card.............................................................. 3-1

Using the Mobile Companion.................................................................... 3-1

Finding a Network................................................................................ 3-2

Creating a Profile ................................................................................ 3-3

Setting a Password .............................................................................. 3-4

About the 802.11b/g Wireless Card........................................................... 3-5

Using Fusion .......................................................................................... 3-5

Finding a Network................................................................................ 3-6

Creating a Profile ................................................................................ 3-7

Setting a Password .............................................................................. 3-9

USING PRINTER DIAGNOSTICS 4-1

Accessing Printer Diagnostics .................................................................. 4-1

Testing the Print Engine .......................................................................... 4-1

Checking Machine Totals...................................................................... 4-2

Printing Diagnostic Labels .................................................................... 4-3

Checking the Stock Registration............................................................ 4-5

Testing the Sensors ............................................................................. 4-7

Testing the Printhead........................................................................... 4-9

Viewing the Print Engine Memory Expansion Directory .......................... 4-10

Testing the Keypad ............................................................................ 4-11

Testing the Speaker........................................................................... 4-11

CONFIGURING THE SCANNER 5-1

Setting Scanner Options .......................................................................... 5-1

Enabling Specific Bar Codes .................................................................... 5-5

Configuring UPC/EAN Bar Codes .......................................................... 5-5

Configuring UPC/EAN Bar Codes .......................................................... 5-6

Configuring Code 39 Bar Codes ............................................................ 5-9

Configuring Code 128 Bar Codes......................................................... 5-11

Configuring I 2of5 Bar Codes .............................................................. 5-12

Configuring MSI Bar Codes................................................................. 5-13

Configuring Codabar Bar Codes .......................................................... 5-14

Configuring Code 93 Bar Codes .......................................................... 5-15

Configuring D 2of5 Bar Codes............................................................. 5-16

Configuring RSS Bar Codes................................................................ 5-17

Printable Bar Codes vs. Scannable Bar Codes ......................................... 5-18

USING SCANNER DIAGNOSTICS 6-1

Performing Scanner Diagnostics............................................................... 6-1

Setting the Scanner Mode........................................................................ 6-3

Setting the Trigger Mode ......................................................................... 6-3

SCAN STATUS VALUES A-1

Introduction 1-1

INTRODUCTION

The Monarch® Pathfinder® Ultra® Platinum 6039™ printer prints,

scans bar codes, collects data, and communicates with other

devices. The printer operates on a modified MicrosoftWindowsCE

platform.

Information in this document supercedes information in previous versions.

Check our Web site (www.monarch.com) for the latest documentation and

release information.

Note: Before you begin, review the safety information in the Regulatory

Compliance document included with your printer.

Using This Manual

Following is a summary of the contents of this manual.

Chapter Contents

1 Introduction Information you should know before using the printer.

2 Administrative

Tools

Using the taskbar lockdown, asset tracking, and

printer passthru options.

3 Wireless

Configuration

Setting communications between your wireless

printer and network.

4 Printer

Diagnostics

Using printer diagnostics to print test labels, check

sensors, view inches printed, etc.

5 Scanner

Configuration

Configuring the scanner to accept certain bar codes

and setting the scanner and trigger modes.

6 Scanner

Diagnostics

Using scanner diagnostics.

Audience

This manual is for the System Administrator who configures the printer and

scanner and performs diagnostics.

A Quick Reference for this printer is available in the box.

The Programmer’s Manual and other documentation are available on our

Web site.

1-2 System Administrator’s Guide

Administrative Tools 2-1

ADMINISTRATIVE TOOLS

Use these tools to

♦ lock the taskbar to restrict user access

♦ identify and track your printers

♦ send MPCLII packets directly to the printer.

Using the Taskbar Lockdown Option

The Taskbar Lockdown option prevents access to the Start Menu or any

unspecified applications without a password. The system administrator

selects which applications are accessible when the taskbar is locked.

Locking the Taskbar

1. From the Start Menu, tap Settings, Control Panel, Taskbar Lockdown.

2. Check Enable under the Basic tab.

3. Select the Startup Mode for the user or administrator.

To disable the clock display on the taskbar, uncheck the Enable Clock

on User Bar.

4. Enter and confirm a password. The default password is 123321.

Note: Make a note of the password if you change it. You must have the

current password to unlock the taskbar.

2-2 System Administrator’s Guide

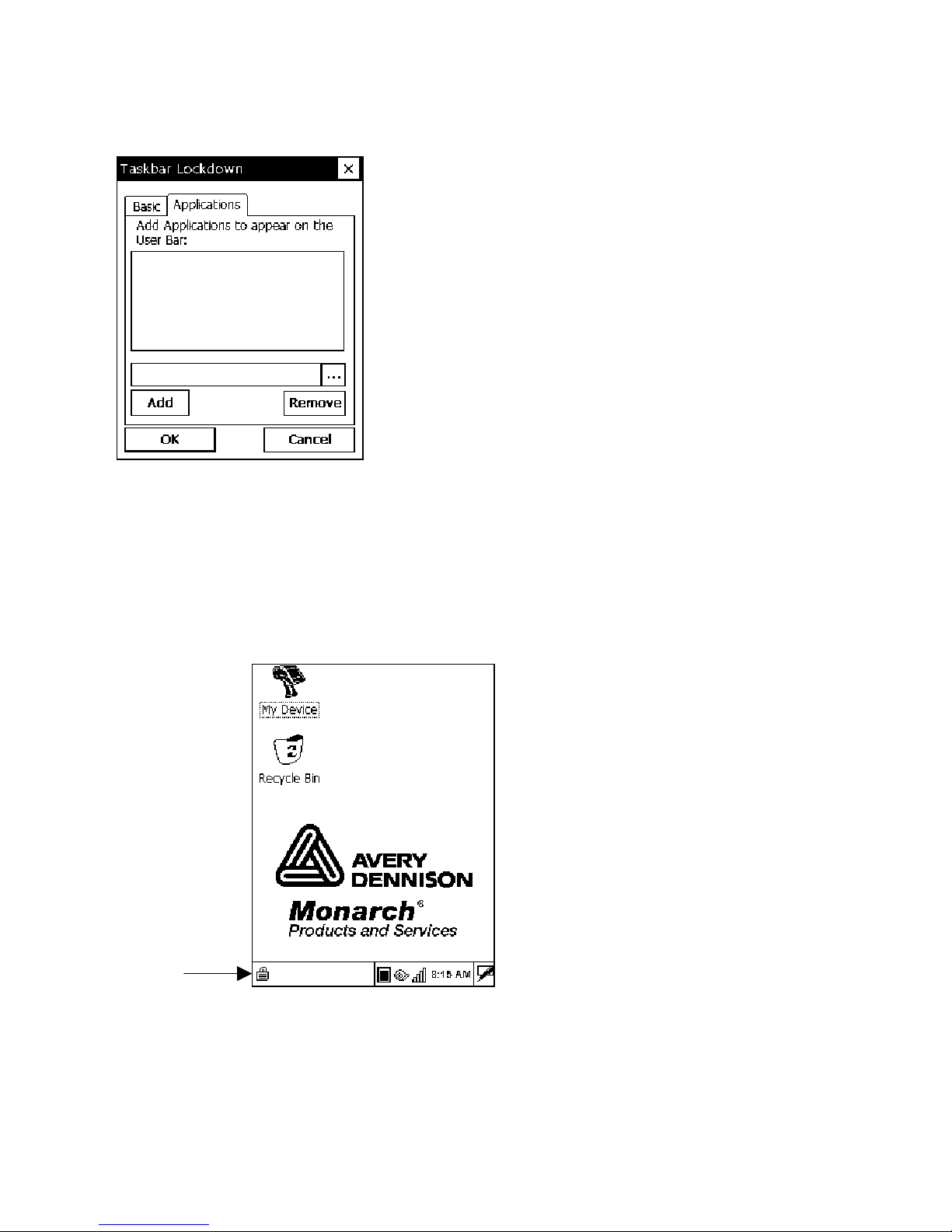

5. Tap the Applications tab.

6. Tap the browse button (…) and select an application that the user has

permission to run.

7. Tap OK. The selected application path appears in the browse field.

8. Tap Add. The application appears in the list.

9. When you are finished, tap OK, then Yes. The printer restarts.

A small lock icon appears over the Start Menu when the taskbar is locked.

Lock Icon

Administrative Tools 2-3

Removing Applications

If an application is removed from the list, the user no longer has access to

that application when the taskbar is locked.

1. From the Taskbar Lockdown screen, tap the Applications tab.

2. Select the application to remove from the list.

3. Tap Remove. The application disappears from the list.

4. When you are finished, tap OK, then Yes. The printer restarts.

Unlocking the Taskbar

To unlock the taskbar:

1. Tap the lock icon at the bottom-left of the taskbar. The Input Panel

keyboard appears on the display.

2. Enter the Administrator password and tap OK.

To re-lock the taskbar, tap the lock icon again, which has moved to the

bottom-right side of the screen.

Using Asset Tracking

Asset tracking contains the manufacturer’s product ID and serial number,

and the owner’s product ID and serial number. A password is required to

edit this data. You can print an asset tracking label that contains the product

IDs and serial numbers for your records.

Editing Owner Data

1. From the Start Menu, tap Settings, Control Panel, Asset Tracking.

2. Tap Edit. Use the keypad to enter the password and press Enter.

The default password is 123321.

2-4 System Administrator’s Guide

The Owner Product ID field is highlighted.

3. Use the keypad or scan a bar code to enter a new Product ID and press

Enter.

The Owner Serial Number field is highlighted.

4. Use the keypad or scan a bar code to enter a new Serial Number and

press Enter.

Note: You can only edit owner data. The Paxar Product ID and Serial

Number cannot be changed.

5. Tap Export to create a backup file of the new data on your computer or

server, then tap OK.

6. Tap Import to retrieve a backup file from your computer or server, then

tap OK. The retrieved data appears on the screen.

This manual suits for next models

Table of contents

Other Avery Dennison Printer manuals

Avery Dennison

Avery Dennison Pathfinder 6057 Service manual

Avery Dennison

Avery Dennison Monarch 9855 RFID Service manual

Avery Dennison

Avery Dennison AP7.t User manual

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Silver 6032 Service manual

Avery Dennison

Avery Dennison Monarch Tabletop Printer 1 Service manual

Avery Dennison

Avery Dennison SNAP 500 User manual

Avery Dennison

Avery Dennison MONARCH 9416 XL Technical Document

Avery Dennison

Avery Dennison Monarch Pathfinder Ultra Platinum 9462 User manual

Avery Dennison

Avery Dennison Monarch 2 Operating and maintenance manual

Avery Dennison

Avery Dennison Pathfinder6057 Operating and maintenance manual

Avery Dennison

Avery Dennison 9444 User manual

Avery Dennison

Avery Dennison AP7.t User manual

Avery Dennison

Avery Dennison Stacker Monarch 932TM User manual

Avery Dennison

Avery Dennison MonarchNet2 9855 User manual

Avery Dennison

Avery Dennison Monarch SIERRA SPORT4 9493 User manual

Avery Dennison

Avery Dennison TrafficJet User manual

Avery Dennison

Avery Dennison AP7.t User manual

Avery Dennison

Avery Dennison SNAP 700 Operating manual

Avery Dennison

Avery Dennison Monarch Service manual

Avery Dennison

Avery Dennison Monarch SIERRA SPORT4 9493 User manual

Avery Dennison

Avery Dennison TTX 207 User manual

Avery Dennison

Avery Dennison FRESHMARX 9415 Service manual

Avery Dennison

Avery Dennison FreshMarx 9417 Service manual

Avery Dennison

Avery Dennison Pathfinder 6059 Technical Document

Popular Printer manuals by other brands

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series quick start guide

Evolis

Evolis Elypso user guide

Kyocera

Kyocera FS-9530DN specification

Canon

Canon LASER SHOT LBP-1210 Specifications

Samsung

Samsung BIXOLON SRP-350plusF user manual

Canon

Canon PIXMA PRO-1 Series Getting started

Canon

Canon PIXMA G3560 Online manual

Dell

Dell Color Laser Printer 2130cn user guide

Tektronix

Tektronix Phaser 840 user guide

Epson

Epson ET-7750 Programming guide

Canon

Canon CLBR 460ps Service manual

Eltron

Eltron P210 Guide manual

Ricoh

Ricoh MD-P1 Service manual

Epson

Epson SC-F7100 series user guide

Epson

Epson Stylus C40UX Service manual

Canon

Canon imagePASS-A2 Service guide

Canon

Canon S820D user guide
