Yard force YF22-3N1 User manual

YF22-3N1

22” 3-IN-1 HAND PUSH

LAWN MOWER

OPERATOR’S MANUAL

Our Customer Service staff is ready to provide assistance.

In the case of a damaged or missing part, most replacement parts ship from our

facility.

For immediate help with assembly, or for additional product information, visit

www.YardForceUSA.com or email support@MerotecUSA.com

SAVE THIS MANUAL FOR REFERENCE

You will need this manual for safety

instructions, operating procedures, and Warranty.

The original sales receipt is required for warranty service.

TABLE OF CONTENTS

YF22-3N1 Original Instructions

Safety instructions...............................................................................................................................................3

Parts list..............................................................................................................................................................6

Intended use.......................................................................................................................................................8

Technical specifications......................................................................................................................................9

Assembly............................................................................................................................................................9

Operation..........................................................................................................................................................15

Maintenance and storage .................................................................................................................................19

Trouble shooting...............................................................................................................................................23

Warranty...........................................................................................................................................................24

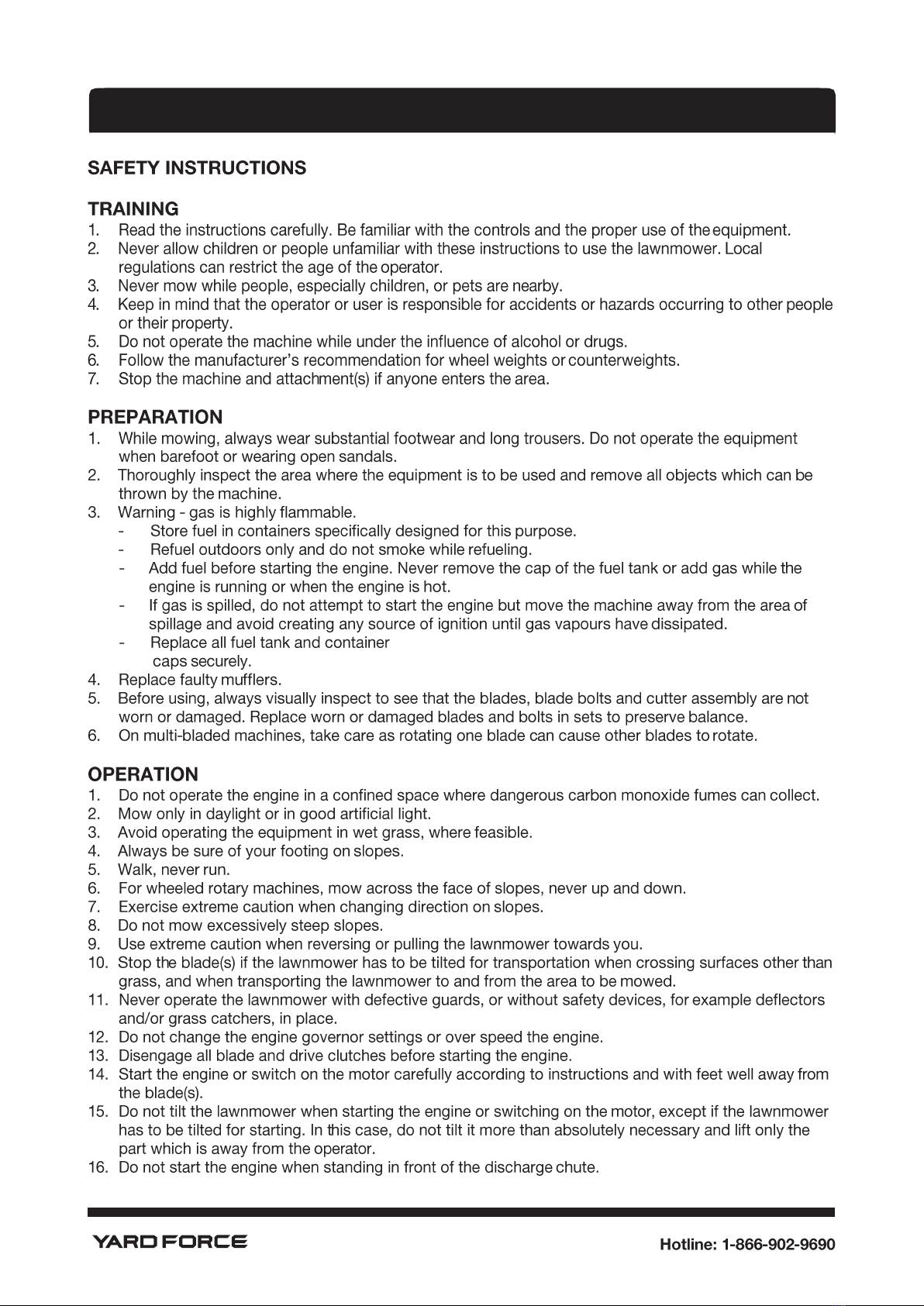

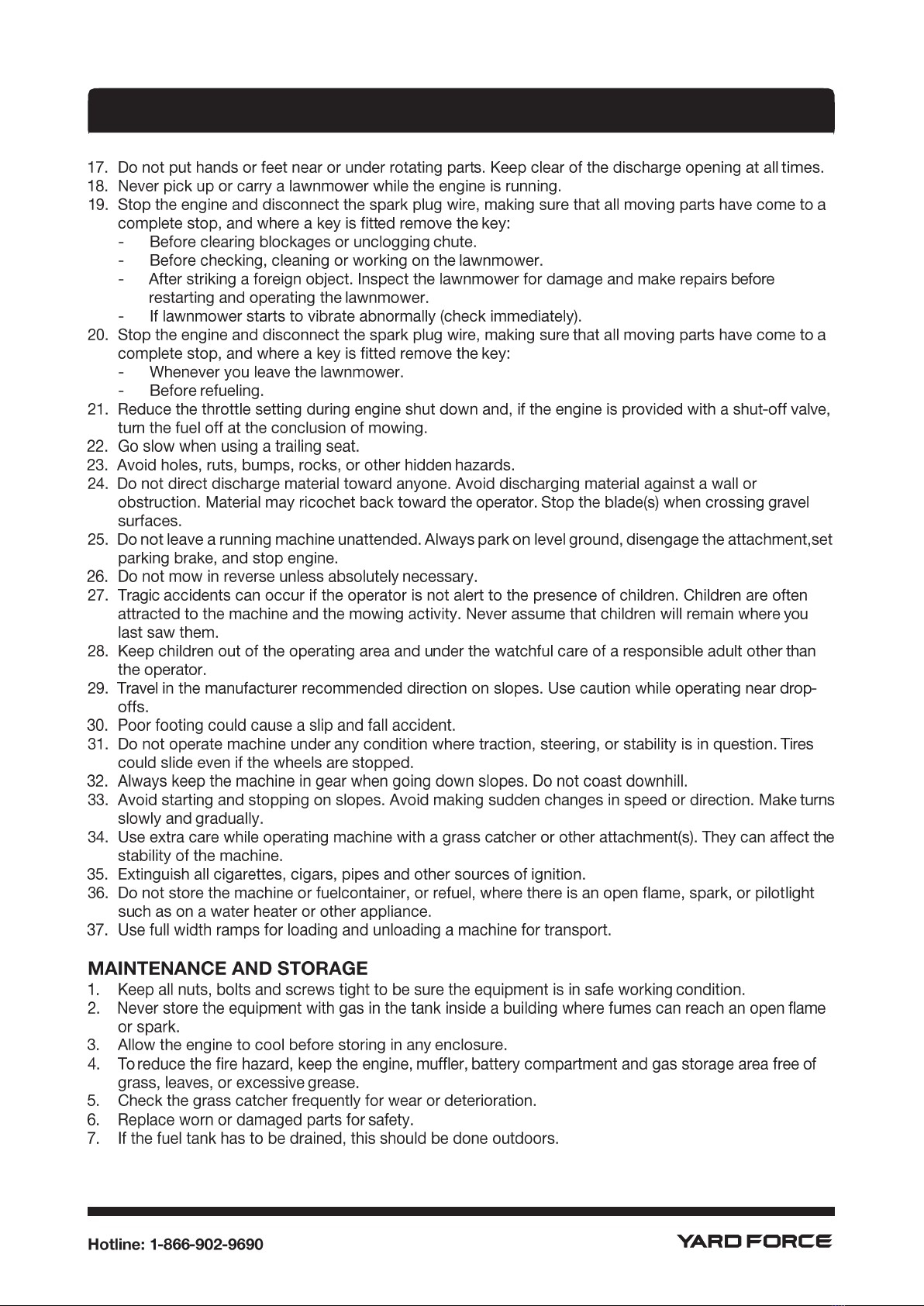

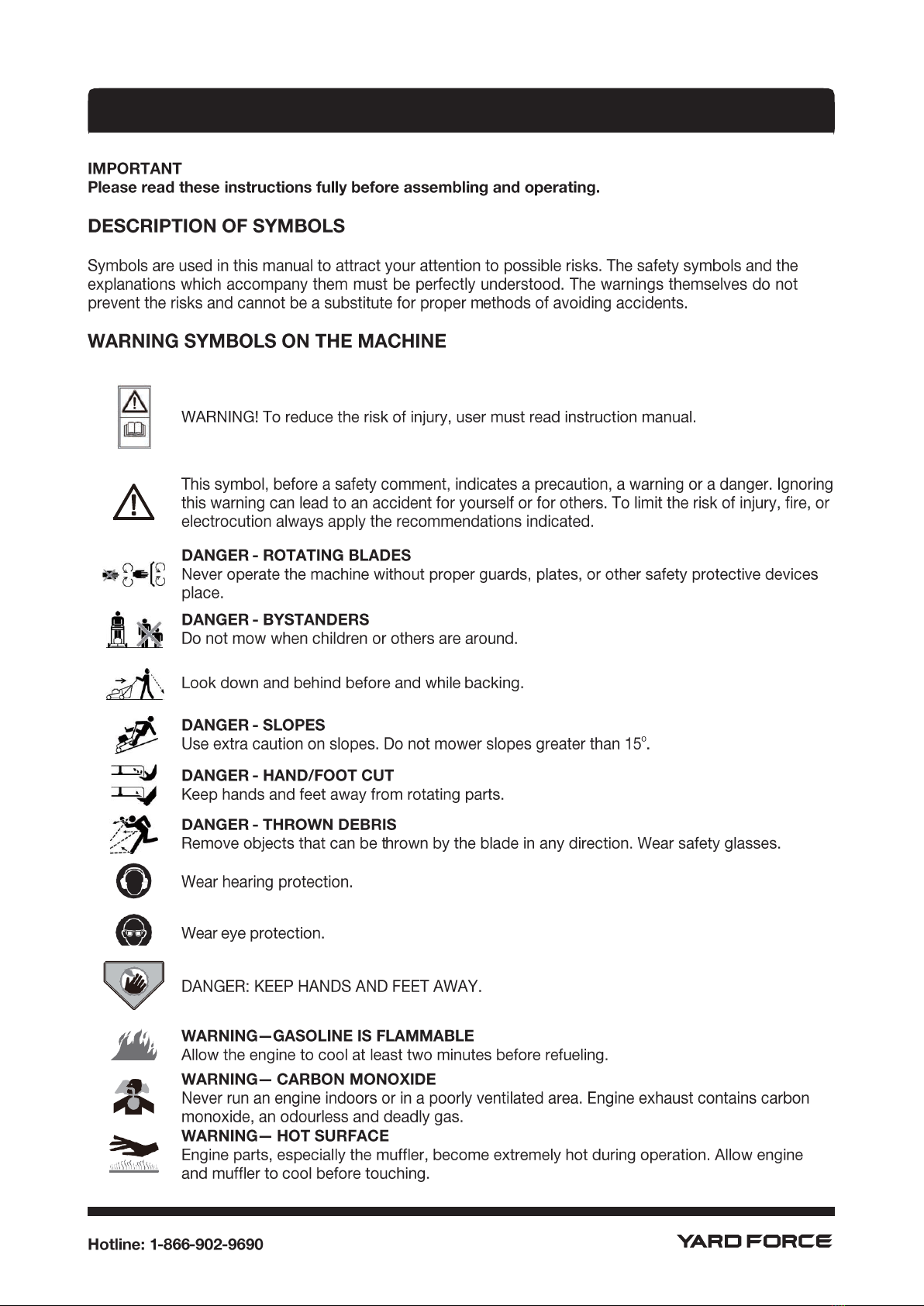

SAFETY INSTRUCTIONS

PARTS LIST

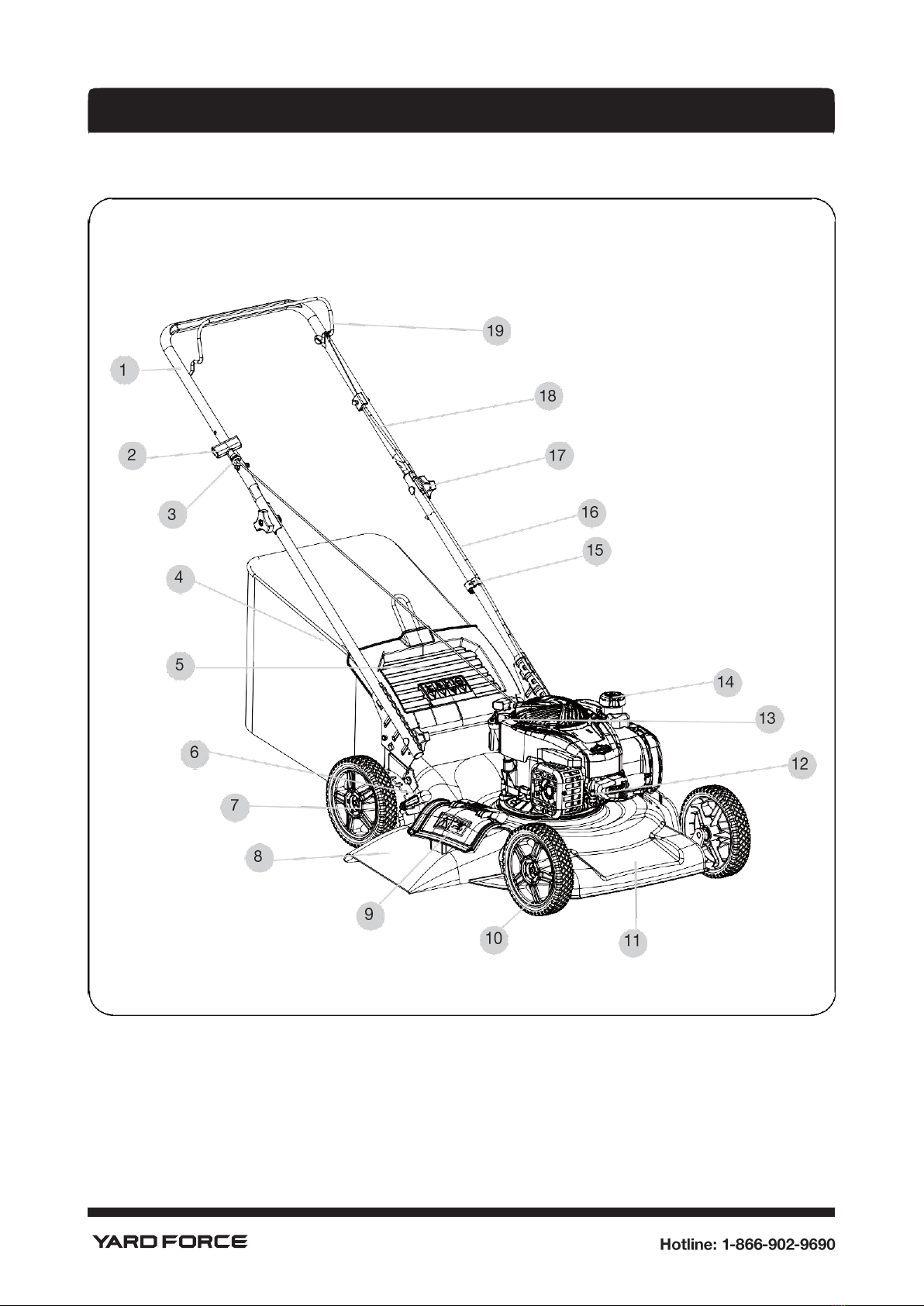

KNOW YOUR LAWN MOWER

Fig. 1

Upper handle

Engine start handle

Rope guide

Grass bag

Rear chute flap

Height-adjusting handle

Rear wheel

Side discharge chute (removable)

Side discharge cover

10.

Front wheel

11.

Cutting deck

12.

Spark plug cover

13.

Oil filler dipstick

14.

Gas filler cap

15.

Cord clip

16.

Lower handle

17.

Handle knob and bolt

18.

Bowden cable

19.

Engine on/off control bar

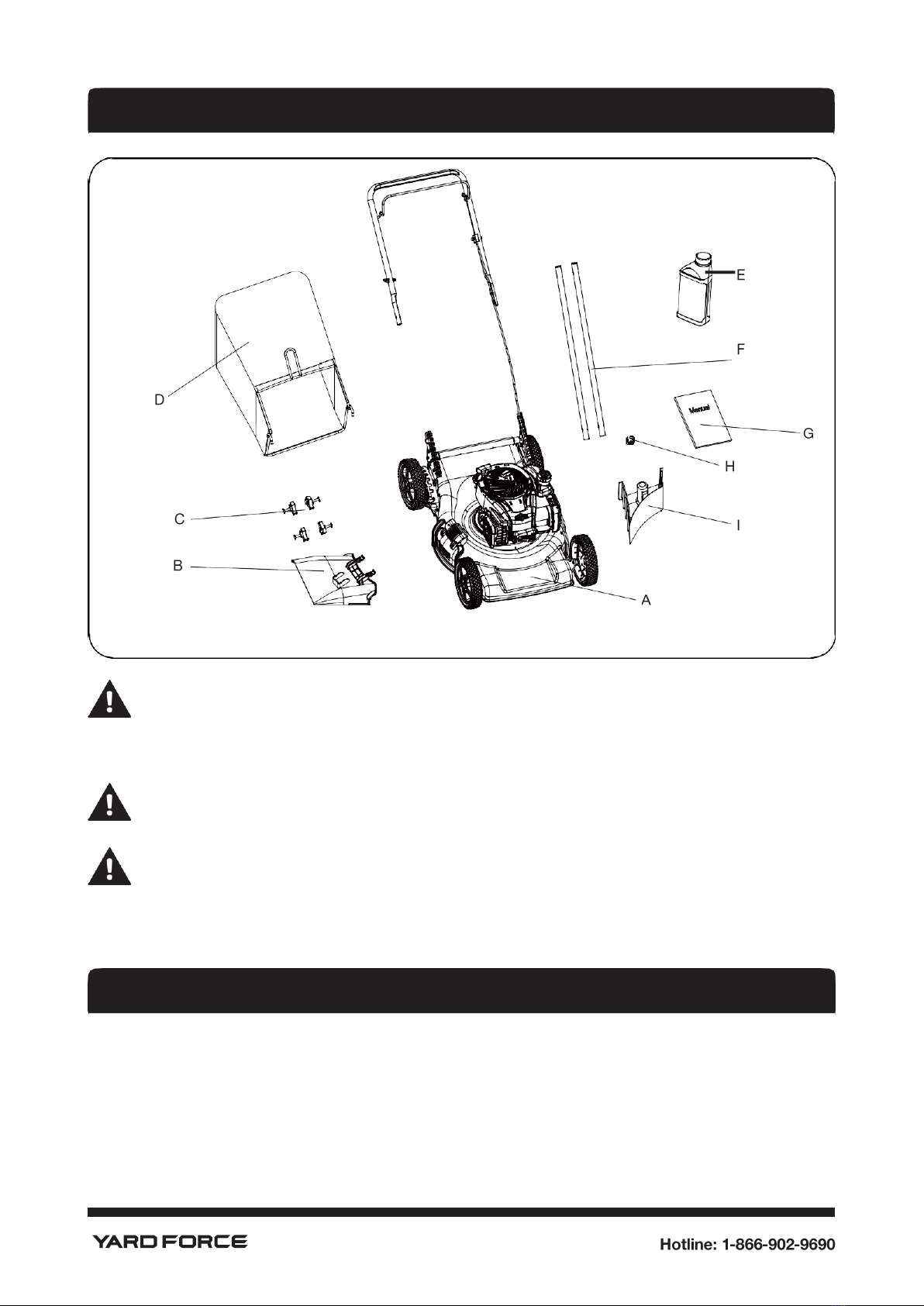

PARTS LIST

Main mower deck (with upper handle) 1 pc

Side discharge chute 1 pc

Handle Knob and Bolt 4 sets

Grass bag 1 pc

Engine Oil (SAE 30 15 o.z.) 1 pc

Lower handle bar 2 pcs

Manual 1 pc

Cord clip 1 pc

Mulching plug (inside the mower) 1 pc

PARTS LIST

INTENDED USE

WARNING!

If any parts are damaged or missing, do not operate this lawn mower until the missing parts

are replaced.

Failure to heed this warning could result in serious personal injury.

NOTE:

Always recycle the packaging in accordance with local recycling programs.

WARNING!

This item requires a two-person lift to remove from the packaging. Make sure that you have

sufficient space to put the lawn mower down. Keep your feet apart so that you have a stable

position, bend at the knees and keep your back straight.

This gas-powered lawn mower has been designed for cutting residential lawn areas.

The machine is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse.

The user/operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a

result of this.

Please note that our equipment has not been designed for use in commercial, trade or industrial applica-

tions. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for

equivalent purposes.

Fig. 2

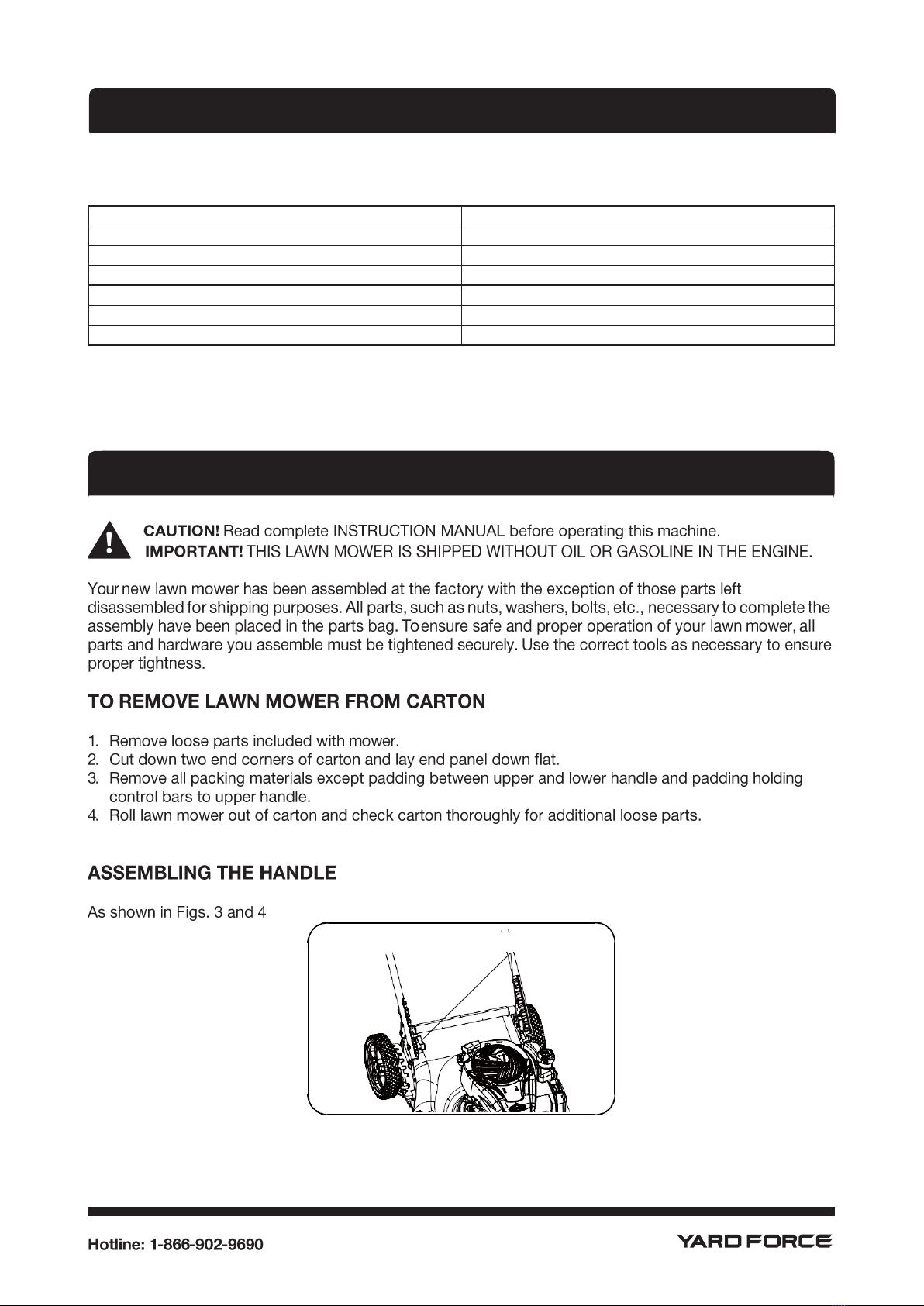

ASSEMBLY

Fig. 3

Handle knob and bolt

TECHNICAL SPECIFICATIONS

Engine type

Single cylinder 4-stroke

Engine displacement

140 cc

Engine speed

3100±100 RPM

Cutting path

21” (53 cm)

Grass bag capacity

16 Gallon (60 L)

Height adjustments

1.25" - 3.75"(32-95 mm)

Front /Rear wheel diameter

8” (20 cm)

TECHNICAL SPECIFICATIONS

ASSEMBLY

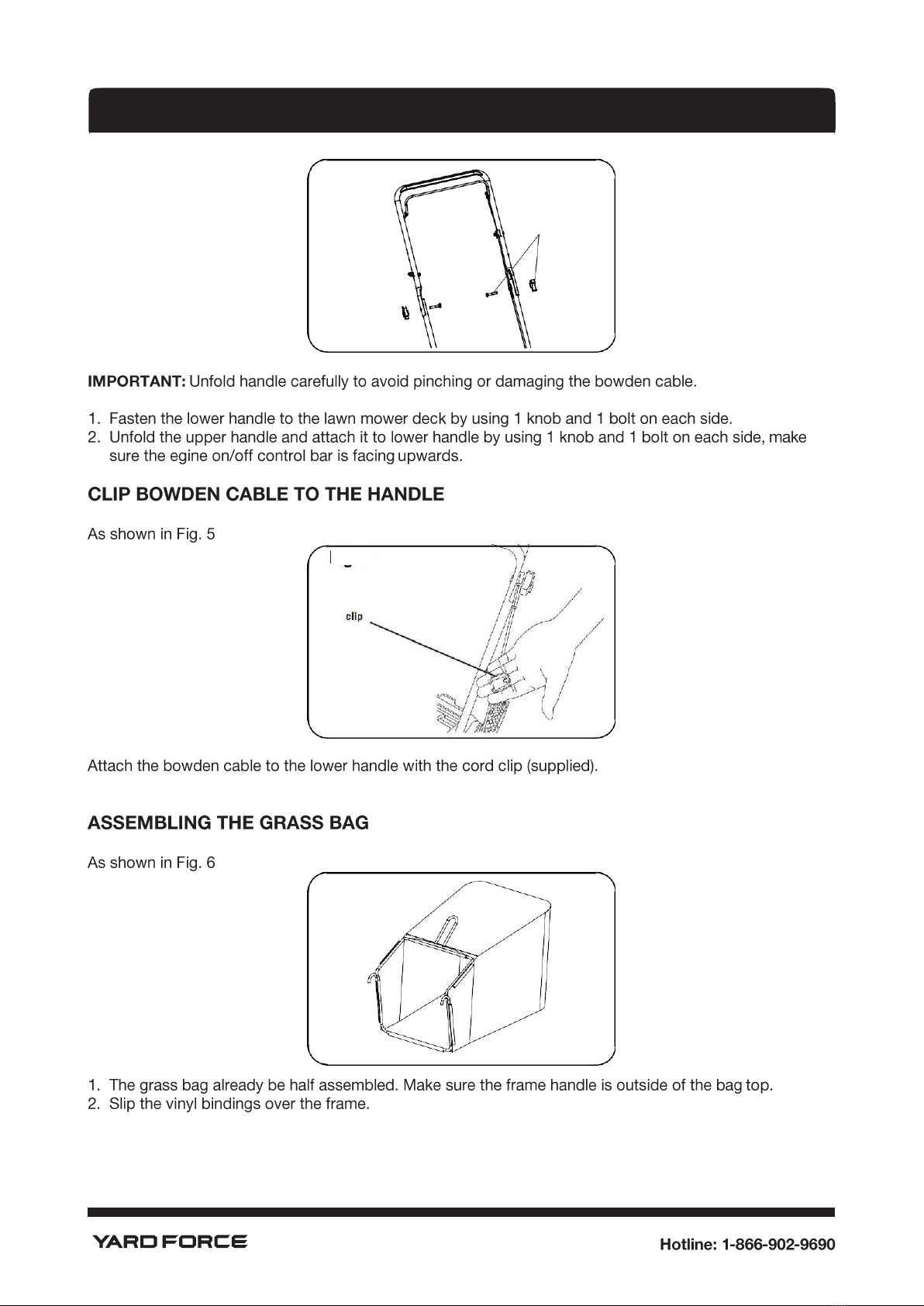

Fig. 5

Clip

Fig. 6

Fig. 4

Handle knob

and bolt
