Yard force SA650ECO User manual

SA650ECO

ROBOTIC MOWER

Original Instructions

MÄHROBOTER

Originalbetriebsanleitung

ROBOT-TONDEUSE

Notice originale

ROBOTMAAIER

Originele handleiding

ROBOSEKAČKA

Originální návod

CZ PL ROBOT KOSZĄCY

Oryginalna instrukcja

2 3

GB GB

Read this manual carefully prior to assembling and

operating the Robotic Mower. It is dangerous to operate

this product without being familiar with these instructions.

Keep this manual in a safe place and have it ready for

future reference.

15 18

13 14

4 5

GB GB

INTRODUCTION

Congratulations on the purchase of your new machine. During production, this device has

been checked for quality and subject to a nal inspection. The functionality of your equipment

is therefore guaranteed. It cannot be ruled out that residual quantities of water or lubricants

will remain on or in the equipment/hose lines in isolated cases. This is not a fault or defect

and it represents no cause for concern.

The operating instructions constitute part of this product. They contain important

information on safety, use and disposal.

Before using the product, familiarise yourself with all of the operating

and safety instructions. Use the product only as described and for the

applications specied. Keep this manual in a safe place and in the event that

the product is passed on, hand over all documents to the third party.

The Robotic Mower is exclusively designed for mowing lawns. It is only intended for private

use and is not suitable for commercial use.

SA650ECO Original Instructions

CONTENT

Introduction 05

Intended purpose 05

General description 05

Technical Data 07

Safety precautions 08

Assembly instructions 28

Operation 42

Cleaning/maintenance 48

Troubleshooting 53

Declaration of conformity 55

INTENDED PURPOSE

Any other use that is not specically approved in these instructions can result in damage to

the Robotic Mower and could be a serious danger to the user.

This appliance MUST NOT be used by children and persons with reduced physical, sensory

or mental capabilities or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their

safety.

Children should be supervised to ensure that they do not play with the appliance.

The owner or operator is responsible for accidents or harm to other people and their property.

The manufacturer cannot be held liable for damage caused by incorrect operation of

the Robotic Mower or if it is not used in line with its intended purpose.

GENERAL DESCRIPTION

Scope of delivery

Carefully unpack the mower and check that all the subsequently listed parts are present:

• Robotic Mower

• Docking station

• Switching power supply

• Extension cord

• Boundary wire

• Boundary wire connector B (blue)

• Fixing pegs

• Spare blades

• Measurement ruler (on the color box)

• Manual

6 7

GB GB

GENERAL DESCRIPTION

Overview

The illustration of the principal functioning parts can be found on the front and

back foldout pages.

1 Robotic Mower x 1

2 STOP button

3 Display and keypad

4a: Charging contacts (Robotic Mower)

4b: Charging contacts (docking station)

5 Docking station x 1

6 Blade (3 of each)

7 Blade disc

8 Front wheel

9 Rear wheel

10 Carry handle

11 Main power switch

12 Control panel

13 Switching power supply x 1

14 Extension cord x 1

15 Fixing peg x 150

16 Measurement ruler (located on box) x 2

17 Boundary wire connector x 3

18 Boundary wire x 1 (120m)

Functional description

This Robotic Mower is an autonomous robot used to cut lawn grass. It will remain within an

area designated by a boundary wire, start work following a programmed schedule, and return

to its docking station as needed. The three sharp blades ensure clean cuts with minimal

damage to the plant, leaving behind tiny snippets as natural fertilizer.

TECHNICAL DATA

Model SA650ECO

Max cutting area 650 m2

Battery 862615 / 862621 18650-20Q / 20R

Lithium-Ion battery, 28 V/2.0 Ah, 56Wh

Switching power supply

FY3201500S1 / FY3201500S2

Input 100-240V AC, 50/60 Hz

Output 32 V DC, 1.5A

Typical mow time on one charge 60 min

Rated voltage 28 V DC

Rated power 50 W

No load cutting speed 3500 min-1

Cutting width 18 cm

Blade model / part number 846210

Cutting height adjustment 5 Settings

Cutting height, min-max 20 mm-60 mm

Number of blades Three (Pivoting)

Charging time 60 min

Degree of protection:

Robotic Mower IP 24

Switching power supply IP 67, PLUG IP 44

Robotic Mower weight 8.5 Kg

Docking station weight 2 Kg

Robotic Mower size, L x W x H 570 X 390 X 260 mm

Package size, L x B x H 720 X 470 X 330 mm

Gross weight 18 kg

Measured sound power level

Measured sound pressure Lpa 56 dB, K=3 dB

Measured power pressure Lwa 69.8 dB, K=3 dB

8 9

GB GB

This section covers the basic safety instructions when

working with this machine.

General notes on safety

This machine can cause serious injury if it is

not used properly. Please read these operating

instructions carefully and familiarise yourself with

all the control elements before operating this

machine.

Keep these operating instructions in a readily

accessible place so that this information is always

at your disposal.

Please note that despite all measures to integrate

safety measures into the construction, the safety

devices and supplemental safety measures, a

resiudual risk remains when using this machine.

Symbols used in the manual

Warning symbols with information on damage and

injury prevention.

Warning symbol with information on the danger of

electric shock.

Symbols on the machine

Attention!

These instructions must be read.

Danger of injury due to ung-out material! Keep

bystanders well away from the machine.

WARNING - Do not ride on the machine.

CAUTION - Do not touch rotating blade.

WARNING – Keep your hands and feet away from

the rotating blades. Never place your hands or

feet close to or under the body when Robotic

Mower is in operation.

Return any discarded batteries to your local

dealer, collector or recycle point.

It is not permitted to dispose of this product as

normal household waste. Please recycle where

facilities exist. Check with your local authority or

retailer for recycling advice.

Class III equipment

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

10 11

GB GB

Warning Symbols on the switching power supply

Warning!

Before use, refer to the corresponding

paragraph in the manual.

Double insulation

Pole orientation

Waste electrical products should not be disposed

of with household waste. Recycle where facilities

exist. Check your local authority or retailer for

recycling advice.

CE conformity mark

SMPS (Switch mode power supply unit)

incorporating a short-circuit-proof safety isolating

switching power supply

SMPS(Switch mode power supply unit)

Rated maximum ambient temperature 45 oC

The charger is for indoor use only.

Warning Symbols on the battery pack

Batteries contain Li-Ion and should not be

disposed with general household waste. Contact

your local authority for disposal advice.

Do not throw into water.

Do not throw on to re.

Do not subject the battery to strong sunlight

over long periods and do not leave it in high

temperatures.(max.45 OC).

Waste electrical products should not be disposed

of with household waste. Recycle where facilities

exist. Check your local authority or retailer for

recycling advice.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

12 13

GB GB

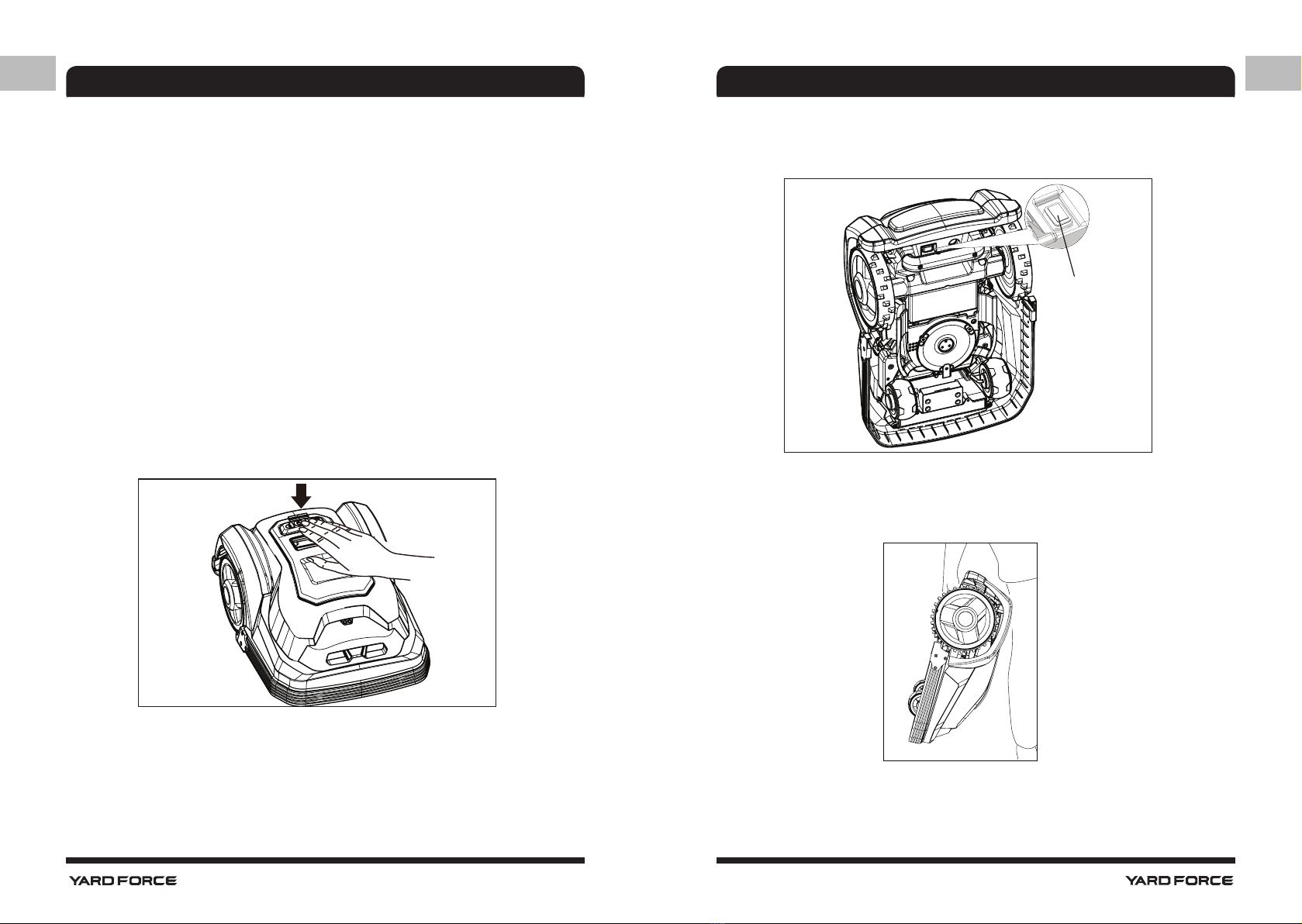

Main Power switch

Additional safety instructions for Robotic Mowers

Do not store anything heavy on the top of the Robotic

Mower or docking station both during storage or when in

use.

Never use the device if the main power switch (11) is

damaged or does not work properly. Never modify the

main power switch. Set the main power switch to OFF

before storage or when the device is not in use. Use the

original packaging when transporting the Robotic Mower,

especially for long distances.

If you need to carry the Robotic Mower from or within the

working area, rst press the STOP button (2) to stop the

device.

Secondly, ensure that the main power switch (11) is

switched OFF before you lift up the Robotic Mower.

Thirdly, close the top cover, and carry the Robotic Mower

using the carry handle (10) at the rear under the mower,

keeping the blade disc away from your body as shown.

Note: The carry handle (10) includes two safety switches.

Lifting the device by the carry handle will trigger the

switches, deactivating the Robotic Mower.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

14 15

GB GB

Lightning Protection

In order to prevent lightning damage to the machine, do

not place the docking station under tall trees.

Operating the machine:

WARNING! This machine can cause serious injury.

Follow instructions below to reduce risk of accident

and injury.

IMPORTANT

READ CAREFULLY BEFORE USE

KEEP FOR FUTURE REFERENCE

Preparation:

• Read the instructions carefully and make sure you

understand them fully. Be familiar with the controls

and the proper use of the machine.

• Never allow children, persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge or people unfamiliar with these

instructions use the machine.

• Local regulations may restrict the age of the operator.

Children should be supervised to ensure that they do

not play with the appliance.

• The operator or user is responsible for accidents or

hazards occurring to other people or their property.

• Ensure the correct installation of the perimeter

boundary system as instructed.

• Periodically inspect the area where the machine

is to be used and remove all stones, sticks, wires,

and other debris which could cause damage to the

machine or be unsafe.

• Periodically inspect to see that the blades, blade

bolts and cutter assembly are not worn or damaged.

Replace worn or damaged blades and bolts in sets to

preserve balance.

• On multi-spindle machines, take care as rotating one

blade can cause other blades to rotate.

• Never leave the machine unattended while other

people such as children and pets are in the area.

• Never use the machine to level out uneven patches.

• If the blades no longer cut correctly or if the motor is

overloaded, check all the parts of your equipment and

replace the worn parts. If a more extensive repair is

required, contact the customer service centre.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

16 17

GB GB

Use:

• Never operate the machine with defective guards or

without safety devices, for example deectors and/or

grass catchers, in place.

• Do not put hands or feet near or under rotating parts.

• Never pick up or carry the machine while the motor is

running.

• Turn OFF / Power OFF the machine

– before clearing any blockages.

– before checking, cleaning or maintaining the

machine.

• Start the Robotic Mower according to the instructions.

When the main power switch (11) is in the ON position,

make sure you keep your hands and feet away from

the rotating blades.

• Never lift the Robotic Mower or carry it around with

the mains switch is in the ON position.

• Do not let people use the mower who do not know

how it works or behaves.

• Do not put anything on top of the Robotic Mower or

its docking station.

• Do not use the Robotic Mower with defective blade

discs, body, defective blades, screws, nuts etc.

• Avoid operating the machine in wet grass. Doing so

can cause additional wear and tear, and will increase

the amount of cleaning required.

Work interruptions:

• After the machine has been turned off, the cutting

cylinder will continue to rotate for a few seconds.

Keep hands and feet well away.

• Only remove blockages when the machine is standing

completely still.

• Switch off the power when the machine is transported,

lifted or tilted.

• Never leave the machine unattended. Children should

be supervised to ensure that they do not play with the

appliance.

CAUTION!

The following below outlines measures to avoid

damage and harm to both the Robotic Mower and

the people using it.

Taking care of your machine:

• Switch off the power when the machine is to be

carried across uneven surfaces, for example steps.

• Inspect the machine before each use. Never operate

the machine if safety devices (e.g. impact protector,

parts of the cutting facility or bolts) are missing, worn

out or damaged. Check the power cable. To avoid

imbalance, all tools and bolts should be changed as

complete sets.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

18 19

GB GB

• Only use spare parts and accessories that have been

supplied or recommended by the manufacturer. The

use of alien parts results in the immediate loss of all

guarantee claims.

• Ensure that all nuts, bolts and screws are rmly

tightened and that the machine is in a safe working

condition.

• Never try to repair the machine yourself, unless you

have been trained accordingly. All work that has not

been listed in these instructions must only be carried

out by authorised servicing agencies.

• Treat the machine with the greatest care. Always keep

the tool clean. Follow the maintenance instructions.

• Never overload the machine. Always work within

the specied capacity range. Do not use low-power

machines for heavy-duty work. Do not operate the

machine for purposes for which it is not intended.

Electrical safety:

CAUTION!

The following states how to avoid accidents and

injuries due to electric shock:

• Before each use, carry out a visual inspection of the

power and extension cord for any signs of damage or

ageing. Damaged mains power cables increase the

risk of electric shock.

• Connect the machine to a power socket with a

residual-current circuit breaker that has a rated current

of no more than 30 mA.

• Always keep the extension cable well away from the

cutting tools. If the power cable becomes damaged

during work, instantly disconnect the power cable

from the mains. DO NOT TOUCH THE POWER CABLE

BEFORE IT HAS BEEN DISCONNECTED FROM THE

MAINS! Risk of electric shock.

• The supply cord cannot be replaced. If the cord is

damaged the appliance should be scrapped.

• Keep extension cable away from blades and other

moving parts. They may damage the cable and result

in contact with live parts.

• Check that the mains voltage is the same as indicated

on the rating plate.

Maintenance and storage

• Keep all nuts, bolts and screws tight to be sure the

machine is in a safe working condition.

• Replace worn or damaged parts for safety.

• Ensure that only the recommended replacement

cutting blades are tted.

• Ensure that batteries are charged using the charger

supplied or recommended by the manufacturer.

Incorrect use may result in electric shock, overheating

or leakage of corrosive liquid from the battery.

• Servicing of the machine should be carried out

according to manufacturer's instructions.

SAFETY PRECAUTIONS SAFETY PRECAUTIONS

Table of contents

Other Yard force Lawn Mower manuals

Yard force

Yard force ProRider E559 User manual

Yard force

Yard force HM A30 User manual

Yard force

Yard force Easymow 260 User manual

Yard force

Yard force Compact 300RB User manual

Yard force

Yard force SC600ECO Operation instructions

Yard force

Yard force SA600H User manual

Yard force

Yard force GM B41 User manual

Yard force

Yard force GM R40A User manual

Yard force

Yard force ROBOMOWER SA800PRO User manual

Yard force

Yard force MB 400 User manual

Yard force

Yard force MowBest 805 User manual

Yard force

Yard force Y2GMB46SCM0 Installation instructions

Yard force

Yard force GR40 User manual

Yard force

Yard force EasyMow 260B Firmware update

Yard force

Yard force X50i Firmware update

Yard force

Yard force GM B46C User manual

Yard force

Yard force AMIRO 350 User manual

Yard force

Yard force YF21-SD User manual

Yard force

Yard force LM G34 User manual

Yard force

Yard force YF22-3N1 User manual

Yard force

Yard force YF21-SD-TW User manual

Yard force

Yard force CLOUDHAWK User manual

Yard force

Yard force SA650B User manual

Yard force

Yard force YF22-2N1 User manual

Popular Lawn Mower manuals by other brands

RHINO

RHINO 1958 parts manual

Wolf Garten

Wolf Garten Compact plus 40 B instruction manual

Cub Cadet

Cub Cadet LTX 1045 brochure

Craftsman

Craftsman 917.378461 owner's manual

GGP ITALY SPA

GGP ITALY SPA CR/CS 434 SERIES Operator's manual

Challenge

Challenge CH18V2 Original manual

TALEN TOOLS

TALEN TOOLS AVR HGM30 manual

DEWEZE

DEWEZE ATM-725 Operation and service manual

Weed Eater

Weed Eater 180083 owner's manual

Husqvarna

Husqvarna Poulan Pro PP185A42 Operator's manual

Better Outdoor Products

Better Outdoor Products Quick Series Operator's manual

Cub Cadet

Cub Cadet 23HP Z-Force 60 Operator's and service manual

MTD

MTD 795, 792, 791, 790 Operator's manual

Toro

Toro Groundsmaster 3505-D Service manual

Dennis

Dennis FT 610 instruction manual

AIRFORCE

AIRFORCE F-15 Gen 3 owner's manual

MTD

MTD 126-220-000 owner's guide

Toro

Toro 74806 Operator's manual
