Yard force YF1601 User manual
OPERATOR’S MANUAL
Model YF1601
CAUTION!
Before using our petrol lawn mower, please read this manual carefully to
understand the proper use of your unit.
Keep this manual handy.
PETROL LAWN MOWER
1
TABLE OF CONTENTS
DESCRIPTION OF PRODUCT PARTS 2
TECHNICAL SPECIFICATIONS 4
INTENDED USE 4
SAFETY INFORMATION 5
ASSEMBLY 8
ADJUSTMENT 14
OPERATION 15
STORING AND MAINTENANCE 19
TROUBLESHOOTING 24
YF1601 Operating Manual
2

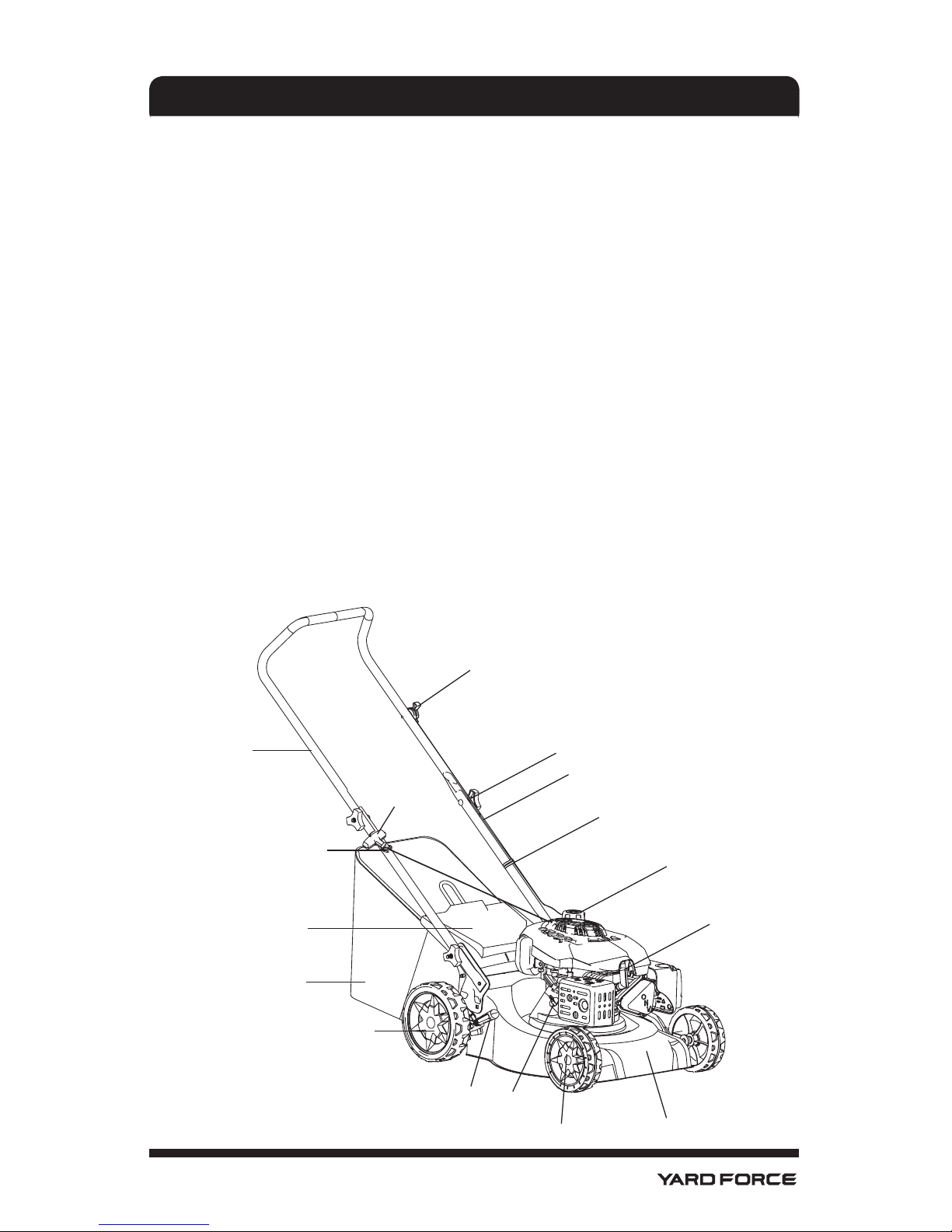

DESCRIPTION OF PRODUCT PARTS
As shown in Fig 1
1. Throttle lever
2. Upper handle
3. Starter handle
4. Rope guide
5. Ejector ap
6. Grass bag
7. Rear wheel
8. Height adjusting handle
9. Dipstick
10. Front wheel
11. Deck
12. Spark plug cap
13. Fuel ller cap
14. Cord clip
15. Lower handle
16. Fixing knob
1
2
3
4
5
6
7
89
10 11
12
13
14
15
16
Fig. 1
3
DESCRIPTION OF PRODUCT PARTS
Check the delivery parts
As shown in Fig 2
Carefully remove the machine from its packaging and check as the following parts are
complete:
Fig. 2
B
A
CDJ
EI
F
G
H
A. Main mower deck (with upper handle) 1pc
B. Grass bag assembly 1pc
C. Star xing knob with M8 nut 4pcs
D. Cup head square neck bolts M8X45 2pcs
E. spark plug spanner 1set
F. Lower handle with rope guide 1pc
G. Lower handle 1pc
H. Cable clip 1pc
I. Manual 1pc
J. Arc-head blot M8X35
WARNING: If any parts are damaged or missing, do not operate this tool until the
missing parts are replaced. Failure to heed this warning could result in serious
personal injury.
NOTE! Always recycle the packaging in accordance with local recycling schemes.
WARNING! This item requires a two person lift to remove from the packaging.
Make sure that you have sufcient space to put the lawn mower down. Keep your
feet apart so that you have a stable position, bend at the knees and keep your
back straight.
4
TECHNICAL SPECIFICATIONS
Engine type Single cylinder 4-stroke
Engine displacement 130 cc
Engine max.power 2.1kw/3600rpm
Engine speed 3100rpm
Cutting width 410mm
Grass bag capacity 45L
Ignition TCI
Fuel tank capacity 900ml
Oil tank capacity 400ml
Spark plug type K7RTC/Torch
Net weight 21 KG
INTENDED USE
This Petrol lawn mower has been designed for cutting lawn areas in private house and
hobby gardens.
The machine is to be used only for its prescribed purpose. Any other use is deemed to
be a case of misuse. The user/operator and not the manufacturer will be liable for any
damage or injuries of any kind caused as a result of this.
Please note that our equipment has not been designed for use in commercial, trade or
industrial applications . our warranty will be voided if the machine is used in commercial ,
trade or industrial businesses or for equivalent purposes.
5
SAFETY INFORMATION
IMPORTANT
Please read these instructions fully before assembling and operating.
Description of Symbols
Symbols are used in this manual to attract your attention to possible risks. The safety
symbols and the explications which accompany them must be perfectly understood.
The warning themselves do not prevent the risks and can not be a substitute for proper
methods of avoiding accidents.
Warning symbols on the machine
WARING- To reduce the risk of injury ,user must read instruction manual.
This symbol, before a safety comment, indicates a precaution, a warning or a
danger. Ignoring this warning can lead to an accident for yourself or for others.
To limit the risk of injury, re, or electrocution always apply the recommendations
indicated.
Keep bystanders away
Beware of sharp blades –remove spark plug lead before maintenance.
Never refuel while the engine is running.
Risk of injury, do not open or remove safety shields while engine is running.
The engine must be lled sufcient oil and fuel before starting it. Wearing ear
protection, eye protection when operating.
6
SAFETY INFORMATION
Hot surfaces will burn ngers or palms
Warning! The lawnmower exhaust gas contains toxic substances. Do not run the
engine in closed or poorly ventilated areas.
Move the throttle lever to the rabbit position before starting engine.
Move the throttle lever to the stop position to stop engine.
The data of noise level in 75 dBA.
Safety instructions
Training
1. Read the instructions carefully. Be familiar with the controls and the proper use of the
equipment;
2. Never allow children or people unfamiliar with these instructions to use the
lawnmower. Local regulations can restrict the age of the operator;
3. Never mow while people, especially children, or pets are nearby;
4. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people or their property.
Preparation
1. While mowing, always wear substantial footwear and long trousers. Do not operate
the equipment when barefoot or wearing open sandals;
2. Thoroughly inspect the area where the equipment is to be used and remove all
objects which can be thrown by the machine;
3. Warning - petrol is highly ammable.
- Store fuel in containers specically designed for this purpose;
- Refuel outdoors only and do not smoke while refueling;
- Add fuel before starting the engine. Never remove the cap of the fuel tank or add
petrol while the engine is running or when the engine is hot;
- If petrol is spilled, do not attempt to start the engine but move the machine away
from the area of spillage and avoid creating any source of ignition until petrol vapors
have dissipated;
7
- Replace all fuel tank and container caps securely;
4. Replace faulty silencers;
5. Before using, always visually inspect to see that the blades, blade bolts and cutter
assembly are not worn or damaged. Replace worn or damaged blades and bolts in
sets to preserve balance;
6. On multi-bladed machines, take care as rotating one blade can cause other blades to
rotate.
Operation
1. Do not operate the engine in a conned space where dangerous carbon monoxide
fumes can collect;
2. Mow only in daylight or in good articial light;
3. Avoid operating the equipment in wet grass, where feasible;
4. Always be sure of your footing on slopes;
5. Walk, never run;
6. For wheeled rotary machines, mow across the face of slopes, never up and down;
7. Exercise extreme caution when changing direction on slopes;
8. Do not mow excessively steep slopes;
9. Use extreme caution when reversing or pulling the lawnmower towards you;
10. Stop the blade(s) if the lawnmower has to be tilted for transportation when crossing
surfaces other than grass, and when transporting the lawnmower to and from the
area to be mowed;
11. Never operate the lawnmower with defective guards, or without safety devices, for
example deectors and/or grass catchers, in place;
12. Do not change the engine governor settings or over speed the engine;
13. Disengage all blade and drive clutches before starting the engine;
14. Start the engine or switch on the motor carefully according to instructions and with
feet well away from the blade(s);
15. Do not tilt the lawnmower when starting the engine or switching on the motor, except
if the lawnmower has to be tilted for starting. In this case, do not tilt it more than
absolutely necessary and lift only the part which is away from the operator;
16. Do not start the engine when standing in front of the discharge chute;
17. Do not put hands or feet near or under rotating parts. Keep clear of the discharge
opening at all times;
18. Never pick up or carry a lawnmower while the engine is running;
19. Stop the engine and disconnect the spark plug wire , make sure that all moving parts
have come to a complete stop and, where a key is tted remove the key:
- Before clearing blockages or unclogging chute;
- Before checking, cleaning or working on the lawnmower;
SAFETY INFORMATION
8
- After striking a foreign object. Inspect the lawnmower for damage and make
repairs before restarting and operating the lawnmower;
- If lawnmower starts to vibrate abnormally (check immediately);
20. Stop the engine and disconnect the spark plug wire, make sure that all moving parts
have come to a complete stop and, where a key is tted remove the key:
- Whenever you leave the lawnmower;
- Before refueling;
21. Reduce the throttle setting during engine shut down and, if the engine is provided
with a shut-off valve, turn the fuel off at the conclusion of mowing;
22. Go slow when using a trailing seat.
Maintenanceand storage
1. Keep all nuts, bolts and screws tight to be sure the equipment is in safe working
condition;
2. Never store the equipment with petrol in the tank inside a building where fumes can
reach an open ame or spark;
3. Allow the engine to cool before storing in any enclosure;
4. To reduce the re hazard, keep the engine, silencer and petrol storage area free of
grass, leaves, or excessive grease;
5. Check the grass catcher frequently for wear or deterioration;
6. Replace worn or damaged parts for safety;
7. If the fuel tank has to be drained, this should be done outdoors.
SAFETY INFORMATION
Assembling the handle
As shown in Fig 3&5
Step 1: Fasten the lower handle onto the unit by using one arc-head blot (j) and one star
knob on each side.
ASSEMBLY
Fig. 3
9
ASSEMBLY
NOTE :Make sure the rope guide is on the right handle, when you stand behind
the mower.
Step 2: Unfold the upper handle and x it into place by tighting the star knobs and cup
head square neck bolts (D).
Fig. 4
Step 3: Hold the starter handle and gently pull it out to just over the rope guide ,then hook
it into the rope guide.
Fig. 5
