ENGLISH INSTRUCTIONS

IMPORTANT SAFEGUARDS

SAVE THESE INSTRUCTIONS

READ AND FULLY UNDERSTAND ALL INSTRUCTIONS AND WARNINGS

PRIOR TO USING THIS UNIT. YOUR SAFETY IS MOST IMPORTANT!

FAILURE TO COMPLY WITH PROCEDURES AND SAFE GUARDS MAY

RESULT IN SERIOUS INJURY OR PROPERTY DAMAGE. REMEMBER:

YOUR PERSONAL SAFETY IS YOUR RESPONSIBILITY!

1. Read all instructions.

2. This appliance is not intended for use by persons with reduced physical,

sensory, or mental capabilities, or lack of experience and knowledge,

unless they are closely supervised and instructed concerning use of the

appliance by a person responsible for their safety.

3. This appliance shall not be used by children.

4. Close supervision is necessary when any appliance is used near

children. Children should be supervised to ensure that they do not play

with the appliance.

5. KEEP FINGERS CLEAR of the blades at all times. NEVER hold the

product with your hands in line of the blades. Failure to keep ngers and

hands away from the blades may result in personal injury.

6. KEEP CHILDREN AWAY. NEVER LEAVE THE APPLE PEELER

UNATTENDED.

7. CHECK FOR DAMAGED PARTS. Before using the Apple Peeler, check

that all parts are operating properly, and perform the intended functions.

Check for alignment of moving parts, binding of moving parts, mounting

and any other conditions that may affect the operation.

8. CAUTION! Cut Hazard: The blades are sharp. Use care when handling.

The use of cut-resistant gloves such as Kevlar®is recommended when

handling the blades.

9. The manufacturer declines any responsibility in the case of improper use

of this machine.

10. Be sure the Apple Peeler is stable during use. The Suction Cup Base

should be secure and the machine should not move during the cutting

process.

11. DO NOT USE the Apple Peeler while under the inuence of drugs or

alcohol.

ENGLISH INSTRUCTIONS

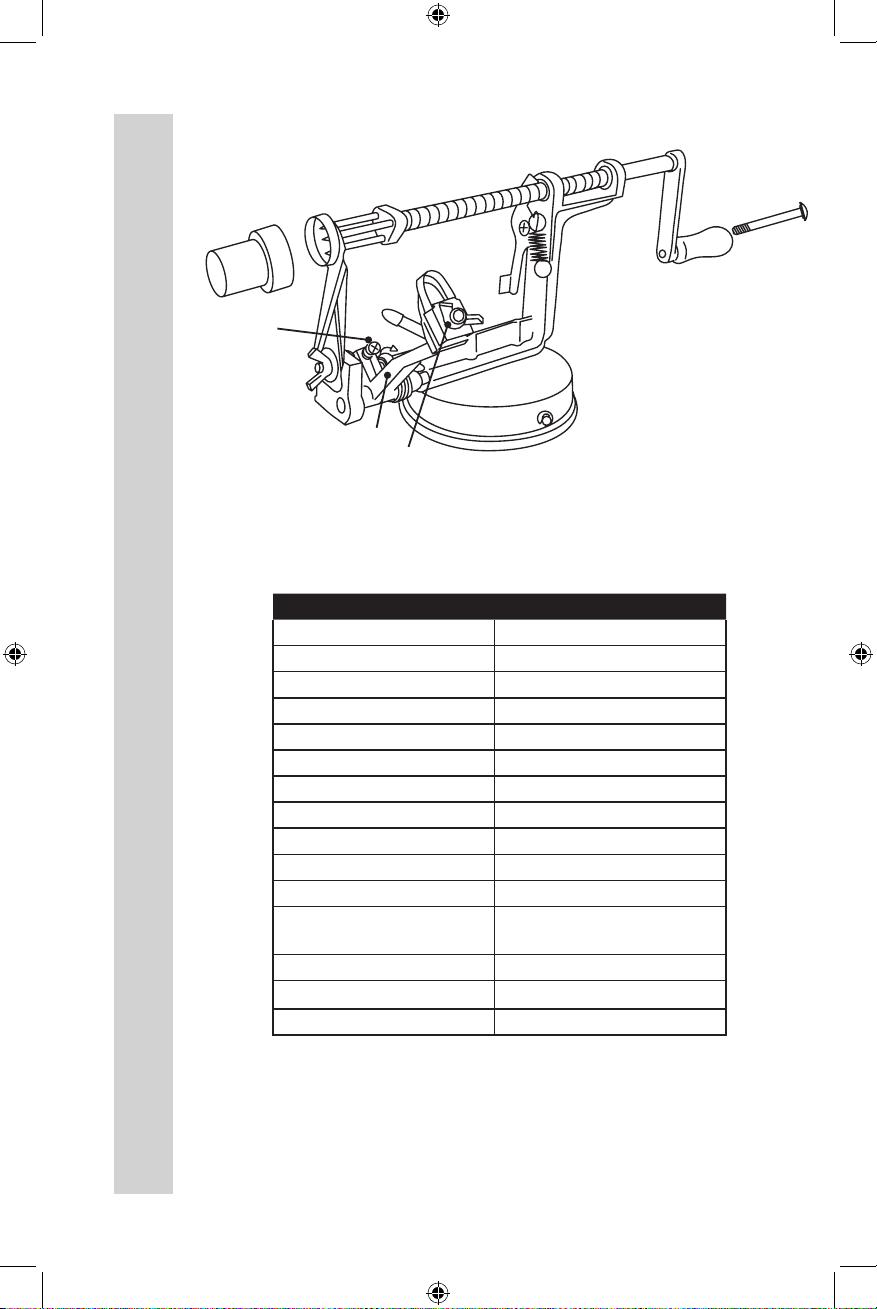

COMPONENT LIST

DIAGRAM NUMBER PART DESCRIPTION

1 SUCTION CUP LEVER

2 SUCTION CUP BASE

3 SHAFT

4 HANDLE

4a 2” (5 CM) SCREW

5 HANDLE SHAFT

6 SHAFT REGULATOR THUMB LEVER

7 FOOD PRONGS

8 PROTECTIVE CAP

9 PEELER BLADE ARM

10a PEELING BLADE

10b PEELING BLADE ADJUSTMENT

WING NUT

10c PEELING BLADE ADJUSTMENT SCREW

10d CORING/SLICING BLADE

10e CORING/SLICING BLADE WING NUT

10b

10a

10c

10d

10e

54a

If any components of this unit are broken, the unit does not operate properly or you

need a replacement instruction manual, visit us on the web at

WestonBrands.com

Or call Weston Brands, LLC Toll Free at 1-800-814-4895

Monday thru Friday 8:00am-5:00pm ET. Outside the U.S. call 1-216-901-6801

ENGLISH INSTRUCTIONS

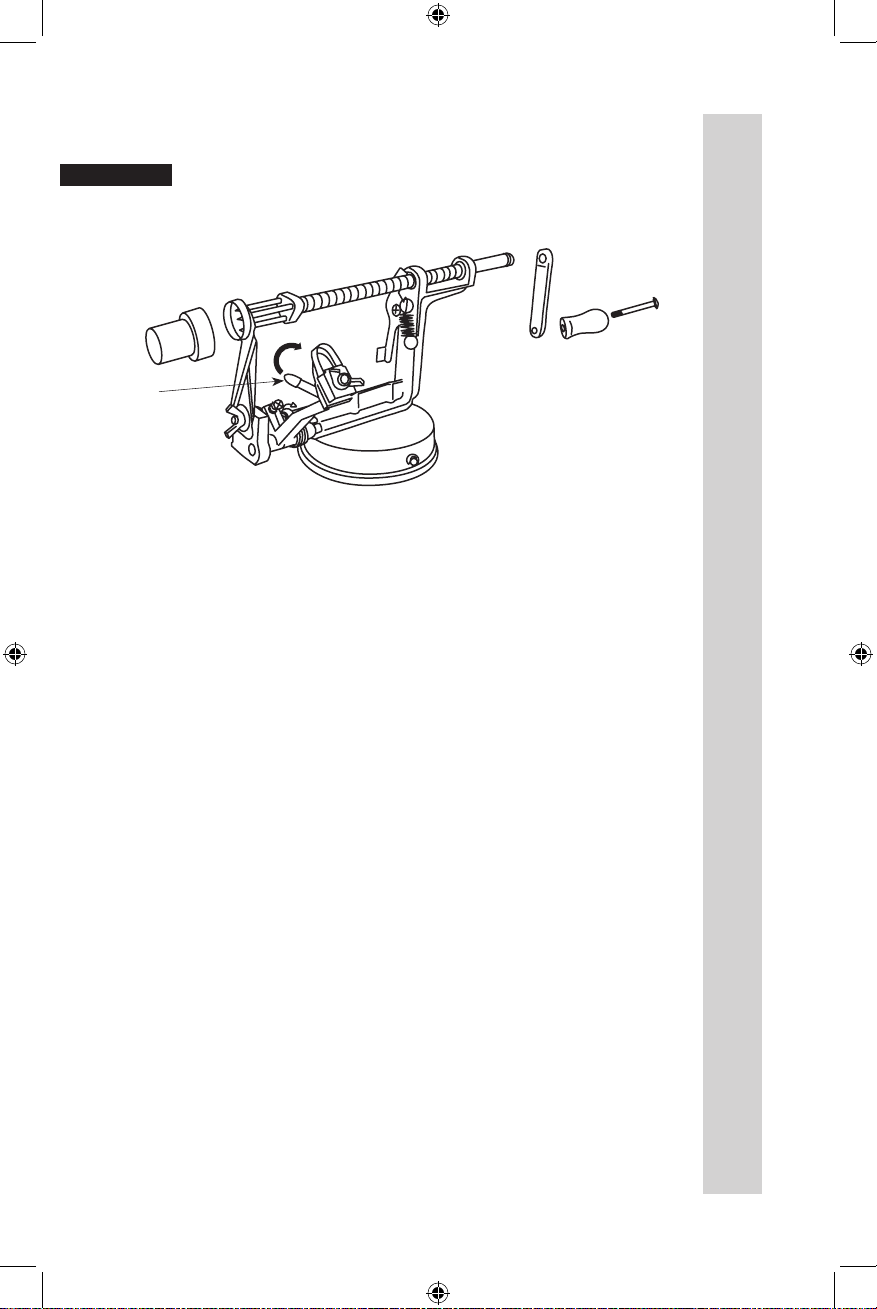

ASSEMBLY

1. Attach the Handle with included 2” (5 cm) Screw to the Handle Shaft using a

Phillips head screwdriver until tight.

2. Screw the Handle Assembly onto the end of the Shaft until tight.

3. When attached, the handle will spin freely.

4. Remove the Protective Cap from the Food Prongs. Do not discard the

Protective Cap, as it will be used to safely store the Apple Peeler.

5. Attach the Apple Peeler to any at, smooth surface. Flip the Suction Cup Lever

so that it points to the Peeling Blade end of the unit. Hold the Suction Cup

Base rm and at against the countertop with one hand and move the Suction

Cup Lever over towards the Handle end of the unit.

6. Check to make sure the Apple Peeler is rmly xed to the surface.

Handle

2” Screw

Handle Shaft

Shaft

Suction

Cup Lever

Suction

Cup Base

CLEANING

1. Hand wash all parts that come in contact with food in warm, soapy water.

Rinse thoroughly. Dry immediately.

NOTE: The Apple Peeler is NOT dishwasher safe.

2. It is suggested to coat all the unpainted metal parts of the Apple Peeler with a

food-grade silicone spray.

3. Turn the Handle to bring the Shaft all the way in and through the Coring/Slicing

Blade. Place the Protective Cap onto the Food Prongs.

4. Place the Apple Peeler in its box. Store in a cool, dry location.

Cut Hazard. Blades are sharp, use care when handling. The

use of cut-resistant gloves is suggested.

wCAUTION

ENGLISH INSTRUCTIONS

PEELING, SLICING & CORING

1. Pull the Peeler Blade Arm

back until the metal lever

catches and holds the Peeler

Blade Arm pulled back.

2. Press Shaft Regulator

Thumb Lever to release the

stopper from the Shaft. Pull

on the Handle until the Shaft

is completely pulled back

(FIGURE 1).

3. Carefully push an apple,

potato or pear, bottom rst, all

the way onto the Food Prongs.

4. Lift up on the metal lever

of the Peeler Blade Arm to

release the Peeler Blade.

5. Turn the Handle clockwise

to start peeling the apple

(FIGURE 2).

6. The apple will meet with the

Coring/Slicing Blade. This will

begin the slicing and coring of

the apple.

7. When the apple has been completely peeled, sliced and cored, gently pull the

apple off of the core.

8. The apple core and seeds will remain on the Food Prongs. Firmly grasp the apple

core and pull it off of the Food Prongs.

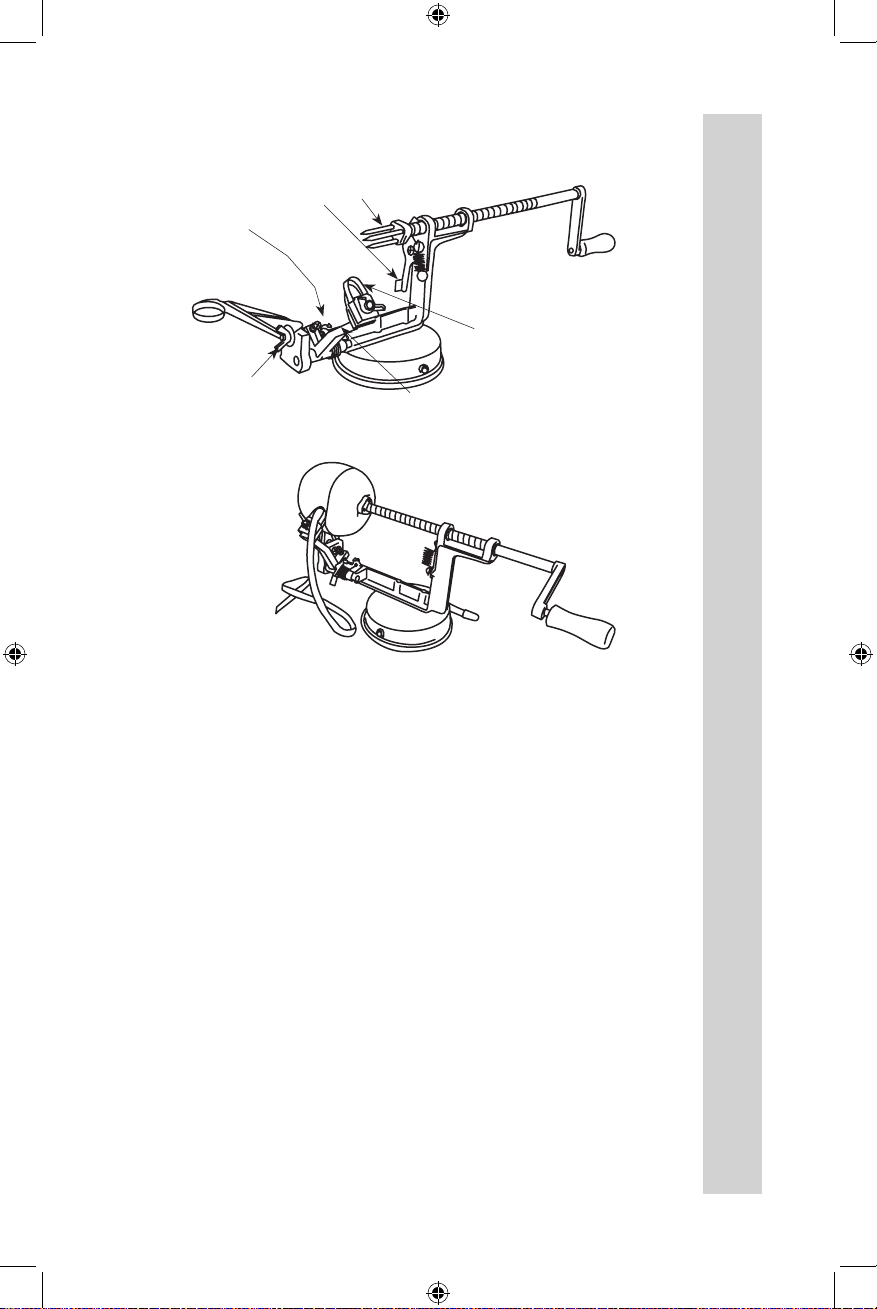

FIGURE 1

Peeler

Blade Arm

Shaft

Regulator

Thumb

Lever

Shaft

Handle

Food

Prongs

Metal Lever

of the

Peeler

Blade Arm

(Not Shown)

FIGURE 2

Coring/

Slicing

Blade

Coring/Slicing

Blade Wing Nut

SLICING & CORING

1. Pull the Peeler Blade Arm back until the metal lever catches and holds the

Peeler Blade Arm pulled back.

2. Press Shaft Regulator Thumb Lever to release the stopper from the Shaft. Pull

on the Handle until the Shaft is completely pulled back (FIGURE 1).

3. Carefully push an apple, potato or pear, stem end rst, all the way onto the Food

Prongs.

4. Turn the Handle clockwise to start slicing/coring the apple.

5. The apple will meet with the Coring/Slicing Blade. This will begin the slicing and

coring of the apple.

6. When the apple has been completely sliced and cored, gently pull the apple off

of the core.

7. The apple core and seeds will remain on the Food Prongs. Firmly grasp the

apple core and pull it off of the Food Prongs.

ENGLISH INSTRUCTIONS

PEELING, SLICING & CORING

SLICING & CORING

PEELING

1. Pull the Peeler Blade Arm back until the metal lever catches and holds the

Peeler Blade Arm pulled back.

2. Press Shaft Regulator Thumb Lever to release the stopper from the Shaft. Pull

on the Handle until the Shaft is completely pulled back (FIGURE 3).

3. Loosen the Coring/Slicing Blade Wing Nut. Turn the Coring/Slicing Blade away

from the Peeler Blade about 90 degrees. Re-tighten the Coring/Slicing Blade

Wing Nut until snug.

4. Carefully push an apple, potato or pear, stem end rst, all the way onto the

Food Prongs.

5. Lift up on the metal lever of the Peeler Blade Arm to release the Peeler Blade.

6. Turn the Handle clockwise to start peeling the apple (FIGURE 4).

7. When the apple has been completely peeled, rmly grasp the apple and pull it

off of the Food Prongs.

FIGURE 3

Peeler

Blade Arm

Shaft

Regulator

Thumb

Lever

Shaft

Handle

Food

Prongs

Metal Lever

of the

Peeler

Blade Arm

(Not Shown)

Coring/

Slicing

Blade

Coring/Slicing

Blade Wing Nut

FIGURE 4

ENGLISH INSTRUCTIONS

ADJUSTING THE BLADES

CORING/SLICING BLADE ADJUSTMENT

1. Pull the Peeler Blade Arm back until the metal lever catches and holds the

Peeler Blade Arm pulled back. Press Shaft Regulator Thumb Lever to release

the stopper from the Shaft. Pull on the Handle until the Shaft is slightly pulled

back.

2. Loosen the Coring/Slicing Blade Wing Nut slightly. Turn the Coring/Slicing

Blade until the Food Prongs are in the center of the ring on the Coring/Slicing

Blade. Re-tighten the Coring/Slicing Blade Wing Nut until tight.

PEELING BLADE ADJUSTMENT

1. To adjust the Peeling Blade to different fruit diameters (this may be necessary

if you are peeling smaller or thinner apples or potatoes) use a at head

screw driver and turn the Peeling Blade Adjustment Screw clockwise or

counter clockwise until desired distance is achieved.

2. To adjust peeling depth, loosen Peeling Blade Wing Nut. Adjust Peeling Blade

to desired depth, and re-tighten Peeling Blade Wing Nut.

ADJUSTING THE BLADES

ONE-YEAR LIMITED WARRANTY

This warranty applies to products purchased and used in the U.S. and Canada. This is the only

express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of

one (1) year from the date of original purchase. During this period, your exclusive remedy is

repair or replacement of this product or any component found to be defective, at our option. If

the product or component is no longer available, we will replace with a similar one of equal or

greater value.

This warranty does not cover unauthorized repairs or service to products, products sold

“as-is” by retailers, glass, filters, wear from normal use, use not in conformity with the printed

directions, or damage to the product resulting from accident, alteration, abuse, or misuse.

This warranty extends only to the original consumer purchaser or gift recipient and is not

transferable. Keep the original sales receipt, as proof of purchase is required to make a

warranty claim. This warranty is void if the product is subjected to any voltage and waveform

other than as specified on the rating label (e.g., 120V ~ 60 Hz).

We exclude all claims for special, incidental and consequential damages caused by breach of

express or implied warranty. All liability is limited to the amount of the purchase price. Every

implied warranty, including any statutory warranty or condition of merchantability or

fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in

which case such warranty or condition is limited to the duration of this written warranty.

This warranty gives you specific legal rights. You may have other legal rights that vary

depending on where you live. Some states or provinces do not allow limitations on implied

warranties or special, incidental, or consequential damages, so the foregoing limitations may

not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.814.4895

(001.216.901.6801 outside the US) or visit WestonBrands.com. For faster service, locate the

model, type, and series numbers on your appliance.

Other manuals for 83-2015-W

Table of contents

Languages:

Other Weston Kitchen Appliance manuals

Weston

Weston 07-3601-W-A Technical manual

Weston

Weston 07-4101-W-A User manual

Weston

Weston PRO-1000 User manual

Weston

Weston 83-0850-W User manual

Weston

Weston 01-0008-W Installation and operation manual

Weston

Weston 07-3103-W User manual

Weston

Weston MANDOLINE 01-0006 User manual

Weston

Weston 65-0501-W Operating instructions

Weston

Weston 82-0250-W User manual

Weston

Weston Realtree Outfitters 07-4101-RT User manual

Weston

Weston MS06 User manual

Weston

Weston 36-3601-W User manual

Weston

Weston PRO Series User manual

Weston

Weston 61-0201-W User manual

Weston

Weston vegiKILN 75-0201-W User manual

Weston

Weston BURGER EXPRESS User manual

Weston

Weston 73-0501-W User manual

Weston

Weston vegiKILN 75-0201-W User manual

Weston

Weston Roma 67-1001-W User manual

Weston

Weston 83-0750 Series User manual

Weston

Weston PRO-3500 User manual

Weston

Weston 16-0701-W User manual

Weston

Weston 36-3550-W User manual

Weston

Weston 86-0701-W User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
