Vintec-Cellar V 120 SG User manual
V 120 SG - V 160 SG
Instructions for use
2
GB
As the appliance contains a
ammable refrigerant, it is es-
sential to ensure that the refrig-
erant pipes are not damaged.
The quantity and type of the
refrigerant used in your appli-
ance is indicated on the rating
plate.
Standard EN378 species that
the room in which you install
your appliance must have a
volume of 1m³ per 8 g of hydro-
carbon refrigerant used in the
appliances. This is to avoid the
formation of ammable gas/air
mixtures in the room where the
appliance is located in the event
of a leak in the refrigerant circuit.
WARNING:
Keep ventilation openings in
the appliance’s cabinet or in the
built-in structure clear of obstruc-
tion.
WARNING:
Do not use other mechanical
devices or other means to ac-
celerate the defrosting process
than those recommended by the
manufacturer.
WARNING:
Do not damage the refrigerant
system.
WARNING:
Do not use electrical appliances
inside the refrigerated storage
compartment, unless they are
of a type recommended by the
manufacturer.
WARNING:
Do not expose the appliance to
rain.
WARNING:
This appliance is not intended for
use by children and above and
persons with reduced physical,
sensory or mental capabilities or
lack of experience and knowl-
edge if they have been given su-
pervision or instruction concern-
ing use of the appliance in a safe
way and understand the hazards
involved.
WARNING:
Danger risk of re or explosion if
ammable refrigerant are used.
To be repaired only by trained
personnel.
Warning
3
GB
WARNING:
Do not store explosives, such
as aerosol cans with ammable
propellants in the unit.
WARNING:
Cleaning and user maintenance
shall not be made by children
without supervision.
WARNING:
When positioning the appliance,
ensure the power cord is not
trapped or damaged.
WARNING:
Do not locate multiple portable
socket-outlets or portable power
supplies at the rear of the appli-
ance.
● Always keep the keys in a separate place
and out of reach of children.
● Before servicing or cleaning the appli-
ance, unplug the appliance from the
mains or disconnect the electrical power
supply.
● If the supply cord is damaged, it must be
replaced by the manufacturer, its service
agent, or similarly qualied persons in
order to avoid a hazard.
●Relevant for Australia: Supply cord
tted with a plug complies with AS/NZS
3112.
● Frost formation on the interior evaporator
wall and upper parts is a natural phenom-
enon. Therefore, the appliance should
be defrosted during normal cleaning or
maintenance.
● Please note that changes to the appli-
ance construction will cancel all warranty
and product liability.
● This appliance is intended to be used
exclusively for the storage of wine.
CLASS 1 LED PRODUCT
4
GB
Contents
Warning ..................................................2
Get to know your wine cooler .................5
Before starting the appliance ..................6
Maintenance ...........................................6
Electrical connection...............................7
Installation ..............................................7
Control panel ..........................................8
Reversing the door .................................9
Has the appliance stopped working?.... 11
Ajustment of the door ........................... 11
Shelf load ............................................. 11
Warranty and spare parts .....................12
Disposal ................................................13
Page A, B and C ................................... 14
Only use an unscented detergent when
clea ning the cabinet inside.
You may remove the top panel and wash it
when cleaning the cabinet inside.
Switch o the appliance and pull out the
plug when cleaning the cabinet.
The skirting board can be removed to facili-
ate a vacuum-cleaning of the oor.
To make the cooling system work at its
optimum it is necessary from time to time
to clean the wire condensator and the com-
pressor at the back of the cabinet by means
of a brush or a vacuum cleaner. Remember
to clean the drain.
Maintenance
5
GB
Get to know your wine cooler:
Lock
Top lighting
Control panel
Rating plate
Shelf
Door handle
Glass door
Kickplate
Adjustable feet
6
GB
Check that the cabinet is undamaged.
Please report any damage immediately to
your dealer.
Wash the cabinet and inner lining with a
mild unscented detergent and wipe it dry.
Do not use abrasive scouring powder, steel
wool or similar.
After installing the appliance, wait at least1
hour until the appliance starts up.
During transportation the oil in the compres-
sor may have owed into therefrigeration
system.
Before starting the appliance
Savings in energy consumption in the use
The energy consumption reduces ..
1)..the lower the ambient temperature is.
2)..the warmer thermostat set point is.
3)..the lower the number and the shorter
the length of the door openings is.
Room temperature
The climate class is stated on the name-
plate This species the optimum room
temperature.
Climate class Permitted ambient
temperature
SN +10 ºC to +32 ºC
N +16 ºC to +32 ºC
ST +18 ºC to +38 ºC
T +18 ºC to +43 ºC
7
GB
Installation

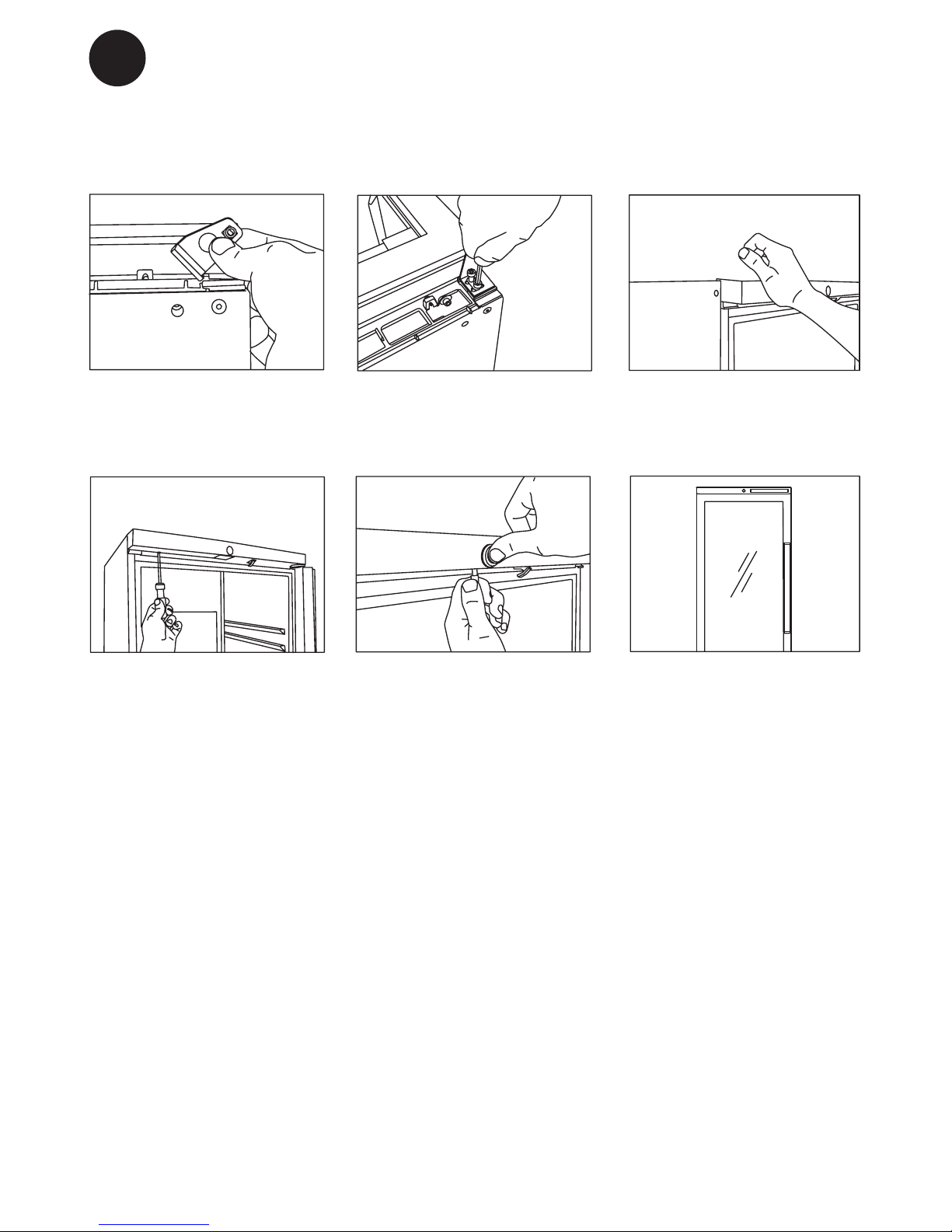

See drawings - page A, B and C.
Install the cabinet in a dry place and so that
it is not exposed to direct sunlight or any
other sour ce of heat.
Place the cabinet in a level position. This is
easily achieved by adjusting the adjustable
feet at the front edge of the base.
The cabinet may not rest against a wall on
its hinged side. When placing the cabinet
on a carpet or on a wooden oor you should
adjust it once more after some time as the
cabinet might settle in soft foundati ons.
If you want to build the appliance into a
cupboard you must consider 3 factors:
1. There must be space above the ap-
pliance in order to make the cooling
system work satisfactorily.
2. When the door is opened the appliance
takes up more room in the width and
therefore the door must either be placed
outside the cupboard or there must be
a space of at least 1,5 cm at the hinge
side.
3. The distance to the wall at the hinge side
must be of a sucient size.
.
Furthermore is it possible to build together
the appliance and another cabinet.
It is safest to place the earthed wall socket
abo ve the appliance and at least 1.7 / 2.0
m above the oor. Any local installation
rules for appliances of this kind must be
observed.
During a storm the electricity supply might
be cut o.
You should be aware of this when installing
the appliance in weekend cottages or else-
where where you would not immediately
observe that the power has been cut o.
Electrical connection
Wiring and connections in power supply
systems must been all applicable (local and
national) electrical codes. Consult these
codes lengths and sizes prior to cabinet
installation.
This device complies with relevant EU
directives including Low Voltage Directive
2014/35/EU and Electromagnetic Compat-
ibility Directive 2014/30/EU
The socket should be freely accessible.
Connect the appliance only to 220/240V
50Hz or 220V/60Hz alternating current via a
correctly installed earthed socket.
The socket must be fused with a 10-13 A
fuse.
If the appliance is to be operated in a non-
European country, check on the rating plate
whether the indicated voltage and current
type correspond to the values of your mains
supply.
Information regarding voltage, current or
power are given on the rating plate
The power cord may be replaced by a
technician only.
The rating plate provides various techni-
cal information as well as type and serial
number.
On some models it ithe rating plate placed on
the back side
8
GB
Control panel
Connect the appliance to the socket outlet.
A green light indicates that the appliance
has been switched on.
The thermostat knob is adjustable from 0
(stop) to 7 (coldest). Find the position of
the therm ostat which gives you the desired
temperature. Start at position 4.
1. Lock
2. Green light indicating power on
3. Thermometer
4. Thermostat button.
5. Light switch
The switch (5) on the top right of the control
panel is for turning the top lighting on and
o.
9
GB
1. Remove the lock pin using
a at-headed screwdriver.
2. Remove the lock housing. 3. Loosen the top panel. Do
not remove the screws, just
loosen them.
4. Tilt the top panel forwards
to remove it (it is secured in
tree places)
5. Lay the appliance on its
back and remove the upper
hinge, using the hex key.
6. Pull the torsion spring out of
the door together with the
hinge.
7. Remove the bottom hinge
using the hex key.
8. Move the door handle to
the opposite side.
9. Move the hinge pin to the
opposite side of the bottom
hinge.
10. Ret the bottom hinge on
the opposite side.
11. Move the palstic door guard
to the opposite side.
12. Insert the hinge pin and
tosion spring into the the top
of the door on the opposite
side.
Reversing the door
10
GB
14. Secure the top hinge in
position.
15. Raise the appliance into
uppight possion. Click the
top panel into place (it is
secured in three places.)
16. Retighten the top panel
screws using a screwdriver.
17. Ret the lock housing and
lock pin. 18. After reversing the door, it is
important to check that the
sealing strip provides a tight
seal all the way round. If it
does not, carefully heat the
strip all the way round using
a hair dryer. Then ease the
strip outwards slightly so that
it forms a tight seal against
the cabinet.
Be careful not to heat the
strip so much that it melts!
13. Fit the left-side top hinge
(available as extra). Tighten
the tosion spring approx.
1/2 turn (anticlockwise
on left side, clockwise on
rigth.)
This manual suits for next models
