TECNOVAP Steam Box Professional Installation instructions

STEAM BOX PRO

USER INSTRUCTION

With integrated industrial vacuum cleaner

Standard

Bacchus

With vacuum cleaner

STEAM BOX PROFESSIONAL

Pag. 2 TECNOVAP 06/15

STEAM BOX PROFESSIONAL

Pag. 3 TECNOVAP 06/15

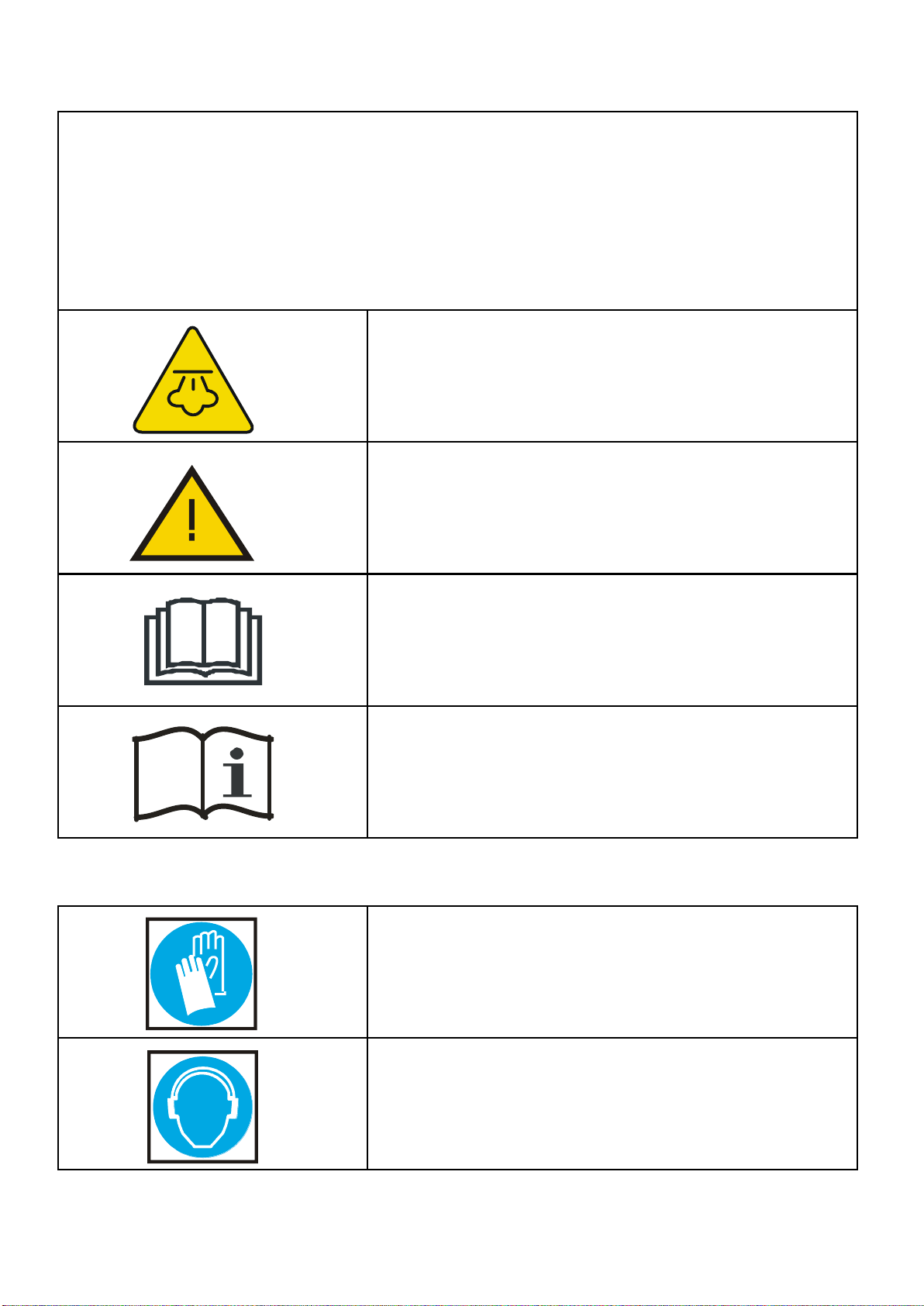

Interpretation of the symbols placed on the unit

BURNING DANGER!!

IT IS COMPULSORY TO USE PROTECTIVE GLOVES.

EQUIPMENT WITH SOUND PRESSURE LEVEL > 85db

IT IS COMPULSORY TO USE EARS PROTECTIVE SHROUDS.

BEFORE USING THE STEAM GENERATOR, READ AND FOLLOW THIS INSTRUCTION MANUAL.

IT IS RECOMMENDED TO KEEP THIS INSTRUCTION MANUAL TO CONSULT IT LATER OR TO GIVE IT TO THE

FOLLOWING OWNERS.

PLEASE READ THE SAFETY INSTRUCTIONS ON THIS HANDBOOK BEFORE PROCEEDING WITH THE FIRST USE.

EVENTUAL DAMAGES DUE TO THE CARRIAGE MUST BE COMMUNICATED AS SOON AS POSSIBLE TO YOUR

OWN RETAILER.

ATTENTION!!

STEAM…. BURNING DANGER

ATTENTION!!

READ THE OPERATING MANUAL

OPERATING MANUAL;

OPERATING INSTRUCTIONS

STEAM BOX PROFESSIONAL

Pag. 4 TECNOVAP 06/15

Environment protection

ALL THE PACKINGS ARE RECYCLABLE, PACKINGS DO NOT HAVE

TO BE THROWN IN THE DOMESTIC WASTE BUT THEY HAVE TO BE

DELIVERED TO THE CENTERS SPECIALIZED FOR THE DISPOSING

OF THE WASTE.

ALL DEVICES NOT USED ANYMORE CONTAIN PRECIOUS

RECYCLABLE MATERIALS THAT SHOULD BE DELIVERED TO THE

CENTERS SUITABLE FOR THE DISPOSING OF THE WASTE.

ELECTRIC AND ELECTRONIC EQUIPMENT, BATTERIES, OIL AND

SIMILAR SUBSTANCES MUST BE RECYCLED IN THE PROPER

RECYCLING CENTERS AND MUST NOT BE LEFT IN THE

ENVIRONMENT.

SUBSTANCES SUCH AS OIL FOR MOTORS, DIESEL OIL, PETROL

MUST NOT BE LEFT IN THE ENVIRONMENT AND MUST BE

RECYCLED IN THE PROPER RECYCLING CENTERS ACCORDING

TO THE ENVIRONMENTAL REGULATIONS.

The user might return the unit for disposal also to the retailer when purchasing a new equivalent device on a

one to one ratio.

STEAM BOX PROFESSIONAL

Pag. 5 TECNOVAP 06/15

1. SUMMARY

2. SAFETY REGULATIONS

3. CONNECTION TO THE WATER NET

4. PREFACE

5. TECHNICAL CHARACTERISTICS

6. NOMENCLATURE

7. TECHNICAL DRAWINGS

8. OPERATING INSTRUCTIONS

9. MAINTENANCE

10. BEFORE REFERRING TO THE TECHNICAL SERVICE

11. DECLARATION OF CONFORMITY

2. SAFETY REGULATIONS

▪The electrical connection shall be made by a qualified electrician and comply with IEC 60364-1.

▪If the power cable is damaged, it has to be replaced by the manufacturer or by an authorized

technical service or by a qualified person in order to prevent any risk.

▪It is recommended that the electric supply to this machine should include either a residual current

device that will interrupt the supply if the leakage current to earth exceeds 30ma for 30ms or a device

which will prove the earth circuit.

▪SAFETY VALVE This machine is equipped with two safety valves, able to ensure the safety of the

machine itself in case other primary control devices are inefficient (due to a failure). Due to the extreme

importance of these components and as not to compromise the safety of the machine, it is

recommended to provide to check them and to substitute them through an authorized service center

every 2 years starting from the purchasing date.

▪PRESSURE SWITCH This machine is equipped with a pressure switch able to check and to maintain

the pressure under certain preset limits (ref. “rated pressure” on the technical label underneath the

machine). In case there would be a steam leakage on the lower side of the machine, it means that the

functioning of this device has been compromised and the safety valve has been involved as to limit the

boiler’s internal pressure. It is recommended not to use the machine, immediately unplug the

machine from the power feeding and call the service center.

▪MUD DRAIN FROM THE BOILER The unit automatically indicates the necessity to proceed with the

mud drain; the notice C A L C will be displayed alternatively to the current visualization on the panel.

STEAM BOX PROFESSIONAL

Pag. 6 TECNOVAP 06/15

▪ATTENTION. Use a new set of fittings, tubes and sealing gaskets every time the appliance is

connected to the water net.

▪ATTENTION. This appliance has been projected for being used with cleaning agents supplied or

recommended by the manufacturer. The usage of other detergents and chemicals may adversely affect

the safety of the user and of the appliance itself.

▪ATTENTION. Risk of explosion. Do not spray flammable liquids.

▪ATTENTION. Do not use the appliance within the range of persons unless they wear protective

clothing.

▪ATTENTION. The high pressure jets can be dangerous if not used properly. The jet does not have to

be directed against persons, electrical devices under tension or the unit itself.

▪ATTENTION. Do not direct the jet against yourself or others in order to clean clothes or footwear.

▪ATTENTION. Water flowed through the anti-reflux devices is not potable water approved.

▪Disconnect the power supply by unplugging the power cable before proceeding with the maintenance

effected by the user.

▪ATTENTION. This unit is not intended to be used by children or by unqualified persons.

▪Monitor the children so they cannot play with the machine.

▪ATTENTION. To ensure the machine’s safety, use only original spare parts from the manufacturer or

spare parts approved by the manufacturer.

▪ATTENTION. Pressure hoses, fittings and couplings are important for the safety of the machine. Use

only hoses, fittings and couplings recommended by the manufacturer.

▪ATTENTION. Do not use the machine if the power cord or other important parts of the machine are

damaged, i.e. safety devices, pressure hoses and trigger gun.

▪ATTENTION. If an extension cord is used, the plug and the socket must be of a watertight

construction.

▪ATTENTION. Inadequate extension cords can be dangerous.

▪The hand-arm vibration data referred to this device are not mentioned as they are below 2,5 m/s².

▪ATTENTION. The detergent injection of this appliance can’t be used continuously but intermittently

(20 seconds ON - 20 seconds OFF). The detergent can be continuously used for no longer than two

minutes.

▪When using detergent (make sure it’s non-foaming) please follow the specific instructions: 1 liter of

detergent for every 10 liters of water (detergent percentage about 10%), making sure to fill in first the

detergent to obtain a better mixing.

STEAM BOX PROFESSIONAL

Pag. 7 TECNOVAP 06/15

Please be careful with the detergent to be used as some available in commerce will emanate

highly toxic gases when heated above 100°C. Always consult the MSDS datasheet from the

manufacturer.

▪ATTENTION. In case of accidental contact with the detergent, strictly follow the instructions indicated

on its packaging or in its MSDS.

▪Use ear protections and gloves while using the machine.

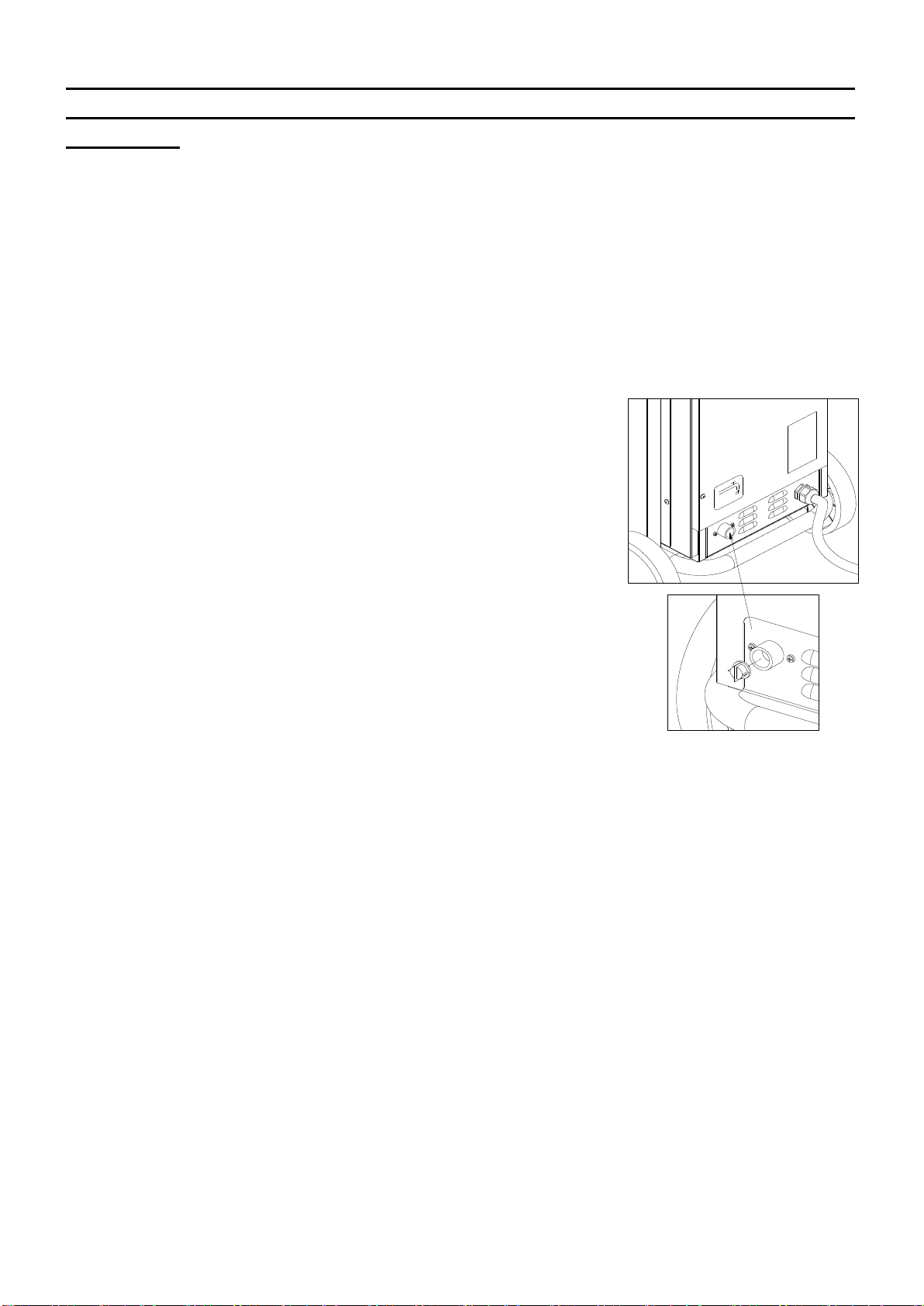

3. CONNECTION TO THE WATER NET

The connection to the water net shall be made by qualified personnel. It

is recommended to use a new set of food grade fittings and food grade

hoses; it is not possible to use again the same set (fittings, tubes,

gaskets, reductions etc.) for a new connection.

Being a movable device, the connection hose to the water net is not

supplied due to the unknown distance from the water connection point.

kvglircismlòerga

6 bar max

2 bar min

STEAM BOX PROFESSIONAL

Pag. 8 TECNOVAP 06/15

4. PREFACE

Dear Client,

We would like to congratulate you on your choice.

With the goal of improving and continually updating production by always offering innovative products,

TECNOVAP has studied, designed and created STEAM BOX PRFESSIONAL, a combined model for

cleaning which brings together the power of steam and the force of vacuuming (optional).

This product is equipped with a dependable stainless steel boiler with automatic refilling system which

allows it to produce a powerful and continuous supply of steam (24/24 hours).

STEAM BOX PROFESSIONAL offers the overheated water function and is also equipped with a

separate detergent tank which allows the injection of detergent up to 90-160°C.

With the power of steam, meaning ecological cleaning power, Tecnovap has combined a powerful

vacuum (optional) able to pick up solids and liquids.

STEAM BOX PROFESSIONALL is the ideal solution when it comes to cleaning and disinfecting.

STEAM BOX PROFESSIONAL

Pag. 9 TECNOVAP 06/15

5. TECHNICAL CHARACTERISTICS

FACTORY: TECNOVAP SRL VIA DEI SASSI 1A 37026 PESCANTINA VERONA ITALY

Model

Steam Box Professional

Code

4W07010 - 4W06010 - 4W05010 - 4W04010 - 4W0401M

4W07A10 - 4W06A10 - 4W05A10 - 4W04A10 - 4W04A1M

4W07T10 - 4W06T10 - 4W05T10 - 4W04T10 - 4W04T1M

Rated Voltage

230/400

Current type

50/60 3~

Rated Power Boiler

10,8 –14,4 –21,6 –28,8 –36,0

10,0 –14,4 –20,75

Rated Power vacuum

1,0 –1,2 –3,0

Max Rated Power

11,0 –14,8 –22,0 –29,2 –36,4

11,0 –17,8 –22,0 –32,2 –39,4

11,1 –15,8 –22,15

Rated Steam Pressure

kPa

bar

1000

Permissible Steam Pressure

kPa

bar

1200

Max. Steam Rated Flow

g/min

291 –388 –582 –776 –970

291 –388 –564

Max. Steam Rated Flow

Kg/h

17,5 –23,0 –35,0 –46,5 –58,0

17,5 –23,0 –33,8

Max temperature

°C

180

Max. inlet water pressure

KPa

bar

600

Min. inlet water pressure

KPa

bar

0,5

Kickback forces

< 20

Vibration hand-arm

m/s²

< 2,5

Sound pressure level LPa

98,7

Sound power level Lwa

111,4

Mass

106

STEAM BOX PROFESSIONAL

Pag. 10 TECNOVAP 06/15

Model

Steam Box Professional Bacchus

Code

4007060 –4006060 –4005060 –4004060 –400406M

Rated Voltage

230/400

Current type

50/60 3~

Rated Power Boiler

10,8 –14,4 –21,6 –28,8 –36,0

Max Rated Power

11,0 –14,8 –22,0 –29,2 –36,4

Rated Steam Pressure

kPa

bar

600

Permissible Steam Pressure

kPa

bar

1200

Max. Steam Rated Flow

g/min

291 –388 –582 –776 –970

Max. Steam Rated Flow

Kg/h

17,5 –23,0 –35,0 –46,5 –58,0

Max temperature

°C

165

Max. inlet water pressure

KPa

bar

600

Min. inlet water pressure

KPa

bar

0,5

Kickback forces

< 20

Vibration hand-arm

m/s²

< 2,5

Sound pressure level LPa

98,7

Sound power level Lwa

111,4

Mass

106
