Team Kalorik TKG MK 1003 User manual

Mini kitchen

Kleinküche

Four combiné

Mini-cocina

Mini kuchnia

Minifornuis

Kombinovaná rúra

Kombinovaná trouba

TKG MK 1003

220-240V~ 50Hz 3100W

I/B Version

201215

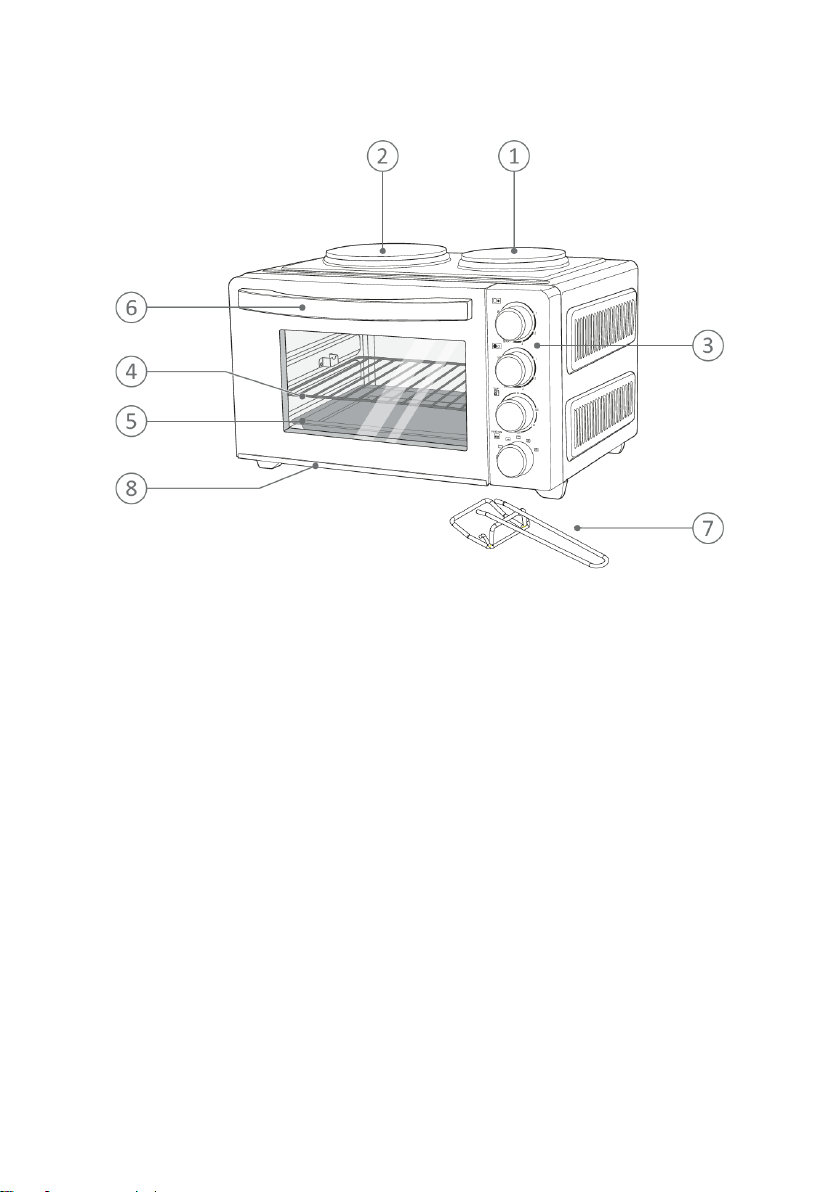

TKG MK 1003

1. Small cooking plate

2. Big cooking plate

3. Control panel

4. Grilling rack

5. Baking tray

6. Door handle

7. Handle for baking tray and rack

8. Crumb tray

1. Kleine Kochplatte

2. Große Kochplatte

3. Bedienfeld

4. Gitterrost

5. Backblech

6. Türgriff

7. Transportgriff für Backblech und

Gitterrost

8. Krümelauffangblech

1. Petite plaque chauffante

2. Grande plaque chauffante

3. Panneau de contrôle

4. Grille

5. Plateau de cuisson

6. Poignée de la porte

7. Poignée pour plateau et grille

8. Plaque ramasse-miettes

1. Hornillo izquierdo

2. Hornillo derecho

3. Panel de mandos

4. Rejilla

5. Placa

6. Asa de la puerta

7. Asa para retirar la placa y la rejilla

8. Bandeja recogemigas

TKG MK 1003

1. Mała płyta grzewcza

2. Duża płyta grzewcza

3. Panel sterowanial

4. Kratka grilla

5. Płyta do pieczenia

6. Uchwyt

7. Rączka ułatwiająca wyjmowanie

płyty i kratki

8. Podstawka

1. Kleine kookplaat

2. Grote kookplaat

3. Bedieningspaneel

4. Rooster

5. Bakplaat

6. Handgreep van de deur

7. Handvat voor bakplaat en rooster

8. Kruimelopvangplaat

1. Malá varná doska

2. Veľká varná doska

3. Ovládací panel

4. Gril

5. Plech na pečenie

6. Rukoväť dverí

7. Odnímateľná rukoväť na plech a

stojan

8. Zásobník na omrvinky

1. Malá varná deska

2. Velká varná deska

3. Ovládací panel

4. Gril

5. Plech na pečení

6. Rukojeť dveří

7. Odnímatelná rukojeť na plech a stojan

8. Zásobník na drobky

TKG MK 1003

ENGLISH

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the

appliance, and always follow the safety and operating instructions.

Important:This appliance can be used by children over 8 years

old and people with reduced physical, sensory or mental

capacities or with a lack of experience or knowledge if they have

been given supervision or instructions concerning the safe use of

the appliance and the risks involved. Children shall not play with

the appliance. Cleaning and user maintenance shall not be made

by children unless they are older than 8 years and supervised.

Never leave the appliance and its cord unsupervised and within

reach of children less than 8 years old or irresponsible persons,

especially when it is plugged into the wall or when it is cooling

down.

❑Check that your mains voltage corresponds to that stated on

the appliance.

❑Never leave the appliance unsupervised when in use.

❑From time to time check the cord for damages. Never use the

appliance if cord or appliance shows any signs of damage.

Should the cord be damaged, it must be replaced by a

competent qualified service(*).All repairs should be made by a

competent qualified service(*).

❑Only use the appliance for domestic purposes and in the way

indicated in these instructions.

❑Never immerse the appliance in water or any other liquid for

any reason whatsoever. Never place into the dishwasher.

❑Never use the appliance near hot surfaces.

❑Before cleaning, always unplug the appliance.

❑Never use the appliance outside and always place it in a dry

environment.

❑Never use accessories that are not recommended by the

producer. They could constitute a danger to the user and risk

to damage the appliance.

TKG MK 1003

❑Never move the appliance by pulling the cord. Make sure the

cord cannot get caughtin any way. Do not windthe cord around

the appliance and do not bend it.

❑To avoid fire, the right and left side of the appliance must be at

a distance of at least 10 cm from walls or other objects and the

space above the appliance must be free as well. Make sure

there is enough air circulation.

❑Put the appliance on a heat resistant stable surface (not on a

varnished table or on a table cloth)

❑Let the appliance cool down before cleaning and storing it.

❑Never let the cord touch the hot parts of the appliance.

❑Only cook consumable food. Never place the following

materials in the oven : paper, cardboard or plastic...

❑Please do not pass 10 min using your toaster as otherwise your

bread will be burned and the appliance might catch fire.

❑It is absolutely necessary to keep this appliance clean at all

times as it comes into contact with food.

❑The temperature of the accessible surfaces, such as the door

of the oven, may be very high when the appliance is in use.

Never touch those surfaces during use nor before the

appliance has totally cooled down, and only handle the knobs.

Should the symbol be indicated on a certain surface, you

need to be careful when handling the product. This symbol

means CAUTION, this surface may get very hot during use.

❑Make sure the hot parts of the appliance never come into

contact with inflammable materials, such as curtains, cloth,

etc... when it is in use, as a fire might occur. Also make sure

not to cover the appliance and do not put anything on top of it.

Make sure nothing comes into contact with the heating element

of the appliance.

❑Always unplug the appliance when it is not in use, especially

since it is not equipped with an on/off switch.

❑Caution : oil and fat preparations might catch fire if overheated.

❑When using the appliance under an extractor hood, make sure

to observe the minimal distance advised by the producer. It is

even wiser to double this distance.

TKG MK 1003

❑Immediately unplug the appliance if a crack appears and make

sure it is controlled by a qualified competent electrician.

❑Your appliance must never be switched on through an external

timer or any kind of separate remote control system.

❑Please note: Should the symbol be indicated on a certain

surface, you need to be careful when handling the product.

This symbol means: CAUTION, this surface may get very hot

during use.

The symbol is always put on the surface with the highest

temperature, however the other metallic or non-metallic

surfaces can also become very hot during use and it is

therefore advisable to always handle them with care and if

possible with the help of isothermal gloves or other thermal

protection. In case of doubt concerning the temperature of a

certain surface it is always preferable to protect oneself.

(*) Competent qualified service: after sales department of the

producer or importer or any person who is qualified, approved and

competent to perform this kind of repairs in order to avoid all

danger. In any case you should return the appliance to this service.

FIELD OF APPLICATION/OF OPERATION

•Use the appliance for domestic purposes only and in the way indicated in these

instructions.

•This appliance is intended to be used for domestic applications and similar

applications such as:

oKitchen corners reserved for personnel in shops, offices and other

professional environments.

oFarms.

oThe use by clients of hotels, motels and other environments with a residential

character.

oEnvironments of the “bed and breakfast” type.

TKG MK 1003

SHORT CORD INSTRUCTIONS

•A short power supply cord is provided to reduce the risk resulting from becoming

entangled in, or tripping over a longer cord. Extension cords may be used if care is

exercised in their use.

•The diameter of the extension cord must correspond to the one of the power cord of

the appliance, in other words, it must be suitable for at least 16 ampere. Extension

cords for a lower amperage could overheat.

•The longer cord should be arranged so that it will not drape over the counter top or

table, top where it can be pulled on by children or tripped over.

BEFORE USE

Unpack the appliance and accessories, then wash and wipe these accessories.

It is normal if some smoke or smell emanates from the appliance when using it for the first

time. Therefore, we advise you to use your appliance empty once before the first use. If

you want to use the oven, put switch in position and put the turn the temperature

knob to the maximum position (230°C) for about 10 minutes. This way, the invisible

protective coating of the heating elements will burned. If you want to use the cooking

plates, preheat them during 10 minutes by turning their temperature knob to the maximum

position.

Just like with a traditional cooker, the functions of this appliance can be used individually

(thus oven only or cooking plates only) but you can also use both functions simultaneously.

USING THE OVEN

•Plug the unit into the power supply socket. The lower indicator lamp will light up.

•To turn on the oven, turn the function selector knob of the control panel in the position

(bottom heat), (top heat) or (top and bottom heat), the upper

indicator lamp will light up. After you have set the knob to the desired position,

regulate the temperature using the temperature selector knob .

•When the food is ready, put the temperature knob and the function selector knob in

"OFF" position. The upper indicator lamp will light out.

•Carefully open the glass door, preferably using an oven glove.

•Be very careful when removing the rack or the tray. These parts become very hot

during use and you might get burned. Use the supplied, separate handle.

•Unplug the appliance after use.

TKG MK 1003

USING THE COOKING PLATES

•Make sure the temperature knobs are in the “MIN” position.

•Plug the unit into the power supply socket. The lower indicator lamp will light up.

•Always use flat-bottomed saucepans, which make good contact with the cooking

plates. The saucepan bases should ideally be of the same size as the cooking plates.

•To heat up the cooking plates, turn their temperature knobs to the right. The upper

indicator lamp will light up.

•Due to the cooking plates’ construction, residual heat will remain after switching off.

This may be used to keep food warm for a short period.

•After use, turn temperature knob to "MIN" and unplug the appliance.

CLEANING AND CARE

Before cleaning, unplug the appliance from outlet and allow it to cool down.

Inside cleaning of the oven

•Wipe the tray and the rack with absorbent paper towels or a soft cloth. To remove

baked on food pour a little cooking oil on the food and allow to stand for five to ten

minutes.

•This should soften the food and allow it to be removed with absorbent paper towels or

a soft cloth. If the above method fails to remove the food then we suggest wiping the

trays with a damp cloth and a little detergent.

•Never use abrasive products nor steel wool. Never immerse the appliance in water

and make sure no water or damp can enter the appliance. Never clean the

appliance with a steam cleaner.

•Make sure no water splashes on the glass door when the latter is still hot.

Outside cleaning of the oven and cooking plates

•Wipe clean with a soft dry cloth.

•Do not use steel wool, scouring pads or abrasive cleaners.

•Always keep the cooking plates dry; dampness can cause rust spots. Some special

products are also available for cleaning the cooking plates.

Do not immerse in water or any other liquid.

TKG MK 1003

PROTECTION OF THE ENVIRONMENT–DIRECTIVE 2012/19/EC

In order to preserve our environment and protect human health, the waste electrical and

electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on

the rating label or on the packaging, your appliance should not be disposed of as unsorted

municipal waste. The user has the right to bring it to a municipal collection point performing

waste recovery by means of reuse, recycling or use for other applications in accordance

with the directive.

ERP DECLARATION –REGULATION 1275/2008/EC

We, TKG SRL/Bvba, hereby confirm that our product meets the requirements of regulation

1275/2008/EC. Admittedly, our product does not dispose of a function to minimize the

power consumption, which should according to regulation 1275/2008/EC put the product

in off or standby mode after finishing the main function, but this is practically impossible, as

it would compromise the main function of the product so strongly, that using the product

would no longer be possible!

For this reason we always tell the customer in our instruction manual to unplug the

appliance immediately after the cooking is finished.

The user manual is by simple request also available in electronic format from the after-sales

service (see warranty card).

Table of contents

Languages:

Other Team Kalorik Kitchen Appliance manuals

Team Kalorik

Team Kalorik TKG PIE 1001 XL User manual

Team Kalorik

Team Kalorik TKG DGR 1000 User manual

Team Kalorik

Team Kalorik TKG MK 1008 BK User manual

Team Kalorik

Team Kalorik TKG MFH 1000 User manual

Team Kalorik

Team Kalorik PSGR 2000 RI User manual

Team Kalorik

Team Kalorik TKG CKM 1007 User manual

Team Kalorik

Team Kalorik TKG CKM 1002 User manual

Team Kalorik

Team Kalorik TKG HDM 1001 User manual

Team Kalorik

Team Kalorik TKG PIE 1000 User manual

Team Kalorik

Team Kalorik TKG CRM 1002 User manual

Team Kalorik

Team Kalorik TKG LCM 1002 User manual

Team Kalorik

Team Kalorik TKG AS 1001 User manual

Team Kalorik

Team Kalorik TKG PSGR 2 User manual

Team Kalorik

Team Kalorik TKG PCM 1000 User manual

Team Kalorik

Team Kalorik TKG CRM 1000 User manual

Team Kalorik

Team Kalorik TKG AS 1002 User manual

Team Kalorik

Team Kalorik TKG OM 1002 RD User manual

Team Kalorik

Team Kalorik TKG TMUG 1000 User manual

Team Kalorik

Team Kalorik TKG CKM 1010 User manual

Team Kalorik

Team Kalorik TKG SM 1006 User manual

Team Kalorik

Team Kalorik Efbe-Schott TKG MK 1002 User manual

Team Kalorik

Team Kalorik TKG CKM 1006 User manual

Team Kalorik

Team Kalorik TKG AS 1004 User manual

Team Kalorik

Team Kalorik TKG FTL 1006 User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
