Snapper LT160H42HBV User manual

Parts Manual fo

Revision 6,

LAWN TRACTORS ELECTRIC CLUTCH

SERIES H &

2006

McDonough, GA, 30253 U.S.A.

TP 400-5015-6-TC-N

2/20/2006 Manual No. 7006449

SNAPPER PRODUCTS, INC.

HYDRO DRIV

MODEL

LT160H42HB

LT160H42HBV2

LT160H42IB

LT180H42IB

LT180H42IBV

LT180H48HBV2

LT200H42IBV

LT200H48IBV

WLT160H42HBV

WLT180H42IBV

WLT180H48HBV

WLT200H48IBV

Table Of Content

TP 400-5015-6-TC-N

Manual No. 7006449LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I 3

PAGE GROUP

4WHEELS, FRONT & REAR

6HOOD, BUMPER, HEADLIGHTS & COMPONENTS

10 STEERING WHEEL, CONSOLE, FUEL TANK

14 SEAT, REAR FENDER & COMPONENTS

18 FRONT AXLE

20 FRAME, CLUTCH, BRAKE & STEERING COMPONENTS

26 TRANSMISSION GROUP (Hydro Drive)

28 HYDRO RESERVOIR ASSEMBLY

30 BLADE ENGAGEMENT & TRANSMISSION CONTROLS

34 IMPLEMENT LIFT PARTS

36 ENGINE COMPONENTS, PT.1 (Model LT160H42HBV)

38 ENGINE COMPONENTS, PT.2 (Model LT160H42HBV2)

40 ENGINE COMPONENTS, PT.3 (Model LT18H Models)

44 ENGINE COMPONENTS, PT.4 (Model LT200H Models)

48 ENGINE COMPONENTS, PT.5 (Model LT160H42IBV)

50 42" CUTTING DECK ASSEMBLY

54 BELT, BLADE BRAKE- 42" CUTTING DECK

56 SPINDLE ASSEMBLY- 42" CUTTING DECK

58 48" CUTTING DECK ASSEMBLY (Series "H") PT.1

60 48" CUTTING DECK ASSEMBLY (Series "H") PT.2

64 48" CUTTING DECK ASSEMBLY (Series "I") PT.1

66 48" CUTTING DECK ASSEMBLY (Series "I") PT.2

70 48" DECK IDLER ASSEMBLIES

72 48" DECK SPINDLE ASSEMBLY- Series "H"

74 48" DECK SPINDLE ASSEMBLY- Series "I"

76 DECALS PT. 1

78 DECALS PT. 2

80 ELECTRICAL COMPONENTS

82 ELECTRICAL SCHEMATIC (All Series "I" except LT160H42IBV)

84 ELECTRICAL SCHEMATIC (LT160H42IBV)

86 ELECTRICAL SCHEMATIC (LT160H42HBV & WLT160H42HBV)

88 ELECTRICAL SCHEMATIC (LT160H42HBV2, LT180H48HBV2)

WHEELS, FRONT & REAR

TP 400-5015-6-TC-N

Manual No. 7006449 LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I

WHEELS, FRONT & REAR

Footnotes:

TP 400-5015-6-TC-N

Manual No. 7006449LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I 5

Part No Descri

tionItem Qt

Note

1 7058517 2 ASSEMBLY, Front Tire & Rim (Incl. items 2, 3, 4, 5 & 6) used on 42” Series “H” & 42”

Series “I”

-- 7058521 2 ASSEMBLY, Front Tire & Rim (Incl. items 2, 3A, 4A, 5 & 6) used on 48” Series “H” & 48”

Series “I”

2 7072704 1 TIRE, 15 x 6.00-6 K500 Tread Kenda per front tire assembly

3 7022772 1 RIM, 6.00 x 3.50, Grey per front tire assembly

3A 7071966 1 RIM, 6.00 x 4.00, Grey per front tire assembly

4 7014483 2 BEARING, Wheel PM per front tire assembly

4A 7028722 2 BALL BEARING, Wheel (Heim) per front tire assembly

5 7012234 1 VALVE STEM, Air per front tire assembly

6 7076998 1 FITTING, Lube 1/4-28 Tapered Thread Was 13876, per front tire

assembly

7 7010935 1 WASHER, 5/32 x 25/32” I.D. x 1-1/2” O.D. Flat per front tire assembly

8 7029618 1 WASHER, Hub-Cap Retaining per rear tire assembly

9 7029617 2 WASHER, 3/4 x 1-5/16 x 1/16” per rear tire assembly

10 7011022 1 HUB CAP per rear tire assembly

11 7091516 1 PIN, 5/32 x 1” Cotter per front tire assembly

12 7010746 1 RING, 3/4” External Retaining Was 29738, per rear tire

assembly

13 7058519 2 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15A) used on Models LT160H42HBV

& LT160H42IBV

-- 7058520 2 ASSEMBLY, Rear Tire & Rim (Includes items 5, 14 & 15B) used on Models

LT160H42HBV2,

LT180H48HBV2 & all Series “I”

14 7024454 1 RIM, 8 x 7.00 Keyed Hub Grey per rear tire assembly

15A 7072706 1 TIRE, 18 x 9.50-8 K500 Tread Kenda per rear tire assembly

15B 7072707 1 TIRE, 20 x 10.00-8 K500 Tread Kenda per rear tire assembly

16 7031038 1 DUST CAP per front tire assembly

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

TP 400-5015-6-TC-N

Manual No. 7006449 LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Footnotes:

TP 400-5015-6-TC-N

Manual No. 7006449LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I 7

Part No Descri

tionItem Qt

Note

1A 7063298 1 HOOD, Mozart-Scoop-Red Was 26406 or 61383, used on

Models LT160H42HBV2,

LT180H48HBV2 & all Series “I”

1B 7024471 1 HOOD, Mozart used on Model LT160H42HBV

2 7016766 1 ROD, Hood Support

3 7024718 1 CLIP, Spring-Latch

4 7090999 2 SCREW, 1/4-20 x 5/8 Pan Head Self-Tap (Torx)

5 7076978 6 NUT, 1/4-20 Hex Nyloc

6 7073905 2 DECAL, Snapper- Hood- 3D

7 7090803 4 BOLT, 1/4-20 x 5/8” Flat Head Square Neck, GR 2

8 7029572 1 PANEL, Hood, Left Hand, Black

9 7029571 1 PANEL, Hood, Right Hand, Black

10 7029020 1 DECAL, Hood (Right Hand) used on Model LT160H42HBV

-- 7029019 1 DECAL, Hood (Left Hand) used on Model LT160H42HBV

-- 7027820 1 DECAL, LX1642H RH- Mozart Hood used on Model LT160H42HBV2

-- 7027821 1 DECAL, LX1642H LH- Mozart Hood used on Model LT160H42HBV2

-- 7046756 1 DECAL, Hood (Right Hand) used on Model LT180H48HBV2

-- 7046757 1 DECAL, Hood (Left Hand) used on Model LT180H48HBV2

-- 7075002 1 DECAL, Hood (Right Hand) used on 42” Series “I” Models

-- 7075003 1 DECAL, Hood (Left Hand) used on 42” Series “I” Models

-- 7075390 1 DECAL, Hood (Right Hand) used on Model LT160H42IBV

-- 7075391 1 DECAL, Hood (Left Hand) used on Model LT160H42IBV

-- 7075004 1 DECAL, Hood (Right Hand) used on 48” Series “I” Models

-- 7075005 1 DECAL, Hood (Left Hand) used on 48” Series “I” Models

-- 7075391 1 DECAL, Hood (Right Hand) used on Model LT180H42IBV

-- 7075390 1 DECAL, Hood (Left Hand) used on Model LT180H42IBV

-- 7078058 1 DECAL, Hood (Right Hand) used on Model LT200H42IBV2

-- 7078059 1 DECAL, Hood (Left Hand) used on Model LT200H42IBV2

11 7091095 8 POP RIVET, 1/8 x 3/8”

12 7092098 1 SCREW, 1/4-20 x 1-1/4” Hex Head Cap w/Locking Patch

13 7091106 5 SCREW, M4.8 x 1.59 x 16mm HXCRHD Sems Special

14 7029570 1 GRILL, Sloped, Black

15 7026482 1 CLIP, “J” Open Type .4 Bundle Dia., .281 Dia. Hole

16 7026377 1 DECAL, Molded Medallion Was 71544 (used on Series “H”

Models)

17 7029602 1 LENS, Rippled, Sloped

18 7026180 1 DECAL, Lens/Reflector-LH Sloped Grill

19 7026179 1 DECAL, Lens/Reflector-RH Sloped Grill

20 7073446 1 LANYARD, Hood, 14-3/4” long used on Model LT160H42HBV

-- 7073445 1 LANYARD, Hood, 16-13/32” long used on Models

LT160H42HBV2 &

LT180H48HBV2

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

TP 400-5015-6-TC-N

Manual No. 7006449 LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I

HOOD, BUMPER, HEADLIGHTS & COMPONENTS

Footnotes:

TP 400-5015-6-TC-N

Manual No. 7006449LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I 9

Part No Descri

tionItem Qt

Note

-- 7075068 1 LANYARD, Hood 14-3/4” long used on Model LT160H42IBV &

LT180H42IBV

-- 7075069 1 LANYARD, Hood, 16” long used on Series “I” Models

21 7090858 4 SCREW, 5/16-18 x 1/2” Hex Washer Self-Tap

22 7024061 2 SHOULDER BOLT, 3/8-16 thread

23 7034324 1 BRACE. Hood Support/Stop

24 7011791 1 RETAINER, 5/16” Bolt

25 7026172 2 LAMP 1141

26 7024709 2 SOCKET, Headlight Snap-In

27 7026171 1 HARNESS, Headlight M&G Sockets

28A 7028764 1 PLENUM used on Models

LT160H42HBV2 &

LT180H48HBV2 only

28B 7074966 1 PLENUM used on Series “I” Models

29A 7026844 1 FOAM, 2 x 2 x 3.5” used on Models

LT160H42HBV2 &

LT180H48HBV2 only

29B 7072355 1 FOAM, 1 x 1 x 10” used on Series “I” Models

30A 7026803 1 FOAM, 1/2 x 3/4 x 14.25” used on Models

LT160H42HBV2 &

LT180H48HBV2 only

30B 7072354 1 FOAM, 3/4 x 3/4 x 10-3/4” used on Series “I” Models

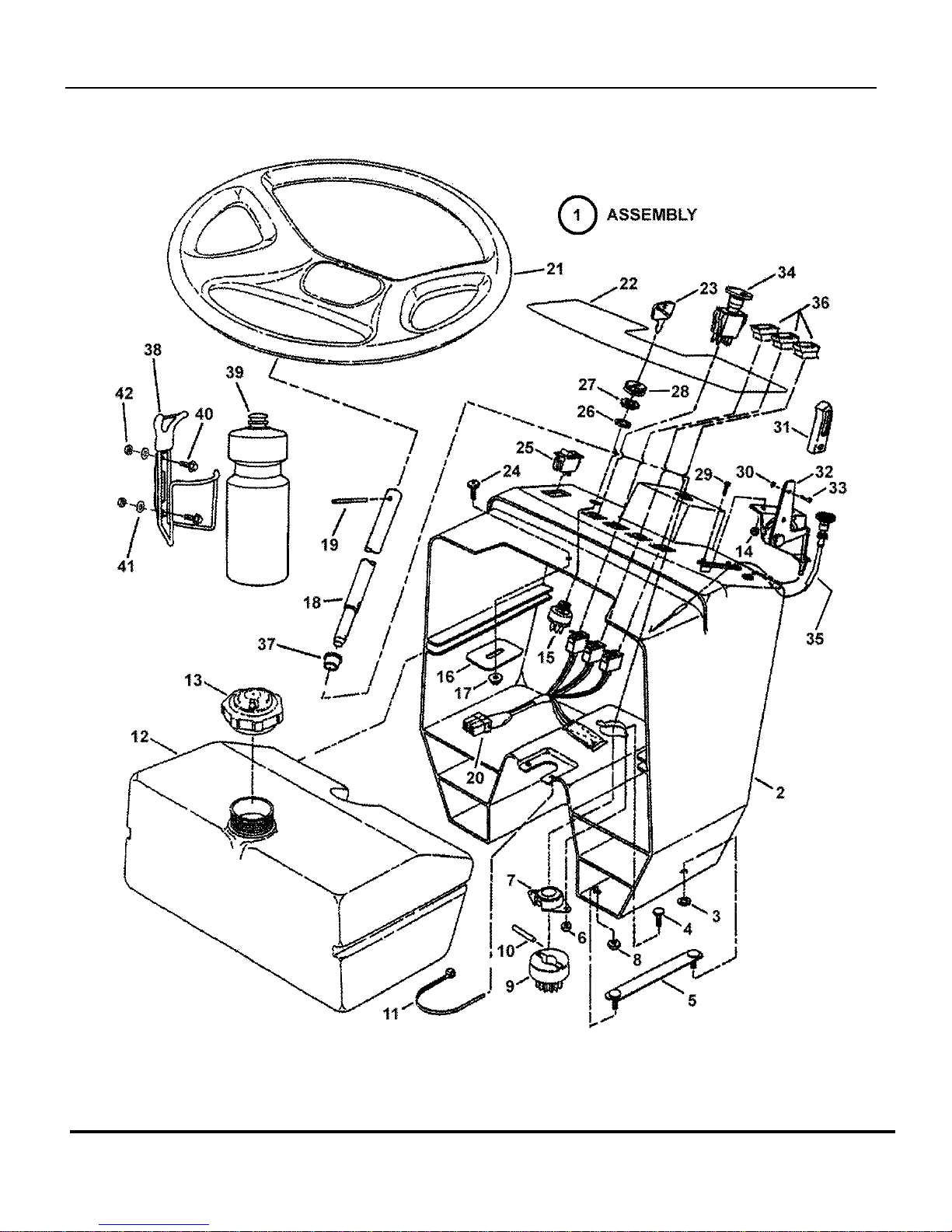

STEERING WHEEL, CONSOLE, FUEL TANK

TP 400-5015-6-TC-N

Manual No. 7006449 LAWN TRACTORS ELECTRIC CLUTCH

SERIES H & I
