Snapper HC32KAV13E User manual
Parts Manual fo
r
Revision IR,
PRO 32" HYDRO DRIV
E
HYDRO CUT SERIES
COPYRIGHT
©
2006
McDonough, GA, 30253 U.S.A.
TP 400-5235-IR-CW-N
10/12/2006 Manual No. 7006464
SNAPPER PRODUCTS, INC.
ALL RIGHTS RESERVED.
COMMERCIAL MOWERS
MODEL
HC32KAV13
E
Table Of Content
s
TP 400-5235-IR-CW-N
Manual No. 7006464PRO 32" HYDRO DRIVE
HYDRO CUT SERIES 3
PAGE GROUP
4Engine Frame & Handle Bars Group - Electric Start
6Engine, PTO & Deck Drive Idler Group
8Motion Control, Parking Brake & Operator Presence Group - Electric Start
12 Transaxle & Mount Group
14 Tire & Wheel Group
16 Transaxle - SERVICE PARTS
18 Fuel Tank & Mount Group
20 Fuel Supply Hose & Tank Replacement Parts Group - Electric Start
22 Decals - Brand & Model
24 Decals - Safety & Instruction
26 32" Mower Deck - Frame, Caster & Shield Group
28 32" Mower Deck - Height Adjustment Group
30 32" Mower Deck - Housing, Spindles, Blades & Pulleys
32 Electrical Group - Electric Start
34 Electrical Schematic - Electric Start
Engine Frame & Handle Bars Group - Electric Start
TP 400-5235-IR-CW-N
Manual No. 7006464 PRO 32" HYDRO DRIVE
HYDRO CUT SERIES
4
Engine Frame & Handle Bars Group - Electric Start
Footnotes:
TP 400-5235-IR-CW-N
Manual No. 7006464PRO 32" HYDRO DRIVE
HYDRO CUT SERIES 5
Part No Descri
p
tionItem Qt
y
Note
1 5022180 1 SWITCH, BLADE ENGAGEMENT
2 5022222 1 RING, SWITCH RETAINER
3 5025035 1 NUT, 3/8-24 HEX
4 5046501 1 CABLE, CHOKE CONTROL, 47” (Includes Ref. No. 3)
5 5025010X6 4 BOLT, 1/4-20 X 3/4” GD5 YZ (2 for battery terminals - not
shown)
6 5020927 1 SWITCH, IGNITION, 6 POST (Includes Ref No. 7 - 9)
7 5022789 1 KEY, Ignition, Molded Set
8 5022790 1 COVER
9 5022791 1 PLASTIC NUT
10 5047629 1 CABLE, THROTTLE CONTROL, 48”
11 5021841 2 GRIP, FOAM, .940” X 5” X .187”
12 5025391 2 NUT, 1/4-20 HEX NYLOCK FLANGE
13 5061279D 1 WELD, HANDLE BAR, TD
14 5025271 2 NUT, #10-24 HEX NYLON LOCK
15 5021670 1 STRAP, RUBBER
16 5025270 2 SCREW, #10-24 X 1” RS
17 5046188 1 BATTERY BOX W/ DRAIN
18 - 1 BATTERY, WET ( BCIU1, 340 CCA)
19 5022308 4 BODY CLIP, 5/16-18 X 1/2” DEEP
20 5047735D 1 SHIELD, REAR
21 5025011X8 4 BOLT, 5/16-18 X 1” GD5 YZ
22 5025155 4 WASHER, 5/16” SAE
23 5049229D 1 WELD, ENGINE DECK, HC36
24 5025126 2 NUT, 1/4-20 HEX SERR. FLANGE (for battery terminals - not
shown)
Engine, PTO & Deck Drive Idler Group
TP 400-5235-IR-CW-N
Manual No. 7006464 PRO 32" HYDRO DRIVE
HYDRO CUT SERIES
6
Engine, PTO & Deck Drive Idler Group
Footnotes:
TP 400-5235-IR-CW-N
Manual No. 7006464PRO 32" HYDRO DRIVE
HYDRO CUT SERIES 7
Part No Descri
p
tionItem Qt
y
Note
1 1 * ENGINE, 13HP KAW ELEC START Mod. FH381V-BS28-R
2 5021379 1 GROMMET, 7/8
3 5021077 1 GROMMET, 1/2
4 5025011X12 5 BOLT, 5/16-18 X 1-1/2” GD5 YZ
5 5025139 4 NUT, 5/16-18 Hex Large Serrated Flange
6 5020876B 2 BUSHING, BRASS, 3/4 X 1 X 1
7 5047661D 1 DECK DRIVE IDLER ARM
8 5025160 1 WASHER, 3/4” SAE
9 5020863 1 C-CLIP
10 5021369 1 IDLER PULLEY
11 5025158 1 WASHER, 1/2” SAE
12 5025018X20 1 BOLT, 1/2-20 X 2-1/2” GD5 YZ
13 5025098 1 NUT, 1/2-20 Hex Nylon Lock
14 5047632 1 BOLT, CRANKSHAFT, 7/16”X2.75
15 5042132 1 SPACER, .45 x 1.62 x .37
16 1717664 1 CLUTCH,#504586, ELECTRIC, OGURA JD-11
17 5050407X3 1 KEY, 1/4 SQ. X 2
18 5025011X18 1 BOLT, 5/16-18 X 2-1/4” GD5 YZ
19 5025155 5 WASHER, 5/16” SAE
20 5021103 1 SPRING, Extension
21 5025155 5 WASHER, 5/16” SAE
22 5025011X6 1 BOLT, 5/16-18 X 3/4” GD5
23 5023173 1 CLAMP, HOSE, 1.000 DIA.
24 5025127 1 NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
25 5050857X10 1 HOSE, 1/2” PUSH-ON, 10.50”
26 5021392 1 CLAMP, #6 HOSE, STAINLESS
27 5025057 4 NUT, 5/16-18 HEX NYLON LOCK
28 5049340D 1 BRACKET, MUFFLER GUARD - RED
29 5049338D 1 WELD, MUFFLER GUARD - RED
30 5022665 2 BODY CLIP, 1/4-20 X 1/2” DEEP (Not Shown)
31 5025249 1 BOLT, M8-1.25 X 20MM GD8.8 (Not Shown)
*NOTE: Purchase engine components directly from engine manufacturer dealer.

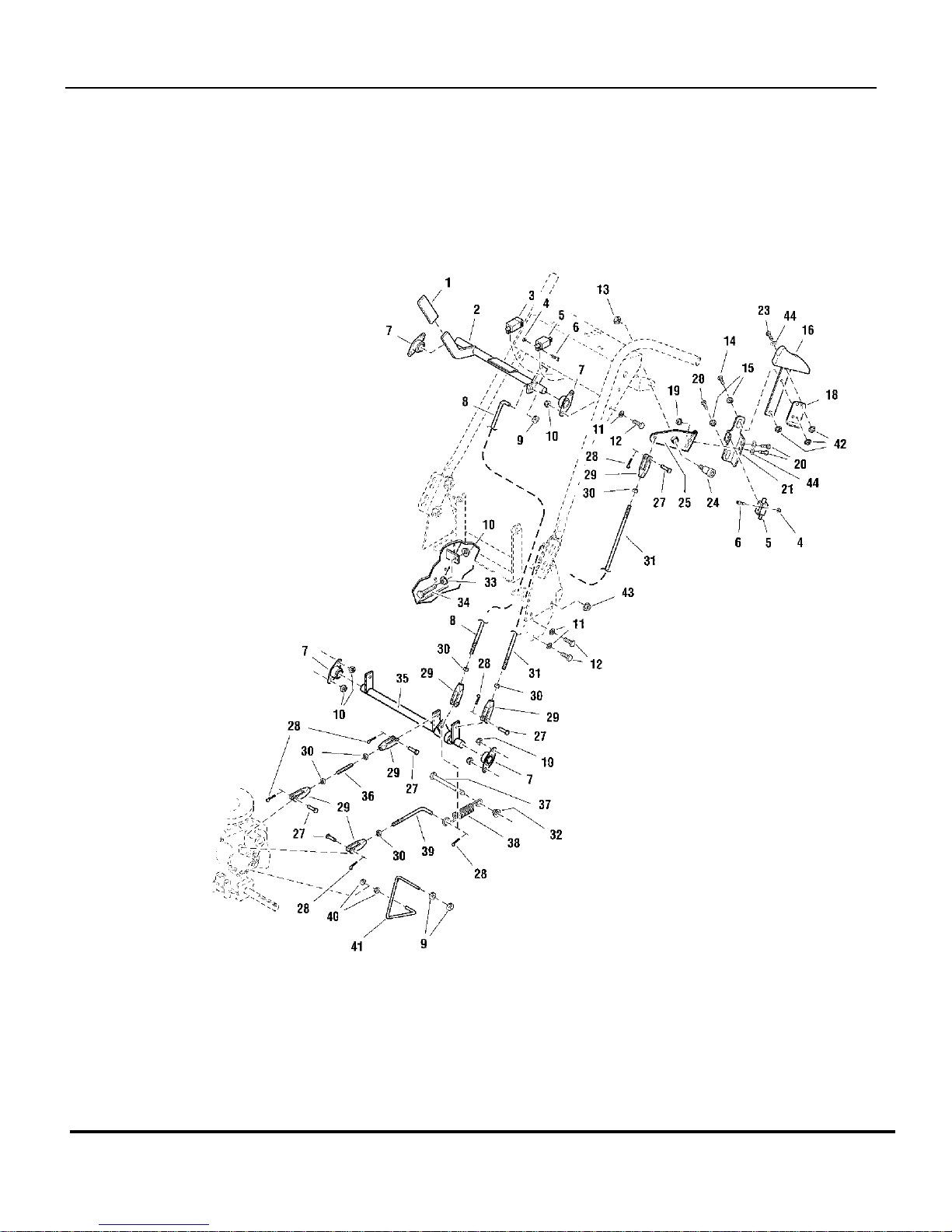

Motion Control, Parking Brake & Operator Presence Group - Electric Start
TP 400-5235-IR-CW-N
Manual No. 7006464 PRO 32" HYDRO DRIVE
HYDRO CUT SERIES
8
Motion Control, Parking Brake & Operator Presence Group - Electric Start
Footnotes:
TP 400-5235-IR-CW-N
Manual No. 7006464PRO 32" HYDRO DRIVE
HYDRO CUT SERIES 9
Part No Descri
p
tionItem Qt
y
Note
1 5025510 1 GRIP, FOAM, 1/4” X 1
2 5061278D 1 WELD, BRAKE CONTROL
3 5022438 1 SWITCH, Plunger, NO/NO
4 5025029 8 NUT, #10-24 HEX
5 5021769 3 SWITCH, Plunger, NC
6 5025179X4 8 SCREW, #10-24 X 1/2” ROUND PHILLIPS
7 5021098 4 BEARING, BRONZE FLANGE, 3/4
8 5061495 1 ROD, PARKING BRAKE LINKAGE
9 5020047 3 COLLAR, 5/16” SET
10 5025392 9 NUT, 5/16-18 HEX NYLOCK FLANGE
11 5025155 8 WASHER, 5/16” SAE
12 5025011X6 8 BOLT, 5/16-18 X 3/4” GD5
13 5025100 2 NUT, 3/8-16 HEX SIDE LOCK
14 5025010X8 2 BOLT, 1/4-20 X 1”, GD5
15 5061693 4 SPACER, SLIDE
16 5061691 1 HANDLE, RUBBER HYDROCUT - LH
17 5061702 1 HANDLE, RUBBER HYDROCUT - RH (Not Shown)
18 5061713D 2 ACTUATOR, SWITCH
19 5025126 4 NUT, 1/4-20 HEX SERR. FLANGE
20 5025010X6 6 BOLT, 1/4-20 X 3/4” GD5 YZ
21 5061689 1 MOUNT, MOTION CONTROLS - LH
22 5061692 1 MOUNT, MOTION CONTROLS - RH (Not Shown)
23 5025010X5 2 BOLT, 1/4-20 X 5/8” GD5 YZ
24 5025223 2 BOLT, 3/8-16 X 1.0”, 1/2” SHOULDER
25 5061683D 1 WELD, ARM CONTROL, LH
26 5061685D 1 WELD, ARM CONTROL, RH (Not Shown)
27 5025213X8 7 PIN, CLEVIS, 5/16” X 1
28 5025201X6 7 PIN, COTTER, 3/32” X 3/4
29 5020979 10 CLEVIS, 5/16-24, PLASTIC
30 5025033 8 NUT, 5/16-24 HEX
31 5047642 2 ROD, THUMB CONTROL LINKAGE
32 5025128 1 NUT, 3/8-16 HEX SERRATED FLANGE
33 5025139 1 NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
34 5023157 1 BOLT, 5/16-18 X 1 1/2” FLANGE
35 5047697D 1 WELD, CONTROL SHAFT
36 5047740 1 LINK, STUD
37 5025013X32 1 BOLT, 3/8-16 X 4” GD5 YZ
Motion Control, Parking Brake & Operator Presence Group - Electric Start
TP 400-5235-IR-CW-N
Manual No. 7006464 PRO 32" HYDRO DRIVE
HYDRO CUT SERIES
10
