Snapper MCRS215014KWV User manual

Parts Manual fo

Revision 7,

21" STEEL DEC

"MR" SERIES 14 & 15

2006

McDonough, GA, 30253 U.S.A.

TP 400-5160-7-WB-N

1/10/2006 Manual No. 7006064

SNAPPER PRODUCTS, INC.

WALK BEHIND MOWERS

PUSH MODELS PROPELLED

MODELS

MCRS215014KWV EMRP216014B

MR215014B EMRP216015B

MR215015

MCRP215014KWV

MR216015B MCRP215015KWV

MR216015BV MRP216014B

MR216015

MRP216015B

MRP216015BV

Table Of Content

TP 400-5160-7-WB-N

Manual No. 700606421" STEEL DECK

"MR" SERIES 14 & 15 3

PAGE GROUP

4Handles & Controls

8Handles & Controls (Swivel Wheel Model)

10 Cutting Deck, Blade

12 Front Wheel Bracket (Non-Swivel Wheel Models)

14 Front Wheel Bracket (Swivel Wheel Model)

16 Rear Wheel Brackets, Latches

18 Front Wheels (Non-Swivel Wheel Models)

20 Front Wheels (Swivel Wheel Model)

22 Rear Wheel

24 Drive System Self-Propelled

30 Transmission (Differential)

32 Throttle Controls

34 Decals (Part 1)

36 Decals (Part 2)

38 Grass Bag (Non-Swivel Wheel Models)

40 Grass Bag (Swivel Wheel Model)

42 Side Chute, Adapter

44 Accessory - Snapperizer

46 Accessory - Recycling Kits

48 Accessory - Thatcherizer

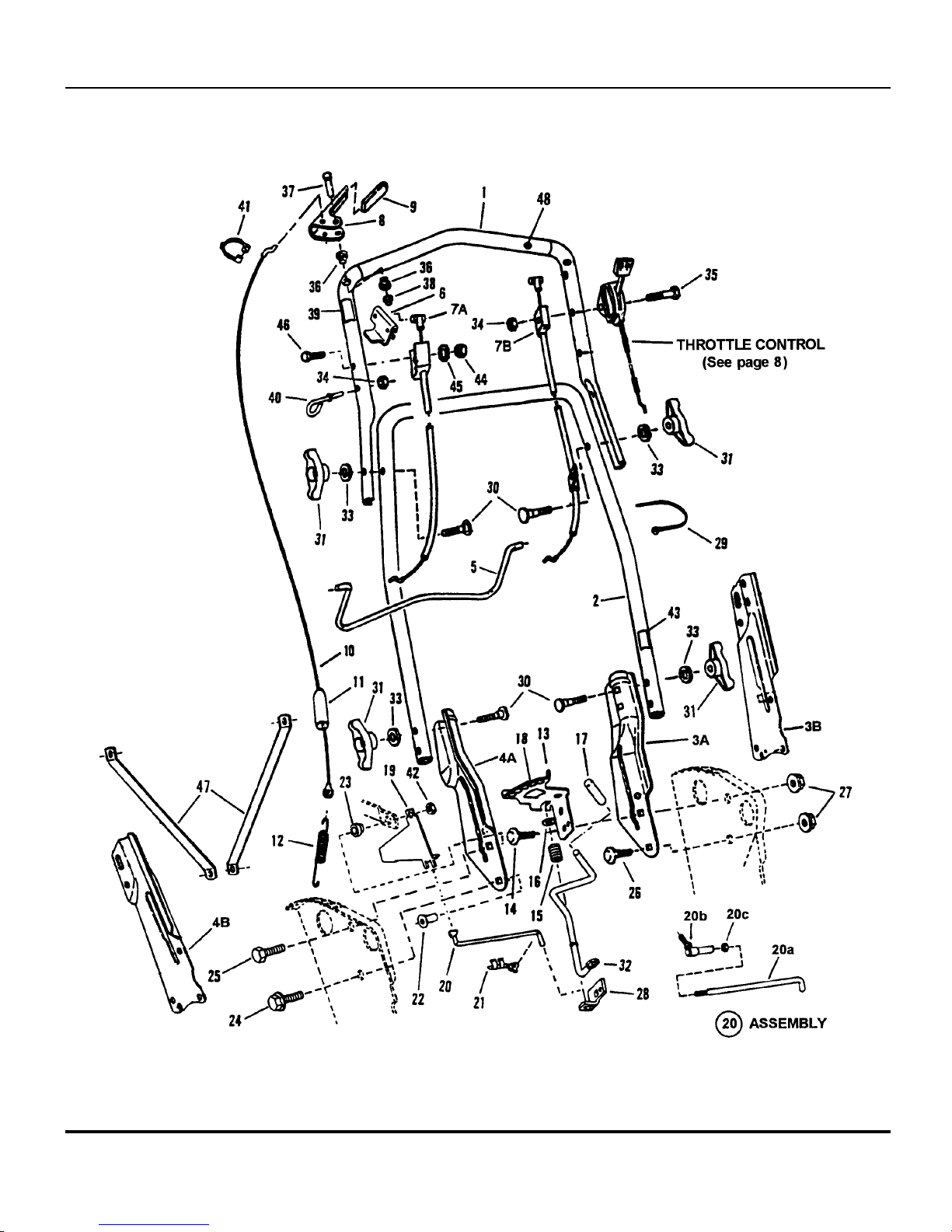

Handles & Controls

TP 400-5160-7-WB-N

Manual No. 7006064 21" STEEL DECK

"MR" SERIES 14 & 15

Handles & Controls

Footnotes:

TP 400-5160-7-WB-N

Manual No. 700606421" STEEL DECK

"MR" SERIES 14 & 15 5

Part No Descri

tionItem Qt

Note

1 7074384 HANDLE, Upper Was 41933, Used on All Series

7074254 HANDLE, Upper Was 72931, Used on All Series

2 7036350 HANDLE, Middle Used on Non Commercial

7046737 HANDLE, Middle Used on Commercial

3A 7046502 HANDLE, Lower Left Hand Not used on "MCRP" Models

3B 7047121 HANDLE, Lower L.H. Adjustable Used on "MCRP" Models

4A 7035342 HANDLE, Lower Right Hand Not used on "MCRP" Models

4B 7033986 HANDLE, Lower R.H. Adjustable Used on "MCRP" Models

5 7047011 BAIL, OPC Control

6 7034872 CLIP, Blade Control

7A 7035808 CABLE, Blade Control (46-1/16") Used on Series 14 B&S

7046553 CABLE, Blade Control (55-3/4") Used on Series 14 Tecumseh

7073030 CABLE, Blade Control (54-13/16") Used on Series 15 Tecumseh

7072933 CABLE, Blade Control (49-1/4") Used on Series 15 B&S

7B 7073444 CABLE, Blade Control (52-13/16") Was 46702, Used on All Kaw

8 7032826 HANDLE, Wheel Drive Used on Self-Propelled

9 7014307 GRIP, Wheel Drive Handle Used on Self-Propelled

7029775 GRIP, Wheel Drive Handle Used on Self-Propelled (Euro)

10 7023134 CABLE, Clutch Pull (Z-Bend, 36-3/16" Long) Used on Propelled Ser. 14 B&S

7072932 CABLE, Clutch Pull (Z-Bend, 38-5/8" Long) Used on Propelled Ser. 15 B&S

7047092 CABLE, Clutch Pull (Z-Bend, 38-5/16" Long) Used on Propelled (All Kaw)

11 7012121 COVER, Vinyl Used on Self-Propelled

12 7012122 SPRING, Clutch Used on Self-Propelled

13 7041871 SECTOR, Speed Used on Self-Propelled

14 7091714 BOLT, 5/16 x 1" Round Head Carriage, Grade 5 Was 91238 (Used on All)

15 7012093 SPRING, Speed Control Used on Self-Propelled

16 7090188 WASHER, 3/8" Flat Used on Self-Propelled

17 7023801 GRIP, Speed Control Handle Was 29383, Used on Propelled

18 7024087 DECAL, Speed Select Used on Self-Propelled

7029783 DECAL, Speed Select Used on Self-Propelled (Euro)

19 7032408 GUIDE, Lower V-Belt Used on Self-Propelled

20 7023790 ROD, Transfer Used on Self-Propelled

7051698 ASSEMBLY, Transfer Rod Incl. indented items below. Used

on Propelled Euro

20A 7015752 LINK, Transfer Used on Propelled Euro

20B 7015753 BALL JOINT, 1/4-28 Used on Propelled Euro

20C 7090095 NUT, 1/4-28 Hex Used on Propelled Euro

21 7010937 CLIP, Transfer Rod Used on Self-Propelled

Handles & Controls

TP 400-5160-7-WB-N

Manual No. 7006064 21" STEEL DECK

"MR" SERIES 14 & 15

Handles & Controls

Footnotes:

TP 400-5160-7-WB-N

Manual No. 700606421" STEEL DECK

"MR" SERIES 14 & 15 7

Part No Descri

tionItem Qt

Note

22 7090895 TEE-NUT, 5/16-18 Used on Self-Propelled

23 7012114 BUSHING, Differential Used on Self-Propelled

24 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5

25 7090238 SCREW, 5/16-24 x 1" Hex Cap, Grade 5

26 7090799 BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5 Was 91026 (Used on All)

27 7091601 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on All)

28 7046202 BRACKET, Speed Control Rod Used on Self-Propelled

29 7024641 TIE, Wire

30 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on All)

31 7035744 4 T-KNOB, 5/16-18

32 7041870 LEVER, Speed Control Used on Self-Propelled

33 7090391 4 WASHER, 5/16 Internal Tooth Lock

34 7076978 2 NUT, 1/4-20 Hex, Grade 5 or B (2 with Kawasaki Engine)

35 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5 Used on Commercial

36 7014343 2 BUSHING

37 7023792 PIN, Clutch Handle Used on Self-Propelled

38 7091020 PUSH-NUT, 1/4" (For handle pin). Used on

Propelled

39 7024211 DECAL, Blade Control (Right Hand Side) Used on All (Except Euro)

7029782 DECAL, Blade Control (Right Hand Side) Used on Euro

40 7046465 GUIDE, Rope

41 7026219 CLAMP

42 7091606 NUT, 5/16-24 Hex Center Lock, Grade 5 Was 91074 (Used on All

43 7041942 DECAL, Shift Warning Used on Self-Propelled

44 7091576 NUT, 1/4-20 Hex Was 91100 (Used on All)

45 7091022 WASHER, 1/4" Internal Tooth Locking

46 7091813 SCREW, 1/4-20 x 1-3/4 Hex Cap, Grade 5 Was 91222 (Used on All)

47 7046707 2 BRACE (See "Handles & Controls

(Swivel Wheel Model)"

illustration and parts list for

hardware). Used on Commercial

48 7075634 FOAM GRIP Was 73115 (Used on All)

Handles & Controls (Swivel Wheel Model)

TP 400-5160-7-WB-N

Manual No. 7006064 21" STEEL DECK

"MR" SERIES 14 & 15

Handles & Controls (Swivel Wheel Model)

Footnotes:

TP 400-5160-7-WB-N

Manual No. 700606421" STEEL DECK

"MR" SERIES 14 & 15 9

Part No Descri

tionItem Qt

Note

1 7074384 HANDLE, Upper Was 41933, Used on Swivel

2 7046737 HANDLE, Middle Used on Swivel

3 7033985 HANDLE, Lower Left Hand Used on Swivel

4 7033986 HANDLE, Lower Right Hand Used on Swivel

5 7047011 CONTROL, Blade Used on Swivel

6 7034872 CLIP, Blade Control Used on Swivel

7 7073444 CABLE, Blade Control (52-13/16") Was 46702, Used on Swivel

8 7090595 BOLT, 5/16-18 x 3/4" Flange Lock, Grade 5 Used on Swivel

9 7090799 2 BOLT, 5/16-18 x 5/8" Carriage, Grade 5 Was 91026 (Used on Swivel)

10 7091601 3 NUT, 5/16-18 Hex Flange Lock, Grade 5 Was 91070 (Used on Swivel)

11 7024641 TIE, Wire Used on Swivel

12 7091740 4 SCREW, 5/16-18 x 1-7/8 Curved Head, Grade 2 Was 91189 (Used on Swivel)

13 7035744 4 T-KNOB, 5/16-18 Used on Swivel

14 7090391 4 WASHER, 5/16 Internal Tooth Lock Used on Swivel

15 7076978 3 NUT, 1/4-20 Hex, Grade 5 or B Used on Swivel

16 7090505 SCREW, 1/4-20 x 2" Hex Cap, Grade 5 Used on Swivel

17 7024211 DECAL, Blade Control (R.H. Side) Used on Swivel

18 7046465 GUIDE, Rope Used on Swivel

19 7079577 SCREW, 1/4-20 x 1-1/2" Hex Cap, Grade 5 Used on Swivel

20 7046669 CABLE, Swivel Lock Used on Swivel

21 7046707 2 BRACES, Handle Used on Swivel

Cutting Deck, Blade

TP 400-5160-7-WB-N

Manual No. 7006064 21" STEEL DECK

"MR" SERIES 14 & 15
