smartDRAFT Beverage Dispenser User manual
Operating instructions
1
Open the smartDRAFT™ Tap by pulling the locking handle.
Now pull the upper part upwards.
Locking handle
Remove the sealing cap and the one-way beer line from the smartDRAFT™ Keg.
smartDRAFT™Keg
One-way beer line packaging
Sealing cap
How to install the smartDRAFT™ Tap
Upper part
2
The upper part must be completely open.
Place the smartDRAFT™ Tap on top of the smartDRAFT™ Keg as illustrated.
smartDRAFT™Tap
Remove the one-way beer line from the packaging.
Cut-out in the top ring
One-way beer line packaging
ENGLISH
Upper part
One-way beer line
3
Close the upper part completely.
Make sure the tap handle is in closed position as illustrated.
Now close the locking handle.
Place the one-way beer line in the smartDRAFT™ Tap. Fix the one-way
beer line into the retainer as illustrated.
Tap handle
Locking handle
Upper part
4
Remove the drip tray by lift up and pulling.
Press the locking button and open both doors of the smartDRAFT™ Cooler.
By smartDRAFT™ Keg change remember to empty the condensate collector
and wipe bottom of the smartDRAFT cooler if necessary with a clean cloth.
Locking button
ENGLISH
Bottom of smartDRAFT™ cooler
Remember to empty and rinse the drip
tray with water when necessary
Condensate collector
5
Close both doors until the locking button clicks into place.
Attach the drip tray as shown below by
pushing and pulling down.
Carefully push the smartDRAFT™ Keg with the installed smartDRAFT™ Tap into the
smartDRAFT™ Cooler as shown.
Locking button
smartDRAFT™ Tap
smartDRAFT ™Cooler smartDRAFT™ Keg
6
Foam
Make sure that the green light is on and that the yellow light has stopped
blinking e.g. dispensing temperature is reached, before dispensing
smartDRAFT™ beer.
For dispensing smartDRAFT™ beer pull tap handle completely forwards
– fast in one move.
If the smartDRAFT™ Tap is dismantled before the
smartDRAFT™ Keg is empty it cannot be reconnected
without a new one-way beer line.
By smartDRAFT™ Keg change install the new one-way
beer line which is mounted on the keg. The used one-way
beer line must be disposed.
If there is a smartDRAFT™ Keg with a smartDRAFT™
Tap on inside the smartDRAFT™ Cooler it must always
be kept in operation, in order to guarantee the quality of
the beer.
One-way beer line
ENGLISH
Tap handle
Beer
7

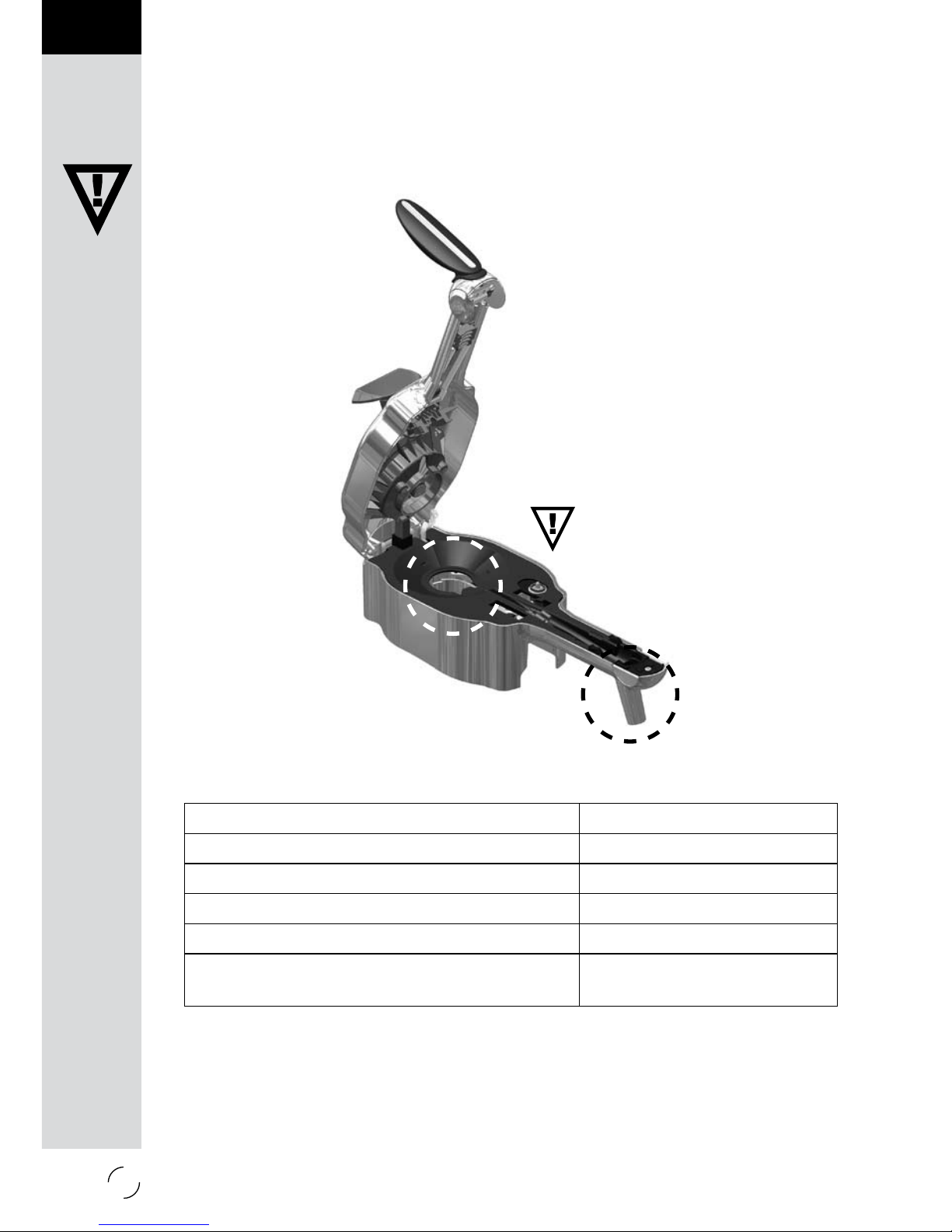

Cleaning instructions for the smartDRAFT™ Tap
Wipe with a damp clean soft cloth if required. Do not use soap.
Do not use dishwasher!
Technical specications smartDRAFT™ Tap
Dimensions in mm
Height 186
Width 124
Length 346
Dispatch weight in kg 1.75
Flow (covers all beer types with 4.5-5.5 g
CO2/l in a temperature range of 2-8 °C
1.6-2.0 l/minute at pre-set pressure
of 0.9 bar
Micro Matic A/S assumes no responsibility for errors, if any, in catalogues, brochures, and other printed matter. Micro Matic
A/S reserves the right to modify its products without prior notice, including already ordered products, if this can occur without
changing already stated specications. All right reserved.
smartDRAFT™ and its components are protected by several patents.
See also smartDRAFT™ Cooler manual.
8
Problem Reason Solution
No beer ow, when
dispense handle is
pulled
Tap not connected correctly Open and close tap cover again
One-way beer line has been used once Replace one-way beer line
One-way beer line is defective Replace one-way beer line
Tap is defective Contact brewery
Beer is too warm See problem „beer is too warm“ below
No beer in the keg Replace keg
No CO2in the keg Replace keg and contact brewery
Beer is foaming Handle is not opened completely Open handle completely
Handle is opened/closed too slowly Open/close handle fast in one move
Glass is too warm Cool glass with cold water before
dispensing
Beer is too warm See problem „beer is too warm“ below
One-way beer line is defective Replace one-way beer line
Too less foam Beer glass is not clean Clean glass with beer glass cleaner
No CO2in the keg Replace keg and contact brewery
Beer too cold See problem „beer is too cold“ below
Beer is too warm Keg is not prechilled Take prechilled keg
Cool down keg in cooler (~ 3 hours)
Cooler is/was not connected to
electricity
Keep cooler connected when a keg is
connected
Cooler is not adjusted correctly Contact brewery
Cooler is defective Contact brewery
Beer is too cold Temperature of prechilled keg too low Check temperature prechiller
Cooler is not adjusted correctly Contact brewery
CO2is leaking Tap not connected correctly Open and close tap cover again
No one-way beer line installed Install one-way beer line
One-way beer line is defective Replace one-way beer line
Tap is defective Contact brewery
Keg is defective Replace keg and contact brewery
Beer is leaking One-way beer line is defective Replace one-way beer line
Gasket in keg defective Replace keg and contact brewery
Only gas is coming
out, when handle is
pulled
Keg is empty Replace new keg
One-way beer line has already been
used once
Install new one-way beer line
Trouble shooting for bar staff
ENGLISH
9
Öffnen Sie den Verriegelungshebel des smartDRAFT™ Tap.
Klappen Sie den oberen Teil auf.
Entfernen Sie die Verschlusskappe und die Einwegbierleitung vom smartDRAFT™ Keg.
smartDRAFT™Keg
Verpackung Einwegbierleitung
Verschlusskappe
Installation des smartDRAFT™ Tap
Oberer Teil
Verriegelungshebel
