Onicon D-1401 Operating instructions

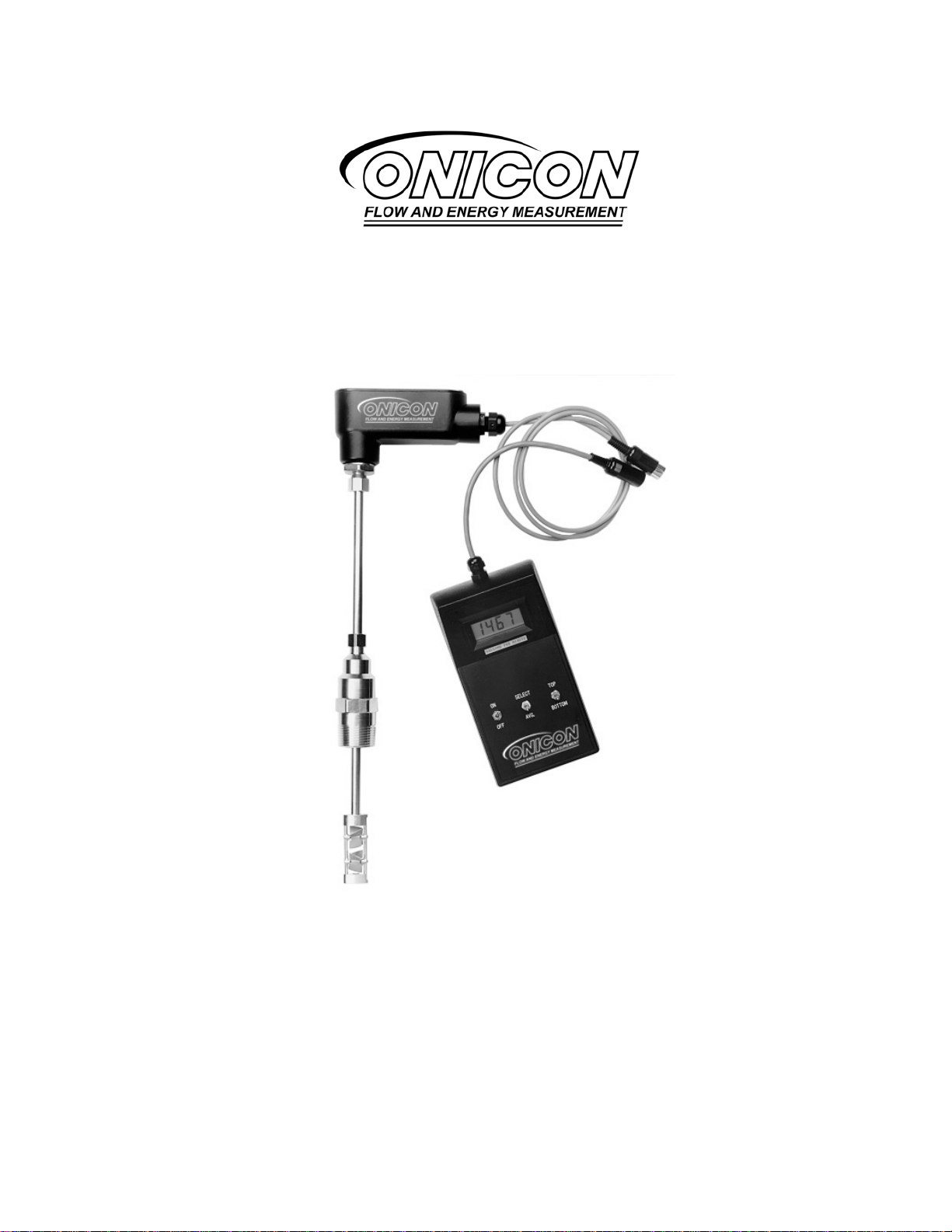

M odel D-1401 & D-1402 Portable Metering System

Installation and Operation Guide

03-17

11451 Belcher Road South, Largo, FL 33773 Tel +1 (727) 447-6140 Fax +1 (727) 442-5699

www.onicon.com E-mail: sales@onicon.com

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

SafetyInformation

Throughout this manual text that involves safety related information, or information critical to theproper operation

of theproduct will beidentified in thefollowing manner.

Disclaimer

Theinformation contained in thismanual hasbeen carefully prepared and checked for accuracy. ONICON

assumesno liability for damages that might occur asaresult of any errorsor omissionsin this manual.

Service requirements

This product containsalimited number of user serviceableparts. Only qualified personnel should install or

servicethisproduct. Please do not hesitateto contact ONICON for assistancein the unlikely event that this

product requiresservice.

IMPORTANT NOTE

Messages identified as “Important Note” contain information critical to theproper

operation of the meter.

CAUTION

Messages identified as “ Caution” contain information regarding potential damageto

theproduct or other ancillary products.

WARNING

Messages identified as “Warning” contain information regarding thepersonal safety

of individualsinvolved in the installation, operation or serviceof thisproduct.

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

TABLE OF CONTENTS

1.0 INTRODUCTION ...................................................................................................................................4

1.1 Purpose of thisGuide................................................................................................................ 4

1.2 System Description ...................................................................................................................4

1.3 System Components.................................................................................................................. 5

2.0 SYSTEM OPERATION AND SET-UP................................................................................................. 6

2.1 System Operation...................................................................................................................... 6

2.2 Initial System Set-up..................................................................................................................6

2.3 Basic Flow Measurement ...........................................................................................................7

2.4 Flow Profiling Measurement......................................................................................................7

2.5 System Storageand MaintenanceRecommendations................................................................8

2.6 Flow Meter Information.............................................................................................................9

3.0 INSTALLATION, REMOVAL AND ADJUSTMENT ....................................................................... 10

3.1 Site Selection ...........................................................................................................................10

3.2 Mechanical Installation ...........................................................................................................11

3.3 Insertion of theMeter ..............................................................................................................13

3.4 Removal of the Meter...............................................................................................................14

CONDITIONSOF SALE..............................................................................................................................16

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

SECTION 1.0INTRODUCTION

1.1 PURPOSE OF THISGUIDE

Thepurpose of thisguideisto provideinstallation proceduresand basic operating and

servicing instructionsfor theONICON Model D-1401 and D-1402 PortableMetering

System.

1.2 SYSTEM DESCRIPTION

The D-1401 and D-1402 PortableMetering Systemsare designed to measure theflow

rateof conductiveliquids in multiplepipe sizes. They can also beused to perform

flow profiling for analysis of flow measurement problems.

The D-1401 Portable Metering System includes a F-1100 singleturbineflow meter

and can beused to measure1.25 inch and larger pipe sizes.

The D-1402 PortableMetering System includesaF-1200 dual turbine flow meter and

can beused to measure2.5 inch and larger pipe sizes.

Theflow meter portion of thesystem istypically inserted into a filled and pressurized

pipeviaan existing oneinch minimum diameter full port ball valve. For pipesthat

can be easily drained before and after

measurement, the flow meter can be inserted

into aoneinch minimum diameter outlet that

can accept a one inch NPT male threaded

adaptor. For filled and pressurized pipes

without installed full port valves, wet

tapping installation hardwarekitsare

available from Onicon.

Thedisplay moduleincludesan LCD

display, control switchesand cable. A single

9-volt alkaline battery, located in the display

modulebattery compartment, powersthe

completesystem, including theflow meter.

1.3 SYSTEM COMPONENTS

The D-1401 PortableMetering System containsthefollowing components:

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

•Model F-1100 Insertion TurbineFlow Meter

•Model D-1401 battery powered hand-held display

•Carrying case

•Owner’ s manual

•Laminated conversion chart. (*Serialized for thespecific F-1100 flow

meter * )

The D-1402 PortableMetering System containsthefollowing components:

•Model F-1200 Insertion TurbineFlow Meter

•Model D-1402 battery powered hand-held display

•Carrying case

•Owner’ s manual

•Laminated conversion chart. (*Serialized for thespecific F-1200 flow

meter * )

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

SECTION 2.0SYSTEM OPERATION AND SET-UP

2.1 SYSTEM OPERATI ON

The D-1401 and D-1402 Display ModuleLCD display showstheflow rateasa

number representing thefrequency output signal, in Hertz, from theflow meter.

The D-1401 Display Moduleshowsthefrequency output signal of thesingle turbine

from theF-1100.

The D-1402 Display Moduleshowstheaveraged output from

both turbines. Thissystem also hasthecapability of

displaying theindividual output from thetop or bottom

turbineby using theselection switcheson theDisplay

Module.

Thisfrequency output isthen converted to gallonsper minute

for the pipe size being measured via the laminated

conversion chart included with the system.

Pleasecontact Onicon to obtain conversion factors for any

pipesizesnot listed on thechart, or if you requirea flow rate

unit of measureother than gallonsor liters.

2.2 I NTI AL SYSTEM SET-UP

1. Insert theflow meter into thepipeto be measured. (Seemanual section

entitled “Flow Meter Information” for specific information on installation

proceduresand recommended insertion depths.)

2. Plug theDisplay modulecableconnector into the connector on theflow meter

output cable.

3. Turn theDisplay modulepower switch to the “ON” position and verify that a

number appears on theLCD display.

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

2.3 BASIC FLOW MEASUREMENT

1. Turnthepower switch(left) to“ON” position.

2. Set themiddle switch to “AVG” and allow 45 secondsfor the flow meter

circuitry to stabilize.

3. Record theaveragereading in Hz on thedisplay and refer to the laminated

conversion chart to calculate the flow rate. Please note that the frequency

number displayed may vary rapidly (by asmuch as10-15%) asaresult of

theactual flow conditionsin thepipe.

4. Locatethepipesize being measured on thelaminated conversion chart and

determinethe“Z Factor” for gallonsper minute(or liters per minute) for

that pipe size.

5. Then multiply theZ factor by the averagereading in Hz from step 3 to

obtain theflow ratein gallonsper minute.

2.4 FLOW PROFILING MEASUREMENT

D-1401 / D-1402 Systems:

Significant information about thenatureof flow acrossthe entirepipediameter

can beobtained by taking flow measurementsat incremental insertion depths.

Depending on thepipesizeto be measured, determine an appropriate

measurement increment that will providetherequired information. (For

example: when measuring theflow profileof an 8-inch pipe, measurements

may bemadeat 1 inch incrementsto providethedesired profile.)

Withtheflow meter properly inserted in the pipe, loosen thehot tap adaptor

lock nut and push themeter into the pipeuntil the end of themeter touchesthe

far pipewall. Using thisasastarting point, pull themeter back out by the

desired increment of measurement and measure the flow rate. Repeat this

processuntil readings havebeen madeacross theentireinterior diameter of the

pipe.

In largepipeswheretheflow meter isnot long enough to touch thefar pipe

wall, measurements can be made using the near pipe wall as a starting point.

Push theflow meter into the pipejust until aflow reading is obtained on the

display. (For the

D-1402 systems, thetop turbineoutput can beobserved to seewhen it clears

the pipewall and beginsto spin.) Beginning at that point, start making

measurements at the desired incremental insertion depths.

D-1402 System Only:

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

When using aD-1402 system, theindividual top and bottom turbine

frequenciescan beobserved asareference to theamount of rotational swirl

that is present at each insertion depth measurement point.

To utilize this function, set themiddle switch to “SELECT”. The right switch

can then betoggled between “TOP” and “BOTTOM” to display the

individual turbinefrequencies.

A stable, uniform flow velocity at themeasurement depth will beindicated by

having the same or very close (+/- 10%) to thesamefrequency reading on both

thetop and bottom turbine.

A significant differencebetween thetop and bottom turbinefrequency

numbers will indicatethepresenceof flow turbulence andswirl at the

measurement depth. The top and bottom turbines rotatein oppositedirections.

Turbulenceand swirl will either increaseor decrease thespeed of rotation of

oneof theturbines and will havetheopposite effect on theother turbine.

2.5 SYSTEM STORAGE AND MAINTENANCE RECOMMENDATION

1. Alwaysstorethesystem in itscarrying case when not in use.

2. Beforelong-term storage of the system, blow all excess water from the flow

meter turbine assembly and wipe the flow meter stem assembly dry with a

clean cloth. Donot put any lubricantson the turbine assembly. Oil based

lubricants will damage the flow meter’ s o-ring seals.

3. If storing thesystem for long periods of time, removethe 9-volt battery from

the Display Module and store it separately.

4. Theflow meter’shot tap adapter should bepushed completely down over the

turbineassembly and locked so that theturbinesareprotected when moving

thesystem to anew location or when storing thesystem.

5. Theflow meter turbines, bearingsand shaftscan becleaned using a30 percent

whitevinegar to 70 percent tap water solution. An old toothbrush can beused

to lightly brush around thebearings. Rinsewith clean water and blow off

excess water before storing.

2.6 FLOW METER INFORMATION

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

ONICON’s D-1401 / D-1402 Insertion

Turbine Flow Meter measures the

velocity of flowing liquidsby counting

thefrequency at which thebladesof a

rotating turbinepassa fixed electrode.

Circuitry withintheflow meter

electronics enclosurethen converts the

rotational rateto afrequency output.

D-1401 & D-1402 Portable Metering System Installation and Operation Guide • 03-17

SECTION 3.0INSTALLATION, REMOVAL & ADJUSTMENT

CAUTION

Insertion Flow Metersmay often beinstalled in pipeswhich are under high

pressure. Accidentswith thesesystemscan causeseriousinjury or death. Only

personsexperienced with high pressure systemsand related knowledgein the

heating, cooling and fluid meteringfieldsshould attempt to install adjust or remove

the flow meter. Refer to the installation drawings before performing any work on

these meters.

3.1 SITE SELECTION

Theclearancerequired for installation istypically 30-36” from the pipewall to thenearest

obstruction above thevalveassembly. Thisclearance dimension will increasewith large

diameter pipes.

Theenvironment should befree of corrosive liquids/fumes, temperature extremes and heavy

vibration. The following diagramsshould beused asaguide to theproper location for installing

the meter.

This manual suits for next models

Table of contents

Other Onicon Measuring Instrument manuals

Onicon

Onicon F-2500 series Operating instructions

Onicon

Onicon FP-4400 Original operating instructions

Onicon

Onicon SeaMetrics AG90 User manual

Onicon

Onicon Fox Thermal FT4X User manual

Onicon

Onicon SYSTEM-20 Operating instructions

Onicon

Onicon F-3500 Operating instructions

Onicon

Onicon D-100 Operating instructions

Onicon

Onicon F-1100 Series User manual

Onicon

Onicon System-10 BTU Meter Operating instructions

Onicon

Onicon SYSTEM-40 Operating instructions

Onicon

Onicon System-10 BTU Meter User manual

Onicon

Onicon F-5200 Operating instructions

Onicon

Onicon Vortex Flow Meter F-2200 Series Operating instructions

Onicon

Onicon SYSTEM-20 Operating instructions

Onicon

Onicon System-10 BTU Meter User manual

Onicon

Onicon F-4400 User manual

Onicon

Onicon SYSTEM-1000 Operating instructions

Onicon

Onicon FB-3500 Operating instructions

Onicon

Onicon SYSTEM-30 Operating instructions

Onicon

Onicon SYSTEM-30 Operating instructions

Onicon

Onicon F-1000 SERIES Operating instructions

Onicon

Onicon F-1100 Series Operating instructions

Onicon

Onicon F-2600 Series Operating instructions

Onicon

Onicon D-100 Operating instructions

Popular Measuring Instrument manuals by other brands

Suaoki

Suaoki D40 user manual

Elster

Elster BK-G1.6 operating instructions

Endress+Hauser

Endress+Hauser Deltabar FMD71 technical information

Duratool

Duratool D03128 manual

Vega

Vega VEGAPULS 65 Quick setup guide

Tonghui

Tonghui TH2618B Operation manual

Tenmars

Tenmars TM-801 user manual

MSR

MSR 145 user manual

TPS

TPS WP-82 manual

ELMETRON

ELMETRON CP-511 user manual

PCB Piezotronics

PCB Piezotronics 003C30 Installation and operating manual

Tenma

Tenma 72-10465 manual

Endress+Hauser

Endress+Hauser Proline Promag 50 Brief operating instructions

Siemens

Siemens SITRANS F Coriolis FCT030 Function manual

KLINGER

KLINGER CMF V Series instruction manual

EXFO

EXFO FTB-2 Notice

Keysight

Keysight M8290A Getting started guide

ADTEK

ADTEK MW-5 operating manual
