Nostalgia Electrics Vintage Series Quick guide

All products are trademarks of Nostalgia Products Group, LLC.

Worldwide design & utility patented or patents pending.

www.nostalgiaelectrics.com

(rev. 11/28/11)

CCM600

Vintage Series™Old Fashioned Commercial

Cotton Candy Maker

Série d'antanMD Machine à barbe à

papa commerciale à l'ancienne

Instructions and Recipes

Instrucciones y recetas

Instructions et recettes

ENGLISH

Make everyday a party!

Visit www.nostalgiaelectrics.com for more fun products.

CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

IMPORTANT SAFEGUARDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PARTS & ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

HOW TO OPERATE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

HELPFUL TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

CLEANING & MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

RETURNS & WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

SAFETY

Appliance Specications:

120 Volts, 60 Hz

700 Watts, ETL Approved

Your safety and the safety of others is very important.

We have provided many important safety messages in this manual and

on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that

can kill or hurt you and others.

All safety messages will follow the safety alert symbol.

All safety messages will tell you what the potential hazard is, tell you how to reduce the

chance of injury, and tell you what can happen if the instructions are not followed.

ENGLISH

IMPORTANT PRECAUTIONS

1. NEVER use a scouring pad on the unit.

2. NEVER leave unit unattended while in use.

3. NEVER place anything other than the intended sugar in the Extractor Head.

4. NEVER pour water or any other liquid into the Extractor Head.

5. NEVER put ngers on or near the Extractor Head or Heating

Element while machine is on, nor while it is still hot.

6. Unplug unit from outlet when not in use and when cleaning.

7. DO NOT operate this appliance with a damaged cord or plug

or in the event the appliance ever malfunctions.

8. DO NOT put parts in dishwasher for cleaning.

9. DO NOT use outdoors. For indoor use only.

10. This appliance is NOT A TOY.

11. This appliance is not intended for use by young children.

12. Young children should be supervised while product is in use

to ensure that they do not play with the appliance.

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions

should always be followed, including:

1. Read all instructions before operating this appliance.

2. DO NOT TOUCH the hot surfaces.

3. To protect against electrical shock do not immerse cord, plug

or any part of this unit in water or other liquids.

4. Close supervision is necessary when any appliance is used by or near children.

5. Unplug from outlet when not in use and before removing parts for cleaning.

6. DO NOT operate any appliance with a damaged cord or plug or if the

appliance has been damaged in any manner. Return the appliance

to the nearest repair shop for examination or repair.

7. The manufacturer does not recommend the use of accessory

attachments. Use of attachments may cause injuries.

8. DO NOT let the cord touch hot surfaces.

9. DO NOT pour water or any other liquid into the Extractor Head.

10. DO NOT place parts on or near a hot gas or electric burner, or in a heated oven.

11. Extreme caution must be used when moving this appliance.

12. This unit must be on a level surface to operate properly.

13. DO NOT use this machine for other than its intended use.

14. DO NOT leave unit unattended while in use or when plugged into an outlet.

ENGLISH

15. Check the Extractor Head for foreign objects before switching to ON position.

16. The Extractor Head will get hot. Avoid contact until fully cooled.

17. A short power supply cord is provided to reduce the risk resulting

from becoming entangled or tripping over a long cord.

18. Extension cord can be used if care is exercised in use.

19. The marked electrical rating of an extension cord should be at

least as great as the electrical rating of the appliance.

20. This appliance has a polarized plug (one blade is wider than the other). To reduce the

risk of electrical shock, this plug is intended to t into a polarized outlet only one way.

If the plug does not t fully into the outlet, reverse the plug. If it still does not t,

contact a qualied electrician. Do not attempt to modify the plug in any way.

21. Keep hands away from the machine when it is in the ON position and is spinning.

SAVE THESE INSTRUCTIONS!

INTRODUCTION

The OLD FASHIONED COMMERCIAL COTTON CANDY MAKERis designed

to resemble vendor carts of the early 1900s, with the convenience of a

modern appliance. Simply plug in, turn on, pour pure, granulated sugar into

the center receptacle, and start spinning colorful and tasty treats.

This fanciful product is fun for the whole family and brings out the kid in everyone.

Instantly, gatherings are transformed into carnivals and dessert time into party time!

Your OLD FASHIONED COMMERCIAL COTTON CANDY MAKERwill spin

the sugar into a sweet candy oss that you collect on cones by spinning

the cone as it circles the bowl…just like at the carnival!

ENGLISH

PARTS & ASSEMBLY

HARDWARE

#1 Screw (10mm) #2 Bolt (10mm) #3 Axle Bolt (95mm)

Qty. 8 Qty. 8 Qty. 2

#4 Bolt (60mm) #5 Small Flat Washer #6 Large Flat Washer #7 Nut Cap

Qty. 2 Qty. 10 Qty. 4 Qty. 4

#8 Extra Fuses #9 Extra Kryptol #10 Screw (6mm)

(10 Amp) Qty. 2 Qty. 2 Qty. 3

PARTS

(A) Bowl & Dome (B) Sugar Shovel (C) Main Unit (D) Display Tray

ENGLISH

PARTS & ASSEMBLY

HARDWARE

#1 Screw (10mm) #2 Bolt (10mm) #3 Axle Bolt (95mm)

Qty. 8 Qty. 8 Qty. 2

#4 Bolt (60mm) #5 Small Flat Washer #6 Large Flat Washer #7 Nut Cap

Qty. 2 Qty. 10 Qty. 4 Qty. 4

#8 Extra Fuses #9 Extra Kryptol #10 Screw (6mm)

(10 Amp) Qty. 2 Qty. 2 Qty. 3

PARTS

(A) Bowl & Dome (B) Sugar Shovel (C) Main Unit (D) Display Tray

(E) Push Handle (F) Wheels (G) Base Support (H) Leg Assembly

(I) Cross Bar (J) Screwdriver (K) Wrench #1 (L) Wrench #2

ASSEMBLY OF BASE SUPPORT

1. Insert Cross Bar (I) into the square inserts on the inside of Base Support (G)

and secure from below with two #2 Bolts and two #5 Flat Washers.

2. Insert the Leg Assembly (H) into the square inserts between the ends of

the Base Support (G) and fasten from inside with two #4 Bolts, two #6 Flat

Washers and two #7 Nut Caps and from the top with two #2 Bolts.

ENGLISH

ASSEMBLY OF THE WHEELS

1. Insert #3 Axle Bolt into Base Support (G).

2. Put on #6 Flat Washer. Slide one Wheel (F) into #3 Axle Bolt and

add a #5 Flat Washer and a #7 Nut Cap.

3. Use #2 Wrench (L) to tighten the #7 Nut Cap.

4. Insert the second #3 Axle Bolt to the other side of Base Support (G), add #6

Flat Washer, second Wheel (F), another #5 Flat Washer, and #7 Nut Cap to

the other side of the #3 Axle Bolt, following the directions above.

5. Use #2 Wrench (L) to tighten the #7 Nut Cap.

ASSEMBLY OF THE MAIN UNIT

1. Assemble Base Support (G) into the bottom of the Main

Unit (C) and secure with four #2 Bolts.

2. Push Handle (E) attaches onto the Main Unit (C) using four of the supplied #1 Screws

and four #5 Flat Washers. Attach Display Tray (D) to Main Unit (C) using four #1 Screws.

3. Attach Bowl (A) to Main Unit (C) by placing Bowl (A) over collar and

turning clockwise. Attach Dome to Bowl using three #10 Screws.

CHANGING THE FUSES

The Fuses are marked under each fuse compartment. Two

extra 10 Amp fuses are also included with this unit.

1. Using a at head screwdriver, push in, turning counter-clockwise.

2. Fuse is then accessible and can be changed. Once changed,

push in and turn clockwise to lock fuse into place.

ENGLISH

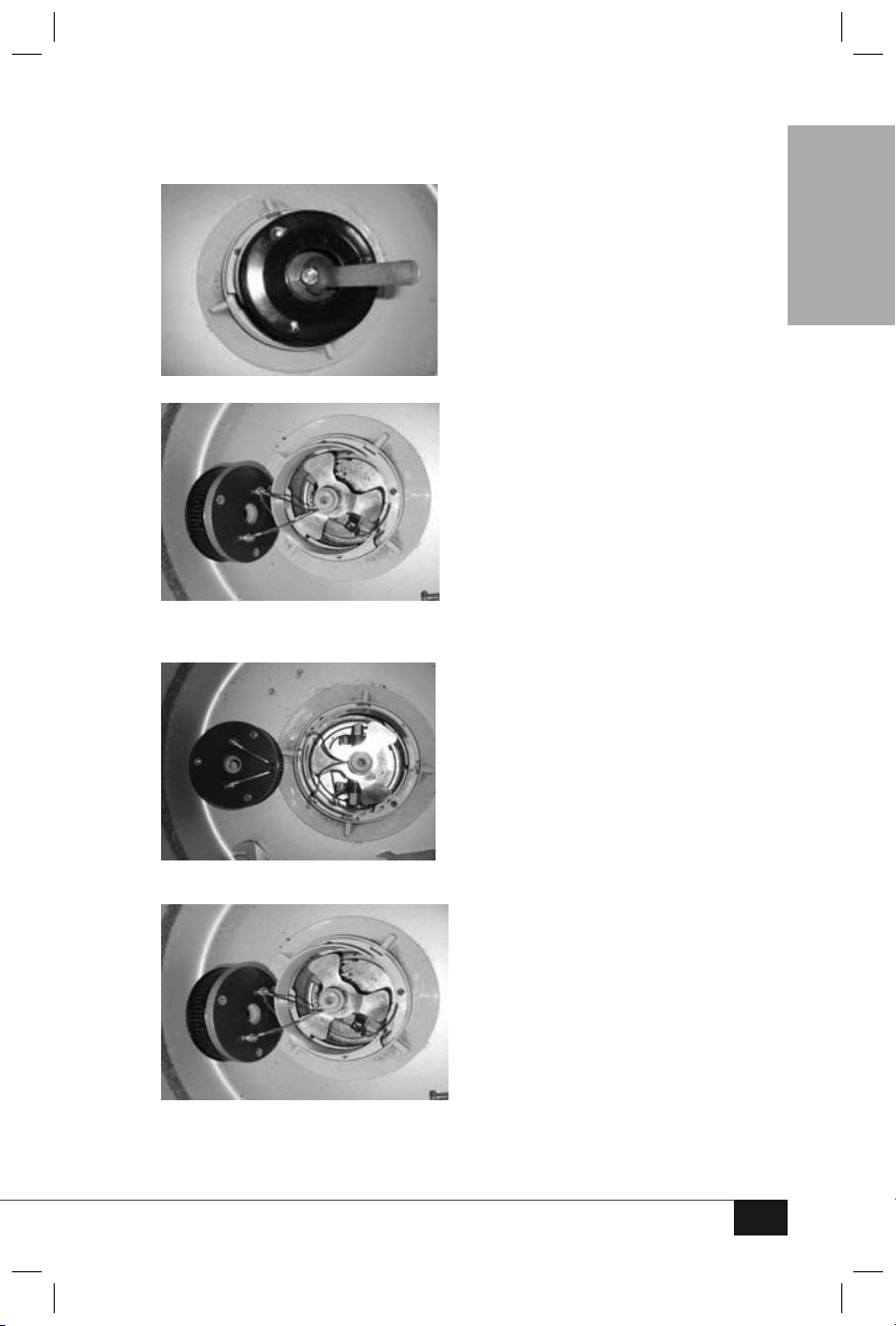

CHANGING EXTRACTOR HEAD

1. Before changing the Extractor Head, make sure that the machine is turned

OFF, unplugged, and that the Extractor Head has cooled completely.

2. Use #1 Wrench (K) to remove the center bolt.

3. Use pliers to loosen and remove the red and black wires

from the bottom of the Extractor Head.

4. Attach the red and black wires to the new Extractor Head and tighten.
