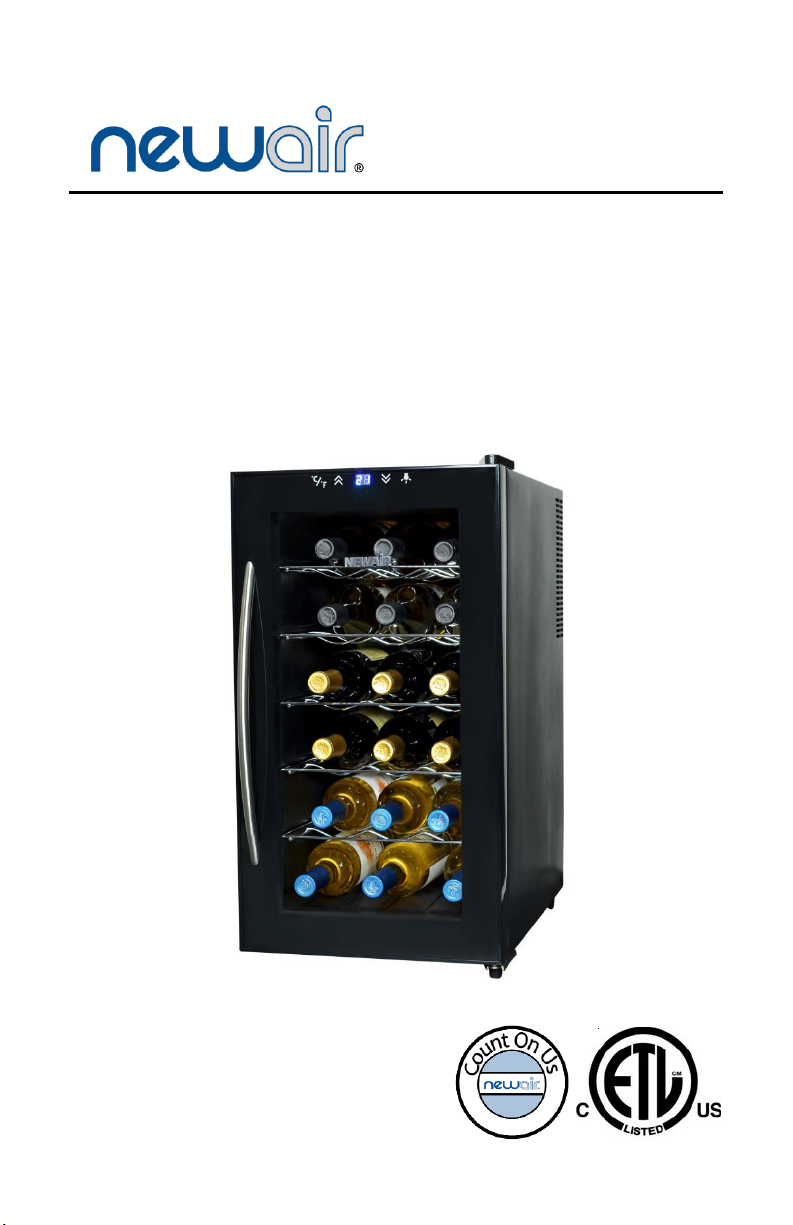

New Air AW-180E User manual

18 Bottle Freestanding

Thermoelectric Wine Cooler

AW-180E

OWNERS MANUAL

Read and save these instructions.

http://www.NewAir.com

A Name You Can Trust

Trust has to be earned and we will earn yours. Customer happiness is

the focus of our business.

From the factory to the warehouse, from the sales floor to your home,

the whole NewAir family promises to provide you with innovative

products, exceptional service, and support when you need it the most.

Count on NewAir.

As a proud NewAir owner, welcome to our family. There are no robots

here, real people shipped your product and real people are here to help

you.

Thank you for your purchase and remember NewAir, A Name You Can

Trust.

Call us today at 855-963-9247

Or email [email protected]

For future reference, we recommend you attach a copy of your sales receipt

here and record the following information. You will need this information if it

becomes necessary to contact the manufacturer for service inquiries.

Date of Purchase: ___________________________________

Serial Number: ___________________________________

Model Number: ___________________________________

Connect with us online.

Love Your Home

READ AND SAVE THESE INSTRUCTIONS.

TABLE OF CONTENTS

Safety Information & Warnings ...................................................... 4

Parts List.......................................................................................... 5

Parts Diagram........................................................................... 5

Assembly & Installation .................................................................. 6

Handle Assembly...................................................................... 6

Installation................................................................................ 6

Operating Instructions .................................................................... 7

Operating Environment............................................................ 7

How to use the Buttons on the Display Panel.......................... 7

Cleaning & Maintenance................................................................. 8

Cleaning Your Cooler................................................................ 8

Moving Your Cooler.................................................................. 8

Wine Storage Guide ........................................................................ 9

Troubleshooting............................................................................ 10

Limited Manufacturer’s Warranty ................................................ 12

SPECIFICATIONS

MODEL NO.

AW-180E

RATED VOLTAGE:

120V / 60Hz

POWER CONSUMPTION:

70W

STORAGE CAPACITY:

18 bottles

TEMPERATURE RANGE:

50°F - 66°F

http://www.NewAir.com

SAFETY INFORMATION & WARNINGS

When using any electrical appliance, basic safety

precautions must be followed in order to reduce the risk

of fire, electrical shock and/or injury to persons or

property. Be sure to read all instructions before using

this appliance and observe the following safety tips:

Attention: To prevent the risk of child entrapment, do not allow

children to operate, play with, or crawl inside the unit. If the unit

will not be used for an extended period of time, remove the door

and leave the shelves in place so that children cannot crawl inside.

Also remove the door when disposing of the unit.

Never clean the appliance parts with flammable fluids, as the fumes

can create a fire hazard or explosion. Do not store or use gasoline or

any other flammable vapors and liquids near this or any other

appliance.

Do not store perishable foods in the wine cooler, as the interior

temperature will not be low enough to prevent food spoilage.

Shock Hazard –Electrical Grounding Required

This cooler should be properly grounded for your safety, and in

order to minimize the possibility of electrical shock, the power cord

of this unit is equipped with a 3-prong plug which fits 3-prong wall

outlets. Improper use of the grounded plug can result in electrical

shock.

If the power cord appears to be damaged, have it replaced by an

authorized service center.

Never cut or remove the ground wire from the supplied power cord.

The use of an extension cord is not recommended.

The cord should be secured behind the cooler. Also, to prevent

accidental injury, do not expose or dangle the cord.

Love Your Home

PARTS LIST

When you receive your unit, carefully remove the exterior and interior

packaging. It is recommended that you retain the packaging for future use.

Check to make sure the following parts are included:

5 slide-out shelves

Door handle and 2 screws

1 instruction manual

PARTS DIAGRAM

1. Door Hinge

2. Light

3. Fan Mask

4. Shelves

5. Feet

6. Temperature Control

Panel

7. Light Switch

8. Door Gasket

9. Glass Door

10. Door Handle

11. Door Frame

http://www.NewAir.com

ASSEMBLY & INSTALLATION

HANDLE ASSEMBLY

Tools Required for Assembly: Phillips screwdriver (not included)

Estimated Assembly Time: 5 minutes

Before installation, attach the handle to the front of the unit with the included

screws. It may be necessary to push aside the rubber seal on the inside of the

door to reveal the screw holes.

Caution: Avoid over-tightening the screws, or you may cause damage to the

unit.

INSTALLATION

This cooler is a freestanding unit and should not be installed inside a cabinet or

other built-in enclosure.

For proper ventilation, allow 5 inches clearance between the back of the unit

and any adjacent walls.

Before operating your wine cooler for the first time, follow these steps:

Clean the interior surface of the unit with lukewarm water and a soft cloth.

Place the cooler on a level surface that will be strong enough to support

the unit when it is fully loaded. To level your cooler, adjust the front feet

located at the bottom of the unit.

Install the cooler away from direct sunlight and heat sources such as

stoves, heaters, or radiators. Direct sunlight may affect the unit’s acrylic

coating, and nearby heat sources can increase electrical consumption.

Extreme cold or hot ambient temperatures may also prevent proper

performance.

Please note: this cooler is only designed for home use, and is not designed

to be placed in a garage, or outdoor area.

Love Your Home

FACTORY ODOR REMOVAL

Wash the interior of the cooler with a mild detergent and warm water. Leave

the door open and allow it to air dry thoroughly. If a “plastic” smell persists,

place a dish of baking soda in the unit or stuff the cooler with newspapers

overnight. When finished, let the unit run a full day to complete the airing out

process.

OPERATING INSTRUCTIONS

OPERATING ENVIRONMENT

It is recommended that the wine cooler be installed in an area where the

ambient temperature is between 50°- 80°F (10°-26°C). If the ambient

temperature is above or below the recommended ranges, the unit’s

performance may be affected, and extreme cold or hot conditions may cause

the interior temperature to fluctuate. This will prevent the optimal range of

50°- 60°F (10°-16°C) from being reached. In addition, keep in mind that the

temperature may fluctuate depending on whether the interior light is on or off,

and whether the bottles are located on the upper, middle, or lower racks.

HOW TO USE THE BUTTONS ON THE DI SPLAY PANEL

Select Celsius or Fahrenheit

temperature scale.

Raise the desired

temperatures.*

Turn the light on and off.

Lower the desired

temperature. *



* The interior temperature can be adjusted in increments of 1 degree between

50° and 66°F (10° - 18°C).

http://www.NewAir.com

After turning on the wine cooler, the LED display will show the ambient

temperature first, and then the internal cabinet temperature.

After you set the desired temperature, this set temperature will flash for 5

seconds on the display and then revert back to the internal cabinet

temperature.

CLEANING & MAINTENANCE

CLEANING YOUR COOLER

To clean your cooler:

Unplug the cooler and remove anything inside.

Wash the inside of the unit with a solution made of warm water and

baking soda (2 tablespoons of baking soda to one quarter of water).

Unscrew the water reservoir at the bottom of the unit and rinse with

water.

To clean the outside of the unit, use a mild detergent and warm water.

MOVING YOUR COOLER

To move your cooler:

Remove anything stored inside.

Securely tape down all loose parts located inside the unit.

Turn the leveling feet up to the base in order to avoid damage.

Tape the door shut.

Be sure the cooler stays in an upright position during transportation.

Love Your Home

WINE STORAGE GUIDE

The ideal temperature for storing red wines is 50-55°F while white wines

should be stored around 45-50°F, with humidity between 60% and 75% RH.

Store corked bottles on their sides, to keep the cork from drying out and

allowing air into the bottle.

UV rays make wine age faster, so keep bottles out of direct sunlight.

Avoid heavy vibrations from motors, etc.

Store wine separately from strong odors that might contaminate the flavor

of the wine.

How Long Should I Store My Wine?

While most wines today are meant to be drunk “young” (within a few years of

production) some fine wines are best served by proper aging. But aging too

long can decrease the flavor of the wine. Generally speaking, red wines can age

longer than white wines, but here is a storage guide for some popular vintages.

Cabernet Sauvignon…………

7-10 years

Pinot Noir………………………….

5 years

Merlot……………………………….

3-5 years

Zinfandel……………………………

2-5 years

Beaujolais………………………….

Drink now

Chardonnay……………………….

2-3 years

Riesling………………………………

3-5 years

Sauvignon Blanc………………

18 months –2 years

Pinot Gris…………………………..

1-2 years

Champagne ………………………

Ready to drink

http://www.NewAir.com

TROUBLESHOOTING

Problem

Possible Causes

Solution

The cooler will not

operate.

The unit may be plugged

in using a different

voltage.

Check if using the wrong

voltage.

The circuit breaker may

be tripped or there is a

blown fuse.

Reset the circuit breaker

or check for a broken

fuse.

The cooler is not cold

enough.

The external

environment may

require a higher setting.

Lower the temperature

of the cooler.

The door may be

opened too frequently.

Open the door less

frequently.

The door is not closed

completely.

Make sure the door is

closed securely.

The door seal does not

seal properly.

Replace the seal on the

door. Replacements can

be acquired from the

manufacturer.

The wine cooler does

not have sufficient

clearance.

Make sure there is at

least 5 inches clearance

between the back of the

unit and any adjacent

walls.

The light does not

work.

There may be a problem

with the display board.

Contact the

manufacturer.

The cooler vibrates

while operating.

The unit is not sitting on

a level floor, or the

unit’s feet are not

correctly installed.

Make sure the unit’s feet

are in the proper position

and tightened securely.

The cooler produces a

lot of noise.

The unit is not leveled.

See above.

The fan may be

obstructed.

Check the fan to make

sure there is no debris or

obstruction. If not,

contact the

manufacturer.

Table of contents

Other New Air Kitchen Appliance manuals

New Air

New Air AWR-460DB-B User manual

New Air

New Air NPOE12BK00 User manual

New Air

New Air NWC016SS00 User manual

New Air

New Air NWC033SS01 User manual

New Air

New Air AWR-290DB User manual

New Air

New Air NWC033SS01 User manual

New Air

New Air AWR-1160DB User manual

New Air

New Air NWC029SS01 User manual

New Air

New Air FlipShelf NWB180SS00 User manual

New Air

New Air NWB057SS00 User manual

New Air

New Air AW-121 User manual

New Air

New Air NWC029SS01 User manual

New Air

New Air NWC023SS00 User manual

New Air

New Air NWC046BS00 User manual

New Air

New Air FlipShelf NWB060SS00 User manual

New Air

New Air NWC023SS00 User manual

New Air

New Air AWR-290DB-B User manual

New Air

New Air NWC028SS01 User manual

New Air

New Air AWC-270E User manual

New Air

New Air NWC028SS01 User manual

New Air

New Air AB-850 User manual

New Air

New Air NWC076SS00 User manual

New Air

New Air NWC043SS00 User manual

New Air

New Air NWC098SS00 User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
