Kichler Lighting Starkk 330174OZ User manual

INSTRUCTION MANUAL

Product images may vary slightly from actual product.

52" Starkk™LED

KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES .................................................................4

TOOLS AND MATERIALS REQUIRED.......................5

PACKAGE CONTENTS ....................................................5

MOUNTING OPTIONS.....................................................6

HANGING THE FAN.......................................................... 7

INSTALLATION OF SAFETY SUPPORT..................10

ELECTRICAL CONNECTIONS ....................................11

FINISHING THE INSTALLATION................................12

ATTACHING THE FAN BLADES................................. 13

INSTALLING THE LIGHT PLATE ............................... 13

INSTALLING THE LED LIGHT KIT

AND GLASS SHADE.......................................................14

OPERATING INSTRUCTIONS..................................... 15

TROUBLESHOOTING ...................................................16

SPECIFICATIONS............................................................. 17

FCC WARNING.................................................................. 17

52" Starkk™LED |

SAFETY RULES

1. To reduce the risk of electric shock, ensure electricity has been

turned o at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code (NEC) and local electrical codes. Electrical installation

should be performed by a qualified licensed electrician

3. WARNING: Suitable for use with solid-state speed controls.

4. WARNING: To reduce the risk of personal injury, use only the

two steel screws (and lock washers) provided with the outlet

box for mounting to the outlet box. Most outlet boxes

commonly used for the support of lighting fixtures are not

acceptable for fan support and may need to be replaced,

consult a qualified electrician if in doubt.

5. The outlet box and support structure must be securely

mounted and capable of supporting a minimum of 50

pounds. Use only UL (cUL for Canadian Installation) Listed

outlet boxes marked “FOR FAN SUPPORT”.

6. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the floor.

7. Do not operate reversing switch while fan blades are in

motion. Fan must be turned o and blades stopped before

reversing blade direction.

8. Avoid placing objects in the path of the blades.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PERSONAL INJURY, MOUNT FAN TO OUTLET BOX

MARKED “ACCEPTABLE FOR FAN SUPPORT”.

9. To avoid personal injury or damage to the fan and other items, be

cautious when working around or cleaning the fan.

10. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be suitable

for most cleaning.

11. After making electrical connections, spliced conductors should be

turned upward and pushed carefully up into outlet box. The wires

should be spread apart with the grounded conductor and the

equipment-grounding conductor on one side of the outlet box.

12. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be Listed and marked “suitable for use”

with the model fan you are installing. Switches must be General

Use Switches. Refer to the Instructions packaged with the light kits

and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

SPECIAL NOTICE

This appliance is equipped with a “Wattage Limiting Device”

required by the United States Department of Energy. The device

has been installed at the factory and can not be removed.

Installing Lamps in excess of 190 total watts will disable the

unit’s light fixture. If this should happen, you will need to reset

the lighting fixture by turning the power o to the ceiling fan

and/or light fixture, reinstalling lamps totaling less than 190 watts

and then turning the power back on.

4 | KICHLER.COM

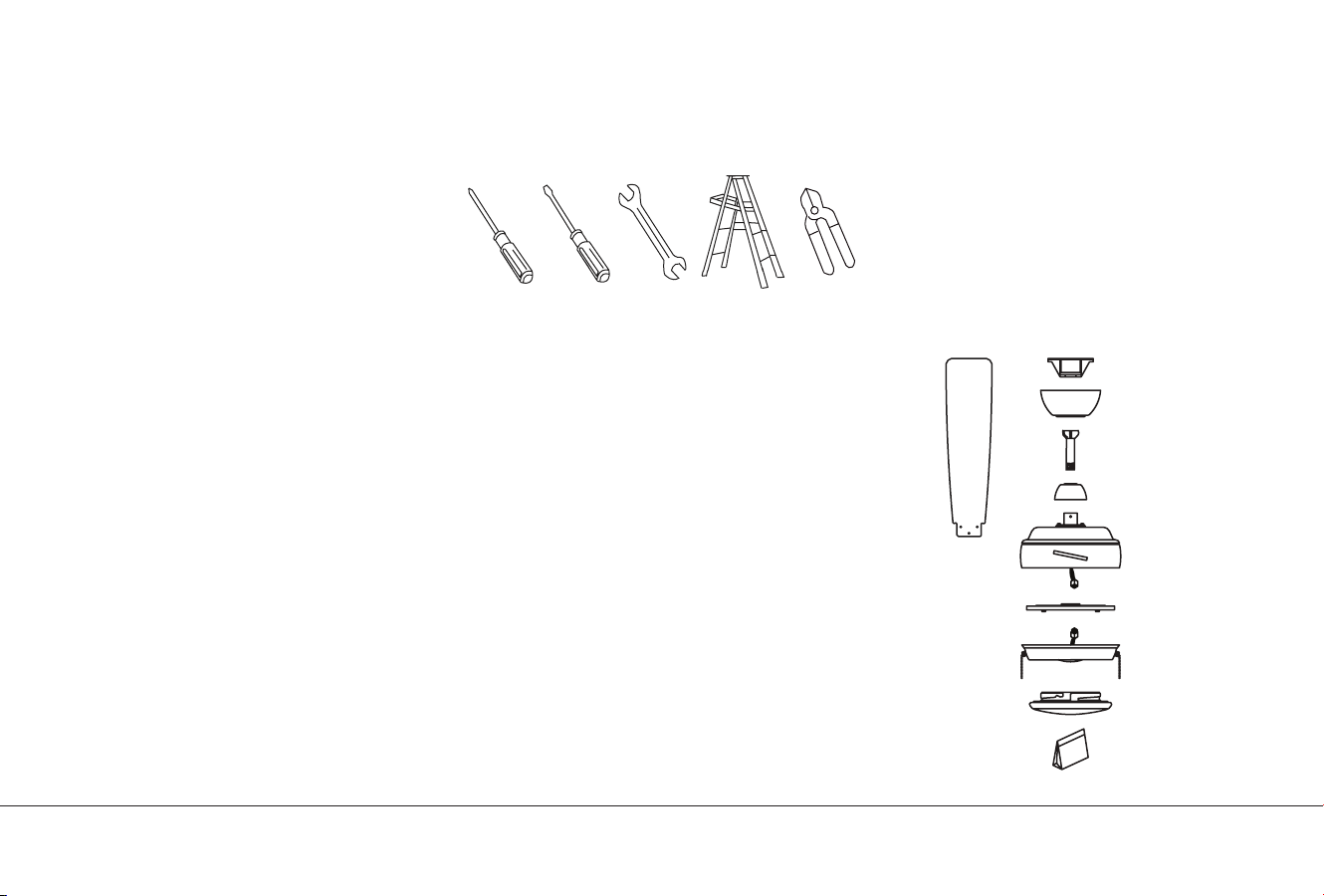

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

•

Phillips screwdriver

•

Blade screwdriver

•

11 mm wrench

•

Step ladder

•

Wire cutters

Unpack your fan and check the contents . You should have the following items:

A. Fan blades (5)

B. Ceiling mounting bracket

C. Canopy

D. Ball/downrod assembly

E. Coupling cover

F. Fan motor assembly

G. Light plate

H. 16W LED light kit/switch housing

I. Glass Shade

J. Package hardware

1) Mounting hardware :

star washers (2), wire nuts (3),

machine screws (2), washers (2),

screws (2)

2) Blade attachment hardware :

screws (17), fiber washers (17)

3) Blade bracket attachment hardware:

screws (2)

4) Safety cable hardware :

Wood screw , lock washer, flat washer

5) Pull chains and fobs (2)

6) Balance kit

52" Starkk™LED |

MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12” is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist Hanger”

for the support of the outlet box. Make sure the joist hanger you

purchase has been designed for use with ceiling fans. (Fig. 4)

Outlet box

Fig. 1

Outlet box

Fig. 2

Fig. 3

Recessed

outlet box

Provide strong

support

Ceiling

mounting

plane

ANGLED CEILING

MAXIMUM 15° ANGLE

Fig. 4

Outlet box

6 | KICHLER.COM

HANGING THE FAN

REMEMBER to turn o the power before you begin. To properly install your ceiling

fan, follow the steps below.

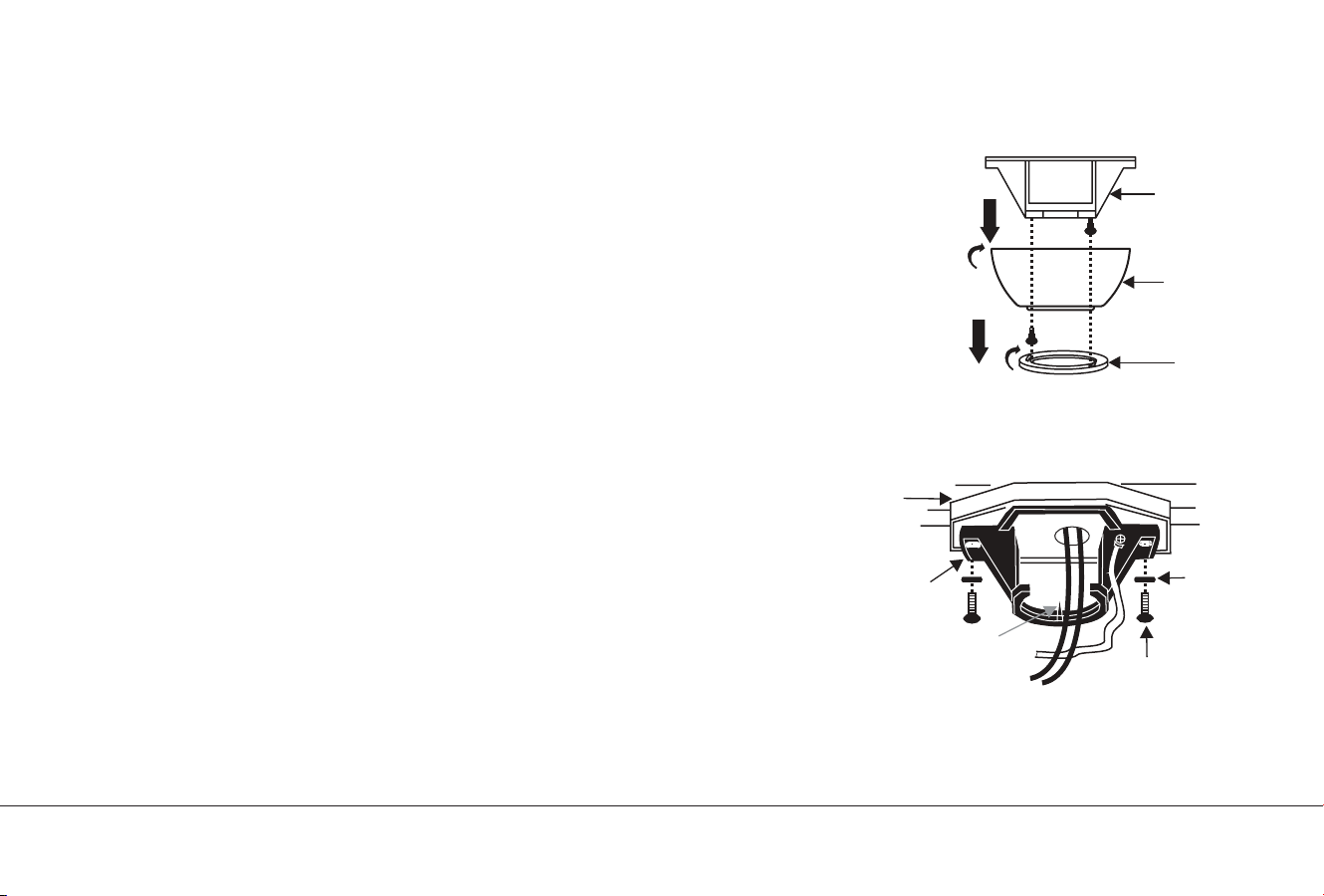

Step 1. Remove the decorative canopy bottom cover from the canopy by turning

the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by removing (and

save) one of the two screws. Loosen the remaining screw by a half turn. (Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. (Fig.6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the screws

and washers included with the outlet box. (Fig. 6)

Fig. 5

Hanger bracket

Ceiling

canopy

Canopy

cover

Fig. 6

CUL Listed

electrical

box

Ceiling

mounting

bracket

Hook

120V Wires

Mounting screws

(supplied with

electrical box)

Washers

52" Starkk™LED |

HANGING THE FAN

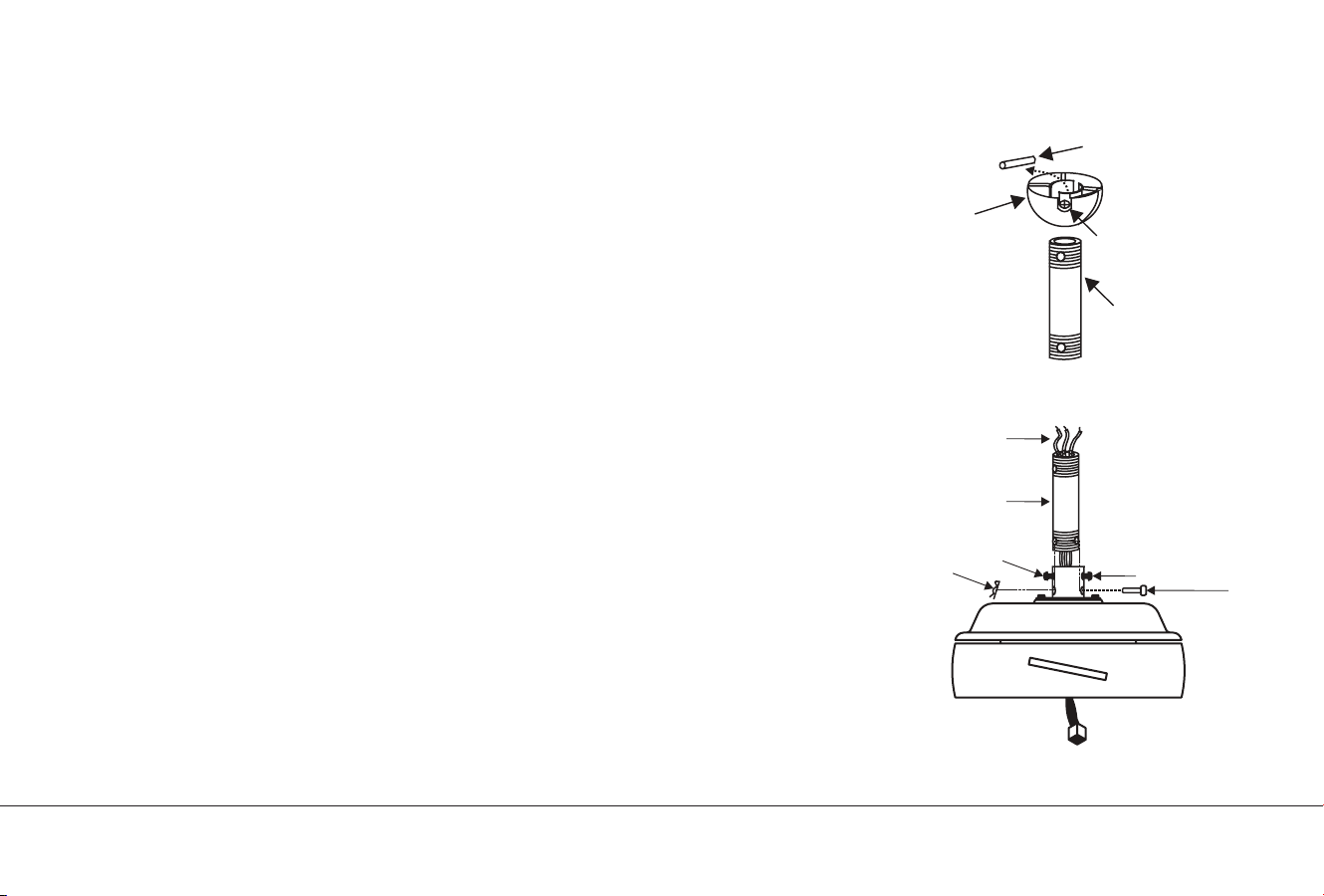

Step 5. Remove the hanger ball from the downrod assembly by loosening the set screw,

unscrewing and removing the cross pin and unscrewing the ball o the rod. (Fig.7)

Step 6. Loosen the two set screws and remove the hitch pin and retaining clip from the

coupling on top of the motor assembly. (Fig. 8)

Step 7. Carefully feed the electrical lead wires from the fan up through the downrod. Thread

the downrod into the coupling until the hitch pin holes are aligned.

Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)

Fig. 7

Downrod

Set screw

Cross pin

Hanger

ball

Fig. 8

Supply wires

Downrod

Set screws

Retaining clip Set screws Hitch

8 | KICHLER.COM

HANGING THE FAN

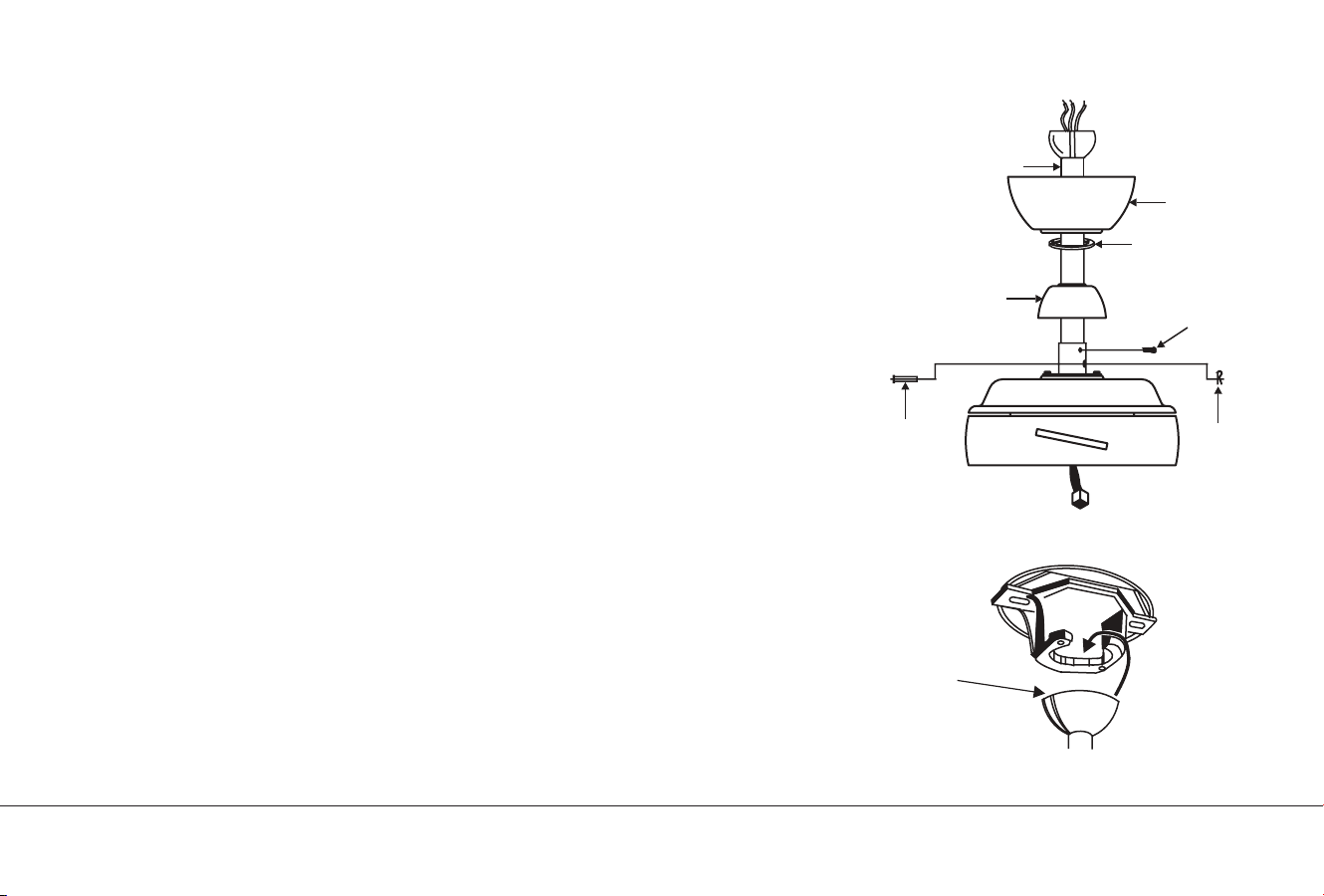

Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.

Thread the hanger ball onto the downrod, insert the cross pin through the downrod and

tighten. Tighten the set screw. (Fig. 9)

Step 9. Lift the motor assembly into position and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the “Check Tab” has dropped into the “Registration Slot”

and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated properly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause the

fan to fall from the ceiling during operation. Take special care to make sure this pin is

reattached.

Hitch pin

Coupling cover

Downrod

Canopy

Canopy cover

Set screws

Retaining clip

Fig. 9

Fig. 10

Registration slot

52" Starkk™LED |

INSTALLATION OF SAFETY SUPPORT

(Required for Canadian installation ONLY)

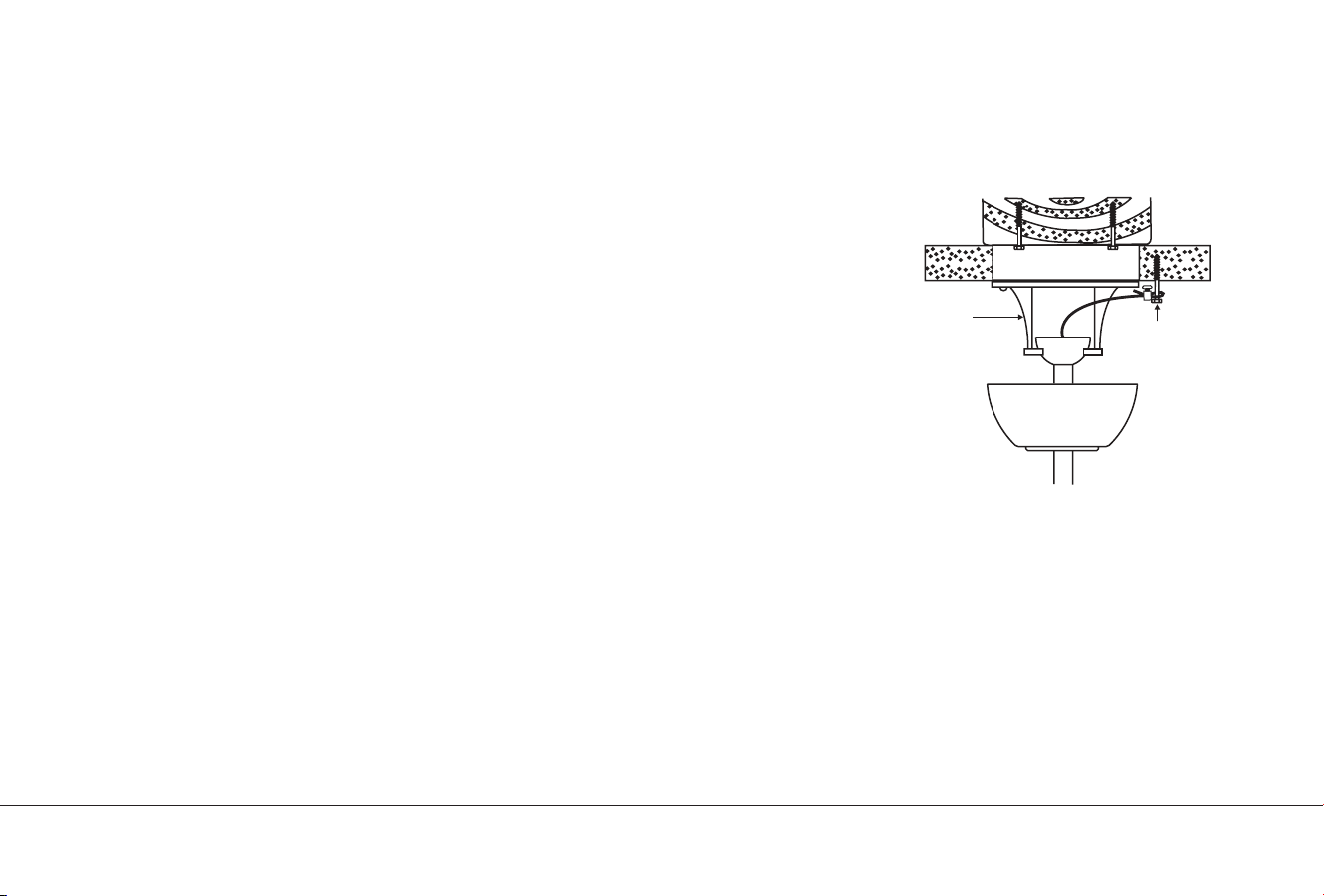

A safety support cable is provided to help prevent the ceiling fan from faIling.

Step 1. Attach the provided wood screw and washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling

the extra cable through the cable clamp until the overall length is correct. Put the end of

the cable back through the cable clamp, forming a loop at the end of the cable. Tighten the

cable clamp securely. Put the loop in the end of the safety cable over the wood screw and

under the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is required for Canadian installations only, it’s a

good idea to make the attachment with any installation.

Ceiling mounting

bracket Attach safety

cable to ceiling

joist with

screw and

washer

Fig. 11

10 | KICHLER.COM
