Kichler Lighting Lehr Decor 80" User manual

 2*

Instruction Manual

80” LehrTM

A Kichler®Decor™

ceiling fan

6 Speed remote with reverse

function included

1. This appliance can be used by children

aged from 8 years and above and persons

with reduced physical, sensory or mental

capabilities or lack of experience and

knowledge if they have been given

supervision or instruction concerning use

of the appliance in a safe way and

understand the hazards involved. Cleaning

and maintenance shall not be undertaken

by children without supervision.

2. Children should be supervised to ensure

that they do not play with the appliance.

3. An all-pole disconnection switch must be

incorporated into the ﬁxed wiring, in

accordance with local wiring rules.

4. Do not dispose of electrical appliances as

unsorted municipal waste, use separate

collection facilities. Contact your local

government for information regarding the

collection systems available. If electrical

appliances are disposed of in landﬁlls or

dumps, hazardous substances can leak

into the groundwater and get into the food

chain, damaging your health and

well-being.

5. The structure to which the fan is to be

mounted must be capable of supporting a

weight of 40kg.

6. The fan should be mounted so that the

blades are at least 2.3 metres above the

ﬂoor In Europe.

7. This fan is suitable for indoor use only.

8. Only an authorized electrician should

execute the installation.

1. SAFETY RULES

Philips screw driver

Blade screw driver

11 mm wrench

Step ladder

Wire cutters

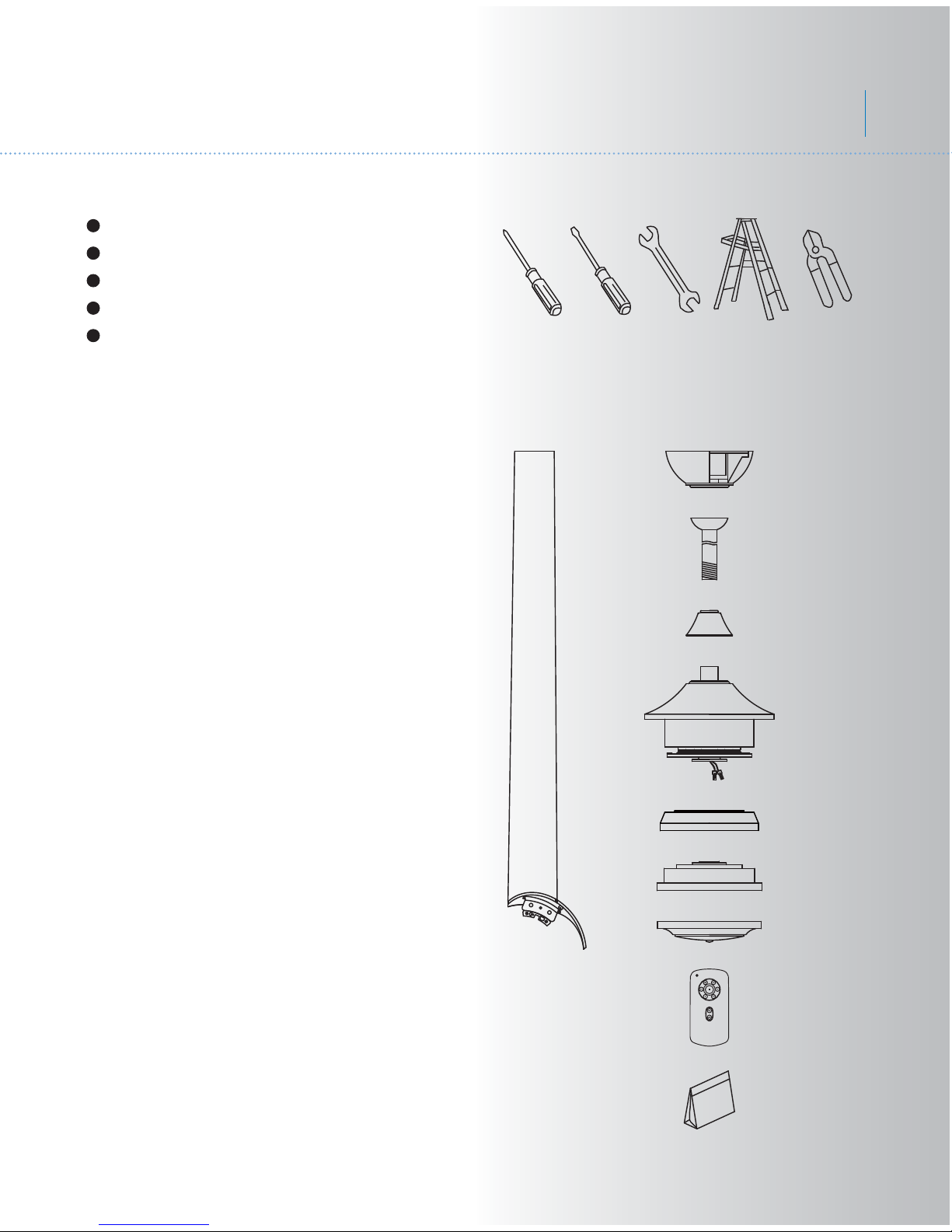

2. TOOLS AND MATERIALS REQUIRED

80” LehrTM

3. PACKAGE CONTENTS

Unpack your fan and check the contents. You

should have the following items:

a. Fan blade assembly (7)

b. Canopy & Ceiling mounting bracket

c. Ball/downrod assembly

d. Coupling cover

e. Fan motor assembly

f. Blade support plate

g. Mounting plate

h. Motor bottom housing

i. Transmitter+holder+2 mounting screws

j. Part bag contents

1) Mounting hardware:

wood screws (2), ﬂat washers (2),

expansion screws (2), water proof

junction box (1)

2) Blade brackets hardware:

screws (2)

3) Balance Kit

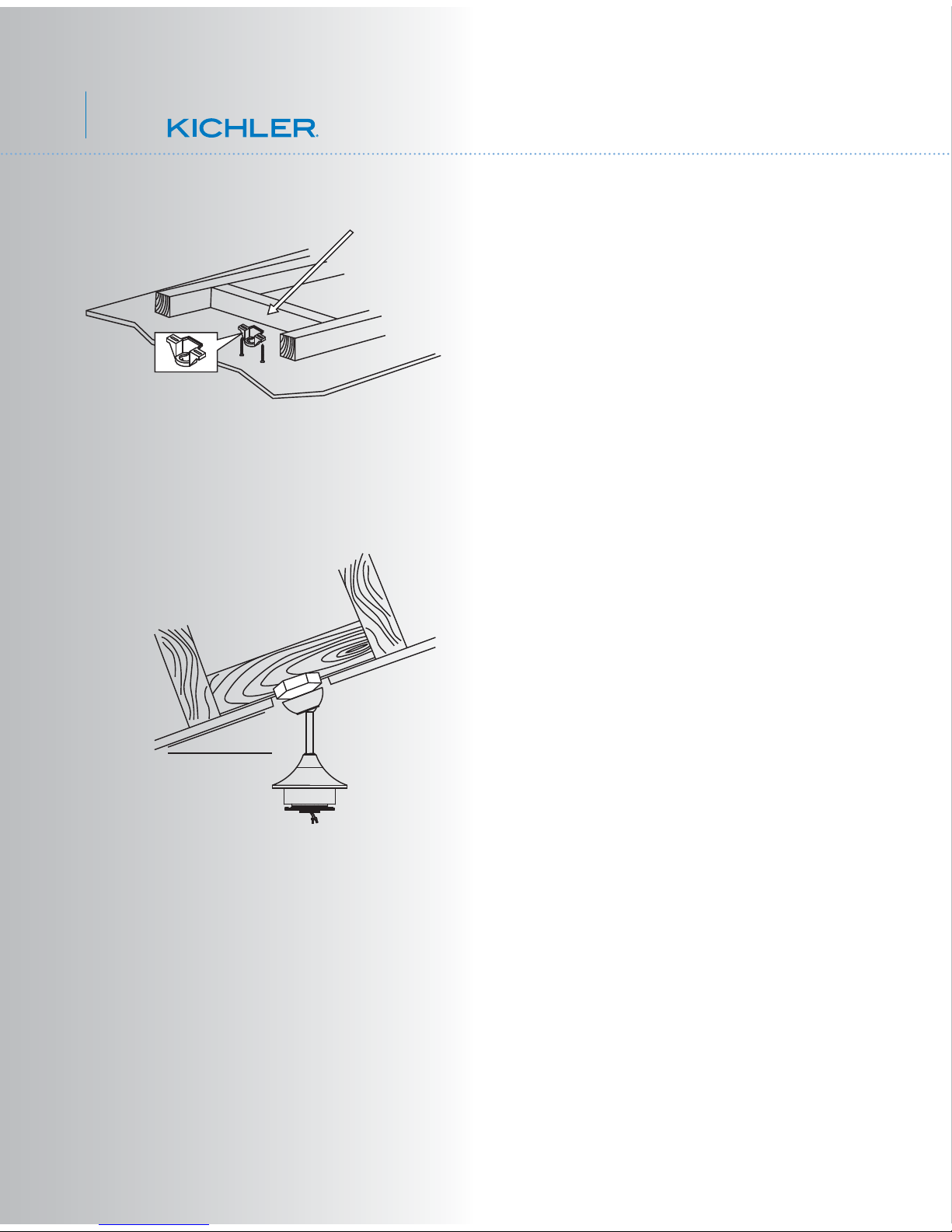

4. INSTALLING THE MOUNTING BRACKET

Fig. 1

The ceiling fan must be installed in a location

so that the blades are 300mm spacing from

the tip of the blade to the nearest objects or

walls. (Fig. 1)

Secure the hanging bracket to the ceiling joist

or structure that is capable of carrying a load

of at least 40kg, with two long screws

provided. Ensure at least 30mm of the screw

is threaded into the support. (Fig. 1)

NOTE: The bracket screws provided are for

use with wooden structures only. For

structures other than wood, the appropriate

screw type MUST be used.

5. ANGLED CEILING INSTALLATION

This fan hanging system supports a maximum

30° degree angled ceiling installation. (Fig. 2)

BEAM

MUST BE ABLE

TO SUPPORT UP

TO 40KGS

NOTE:PICTURE IS FOR REPRESENTATION ONLY AND

DO NOT REPRESENT THE ACTUAL BRACKET.

30°

Fig. 2

Fig. 4

Fig. 5

Fig. 6

Downrod

Cross pin

Hanger

ball Set screw

Supply wires

Downrod

Hitch pin

Retaining clip Set screws

Set screws

Fig. 3

Hanger bracket

Ceiling

canopy

Canopy

cover

6. HANGING THE FAN

80” LehrTM

Mounting screws

Ceiling

Hook

Ceiling

mounting

bracket

Washers

REMEMBER to turn off the power before you

begin.

To properly install your ceiling fan, follow the

steps below.

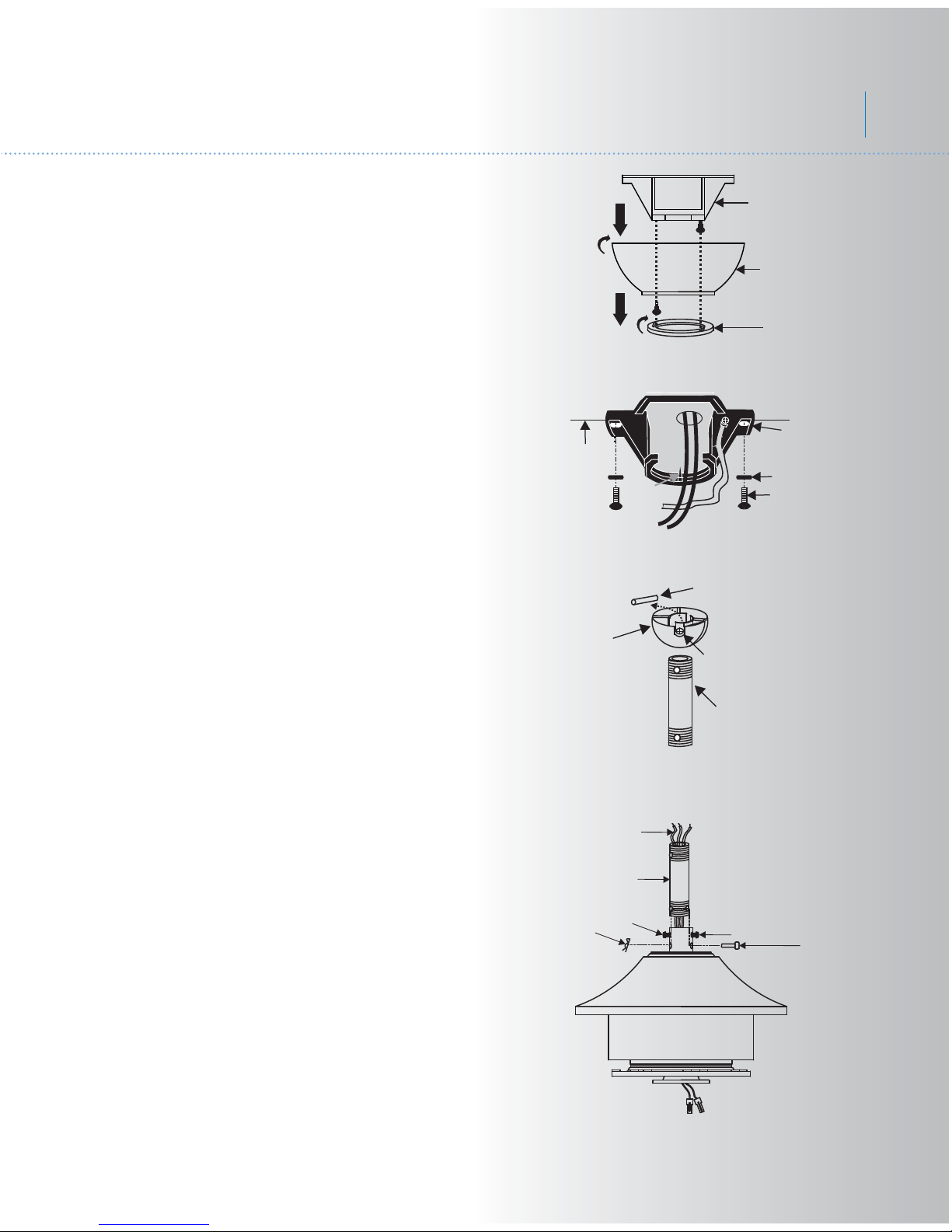

Step 1. Remove the decorative canopy

bottom cover from the canopy by turning the

cover counterclockwise. (Fig. 3)

Step 2. Remove the ceiling mounting bracket

from the canopy by removing (and save) one

of the two screws. Loosen the remaining

screw by a half turn. (Fig. 3)

Step 3. Pass the supply wires from the ceiling

through the center of the ceiling mounting

bracket. (Fig.4)

Step 4. Attach the ceiling mounting bracket to

the ceiling using the appropriate screws

provided . (Fig.4)

Step 5. Remove the hanger ball from the

downrod assembly by loosening the set

screw, removing the cross pin and

unscrewing the ball off the rod. (Fig.5)

Step 6. Loosen the two set screws and

remove the hitch pin and retaining clip from

the coupling on top of the motor assembly.

(Fig. 6)

Step 7. Carefully feed the electrical lead wires

from the fan up through the downrod. Thread

the downrod into the coupling until the Hitch

pin holes are aligned.

Next, replace the hitch pin and retaining clip.

Tighten both set screws. (Fig. 6)

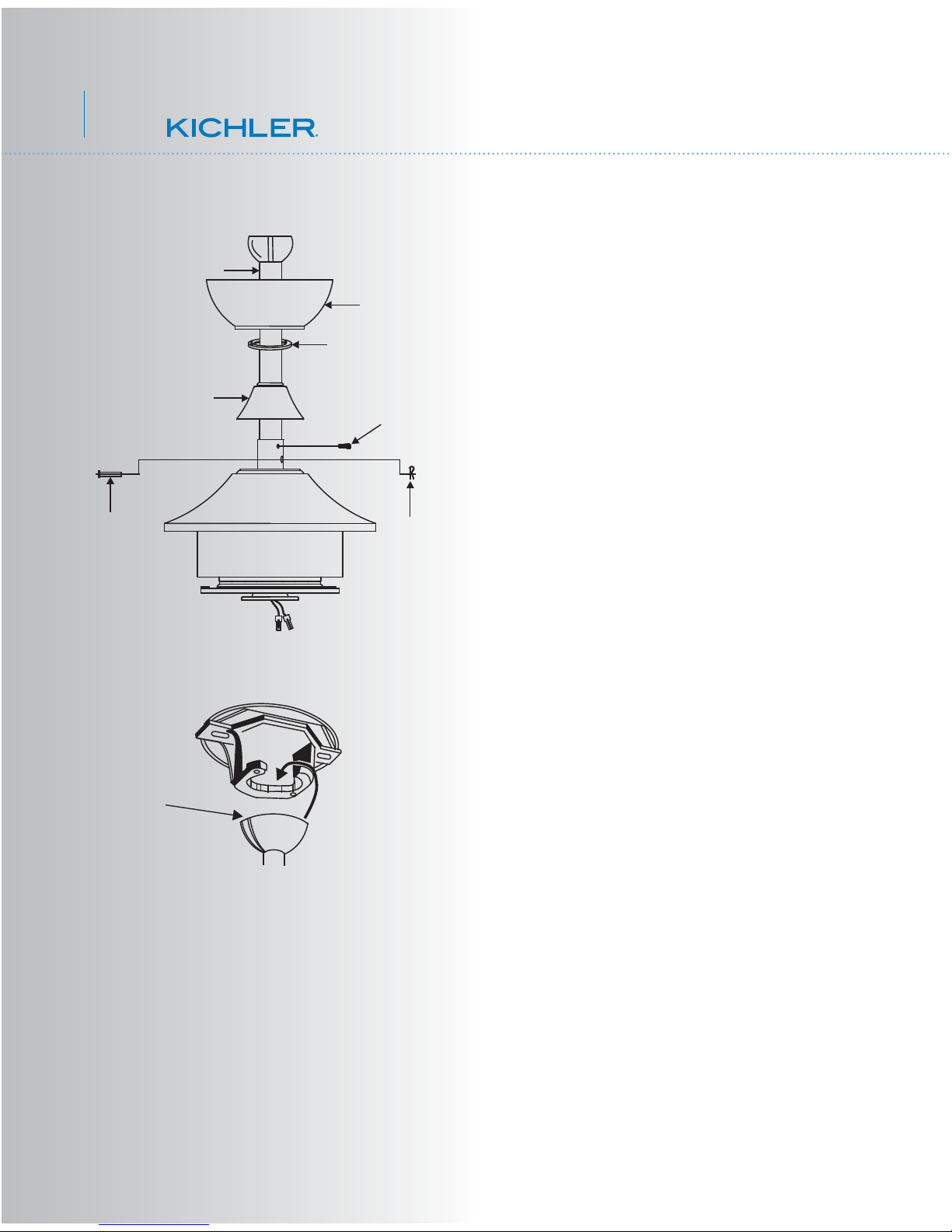

Fig. 7

Fig. 8

Registration slot

Downrod

Canopy

Canopy cover

Step 8. Slip the coupling cover, canopy cover

and canopy onto the downrod.

Thread the hanger ball onto the downrod,

insert the cross pin through the downrod and

tighten. Now tighten the set screw. (Fig. 7)

Step 9. Lift the motor assembly into position

and place the hanger ball into the ceiling

mounting bracket.

Rotate the entire assembly until the "Check

Tab" has dropped into the "Registration Slot"

and seats rmly. (Fig. 8)

The entire motor assembly should not rotate

(left or right) when seated properly.

WARNING: Failure to reattach the cross pin

and seat the "Check Tab" can cause the fan

to fall from the ceiling during operation. Take

special care to make sure this pin is

reattached.

Set screws

Hitch pin Retaining clip

Coupling cover

80” LehrTM

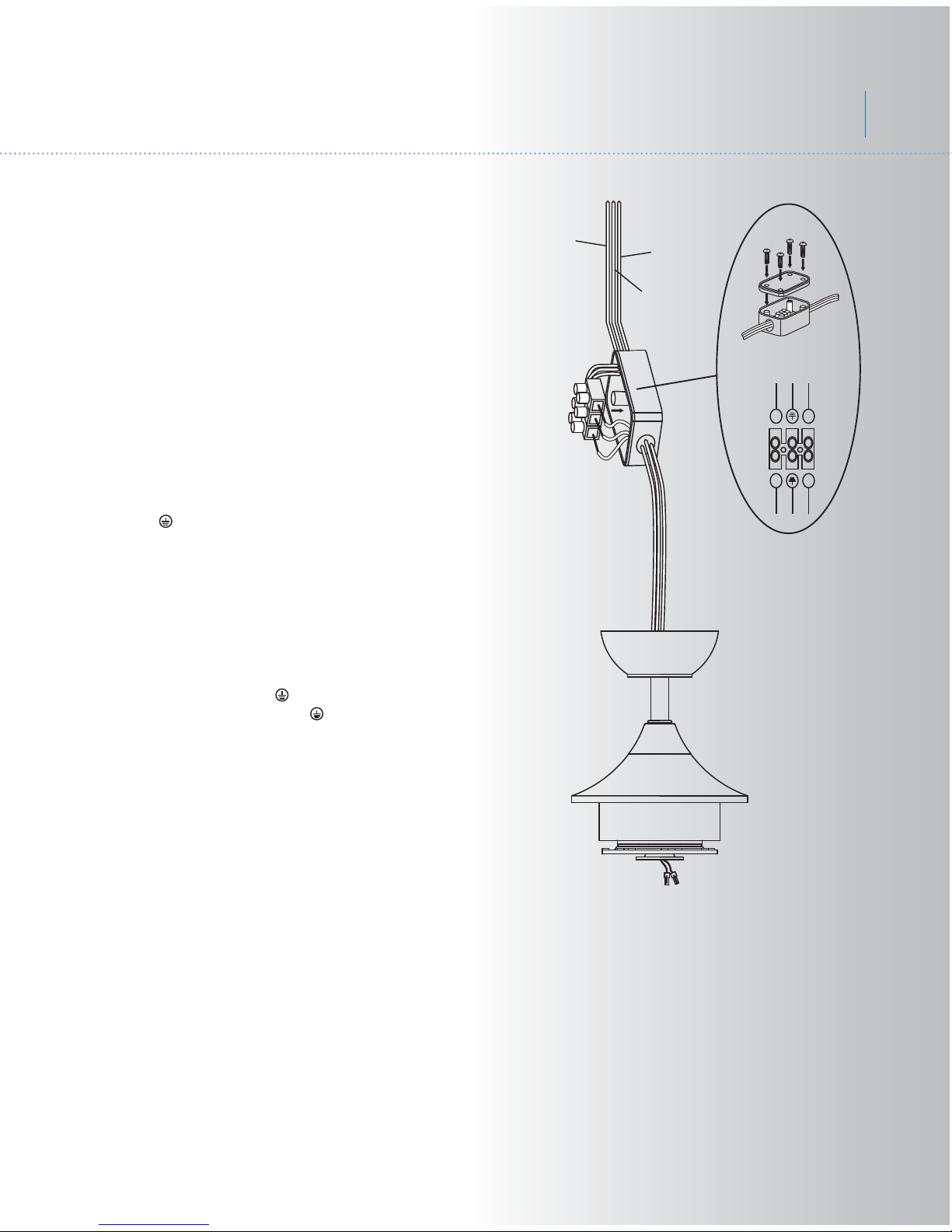

7. ELECTRICAL CONNECTIONS

To disconnect the power, follow the steps

below to connect the fan to your household

wiring. Make sure there are no loose strands

or connections before make the wire

connection. Prepare screwdriver for the below

wire connection.

Step 1. Remove the cover of water proof

junction box by loosening the 4 screws. Insert

the power cords from ceiling through the 3

holes of junction box. (Fig. 9)

Step 2. Connect the household supply (Live)

wire to the terminal block marked “L”. Secure

the wire with screwdriver. Connect the

household ground wire to the terminal block

marked “ ”. Secure the wire with

screwdriver. Connect the household supply

(Neutral) wire to the terminal block marked

“N”. Secure the wire with screwdriver. (Fig. 9)

Step 3. Connect the motor wire (brown)

labeled “L” to another end of the terminal

block marked “L”. Secure the wire with

screwdriver. Connect the ground wire

(Yellow/green) labeled ( ) to another end of

the terminal block marked “ ”. Secure the

wire with screwdriver. Connect the motor

neutral wire (blue) labeled “N” to another end

of the terminal block marked “N”. Secure the

wire with screwdriver. (Fig. 9)

Step 4. Secure back the cover to the junction

box by 4 screws. Put the junction box in the

mounting bracket. (Fig. 9)

Fig. 9

POWER CORD FROM CEILING

LIVE

EARTHING

NEUTRAL

Step 1. Tuck all the connection neatly into

the canopy.

Step 2. Slide the canopy up to the mounting

bracket and place one of the key hole slots

over the mounting screw on the mounting

bracket. Rotate the canopy until the screw

head locks in place at the narrow section of

the key hole. See ﬁgure 10.

Step 3. Align the remaining circular hole on

the canopy with the remaining hole on the

Ceiling Mounting Bracket. Insert and tighten

the mounting screw you removed earlier and

the mounting screw from Step 2 above. Now,

attach the canopy cover to the mounting

screw heads by inserting the screw heads into

the bottom side of the canopy cover and

rotating the cover clockwise.

NOTE: Adjust the canopy screws as

necessary until the canopy and canopy cover

are snug. (Fig. 10)

Warning: Make sure the "Check Tab" at the

bottom of the hanger bracket is properly

seated in the "Registration Slot" on the side of

the hanger ball before attaching the canopy to

the bracket. Failure to properly seat the

"Check Tab" could damage the electrical

wires when to ceiling fan blade direction is

changed while the fan is running.

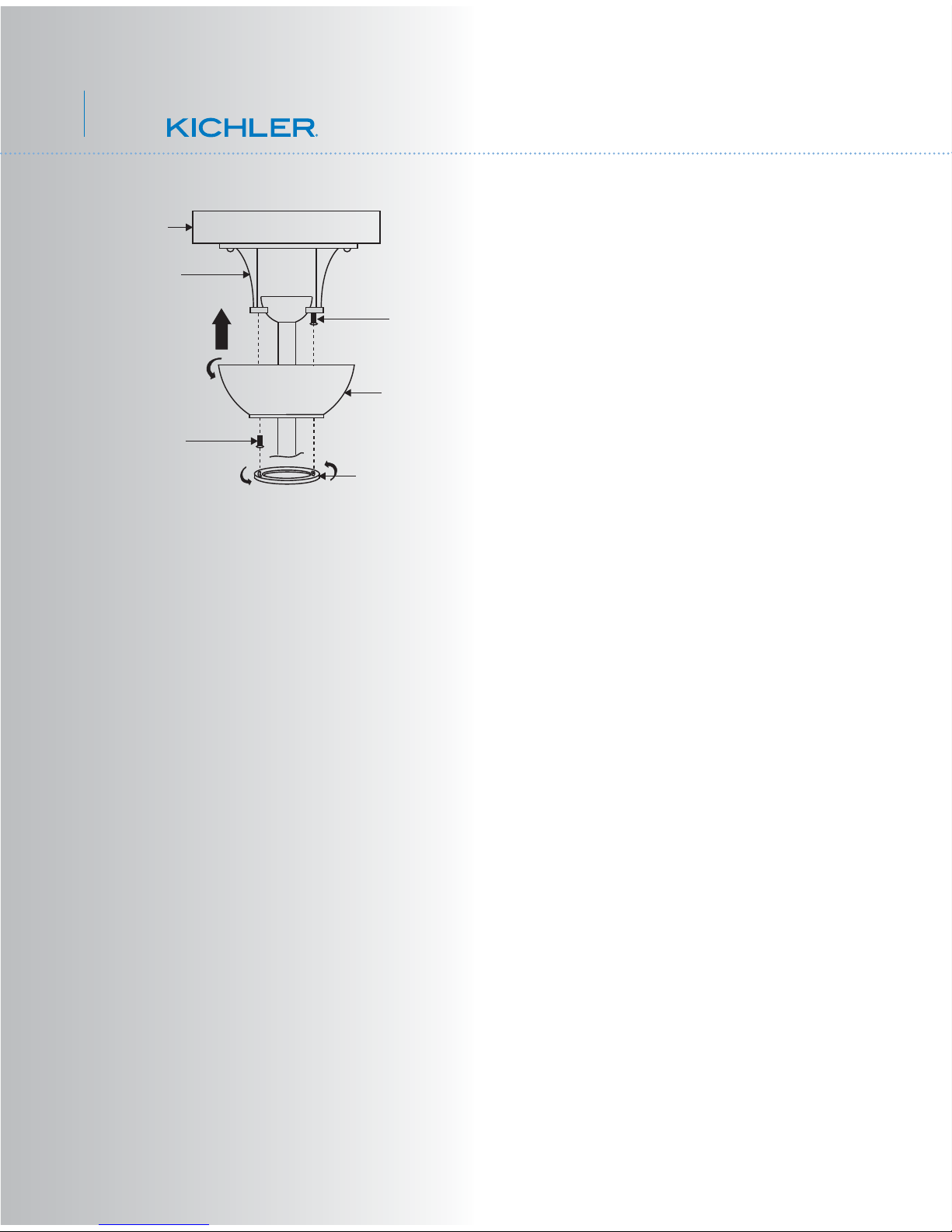

8. FINISHING THE INSTALLATION

Fig. 10

Ceilling

Ceiling

mounting

bracket

Canopy

Canopy cover

Screws

80” LehrTM

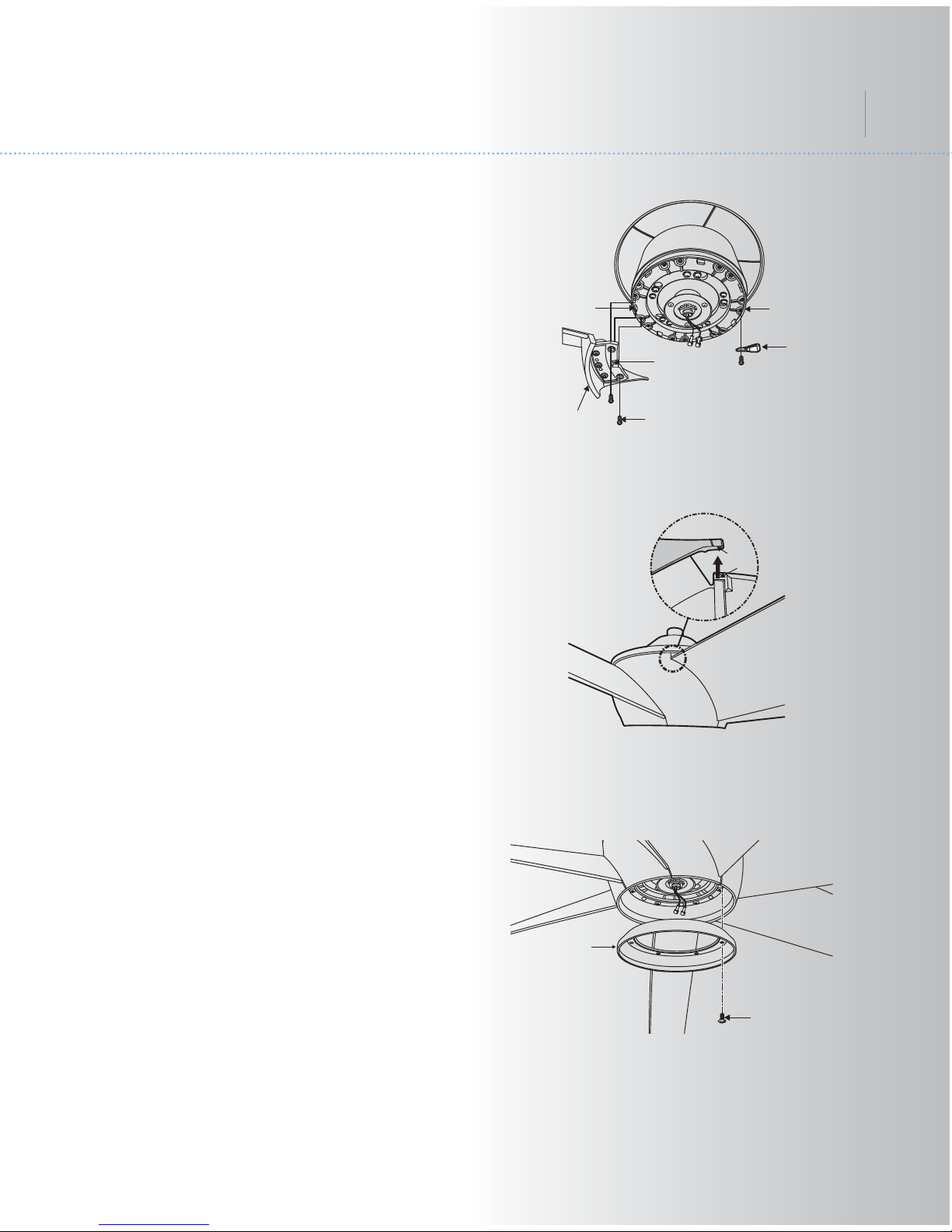

9. ATTACHING THE FAN BLADES

10. ATTACHING THE BLADE

SUPPORT PLATE

Attach the blade support plate onto the blade

arms using the screws(7) provided after

completed installing all blades with arms onto

motor in order to secure the wall of blades

well. (Fig. 13)

Fig. 12

Fig. 13

Fig. 11

Screws

Blade

support

plate

Blade

assembly Screws

Motor

Tab

Slot

Tab

Make sure the blade is straight when set on

the blade bracket. Tighten each mounting

screw until the rubber washer is slightly

compressed. Repeat this procedure for each

blade.

Step 1 Attach the rst blade assembly to the

fan motor by lining up the slot of the blade

assembly with the tab on the motor. Fasten

the blade assembly to the motor using two

screws and washer provided. (Fig. 11)

Step 2 Remove the seven rubber packing mounts

from the fan motor assembly and discard prior to

attaching the blade arms. (Fig. 11)

Step 3 Installing the second blade assembly

to the fan motor; lining up the slot of the blade

assembly with the tab on the motor, Insert the

tab in the second blade assembly to the slot

on the top of rst blade assembly (see the

drawing circled in Fig. 12)

Step 4 Follow the step 1 procedure for the

remaining blade assemblies.

Rubber

packing

mounts

Fig. 15

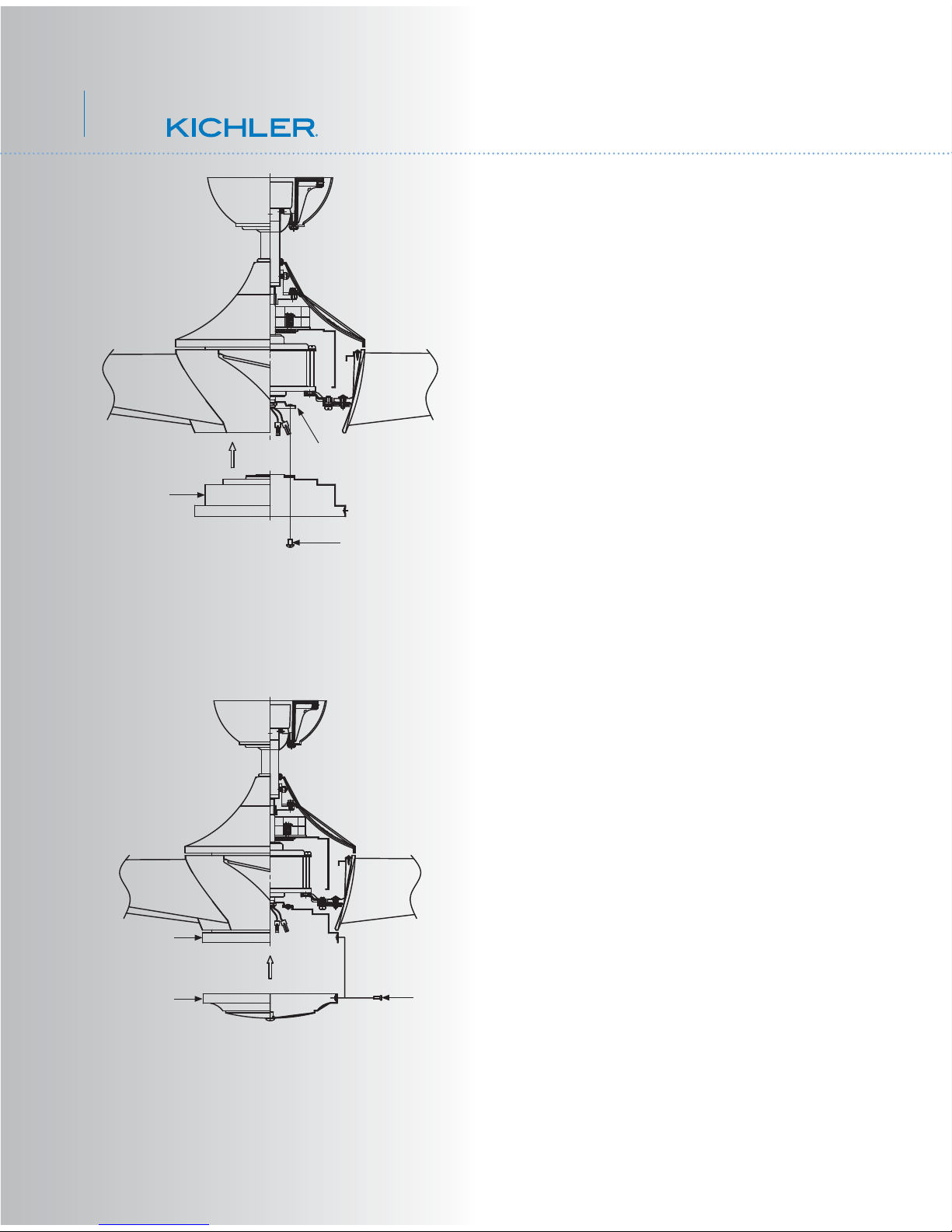

12. INSTALLING THE MOTOR

BOTTOM HOUSING

Step 1. Loosen the three mounting screws on

the inside of the motor bottom housing. (Fig.

15)

Step 2. Place the key holes on the motor

bottom housing over the 2 screws previously

loosened from the mounting plate, turn the

motor bottom housing until it locks in place at

the narrow section of the key holes. Secure by

tightening all three screws. (Fig.15)

Mounting

plate

Screws

Motor

bottom

housing

11. INSTALLING THE MOUNTING PLATE

Step 1. Loosen the two screws on the

mounting ring attached to the motor shaft and

"remove" and save the third screw. (Fig. 14)

Step 2. Place the key holes on the mounting

plate over the 2 screws previously loosened

from the mounting ring, turn mounting plate

until it locks in place at the narrow section of

the key holes. Secure by tightening the 2

screws previously loosened and the one

previously removed. (Fig. 14)

Fig. 14

Mounting

plate

Screws

Mounting ring

Table of contents

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting sterling manor select User manual

Kichler Lighting

Kichler Lighting Szeplo 370060 User manual

Kichler Lighting

Kichler Lighting KLF-SOLA-34-WHT-BN User manual

Kichler Lighting

Kichler Lighting Rana 310155 User manual

Kichler Lighting

Kichler Lighting Canfield User manual

Kichler Lighting

Kichler Lighting LYNDON User manual

Kichler Lighting

Kichler Lighting PINION 60 User manual

Kichler Lighting

Kichler Lighting RIED User manual

Kichler Lighting

Kichler Lighting Crystal Bay User manual

Kichler Lighting

Kichler Lighting Sterling Manor User manual

Kichler Lighting

Kichler Lighting Szeplo II User manual

Kichler Lighting

Kichler Lighting Lehr II User manual

Kichler Lighting

Kichler Lighting Bentzen User manual

Kichler Lighting

Kichler Lighting Crescent 300325 User manual

Kichler Lighting

Kichler Lighting Kimberley User manual

Kichler Lighting

Kichler Lighting Spyn Lite User manual

Kichler Lighting

Kichler Lighting SPYRA User manual

Kichler Lighting

Kichler Lighting Selectlight fixture User manual

Kichler Lighting

Kichler Lighting Saxon Premier User manual

Kichler Lighting

Kichler Lighting Monarch II Select User manual

Kichler Lighting

Kichler Lighting Emerson HIGH COUNTRY User manual

Kichler Lighting

Kichler Lighting Grace 300316 User manual

Kichler Lighting

Kichler Lighting Highland Manor User manual

Kichler Lighting

Kichler Lighting 52 inch Colerne LED User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
