Kichler Lighting Cameron 310204WH User manual

INSTRUCTION MANUAL

Product images may vary slightly from actual product.

Cameron™

KICHLER.COM

TABLE OF CONTENTS

SAFETY RULES .................................................................4

TOOLS AND MATERIALS REQUIRED.......................5

PACKAGE CONTENTS ....................................................5

MOUNTING OPTIONS.....................................................6

HANGING THE FAN......................................................7-9

INSTALLATION OF SAFETY SUPPORT..................10

MAKE THE ELECTRICAL CONNECTIONS ..... 11-12

FINISHING THE INSTALLATION................................12

ATTACHING THE FAN BLADES................................. 13

INSTALLING THE LIGHT PLATE ............................... 13

INSTALLING THE LED LIGHT KIT.............................14

INSTALLING THE GLASS SHADE..............................14

INSTALLING THE BATTERIES.................................... 15

OPERATING INSTRUCTIONS...............................16-17

INSTALLING THE COOLTOUCH™

CONTROL SYSTEM WALL PLATE............................18

INSTALLING THE TRANSMITTER............................19

TROUBLESHOOTING.............................................20-21

SPECIFICATIONS.............................................................21

FCC INFORMATION ...................................................... 22

Cameron™|

SAFETY RULES

1. To reduce the risk of electric shock, ensure electricity has been

turned o at the circuit breaker or fuse box before beginning.

2. All wiring must be in accordance with the National Electrical

Code and local electrical codes. Electrical installation should

be performed by a qualified licensed electrician.

3. WARNING: To reduce the risk of fire, electric shock, or

personal injury, use mounting screws provided with the

outlet box. Most outlet boxes commonly used for the

support of light fixtures are not acceptable for fan support

and may need to be replaced. Due to the complexity of the

installation of this fan, a qualified licensed electrician is

strongly recommended.

4. The outlet box and support structure must be securely

mounted and capable of reliably supporting a minimum of

50 pounds. Use only CUL Listed outlet boxes marked “FOR

FAN SUPPORT”.

5. The fan must be mounted with a minimum of 7 feet

clearance from the trailing edge of the blades to the floor.

6. Do not operate reversing switch while fan blades are in

motion. Fan must be turned o and blades stopped before

reversing blade direction.

7. Avoid placing objects in the path of the blades.

8. To avoid personal injury or damage to the fan and other

items, be cautious when working around or cleaning the fan.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR

PERSONAL INJURY, MOUNT FAN TO OUTLET BOX

MARKED “ACCEPTABLE FOR FAN SUPPORT”.

9. Do not use water or detergents when cleaning the fan or fan

blades. A dry dust cloth or lightly dampened cloth will be suitable

for most cleaning.

10. After making the electrical connections, spliced conductors should

be turned upward and pushed carefully up into outlet box. The

wires should be spread apart with the ground wire and white

(common) wire to one side with the black (load) wire to the other

side of the outlet box.

11. Electrical diagrams are reference only. Light kits that are not

packed with the fan must be CUL Listed and marked suitable for

use with the model fan you are installing. Switches must be CUL

General Use Switches. Refer to the Instructions packaged with the

light kits and switches for proper assembly.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND

THE BLADE BRACKETS (ALSO REFERRED TO AS FLANGES)

DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT

OBJECTS IN THE PATH OF THE BLADES.

SPECIAL NOTICE

This appliance is equipped with a “Wattage Limiting Device”

required by the United States Department of Energy. The

device has been installed at the factory and can not be removed.

Installing Lamps in excess of 75 total watts will disable the unit’s

light fixture. If this should happen, you will need to reset the

lighting fixture by turning the power o to the ceiling fan

and/or light fixture, reinstalling lamps totaling less that

75 watts and then turning the power back on.

4 | KICHLER.COM

TOOLS AND MATERIALS REQUIRED

PACKAGE CONTENTS

•

Phillips screwdriver

•

Blade screwdriver

•

11 mm wrench

•

Step ladder

•

Wire cutters

Unpack your fan and check the contents . You should have the following items:

A. Fan blades (5)

B. Canopy & Ceiling mounting bracket

C. Ball/downrod assembly

D. Coupling cover

E. Fan motor assembly

F. Set of 5 blade brackets and

Pre-Installed mounting screws

G. Light plate

H. Switch housing

I. Glass shade

J. CoolTouch™Receiver

K. Basic Function CoolTouch™

Control System

L. Part bag contents

1) Mounting hardware:

wood screws (2), flat washers (2), star

washers (2), wire nuts (3), screws (2)

2) Blade attachment hardware :

screws (17), fiber washers (17)

3) Blade brackets hardware:

screws (2)

4) Safety cable hardware:

Wood screw, spring washer, flat washer

5) Balance kit

Cameron™|

MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian Installation) listed

mounting box, then read the following instructions. Disconnect the

power by removing fuses or turning o circuit breakers.

Secure the outlet box directly to the building structure. Use

appropriate fasteners and building materials. The outlet box and its

support must be able to fully support the moving weight of the fan

(at least 50 lbs). Do not use plastic outlet boxes.

Figures 1, 2 and 3 are examples of dierent ways to mount the

outlet box.

NOTE: If you are installing the ceiling fan on a sloped (vaulted)

ceiling, you may need a longer downrod to maintain proper

clearance between the tip of the blade and the ceiling. A minimum

clearance of 12” is suggested for optimal operation.

NOTE: Depending on the location you have selected for

installation, you may need to purchase and install a “Joist Hanger”

for the support of the outlet box. Make sure the joist hanger you

purchase has been designed for use with ceiling fans. (Fig. 4)

Outlet box

Fig. 1

Outlet box

Fig. 2

Fig. 3

Recessed

outlet box

Provide strong

support

Ceiling

mounting

plane

ANGLED CEILING

MAXIMUM 30° ANGLE

Fig. 4

Outlet box

6 | KICHLER.COM

HANGING THE FAN

REMEMBER to turn o the power before you begin. To properly install your ceiling

fan, follow the steps below.

Step 1. Remove the decorative canopy bottom cover from the canopy by turning

the cover counter clockwise. (Fig. 5)

Step 2. Remove the ceiling mounting bracket from the canopy by removing

(and save) one of the two screws. Loosen the remaining screw by a half turn.

(Fig. 5)

Step 3. Pass the 120 volt supply wires from the ceiling outlet box through the

center of the ceiling mounting bracket. (Fig. 6)

Step 4. Attach the ceiling mounting bracket to the outlet box using the screws

and washers included with the outlet box. (Fig. 6)

Step 5. Remove the hanger ball from the downrod assembly by loosening the set

screw, removing the cross pin and sliding the ball o the rod. (Fig. 7)

Fig. 5

Ceiling mounting bracket

Canopy

Canopy cover

Fig. 6

120V Wires

CUL Listed

outlet box

Washers

Hook

Mounting screws

(supplied with electrical box)

Ceiling

mounting

bracket

Fig. 7

Downrod

Set screw

Hanger ball

Cross pin

Cameron™|

HANGING THE FAN

Step 6. Loosen the two set screws and remove the hitch pin and retaining clip

from the coupling on top of the motor assembly. (Fig. 8)

Step 7. Carefully feed the electrical lead wires from the fan up through the

downrod. Thread the downrod into the coupling until the Hitch pin holes

are aligned.

Next, replace the hitch pin and retaining clip. Tighten both set screws. (Fig. 8)

Step 8. Slip the coupling cover, canopy cover and canopy onto the downrod.

Thread the hanger ball onto the downrod, insert the cross pin through the

downrod and tighten. Now tighten the set screw. (Fig. 9)

Fig. 9

Cross pin Hanger ball

Hanger ball

Downrod

Coupling

Coupling cover

Canopy cover

Canopy

PL-190B

Fig. 8

Supply wires

Coupling

Set screw Set screw

Retaining clipHitch pin

Downrod

8 | KICHLER.COM

HANGING THE FAN

Step 9. Lift the motor assembly into position and place the hanger ball into the

ceiling mounting bracket.

Rotate the entire assembly until the “Check Tab” has dropped into the

“Registration Slot” and seats firmly. (Fig. 10)

The entire motor assembly should not rotate (left or right) when seated properly.

WARNING: Failure to reattach the cross pin and seat the “Check Tab” can cause

the fan to fall from the ceiling during operation. Take special care to make sure this

pin is reattached. Fig. 10

Check tab

Registration slot

Cameron™|

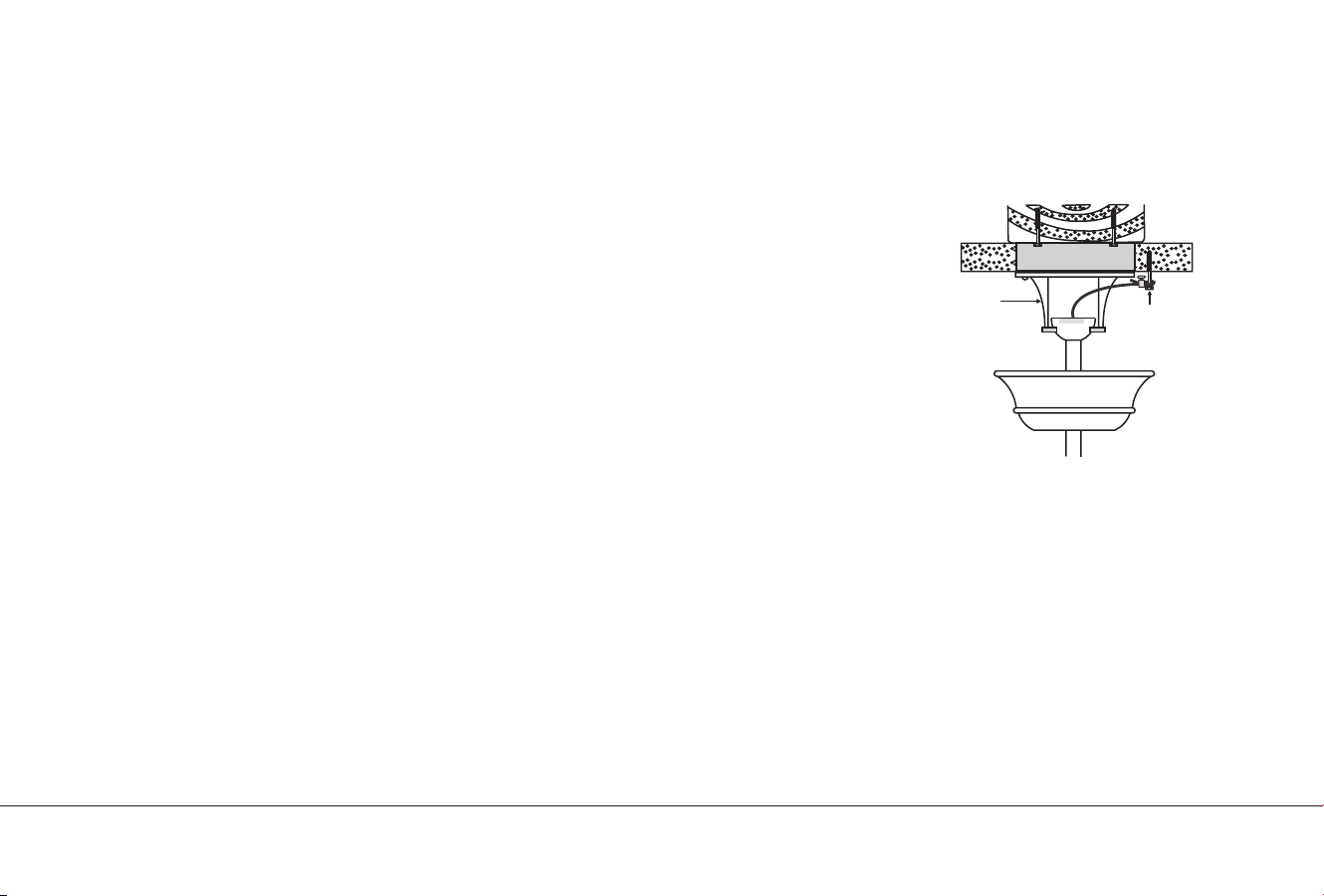

INSTALLATION OF SAFETY SUPPORT

(Required for Canadian installation ONLY)

A safety support cable is provided to help prevent the ceiling fan from falling,

please install it as follows.

Step 1. Attach the provided wood screw and washers to the ceiling joist next to the

mounting bracket but do not tighten. (Fig. 11)

Step 2. Adjust the length of the safety cable to reach the screw and washers by pulling the

extra cable through the cable clamp until the overall length is correct, put the end of the

cable back through the cable clamp, forming a loop at the end of the cable. Tighten the

cable clamp securely. Now, put the loop in the end of the safety cable over the wood screw

and under the washer. Tighten the wood screw securely.

NOTE: Although the safety support cable is required for Canadian installations only. It’s a

good idea to make the attachment with any installation.

Ceiling

mounting

bracket Attach safety

cable to ceiling

joist with screw

and washer

Fig. 11

10 | KICHLER.COM

This manual suits for next models

Table of contents

Languages:

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Starkk 330174OZ User manual

Kichler Lighting

Kichler Lighting 65" GENTRY User manual

Kichler Lighting

Kichler Lighting Emerson HIGH COUNTRY User manual

Kichler Lighting

Kichler Lighting 300370 User manual

Kichler Lighting

Kichler Lighting 52" RENEW ENERGY STAR User manual

Kichler Lighting

Kichler Lighting Tranquil User manual

Kichler Lighting

Kichler Lighting Humble 300415 User manual

Kichler Lighting

Kichler Lighting Kevlar 310150WCP User manual

Kichler Lighting

Kichler Lighting Olympia User manual

Kichler Lighting

Kichler Lighting Makoda User manual

Kichler Lighting

Kichler Lighting Grace 300316 User manual

Kichler Lighting

Kichler Lighting 300026 User manual

Kichler Lighting

Kichler Lighting KOSMUS User manual

Kichler Lighting

Kichler Lighting Guardian 330057 User manual

Kichler Lighting

Kichler Lighting Terna 300230 User manual

Kichler Lighting

Kichler Lighting Ridley 300027OBB User manual

Kichler Lighting

Kichler Lighting Chicago User manual

Kichler Lighting

Kichler Lighting Windham User manual

Kichler Lighting

Kichler Lighting Sterling Manor User manual

Kichler Lighting

Kichler Lighting 35152 User manual

Kichler Lighting

Kichler Lighting 330015WH User manual

Kichler Lighting

Kichler Lighting Lucia User manual

Kichler Lighting

Kichler Lighting 310155 User manual

Kichler Lighting

Kichler Lighting Bronson User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
