Kichler Lighting Todo 330025 User manual

TodoTM

330025

Instruction Manual

UL Model #CF101P-56

Includes Wall Control

1. SAFETY RULES (READ AND SAVE THESE INSTRUCTIONS)

1. To reduce the risk of electric shock, insure

electricity has been turned off at the circuit

breaker or fuse box before beginning.

2. All wiring must be in accordance with the

National Electrical Code and local electrical

codes. Electrical installation should be

performed by a qualied licensed electrician.

3. WARNING: To Reduce The Risk Of Fire Or

Electric Shock, Do Not Use This Fan With

Any Solid-State Speed Control Device. Only

use the remote control provided by ceiling fan

manufacturer.

4. WARNING: To reduce the risk of personal

injury, use only the two steel screws (and

lock washers) provided with the outlet box for

mounting to the outlet box. Most outlet boxes

commonly used for the support of lighting

xtures are not acceptable for fan support of

35 lbs (15.9 kgs) or less and may need to be

replaced, consult a qualied electrician if in

doubt.

5. The outlet box and support structure must

be securely mounted and capable of reliably

supporting a minimum of 35 pounds. Use only

CUL Listed outlet boxes marked “FOR FAN

SUPPORT OF 35 LBS (15.9 KGS ) OR LESS”.

6. The fan must be mounted with a minimum of

10 feet clearance from the trailing edge of the

blades to the oor.

7. Do not operate reversing switch while fan

blades are in motion. Fan must be turned off

and blades stopped before reversing blade

direction.

8. Avoid placing objects in the path of the blades.

9. To avoid personal injury or damage to the fan

and other items, be cautious when working

around or cleaning the fan.

10. Do not use water or detergents when cleaning

the fan or fan blades. A dry dust cloth or lightly

dampened cloth will be suitable for most

cleaning.

11. After marking electrical connections, spliced

conductors should be turned upward and

pushed carefully up into outlet box. The wires

should be spread apart with the grounded

conductor and the equipment-grounding

conductor on one side of the outlet box.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK OR PERSONAL INJURY, MOUNT FAN

TO OUTLET BOX MARKED “ACCEPTABLE

FOR FAN SUPPORT OF 35 LBS (15.9 KGS)

OR LESS”.

WARNING

TO REDUCE THE RISK OF PERSONAL

INJURY, DO NOT BEND THE BLADE

BRACKETS (ALSO REFERRED TO AS

FLANGES) DURING ASSEMBLY OR AFTER

INSTALLATION. DO NOT INSERT OBJECTS

IN THE PATH OF THE BLADES.

WARNING

CHANGES OR MODIFICATIONS TO THIS

UNIT NOT EXPRESSLY APPROVED BY THE

PARTY RESPONSIBLE FOR COMPLIANCE

COULD VOID THE USER’S AUTHORITY TO

OPERATE THE EQUIPMENT.

56” Todo™

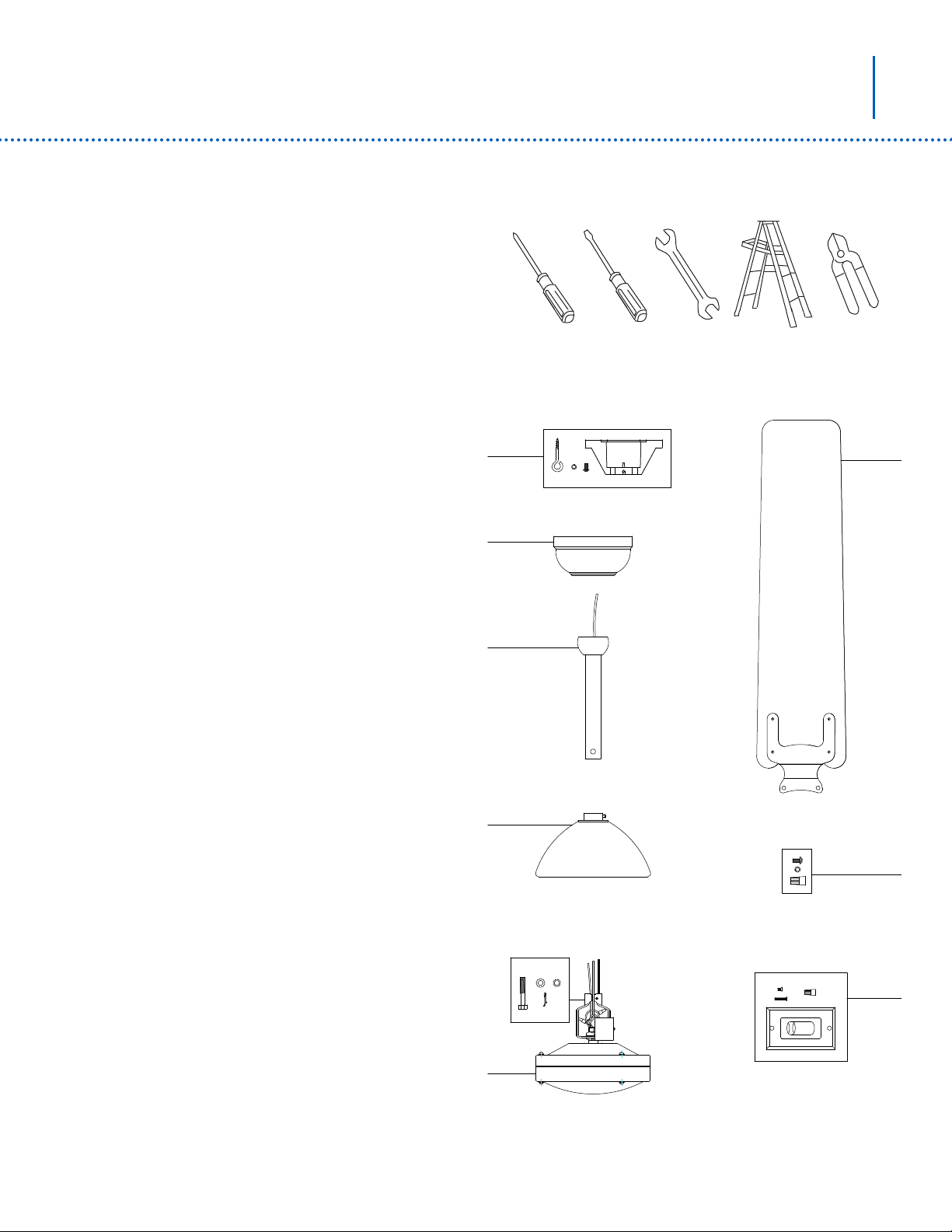

2. TOOLS AND MATERIALS REQUIRED

• Phillips screw driver

• Blade screw driver

• 11mm wrench

• Step ladder

• Wire cutters

3. PACKAGE CONTENTS

Unpack your fan and check the contents.

You should have the following items:

a. Ceiling mounting bracket;

Mounting hardware:

J Wood screw (1), Canopy

mounting screw (4),Canopy

mounting lock washer (4)

b. Canopy

c. Ball/downrod assembly

(Pre-installed on the fan)

d. Coupling cover

(Pre-installed on the fan)

e. Fan motor assembly, attached

with hanger bolt, lock washer, at

washer, and split pin

(Pre-installed on the fan)

f. Fan blade/blade arm assemblies (3)

g. Blade hardware: Blade screw

(8); Lock washer (8); Plastic wire

connector (3)

h. Wall mounting control hardware:

Wall control, Control mounting

screw (long x 2), Control

mounting screw (short x 2),

Plastic wire connector (3)

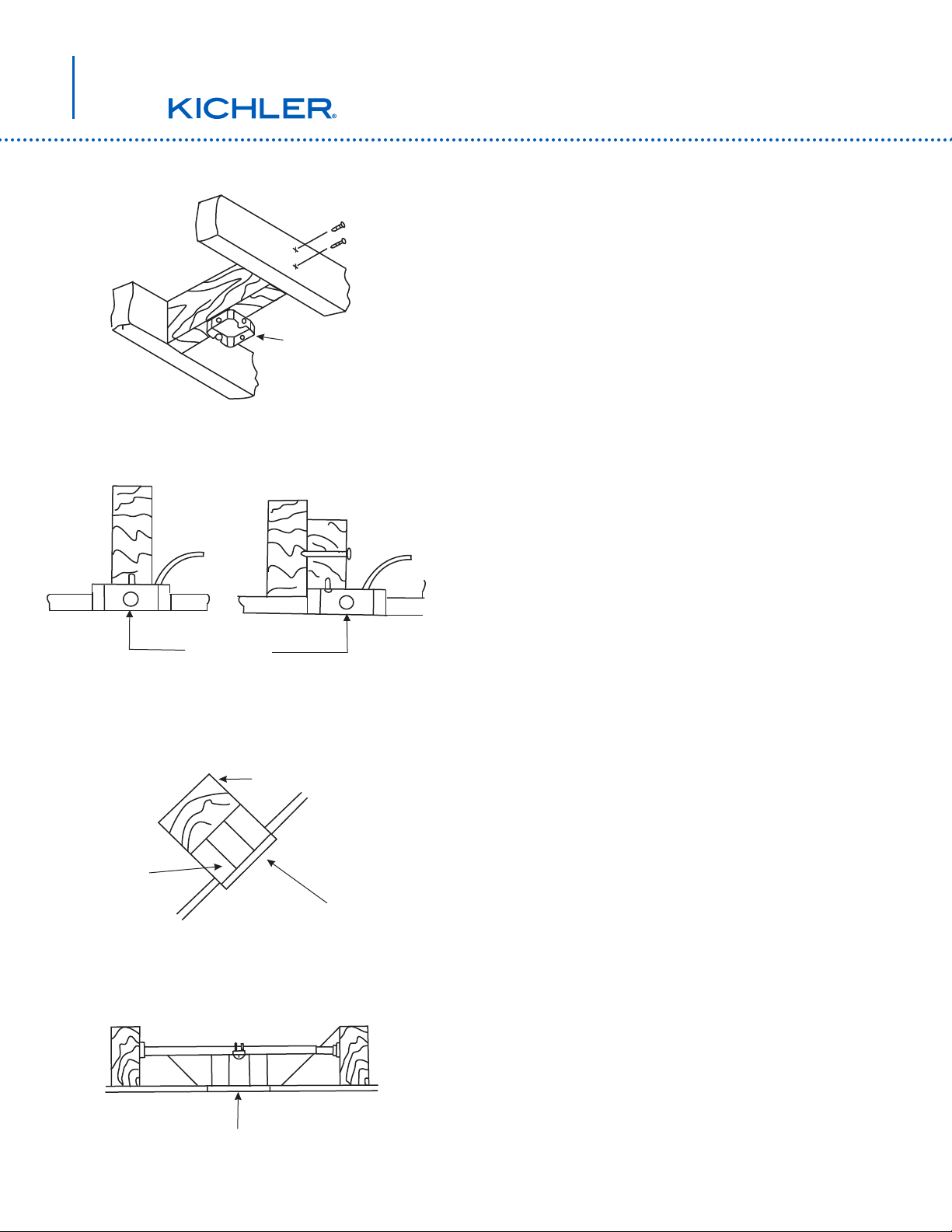

4. MOUNTING OPTIONS

If there isn’t an existing UL (cUL for Canadian

Installation) listed mounting box, then read the

following instructions. Disconnect the power by

removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure.

Use appropriate fasteners and building materials. The

outlet box and support structure must be securely

mounted and capable of reliably supporting 35 lbs.

(15.9 kg). Use only UL Listed outlet boxes marked

“Acceptable for Fan Support of 36 lbs. (15.9 kg) or

less”. Do not use a plastic outlet box .

Figures 1, 2, and 3 are examples of different ways to

mount the outlet box.

NOTE: If you are installing the ceiling fan on a sloped

(vaulted) ceiling, you may need a longer downrod

to maintain proper clearance between the tip of the

blade and the ceiling. A minimum clearance of 12” is

suggested for optimal operation.

NOTE: Depending on the location you have selected

for installation, you may need to purchase and install

a “Joist Hanger” for the support of the outlet box.

Make sure the joist hanger you purchase has been

designed for use with ceiling fans. (Fig. 4)

Outlet box

Provide strong

support

Recessed

outlet box Ceiling

mounting

plate

Outlet box

ANGLED CEILING

MAXIMUM 30°ANGLE

Fig. 4

Fig. 3

Fig. 2

Fig. 1

56” Todo™

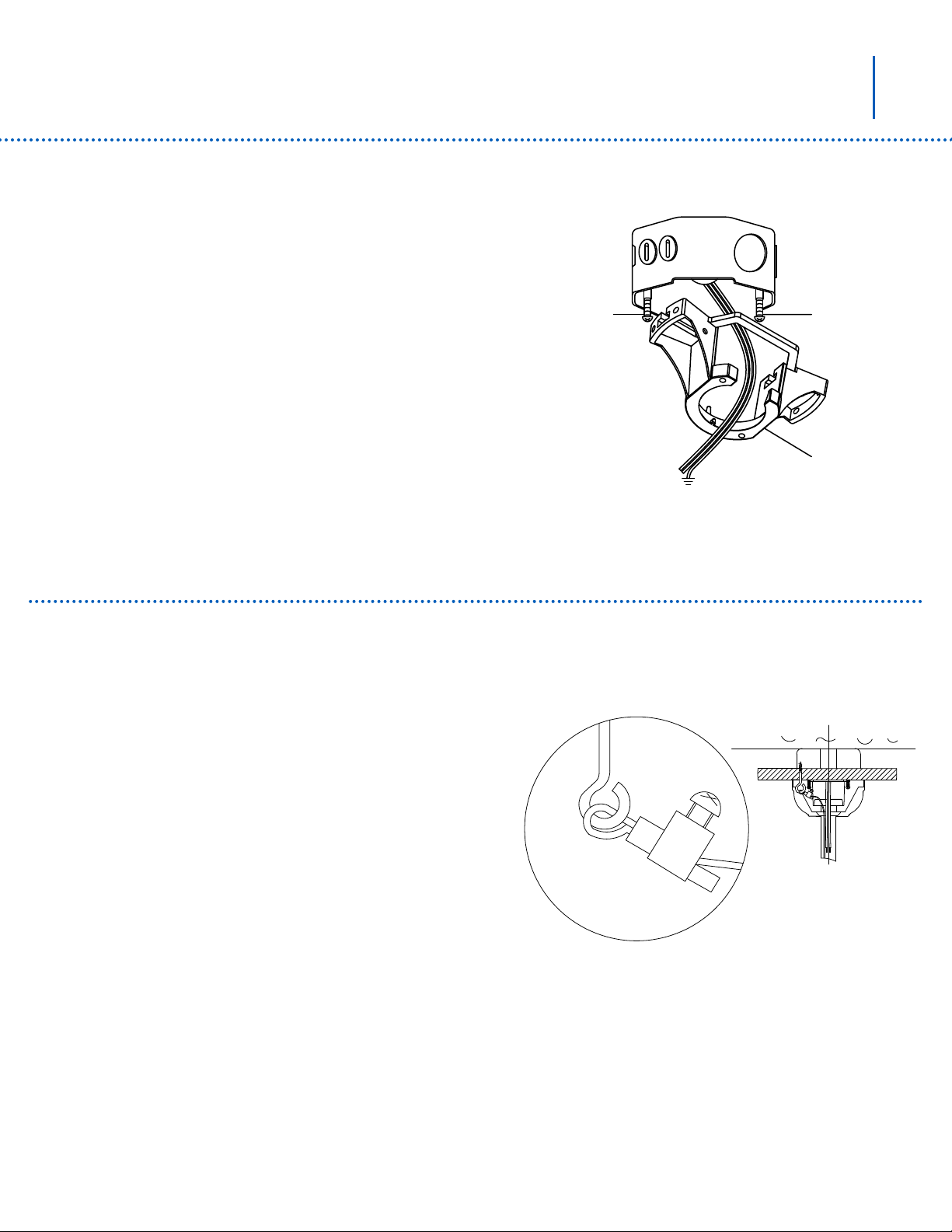

5. INSTALLING THE MOUNTING BRACKET

REMEMBER to turn off the power before you begin.

To properly install your ceiling fan,

follow the steps below.

Step 1. Pass the 120 volt supply wires from the

ceiling outlet box through the center of the ceiling

mounting bracket.

Step 2. Attach the ceiling mounting bracket to the

outlet box using the screws and washers included

with the outlet box. (Fig. 5)

Fig. 5

6. INSTALLATION OF SAFETY SUPPORT

(Required for Canadian installation ONLY)

A safety support cable is provided to help prevent the

ceiling fan from falling, please install it as follows.

Step 1. Attach the provided wood screw and washers

to the ceiling joist next to the mounting bracket but do

not tighten.

Step 2. Adjust the length of the safety cable to reach

the screw and washers by pulling the extra cable

through the cable clamp until the overall length is

correct, put the end of the cable back through the

cable clamp, forming a loop at the end of the cable.

Tighten the cable clamp securely. Now, put the loop

in the end of the safety cable over the wood screw

securely. (Fig. 6)

NOTE: Although the safety support cable is required

for Canadian installations only. It’s a good idea to

make the attachment with any installation.

Fig. 6

Black

White

Green

White

7. ELECTRICAL CONNECTIONS

WARNING: To avoid possible electrical shock, be sure

you have turned off the power at the main circuit panel.

Step 1. Connect the ground conductor of the 120-Volt

supply (this may be a bare wire or a wire with green

colored insulation) to the green ground leads of the fan.

Step 2. Connect the fan motor white wire to the supply

white wire using a wire connecting nut.

Step 3. Connect the fan motor black wire to the supply

black wire using a wire connecting nut.

Step 4. After connecting the wires, spread them apart

so that the green and the white wires are one side of the

outlet box and the black wire is on the other side.

Step 5. Turn the wire connecting nuts upward, and

carefully push the wiring into the outlet box. (Fig. 7)

Fig. 8

Fig. 7

8. ATTACH THE CANOPY

Step 1. Align the locking slots of the ceiling canopy

with the two screws in the mounting bracket . Push

up to engage the slots , and turn clockwise to lock the

canopy in place.

Step 2. Firmly tighten the two mounting screws with

lock washer.

Step 3. Install the remaining two mounting screws into

the holes in the canopy and tighten rmly. (Fig. 8)

56” Todo™

Fig. 9

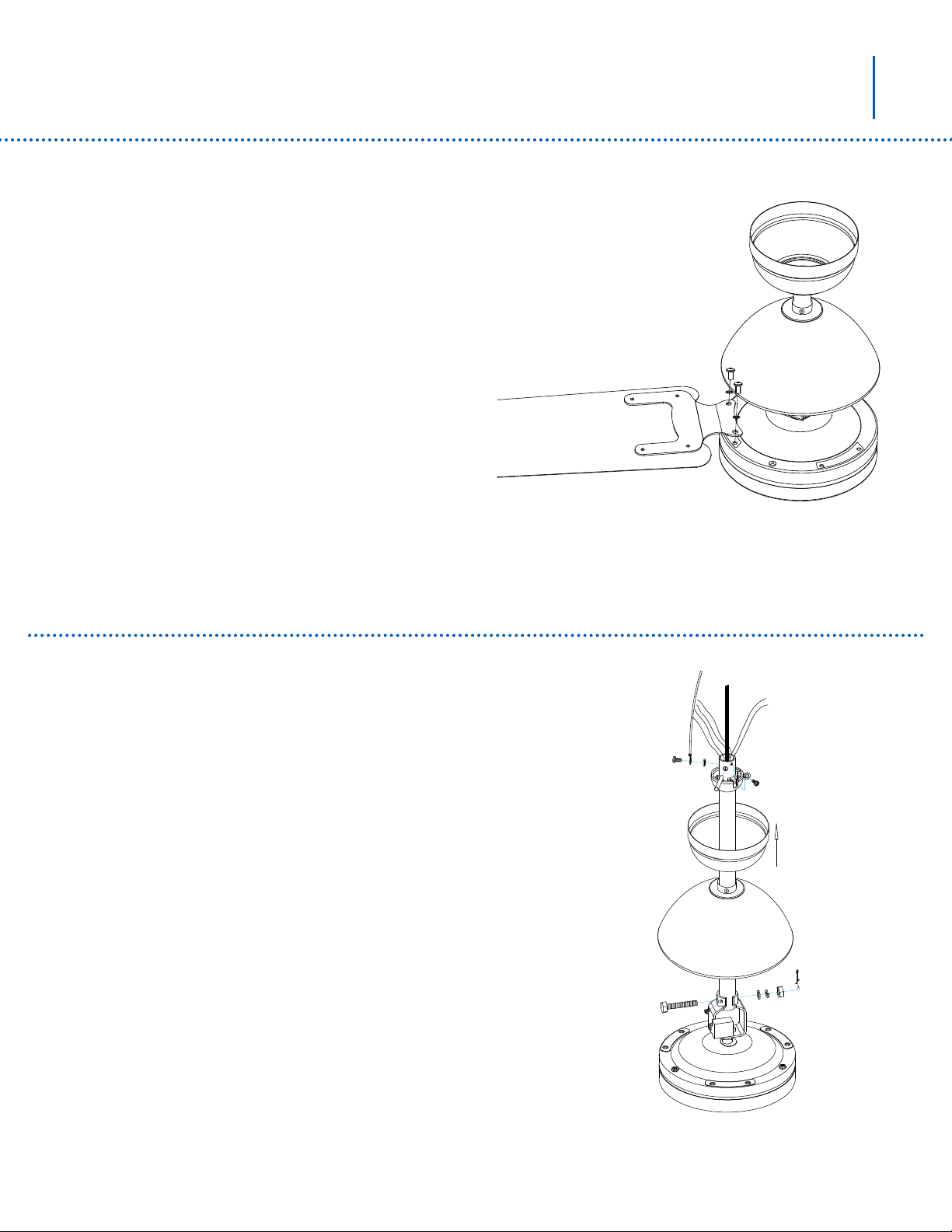

9. ATTACHING THE FAN BLADE/

BLADE ARM ASSEMBLIES

Step 1. Move the coupler cover to the top of the

downrod, then position the blade assembly on the

motor so the mounting screw holes align with the

threaded holes.

Step 2. Turn the screw into the hole but do not

completely tighten . Make sure the second hole in

the blade assembly aligns with a hole in the motor

housing.

Step 3. Install a second screw in the blade

assembly in the same manner.

Step 4. Repeat for the remaining blades.

Step 5. Tighten all screws. (Fig 9)

10. REPLACE THE DOWNROD

Step 1. Loosen the set screw in the ball and slide down

to remove the support pin, set washer, lock washer and

green ground wire from the top of the downrod.

Step 2. Remove and save the screw, green ground

wire and washer from the top of the downrod

Step 3. Remove the canopy and coupler cover.

Step 4. Loosen and remove the Hanger bolt, lockwashers

and Hexagonal nut on the coupler and remove downrod.

Step 5. Install new downrod using the hardware removed

in steps 1 through 4.

NOTE: Make sure the mounting screws are securely

tightened.

Fig. 10

11. TROUBLESHOOTING

Problem

Fan will not start.

Fan sounds noisy.

Fan wobbles.

Remote control

malfunction.

Solution

1. Check circuit fuses or breakers.

2. Check all electrical connections to insure proper contact. CAUTION: Make sure the main

power is OFF when checking any electrical connection.

3. Make sure the transmitter batteries are installed properly. Positive (+) side facing out.

4. Insure the batteries have a good charge.

1. Make sure all motor housing screws are snug.

2. Make sure the screws that attach the fan blade brackets to the motor are tight.

3. Make sure wire nut connections are not rubbing against each other or the interior wall of the

switch housing. CAUTION: Make sure main power is off.

4. Allow a 24-hour “breaking-in period. Most noise associated with a new fan disappears during

this time.

5. If using an optional light kit, make sure the screws securing the glassware are tight. Make

sure the light bulbs are not touching any other component.

6. Do not connect this fan to wall mounted variable speed control(s). They are not compatible

with ceiling fan motors or remote controls.

7. Make sure the upper canopy is a short distance from the ceiling. It should not touch the

ceiling.

1. Check that all blade and blade arm screws are secure.

2. Most fan wobbling problems are caused when blade levels are unequal. Check this level by

selecting a point on the ceiling above the tip of one of the blades. Measure this distance.

Rotate the fan until the next blade is positioned for measurement. Repeat for each blade.

The distance deviation should be equal within 1/8”.

3. Use the enclosed Blade Balancing Kit if the blade wobble is still noticeable.

4. If the blade wobble is still noticeable, interchanging two adjacent (side by side) blades can

redistribute the weight and possibly result in smoother operation.

1. Ceiling fans with remote control systems CAN NOT be operated in conjunction with any

other control system EXCEPT a basic On/Off wall switch, if desired.

2. Make sure the frequency dip switches in the transmitter and receiver have identical settings.

3. Make sure the Black Antenna on the receiver is NOT tangled with any other electrical wires

and is extended around the inside of the ceiling canopy.

12. SPECIFICATIONS

Fan size Speed Volts Amps Watts RPM CFM CFM/W N.W. G.W. C.F.

56”

120

0.799 95.1 318 10642 112

8.3

kgs

9.3

kgs 1.52’

2 0.733 66.1 253 8497 129

3 0.528 33.0 168 5677 172

4 0.392 18.2 117 4130 227

These are approximate measurements. They do not include data for any lamps or xtures attached to the ceiling fan.

Kichler®Lighting

7711 East Pleasant Valley Road

P.O. Box 318010

Cleveland, Ohio 44131-8010

Customer Service

866.558.5706

8:30 AM to 5:00 PM EST,

Monday - Friday

TodoTM

330025

Guide d’instructions

Modèle UL nº CF101P-56

Comprend une commande murale

This manual suits for next models

Table of contents

Languages:

Other Kichler Lighting Fan manuals

Kichler Lighting

Kichler Lighting Logan User manual

Kichler Lighting

Kichler Lighting Vassar 330002OZ User manual

Kichler Lighting

Kichler Lighting Select Sutter Place User manual

Kichler Lighting

Kichler Lighting Kevlar 310150WCP User manual

Kichler Lighting

Kichler Lighting Porters Lake User manual

Kichler Lighting

Kichler Lighting Fit User manual

Kichler Lighting

Kichler Lighting Decor Kimberley User manual

Kichler Lighting

Kichler Lighting 52" Chiara LED User manual

Kichler Lighting

Kichler Lighting Select Sutter Place User manual

Kichler Lighting

Kichler Lighting 35153 Manual

Kichler Lighting

Kichler Lighting Jade 300030 User manual

Kichler Lighting

Kichler Lighting 54 Meredith User manual

Kichler Lighting

Kichler Lighting Celino User manual

Kichler Lighting

Kichler Lighting Canfield Patio 310192 User manual

Kichler Lighting

Kichler Lighting Monarch II Patio User manual

Kichler Lighting

Kichler Lighting KLF-SOLA-34-WHT-BN User manual

Kichler Lighting

Kichler Lighting Arkwright User manual

Kichler Lighting

Kichler Lighting RIDLEY2 KLF-RIDLEY2-52-NB User manual

Kichler Lighting

Kichler Lighting Saxon Premier User manual

Kichler Lighting

Kichler Lighting Jace LED User manual

Kichler Lighting

Kichler Lighting Lacey User manual

Kichler Lighting

Kichler Lighting Larissa User manual

Kichler Lighting

Kichler Lighting Renew Premier User manual

Kichler Lighting

Kichler Lighting 35157 User manual

Popular Fan manuals by other brands

ELTA FANS

ELTA FANS H03VV-F installation guide

Hunter

Hunter 20714 Owner's guide and installation manual

Emerson

Emerson CARRERA VERANDA CF542ORB00 owner's manual

Hunter

Hunter Caraway Owner's guide and installation manual

Panasonic

Panasonic FV-15NLFS1 Service manual

Kompernass

Kompernass KH 1150 operating instructions

VES

VES FALA100/12V/TR Original instructions

Vertiv

Vertiv Liebert DCD user manual

Westinghouse

Westinghouse GFP Series owner's manual

Venmar

Venmar KUBIX HRV PLUS Series user guide

Maico

Maico ECR 31 installation instructions

Sonnenkonig

Sonnenkonig Dinky instruction manual

S&P

S&P ECOWATT HXBR manual

Wider

Wider IMP03369BH instruction manual

Panasonic

Panasonic F-60DHN Operating and installation instructions

Hinkley

Hinkley HIGHLAND instruction manual

Broan

Broan 766BN installation guide

Premium

Premium PFS16022 Use manual
