Kichler Lighting 52" Chiara LED User manual
52" Chiara LED
TABLE OF CONTENTS
SAFETY RULES ………………………………………………………. 4
TOOLS REQUIRED ……………………………………………… 5
PACKAGE CONTENTS …………………………………………. 5
MOUNTING OPTIONS ………………………………………… 6
HANGING THE FAN ………………………………………....... 7
INSTALLATION OF SAFETY SUPPORT ……………… 8
ELECTRICAL CONNECTIONS …………………………… 9
FINISHING THE INSTALLATION ……………………….. 10
INSTALLING THE MOTOR HOUSING …………………… 11
INSTALLING THE SWITCH HOUSING …………………… 12
INSTALLING THE LED LIGHT KIT AND SHADE …… 13
INSTALLING THE WALL CONTROL …………………………14
CONTROL SYSTEM SET-UP………………………………………15
OPERATING INSTRUCTIONS …………………………………… 15
TROUBLESHOOTING………………………………………………… 16
FCC WARNING…………………………………………………………….. 17
52" Chiara LED
3
4
WARNING:
WARNING:
PACKAGE CONTENTS
Unpack your fan and check the contents . You should have the following items:
A. Mounting Plate
B. Motor Body
C. Motor Housing
D. Blade Bracket(3)
E. Fan Blade (3)
F .Switch Housing
G. LED Light Kit
H. Shade
I. Wall Control System
Phillips screwdriver
Blade screwdriver
11 mm wrench
Step ladder
Wire cutters
TOOLS REQUIRED
J. Package hardware
1) Mounting hardware :
Wood screw (2) ,Flat Washer (2) , Screw (2) ,
Lock washer (2), Wire Connector (3)
2) Blade attachment hardware :
Screw (11) , Fiber Washer (11)
3) Safety cable hardware :
Wood screw (1) ,Spring washer (1),
Flat washer (1)
4) Balance kit
5) Blade Bracket hardware screw(2)
52" Chiara LED
A
C
G
H
I
D
F
B
J
E
X4
X6 X2
6
MOUNTING OPTIONS
If there isn’t an existing UL (cUL for Canadian Installation) listed
mounting box, then read the following instructions. Disconnect the
Secure the outlet box directly to the building structure. Use
appropriate fasteners and building materials. The outlet box and its
support must be able to fully support the moving weight of the fan
(at least 50 lbs). Do not use plastic outlet boxes.
box.
NOTE: If you are installing the ceiling fan on a sloped (vaulted)
ceiling, you may need a longer downrod to maintain proper
NOTE: Fig.3 is only for fan with downrod hanging system.
clearance between the tip of the blade and the ceiling. A minimum
clearance of 12” is suggested for optimal operation.
NOTE: Depending on the location you have selected for installation,
you may need to purchase and install a “Joist Hanger” for the
support of the outlet box. Make sure the joist hanger you purchase
has been designed for use with ceiling fans. (Fig. 4)
Fig. 1
Outlet Box
Outlet Box
Fig. 2
Provide strong
support
Recessed
Outlet Box Ceiling
Mounting
Plate
Fig. 3
ANGLED CEILING
MAXIMUM 30° ANGLE
Outlet Box
Fig. 4
Step 2. Hook the motor body onto the mounting plate as shown. You can now proceed
with the electrical wiring of your fan. (Fig. 6)
HANGING THE FAN
REMEMBER to turn o the power before you begin installation. This is necessary
for your safety and also the proper programming of the control system.To properly
install your ceiling fan, follow the steps below.
Step 1 . Before attaching fan to outlet box (not included), ensure the outlet box is
securely fastened to at least two points to a structural ceiling member (a loose box
will cause the fan to wobble). Pass the 120 volt supply wires from the ceiling outlet
box through the center of the ceiling mounting plate. Install mounting plate to
outlet box in ceiling using the screws and washers included with the outlet box or
screws and washers in the hardware bag. (Fig. 5)
Fig. 5
Fig. 6
52" Chiara LED
7
Mounting Plate
Motor Body
Outlet Box
Mounting Plate
Flat Washer
Screw
8
Step 1.
NOTE:
INSTALLATION OF SAFETY SUPPORT
(required for Canadian installation ONLY)
A safety support cable is provided to help prevent the ceiling fan from faIling, please
install it as follows.
Drive a wood screw and washers into the side of the brace that holds the outlet
box. Leave 3mm (1/8") of space between the support brace and the washer. (Fig. 7)
Insert the safety cable through the mounting plate and one of the holes in the
outlet box into the ceiling. Adjust the length of the safety cable to reach the screw and
washers by pulling the extra cable through the cable clamp until the overall length is
correct, put the end of the cable back through the cable clamp, forming a loop at the
end of the cable. Tighten the cable clamp securely. Now, put the loop in the end of the
safety cable over the wood screw and under the washer. Tighten the wood screw
securely. (Fig. 8)
Although the safety support cable is required for Canadian installations only.
It’s a good idea to make the attachment with any installation.
Step 2.
Fig. 7
Flat Washer
Wood Screw
Spring Washer
Outlet Box
Support Brace
Ceiling
Fig. 8
Safety Cable Bolt
Wood Screw
MAKE THE ELECTRICAL CONNECTIONS
WARNING: To avoid possible electrical shock, be sure you have turned o the power
at the main circuit panel before wiring. Follow the steps below to connect the fan to
your household wiring. Use the wire connecting nuts supplied with your fan. Secure
the connector with electrical tape. Make sure there are no loose wire stands or connections.
WARNING: If your house wires are dierent colors than referenced in this manual,
stop immediately. A professional electrician is recommended to determine proper wiring.
Step 1. Motor to Receiver Electrical Connections:
Connect the BLACK wire from the fan to BLACK wire marked "TO MOTOT L" from the
receiver.
Connect the WHITE wire from the fan to the WHITE wire marked "TO MOTOR N" from
the receiver.
Connect the BLUE wire from the fan to the BLUE wire marked "FOR LIGHT " from the
receiver.
Secure all the wire connections with the plastic wire connectors provided. ( Fig. 9)
Step 2. Remote Receiver to Outlet Box Electrical Connections:
Connect the BLACK (hot)wire from the ceiling to the BLACK wire marked “AC IN L”
from the receiver.
Connect the WHITE (Neutral ) wire from the ceiling to the WHITE wire marked “ AC IN N”
from the receiver.
Step 3. Ground wires connections:
Connect the GROUND wire from outlet box to the GREEN wires from the fan and
mounting plate.(Fig. 9)
Secure the wire connections with the plastic wire connectors provided .(Fig. 9)
Fig. 9
52" Chiara LED
9
BLACK
WHITE
GROUND GROUND
WHITE WHITE
BLUE BLUE
BLACK BLACK
10

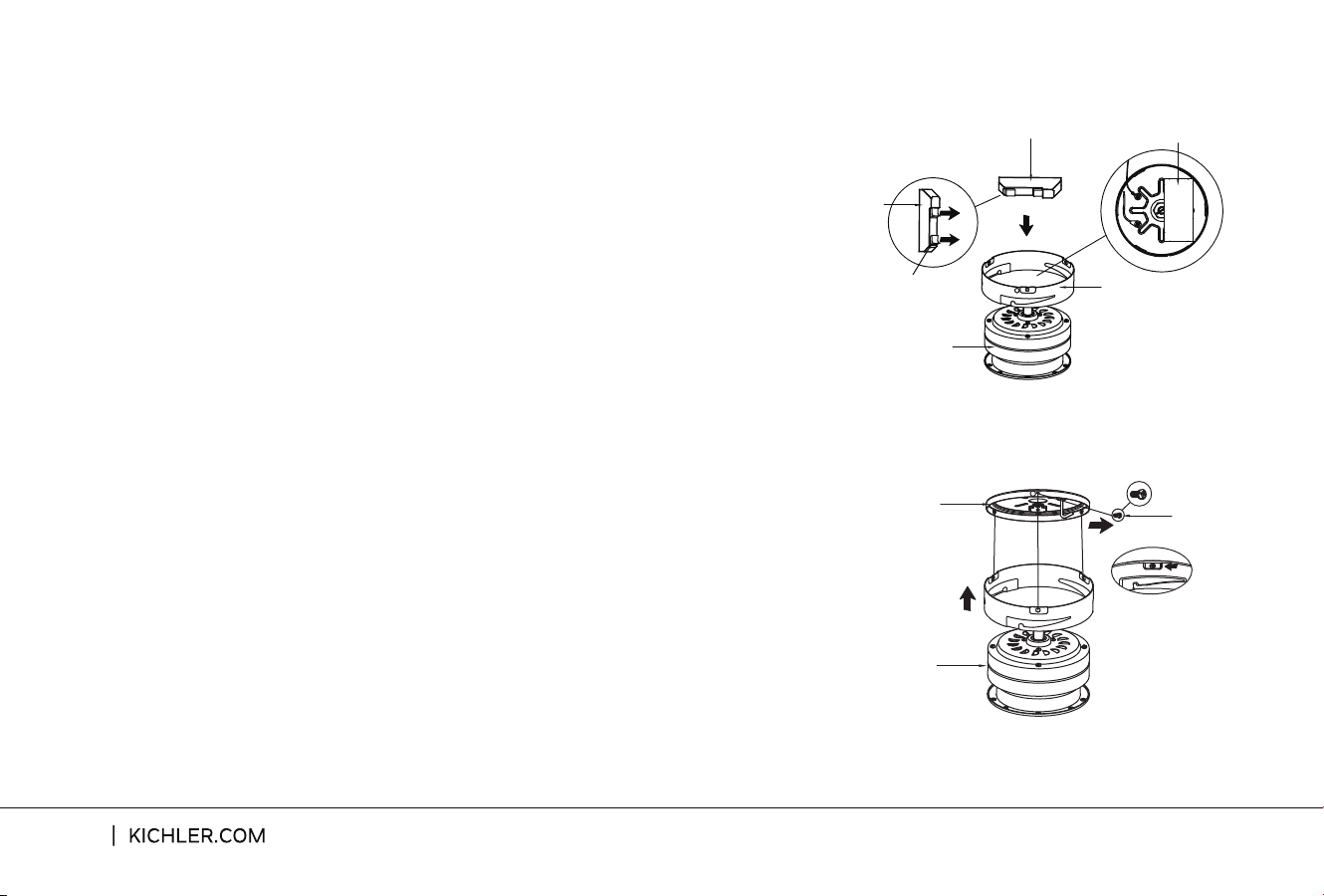

Step 4. Peel o the liner paper on the receiver, secure the receiver
in place on the mounting plate cover, and keep flat in opposition of ceiling.
(Fig. 10)
NOTE: Carefully tuck the wire connections up into the outlet box.
NOTE: Fan must be installed at a maximum distance of 30 feet from the
transmitting unit for proper signal transmission between the transmitting
unit and the fan’s receiving unit.
NOTE: Before continuing , make sure the power is disconnected by turning
o the circuit breaker of removing the fuse at the circuit box.
Step 1. Remove the screw marked with a dot label pre-installed on mounting
plate and keep for later use. Loosen the other two (do not remove). (Fig. 11)
Step 2. Lift up the motor body onto the mounting plate, place the two slot holes
on the mounting plate cover over the 2 screws previously loosened from the
mounting plate. Rotate the mounting plate cover until it locks in place at the
narrow end of the key holes. Secure by tightening the 2 screws and the one
previously removed.(Fig. 11)
FINISHING THE INSTALLATION
MAKE THE ELECTRICAL CONNECTIONS
Fig. 11
Fig. 10
Screw
Mounting Plate
Motor Body
Motor Body
Receiver
Liner Paper Ceiling Plate Cover
Receiver Receiver
