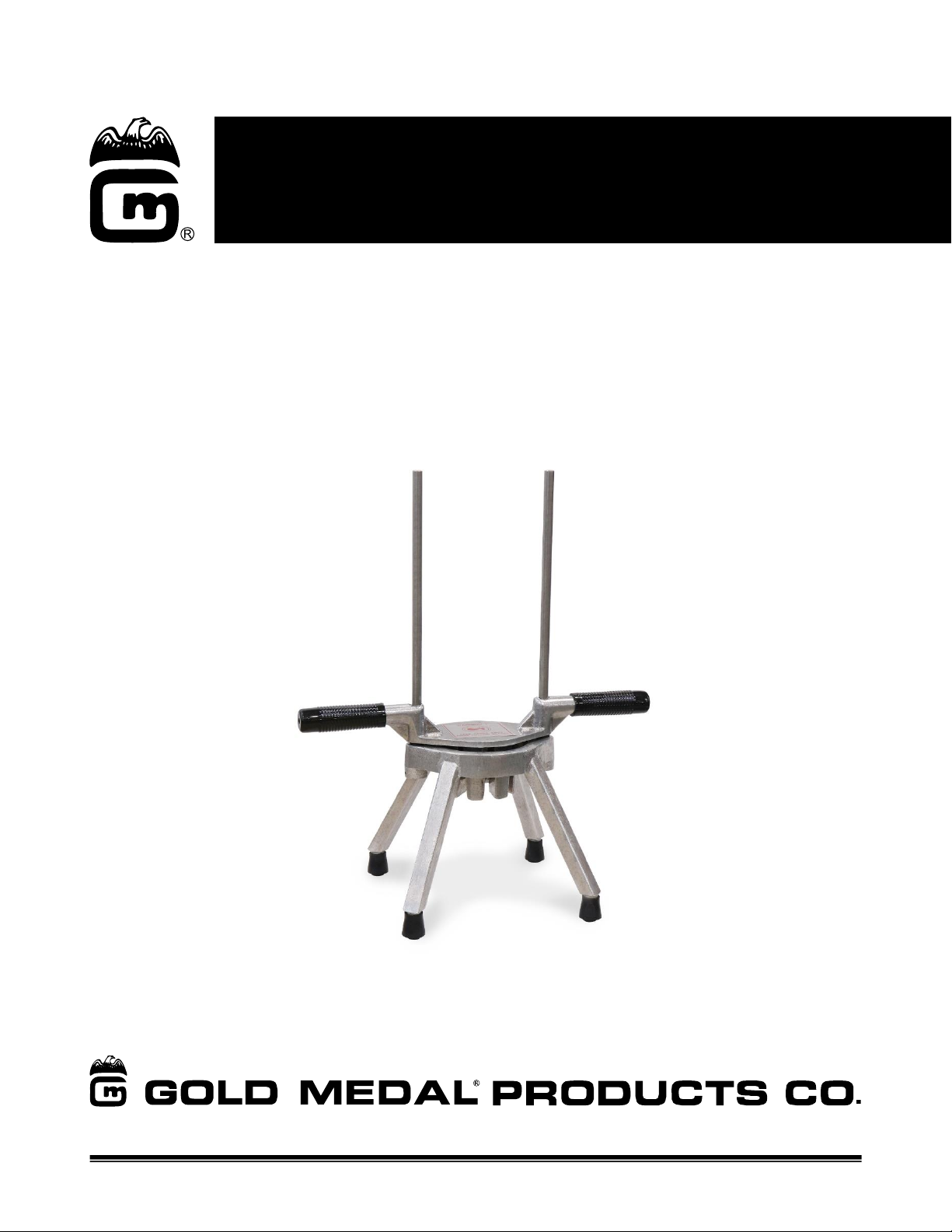

Goldmedal 4180 User manual

Part No. 38341

Instruction Manual

10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

Apple Hacker

Model No. 4180

Apple Hacker Model No. 4180

Page 2

gmpopcorn.com

SAFETY PRECAUTIONS

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

This machinery contains sharp blades. Keep hands and body parts clear

at all times.

037_103114

WARNING

ALWAYS wear safety glasses when servicing this equipment.

010_010914

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

WARNING

Read and understand operator’s manual and all other safety instructions

before using this equipment. To order copies of the operator’s manual go to

gmpopcorn.com or write to Gold Medal Products Co., 10700 Medallion Drive,

Cincinnati, OH 45241 USA 1-(800)-543-0862

022_060215

WARNING

DO NOT allow direct contact of this equipment by the public when used in

food service locations. Only personnel trained and experienced in the

equipment operation may operate this equipment.

Carefully read all instructions before operation.

012_010914

Apple Hacker Model No. 4180

Page 3

gmpopcorn.com

WARNING

This machine is NOT to be operated by minors.

007_010914

Note: Improvements are always being made to Gold Medal’s equipment. This information

may not be the latest available for your purposes. It is critical that you call Gold Medal’s

Technical Service Department at 1-800-543-0862 for any questions about your

machine operations, replacement parts, or any service questions. (Gold Medal

Products Co. does not assume any liability for injury due to careless handling and/or

reckless operation of this equipment.) General images may be used in manual for

reference only.

INSTALLATION INSTRUCTIONS

Inspection of Shipment

After unpacking, check thoroughly for any damage which may have occurred in transit. Claims

should be filed immediately with the transportation company. The warranty does not cover

damage that occurs in transit, or damage caused by abuse, or consequential damage due to the

operation of this machine, since it is beyond our control (reference warranty in back of manual).

Manual

Read and understand the operator’s manual and all other safety instructions before using this

equipment. To order copies of the operator’s manual go to gmpopcorn.com or write to Gold

Medal Products Co., 10700 Medallion Drive, Cincinnati, OH 45241 USA 1-(800)-543-0862.

Model Description

4180: Apple Hacker, cuts apple into 8 slices.

Setup

1. Remove all packaging and tape prior to operation.

2. Place unit on a sturdy, level base for use.

3. The unit should be cleaned prior to use (see Care and Cleaning section).

Apple Hacker Model No. 4180

Page 4

gmpopcorn.com

OPERATING INSTRUCTIONS

Use caution when operating (handling) this unit, the blades are extremely sharp.

1. Place the unit on a level surface for use.

2. Make sure blade is installed, see image below.

3. Lift the push block and place an apple on the blade assembly (core end down).

4. Remove hands and fingers from the cutting area.

5. Using both handles, with a strong push down or a quick thrust, bring the push block

down to force the apple through the blades.

Push Block

Guide Rod

Stand

Rubber Feet

Blade Assembly Installed

Align Pins with

holes in stand.

Blade Installation

Apple Hacker Model No. 4180

Page 5

gmpopcorn.com

Care and Cleaning

Good sanitation practice demands that all food preparation equipment be cleaned regularly (only

use non-toxic, food grade cleaners).

For any cleaning products used, follow the manufacturer’s instructions on the product. DO NOT

use oven cleaners or abrasive materials as they will damage parts of machine.

Follow the directions below to clean the unit each day after use—use caution when handling

this unit, the blades are extremely sharp.

1. Lift the push block off the guide rods.

2. Carefully remove the blade—wash the blade with mild soap and water, then rinse

thoroughly and allow it to dry.

3. Wash the push block and stand with mild soap and water, then rinse thoroughly and

allow them to dry.

4. Reassemble unit when dry.

Lubricating the Unit

When needed, lubricate the guide rods with mineral oil, food grade grease, or rub them with

paraffin. DO NOT lubricate with cooking oil (it gets sticky).

Apple Hacker Model No. 4180

Page 6

gmpopcorn.com

MAINTENANCE INSTRUCTIONS

DANGER

Improper installation, adjustment, alteration, service, or maintenance can

cause property damage, injury, or death. Any alterations to this equipment

will void the warranty and may cause a dangerous condition. This appliance

is not intended to be operated by means of an external timer or separate

remote-control system. NEVER make alterations to this equipment. Read the

Installation, Operating, and Maintenance Instructions thoroughly before

installing, servicing, or operating this equipment.

014_020416

WARNING

No user serviceable parts inside. Refer servicing to qualified service

personnel.

011_051514

CAUTION

THE FOLLOWING SECTIONS OF THIS MANUAL ARE INTENDED ONLY

FOR QUALIFIED SERVICE PERSONNEL WHO ARE FAMILIAR WITH THIS

EQUIPMENT. THESE ARE NOT INTENDED FOR THE OPERATOR.

027c_051514

Apple Hacker Model No. 4180

Page 7

gmpopcorn.com

ORDERING SPARE PARTS

1. Identify the needed part by checking it against the photos, illustrations, and/or

parts list. (General images may be used in manual for reference only.)

2. Use only approved replacement parts when servicing this unit.

3. When ordering, please include part number, part name, and quantity needed.

4. Please include your model number, serial number, and date of manufacture (located

on the machine nameplate/data plate) with your order.

5. Address all parts orders to Parts Department, Gold Medal Products Co., 10700

Medallion Drive, Cincinnati, Ohio 45241-4807

or place orders by phone or online:

Phone: (800) 543-0862

(513) 769-7676

Fax: (800) 542-1496

(513) 769-8500

E-mail: [email protected]

Web Page: gmpopcorn.com

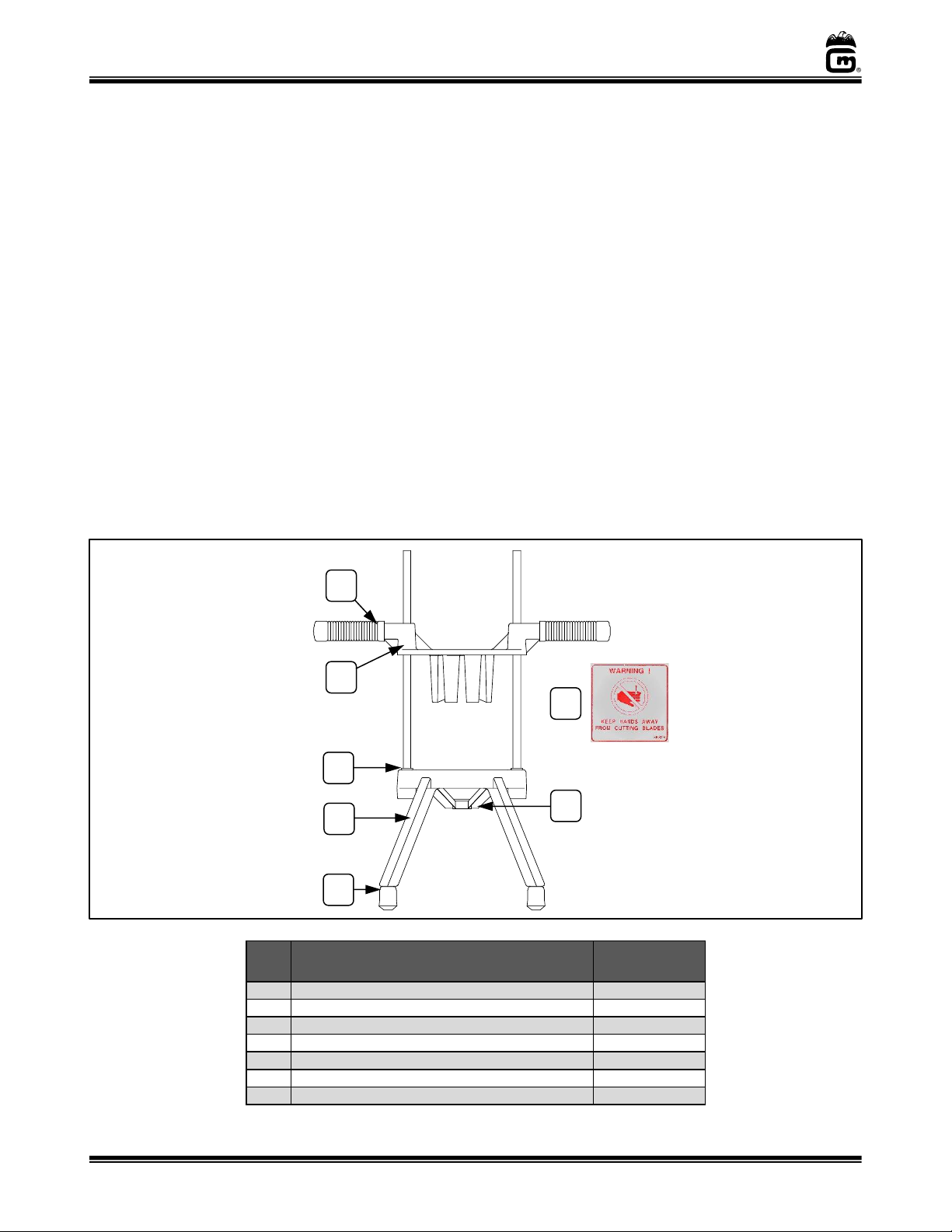

Parts Breakdown

Item

Part Description

Part Number

GRIP (for handle)

46028

PUSH BLOCK, APPLE HACKER

38335

O-RING, APPLE HACKER

38338

ASSY, STAND W/GUIDE BARS

38339

CRUTCH TIP BLACK 70 DURO

49123

BLADE ASSY, APPLE HACKER

38336

DECAL, SHARP BLADES

38323

Apple Hacker Model No. 4180

Page 8

gmpopcorn.com

Gold Medal Products Co. and shall not be used, copied, reproduced, or published in any fashion, including website

display, without its express written consent.

WARRANTY

Gold Medal Products Co. warrants to the original purchaser each item of its manufacture to

be free of defects in workmanship and material under normal use and service. Gold Medal

Products Co.’s obligation under this warranty is limited solely to repairing or replacing parts,

f.o.b. Cincinnati, Ohio, which in its judgment are defective in workmanship or material and

which are returned, freight prepaid, to its Cincinnati, Ohio factory or other designated point.

Except for “Perishable Parts” on specific machines, the above warranty applies for a period

of two (2) years from the date of original sale to the original purchaser of equipment when

recommended operating instructions and maintenance procedures have been followed. These

are packed with the machine. Parts warranty is two (2) years, labor is six (6) months.

THIS WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR

IMPLIED, AND OF ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART,

INCLUDING THE IMPLIED WARRANTY OF MERCHANTABILITY. THERE ARE

NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION ON THE FACE

HEREOF. In no event shall Gold Medal Products Co. be liable for special, incidental or

consequential damages. No claim under this warranty will be honored if the equipment covered

has been misused, neglected, damaged in transit, or has been tampered with or changed in any

way. No claim under this warranty shall be honored in the event that components in the unit at

the time of the claim were not supplied or approved by Gold Medal Products Co. This warranty

is effective only when electrical items have been properly attached to city utility lines only at

proper voltages. This warranty is not transferable without the written consent of Gold Medal

Products Co.

The term “Original Purchaser” as used in this warranty shall be deemed to mean that person,

firm, association, or corporation who was billed by the GOLD MEDAL PRODUCTS CO.,

or their authorized distributor for the equipment.

THIS WARRANTY HAS NO EFFECT AND IS VOID UNLESS THE ORIGINAL

PURCHASER FIRST CALLS GOLD MEDAL PRODUCTS CO. AT 1-800-543-0862 TO

DISCUSS WITH OUR SERVICE REPRESENTATIVE THE EQUIPMENT PROBLEM,

AND, IF NECESSARY, FOR INSTRUCTIONS CONCERNING THE REPAIR OR

REPLACEMENT OF PARTS.

NOTE: This equipment is manufactured and sold for commercial use only.

10700 Medallion Drive, Cincinnati, Ohio 45241-4807 USA

gmpopcorn.com

Phone: (800) 543-0862 Fax: (800) 542-1496

(513) 769-7676 (513) 769-8500
