Emerio MS-125001 User manual

- 1 -

Content –Inhalt –Teneur –Innehåll –Inhoud –Treść – Содержание

Instruction manual –English ...................................................................................... - 2 -

Bedienungsanleitung –German ............................................................................... - 11 -

Mode d’emploi – French........................................................................................... - 20 -

Bruksanvisning –Swedish......................................................................................... - 30 -

Gebruiksaanwijzing –Dutch ..................................................................................... - 39 -

Instrukcja obsługi – Polish......................................................................................... - 48 -

Инструкция по эксплуатации –Russian.................................................................. - 58 -

- 2 -

Instruction manual –English

This appliance is designed only for domestic use or similar

non-industrial applications.

Non-industrial applications include e.g. use in employee

kitchens in shops, offices, agricultural and other commercial

businesses, as well as use by guests in boarding houses, small

hotels and similar dwellings.

Use the appliance for processing the usual household

quantities of food. Please keep the instruction manual in a safe

place and if the appliance changes hands, pass them on to a

new owner.

SAFETY INSTRUCTIONS

1. This appliance shall not be used by children. Keep the

appliance and its cord out of reach of children.

2. Appliances can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and

knowledge if they have been given supervision or

instruction concerning use of the appliance in a safe way

and if they understand the hazards involved.

3. Children shall not play with the appliance.

4. If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualified

persons in order to avoid a hazard.

5. Warning: Potential risk of injuries from misuse.

6. Switch off the appliance and disconnect from supply before

changing accessories or approaching parts that move in use.

7. Risk of injury from sharp blade!

8. The blade is very sharp.

9. Keep hands clear of the blade.

10. After switching off, the drive continues for a short time.

Wait for the blade to come to a standstill!

11. After work, set cutting width to 0.

- 3 -

12. This appliance must be used with the sliding feed table and

the piece holder in position unless this is not possible due

to the size or shape of the food.

13. The appliance may be connected and operated only in

accordance with the specifications on the rating plate.

14. Do not use the damaged appliance or the damaged power

lead.

15. Only our customer service may repair the appliance, e.g. by

replacing a damaged power cord, in order to avoid hazards.

16. Never connect this appliance to an external timer switch or

remote control system in order to avoid a hazardous

situation.

17. After using the appliance, if it is left unattended or if the

appliance is faulty, always disconnect the power lead from

the mains socket.

18. Never leave the appliance unattended while it is switched

on!

19. Do not pull the power lead over sharp edges. To prevent

injury, any repairs such as replacing a damaged power lead,

should only be carried out by customer service.

20. Worn-out appliances must be made unsuitable for further

use.

21. The wall socket must be accessible and must be earthed

according to technical specification.

22. The appliance is only suitable for cutting firm foods, such as

bread, sausage or semi-hard cheese. The cutting of other

substances (e.g. wood) or very hard foods (bone, hard

cheese, deep-frozen food) is not permitted.

23. Regarding the instructions for cleaning the surfaces which

come in contact with food or oil, please refer to the

paragraph “CLEANING” of the manual.

24. Regarding the instructions for the use of accessories,

operation times and speed settings, please refer to the

below paragraphs.

- 4 -

Risk of electric shock!

Never immerse the appliance in water or place under running

water and do not clean in the dishwasher.

Do not use the appliance near a sink filled with water!

Caution

Motor may overheat! After a maximum 10 minutes of

continuous use, switch OFF the appliance and allow to cool

down.

Noise level: Lc < 75 dB(A)

- 5 -

- 6 -

- 7 -

- 8 -

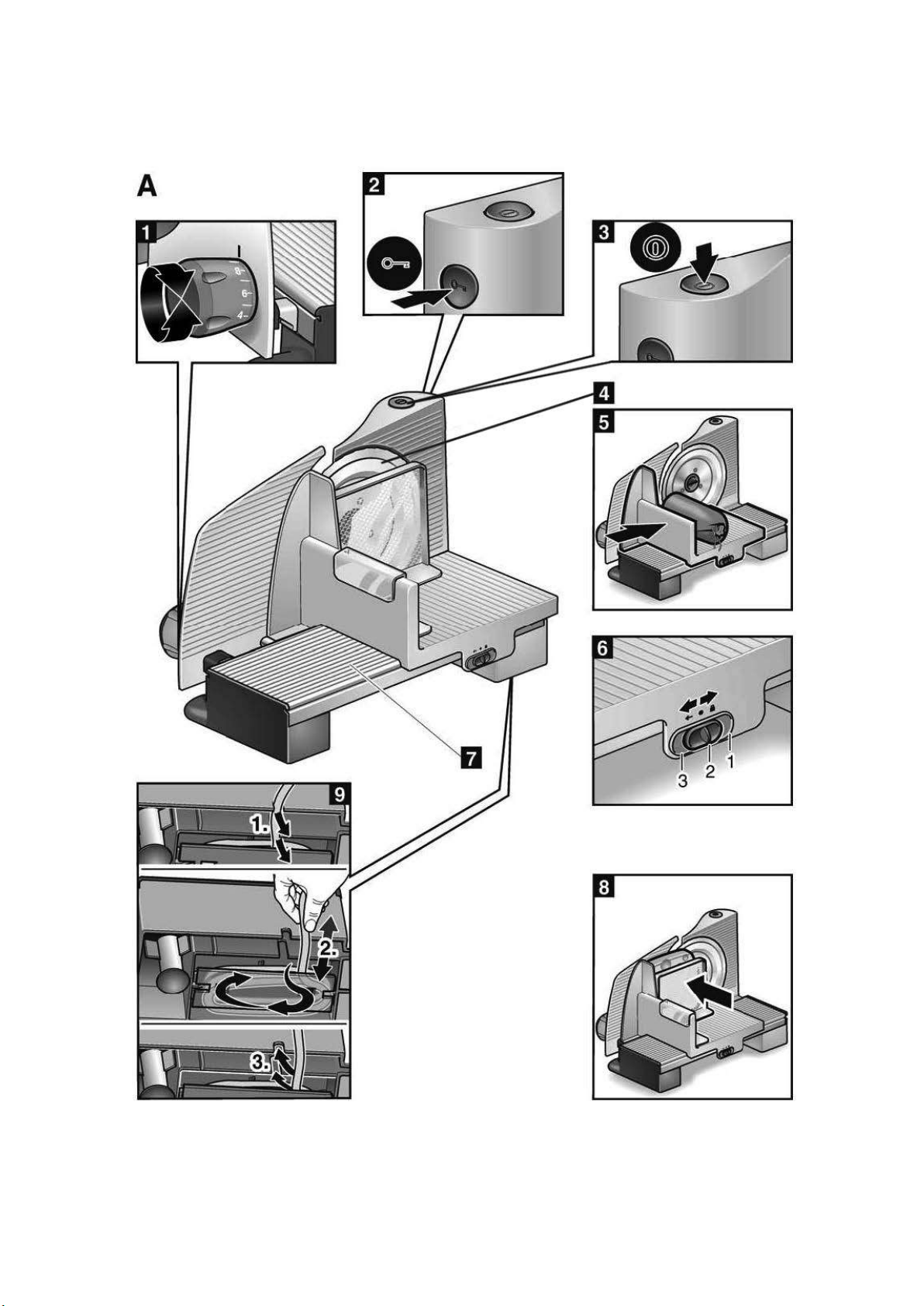

OVERVIEW

Fig. A

1. Rotary knob and stop plate

Set slicing width (0 to 15 mm).

2. Start lock-out

Press and hold to switch on. Prevents the appliance from being unintentionally switched on.

3. ON button

Instantaneous setting

4. Blade

5. Carriage

Guide the food which is to be sliced against the blade.

6. Slide

Pos. 1 (slide on right)

=Lock the carriage in the end position

Pos. 2 (slide in centre)

= Carriage movable

Pos. 3 (slide on left)

= Remove carriage

7. Base

Supports the carriage.

8. “Sausage end” holder

Cuts residual pieces safely.

9. Cord store

OPERATION

Before using the appliance for the first time, clean thoroughly.

Preparation:

Fig. A

Place the appliance on a smooth, clean surface.

Pull out cable from the cord store 9to the required length:

1. Remove cable from the two clamping slots.

2. Pull out/push in cable past the cover to the required length.

3. Re-attach cable end.

Attach carriage 5and “sausage end” holder 8.

Use the rotary knob 1to set the required cutting width.

Insert the plug.

Switching the appliance ON/OFF:

Risk of injury from sharp blade!

Blade is very sharp. Keep hands clear of the blade. After switching off, the drive continues for a short time. After

work, set cutting width to 0.

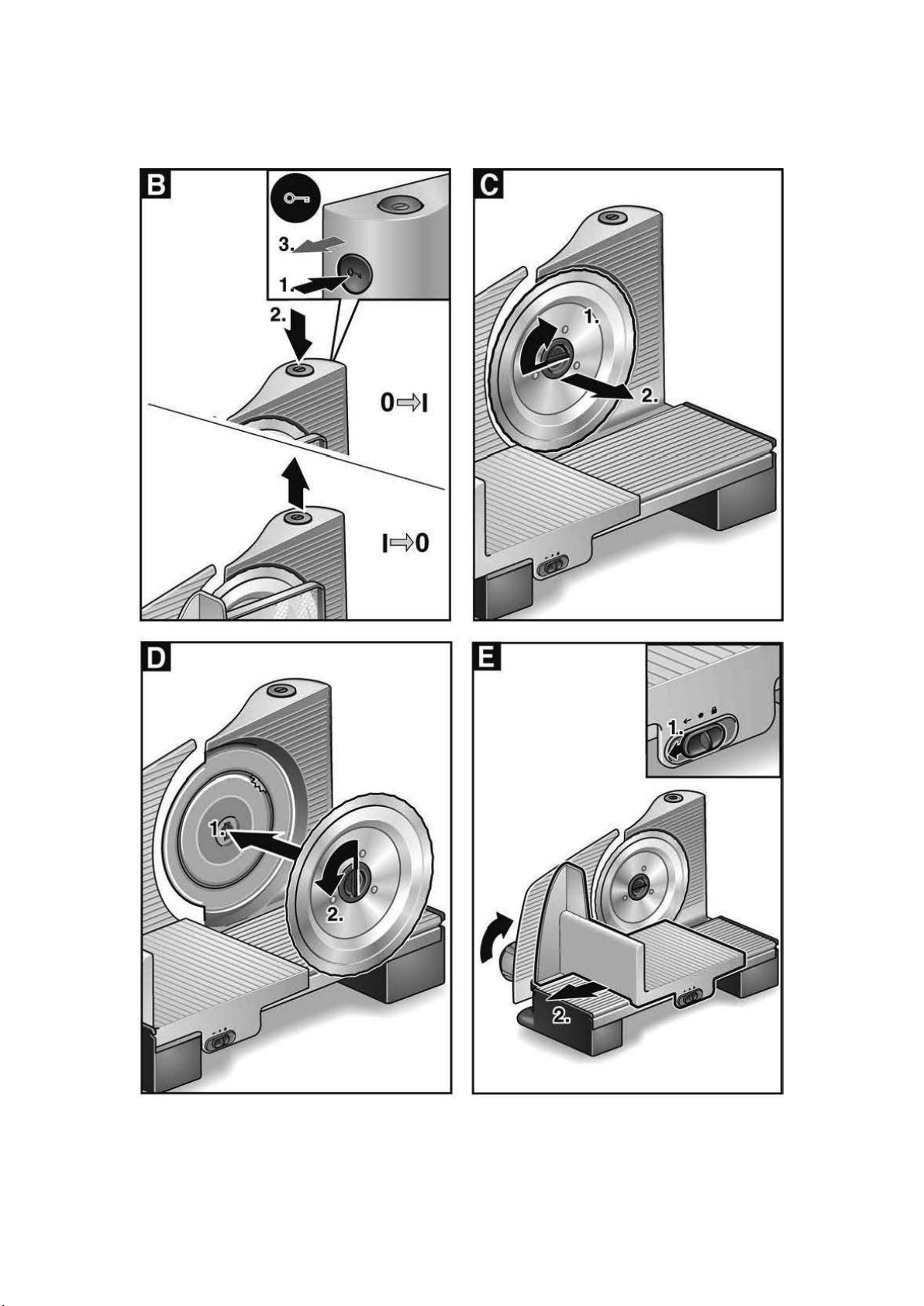

Fig. B

1. Press the switch-on safety device and hold down.

2. Simultaneously press ON button until the power tool starts running.

3. Release the switch-on safety device again.

To stop the appliance, release the ON button.

- 9 -

Slicing:

Fig. E

1. Slide the slide 6to Pos. 2.

2. Pull carriage away from the blade to the end position.

Place the food which is to be sliced on the carriage and gently push against the stop plate.

Slowly slide the food which is to be sliced against the moving blade.

After using the appliance:

Release the ON button.

Set the slicing width to 0.

Slide the carriage towards the blade into the end position and lock with the slide 6in Pos. 1.

Notes:

Cut sausage and cheese first and bread last. The appliance is then easier to clean.

For reasons of hygiene, the appliance and the blade should be cleaned immediately after slicing greasy food

(e.g. meat, sausage, cheese).

CLEANING

The appliance requires no maintenance! Thorough cleaning guarantees a long service life.

Risk of electric shock!

Never immerse the appliance in water or place under running water and do not clean in the dishwasher.

Risk of injury from sharp blade!

Before cleaning the appliance, pull out the mains plug and remove the blade. Do not grip the blade by the cutting

surface, but by the blade attachment.

Risk of injury from falling blade!

When re-attaching the blade, ensure that it is locked correctly in position = blade holder in horizontal position.

Caution!

Surfaces may be damaged. Do not use abrasive cleaning agents.

Cleaning the appliance:

Wipe the appliance and blade with a damp cloth and then a dry cloth. If required, use a little detergent.

Carriage and “Sausage end” holder are dishwasher-proof.

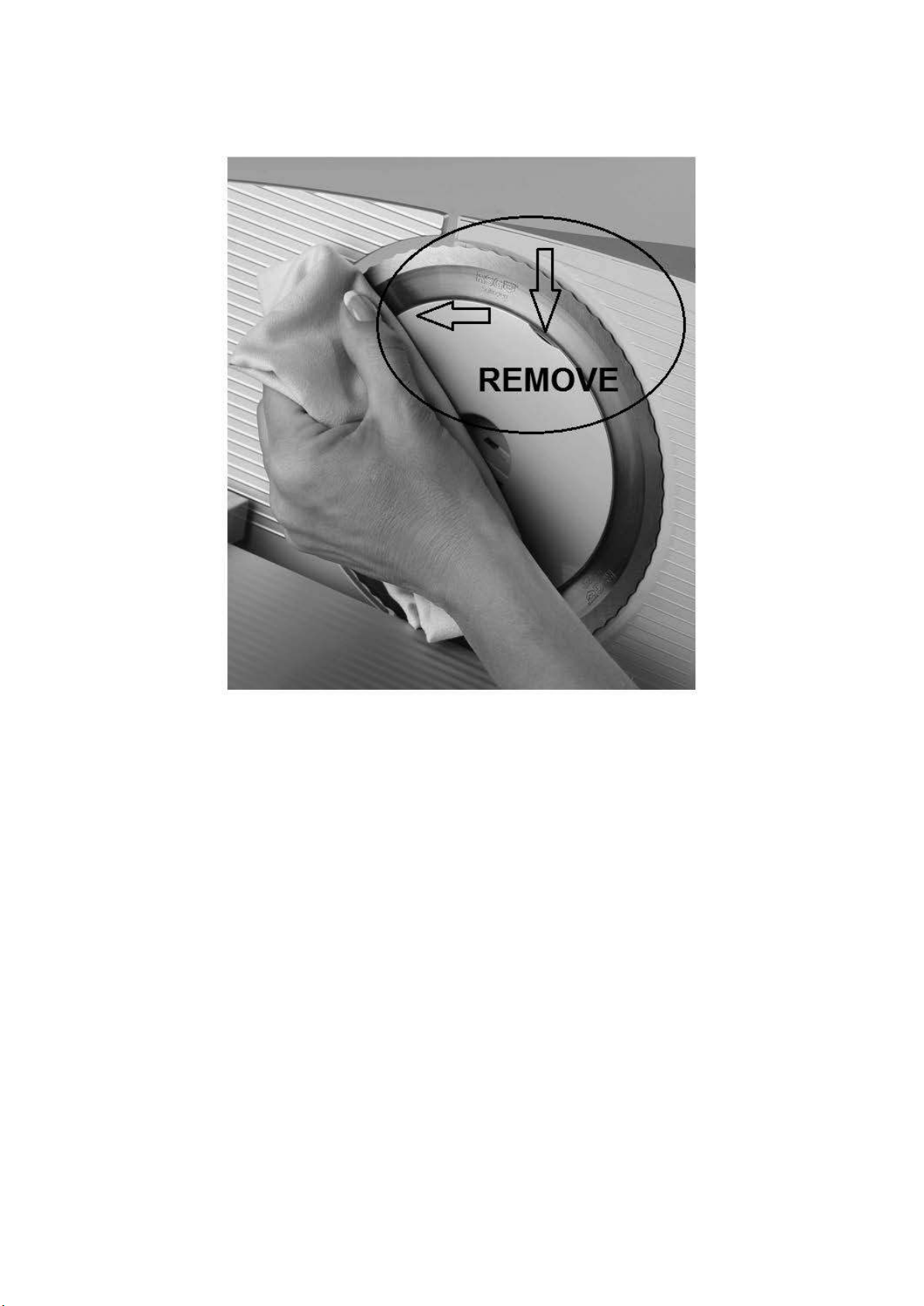

Removing/inserting the blade:

Fig. C

Slide back the carriage until the blade is accessible.

1. Rotate the blade attachment all the way in a clockwise direction.

2. Carefully remove the blade.

Fig. D

1. To insert the blade, hold the blade attachment vertically and insert.

2. Rotate blade attachment all the way in an anti-clockwise direction (must “click” into position).
