Electrolux VP-1 User manual

US 11/2005

Greens Machine

VP-1/VP-3

Salad & Vegetable

Dryer

Instruction manual

VP-1

VP-3

The Greens Machine

VP-1 and VP-3

Salad & Vegetable Dryer

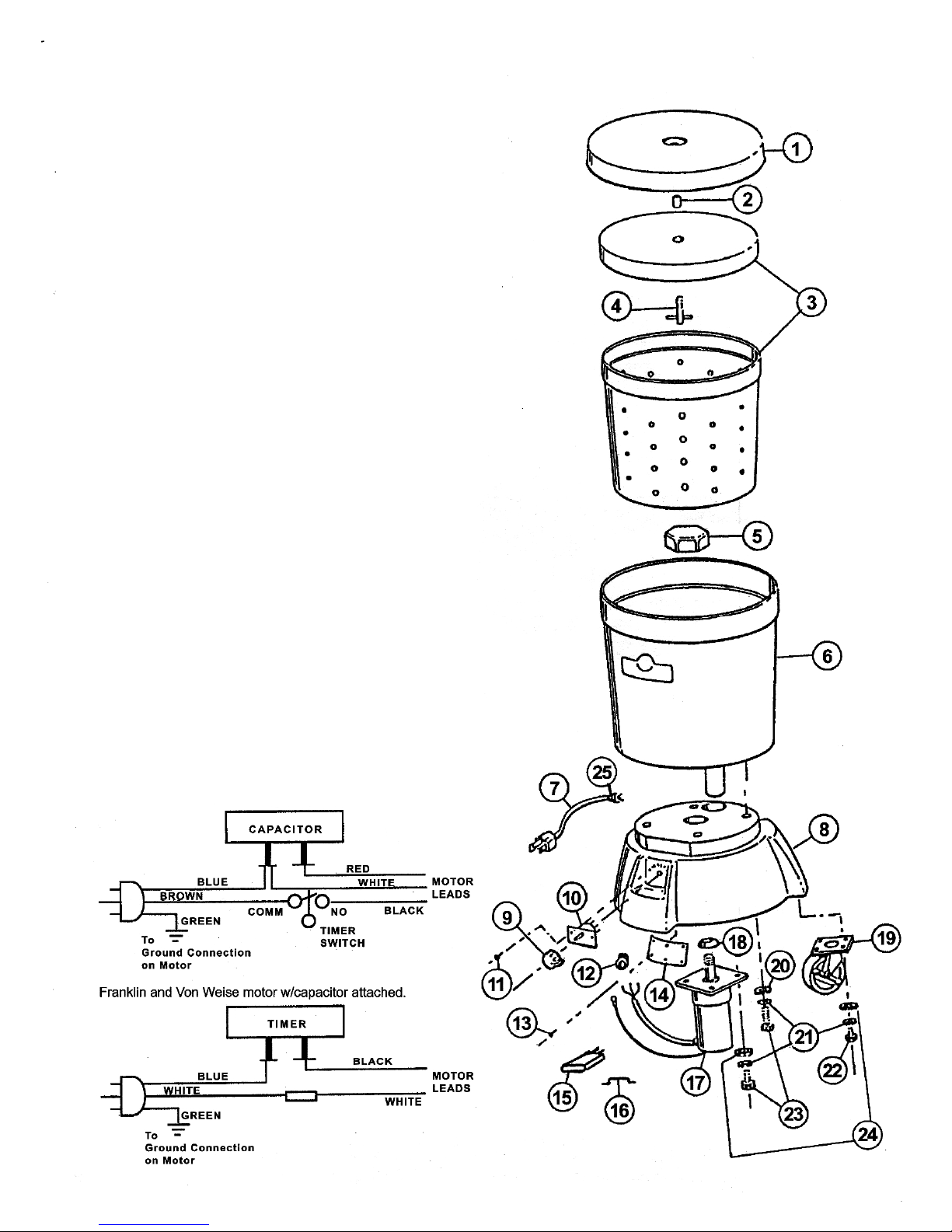

Item Old # New # Description Req.

1 30011 653628 VP-1 Outer Lid Stainless 1

30006 653627 VP-3 Outer Lid-Poly (Green) 1

2 30-0018 0US127 Bushing 1

3 30-0016 0US233 “T” Handle 1

4 30010 653626 Inner Bucket & Lid 1

5 30-0014 0US005 Octagonal Drive Casting 1

6 N/A N/A Main Body 1

7 1022 0US196 Electrical Cord 1

8 30-0052 0US136 VP-1 Base - Green 1

30-0042 0US134 VP-3 Base - Gray 1

9 31-007 0US166 Timer Knob 1

10 30-0004 0US171 Timer 1

11 1157 0US031 6-32 x 1/2'' Screw 2

12 1520 0US251 Strain Relief 1

13 30-0047 0US104 1/2'' x 8 Sheet Metal Screw 6

14 30-0046 0US135 Cover Plate 1

15 30-0013 0US247 Capacitor on Motor 1

30-0006 0US016 Capacitor (old style) 1

16 30-0015 0US014 Mounting Strap (old style) 1

17 30004 0US250 Motor - w/capacitor 1

18 22-0028 0US331 Grommet 1

19 30-0034 0US118 Caster - Flat 1

20 30-0039 0US071 1/4'' Flat Washer (Large) 4

21 30-0038 0US074 1/4'' Lock Washer 20

22 30-0037 0US070 1/4''-20 x 3/4'' Bolt 12

23 30-5001 0US068 1/4''-20 x 1'' Bolt 4

24 30-5003 0US073 1/4'' Flat Washer (Small) 16

Not Shown

30-0036 0US243 VP-1 Lid Hook

WIRING DIAGRAM

Machine shall be connected to the branch circuit with

overcurrent protection of 15 Amps.

Motor w/separate capacitor.

Dimensions (subject to change)

Height: 32.5''

Diameter: 27''

Shipping Weight: VP-1 80 lbs.

VP-3 60 lbs.

Space Required: 26.5'' wide

Gravity Drain: 1.5'' wide

RPM: 406

Electrical 115V/60H/1P/2.7 amps

Diameter: 27''

Inner Liner

Capacity: 20 gal./18 lbs.

Diameter: 15.68''

Depth: 17''

OPERATING INSTRUCTIONS

1. Secure machine into position by depressing

brake pedal on each caster.

2. Remove double lid slowly. DO NOT PULL OR

FORCE LID OFF IN A QUICK MOTION.

Suspend lid from the top edge of the tank

using the bracket provided on the lid.

3. Remove perforated inner liner and place

in sink.

4. To Prepare Products: Remove center core

from lettuce heads; break apart, separating

leaves or cut into desired size. Fill liner with no

more than 16 heads. DO NOT OVERLOAD

INNER LINER. WEIGHT IN EXCESS OF 18

LBS WILL CAUSE LID AND MOTOR FAILURE.

5. Place Inner liner in sink. Run cold water into

liner. Turn water off when product level rises

within three (3) inches of liner top edge. Gently

stir water through product to remove dirt.

Allow produce to soak 10 minutes.

6. Drain water from sink. Allow liner to remain in

sink for 60 seconds to drain out excess water.

7. Remove liner from sink and place into the

“Greens Machine”. Make sure the octagon

shaped recess in the liner bottom engages

with the metal octagon drive casting in the

tank bottom.

8. Place lid onto the machine, making sure the

inner lid sits on the top of the inner liner.

9. Turn machine “ON” by rotating bottom mounted

timer clockwise. Choosing a one-to-five minute

cycle. Generally, a three-minute cycle is

sufficient to drain a full load. Machine will turn

off automatically. Duty cycle is max. 5 minutes

ON-15 minutes OFF.

10.When time cycle has ended, wait 10 seconds

for inner liner to stop rotating before removing

lid. Remove inner liner from machine.

STORAGE INSTRUCTIONS

Gently pour produce into heavy duty plastic bags

or rigid plastic containers with tight fitting lids.

Place into refrigerated storage. Ideal storage

temperatures range between 32˚- 35˚F. Avoid

“packing” lettuce and other delicate produce

tightly in containers. Position containers in

refrigerator allowing for good air circulation.

This will promote rapid chilling.

CLEANING INSTRUCTIONS

Unplug the “Greens machine” wrapping electrical

cord around unit and attaching plug to cord.

Position machine over floor drain or place

drainage containers under drain pipe.

INTERIOR SURFACE OF TANK

1. Remove remaining food debris with sponge.

2. Wash interior tank liner with warm detergent -

sanitizing solution designed to clean surface

that are in contact.

3. Rinse with clean water. Air dry before placing

on lid.

EXTERIOR SURFACE OF TANK

1. Use a clean damp cloth to wipe wash solution

from surface. Air dry.

INNER LINER AND LIDS

1. Wash in warm detergent – sanitizing solution

designed for use of plastic materials in contact

with food.

2. Rinse in water, clean water. Air dry. Never

steam clean liner or lids.

CAUTION

DO NOT OVERLOAD INNER LINER

WEIGHT IN EXCESS OF 18 LBS WILL CAUSE LID AND MOTOR FAILURE.

WARRANTY and SERVICE POLICY

Electrolux warrants equipment manufactured by it as follows:

1) Service on all Electrolux Dito equipment includes: 2 years parts and 1-year labor;

These warranty periods run from the date of installation or time of sale. Electrolux warrants

that the equipment manufactured by it will be commercially free of defects in material and

workmanship existing at the time of manufacture and appearing within the applicable warranty

period. This warranty does not apply to any equipment, component or part that was not

manufactured by Electrolux or that, in Electrolux’s judgment, has been affected by misuse,

neglect, alteration, improper installation or operation, improper maintenance or repair,

damage or casualty.

THE FOREGOING WARRANTY IS EXCLUSIVE AND IS IN LIEU OF ANY OTHER

WARRANTY, WRITTEN OR ORAL, EXPRESS OR IMPLIED, INCLUDING, BUT NOT

LIMITED TO, ANY IMPLIED WARRANTY OF EITHER MERCHANTABILITY OR FITNESS

FOR A PARTICULAR PURPOSE. The agents, dealers or employees of Electrolux are not

authorized to make modifications to this warranty or to make additional warranties that are

binding on Electrolux. Accordingly, statements by such individuals, whether oral or written,

do not constitute warranties and should not be relied upon.

If Electrolux determines in its sole discretion that the equipment does not conform to the

warranty, Electrolux, at its exclusive option while the equipment is under warranty, shall either

1) provide at no charge replacement parts and/or labor (during the applicable parts and labor

warranty periods specified above) to repair the defective components, provided that this repair

is done by a Electrolux Authorized Service Representative; or 2) shall replace the equipment

or refund the purchase price for the equipment.

THE BUYER’S REMEDY AGAINST ELECTROLUX FOR THE BREACH OF ANY OBLIGATION

ARISING OUT OF THE SALE OF THIS EQUIPMENT, WHETHER DERIVED FROM WARRANTY

OR OTHERWISE, SHALL BE LIMITED, AT ELECTROLUX’S SOLE OPTION AS SPECIFIED

HEREIN, TO REPAIR, REPLACEMENT OR REFUND.

In no event shall Electrolux be liable for any other damage or loss, including, but not limited

to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital,

cost of down time, cost of substitute equipment, facilities or services, or any other special,

incidental or consequential damages.

www.electroluxusa.com/professional

Electrolux Professional, Inc.

3225 SW 42nd Street,

Fort Lauderdale, Florida 33312

Toll free number: 1-866-449-4200

The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor appliances combined.

More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws

and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
