Elcometer 138/2 User manual
User Guide
Elcometer 138/2
Surface Contamination Kit
www.elcometer.com
R
Section
Page
1
Overview
en-2
2
Box Contents
en-2
3
Test Procedure
en-2
4
Technical Specification
en-6
5
Spares & Accessories
en-7
6
Legal Notices & Regulatory Information
en-7
www.elcometer.com
For the avoidance of doubt, please refer to the original English language version.
Kit Dimensions: 346 x 292 x 84mm (13.6 x 11.5 x 3.3")
Kit Weight: 2.1kg (4lb 7oz)
© Elcometer Limited 2010-2016. All rights reserved. No part of this document may be reproduced, transmitted,
transcribed, stored (in a retrieval system or otherwise) or translated into any language, in any form or by any
means (electronic, mechanical, magnetic, optical, manual or otherwise) without the prior written permission of
Elcometer Limited.
CONTENTS
R
en-1
The Elcometer 138/2 Surface Contamination Kit provides materials to
collect a sample of contamination from a surface in accordance with
ISO 8502-6 (Bresle Method).
A solution is produced from the test surface using the Bresle method
and the pH, chloride concentration and iron concentration are then
measured using single-use test strips.
1 OVERVIEW
www.elcometer.com en-2
2 BOX CONTENTS
Elcometer 135C Bresle Test Patch; x50
pH Test Strips; x100
Iron Test Strips; x100
Chloride Test Strips; x40
Syringes, 5ml (0.17 fl oz); x3
Needles (Blunt); x3
Plastic Beaker; 30ml (1 fl oz)
Transit Case
User Guide
R
3 TEST PROCEDURE
The test procedure consists of two stages:
Stage 1: Produce a solution
Stage 2: Test the solution for chloride, iron or pH as required
3.1 BEFORE YOU START
1 As the test is extremely sensitive, clean latex or nitrile gloves
should be worn during the extraction of soluble salts to prevent
contamination of the surface or sample.
2 Ensure that all parts which come into contact with the test
solution are clean; the beaker, the syringe and the needle. Rinse
with pure water if necessary.

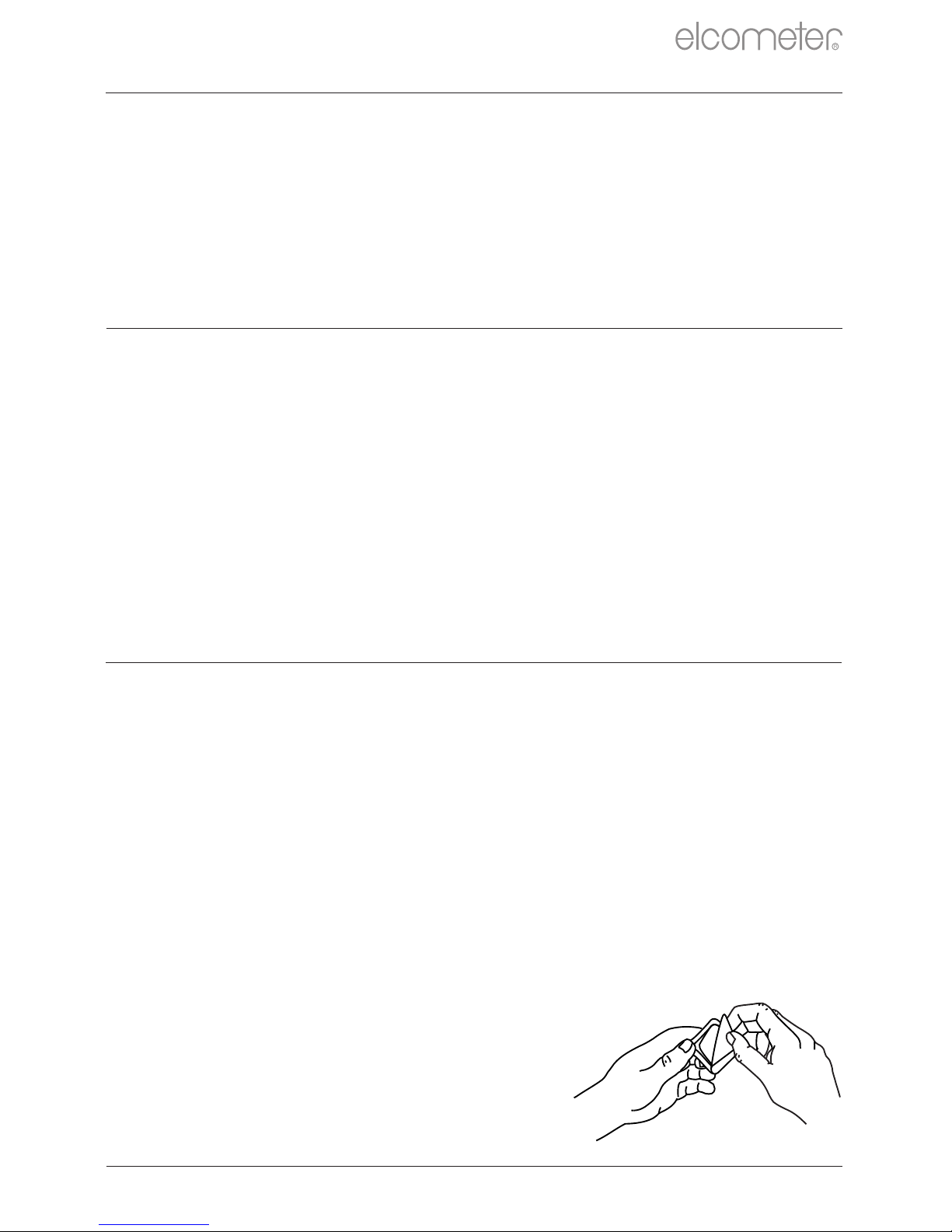

3.2 PRODUCING A SOLUTION
1 Remove the printed protective backing
and foam centre from the Bresle
patch.
3 TEST PROCEDURE (continued)
www.elcometer.com
en-3
R
a Pure water is available from Elcometer or your local Elcometer supplier, see Section 5 ‘Spares &
Accessories on page en-7.
b On un-pitted blast-cleaned areas, a period of 10 minutes has been found to be satisfactory, though this
time should be agreed by the interested parties.
c During steps 6 and 7, it is essential that no solution is lost. If any solution is lost, the test shall be rejected.
2 Apply the patch to the surface pressing
firmly around the perimeter of the patch to
ensure a complete seal and remove the
clear protective film cover using the
orange tab. a
3 Pour approximately 3ml of pure water into
the beaker, by eye. Fit a needle into the
syringe and suck 3ml into the syringe.
Throw away the remaining water in the
beaker, do not put the pure water back into
the bottle.
4 Insert the syringe into the patch
through the spongy foam perimeter at
an angle of approximately 30° to the
test surface so that it passes through
the foam into the compartment formed
by the elastomer film and the test
surface. If the patch is positioned in a
difficult position bend the needle as
required.
5 Inject the pure water into the patch.
Do not remove the needle.
If necessary, any air can be evacuated
into the syringe and allowed to stay above
the water in the syringe. Take care not to
re-insert the air during steps 6 and 7.
b
6 During a suitable period of time ,
without removing the needle, suck and
re-inject the solution at least four
c
times .
7 At the end of the period, extract as
much solution as possible and remove
c
the syringe from the patch .
8 Transfer the contents of the syringe
into the beaker.
9 Test the solution for chloride, iron or
pH as required - see Sections 3.4, 3.5
and 3.6.
3 TEST PROCEDURE (continued)
3.3 AFTER TEST
1 Record the temperature of the solution.
2 Remove the patch from the surface and clean the surface. If
required, any adhesive residue from the patch left on the test
surface can be removed by wiping with a cloth moistened with a
suitable solvent. Ensure that the solvent will not damage the
surface before use.
3 Rinse all components of the test kit, other than the patch, in fresh,
pure water. The components can then be used again.
3.4 TESTING FOR CHLORIDE
1 Remove a titrator from the plastic bottle
marked ‘Chloride’ and replace the cap on
the bottle immediately.
The test strips included in the kit have a
shelf life determined by the manufacturer.
Before using a test strip, always check that
the expiry date has not been exceeded.
The expiry date is marked on the test strip
container. Further information concerning
the use of test strips can be found in the
manufacturers’ instructions included in the
test strip container.
2 Insert the lower end of the titrator into the
solution. Do not allow the solution to
reach the yellow band at the top of the
titrator. Fluid will rise up the wick inside
the titrator by capillary action.
3 Allow the solution to completely saturate
the titrator wick; complete saturation is
indicated by the yellow band at the top of
the titrator changing to a dark blue colour.
4 Note the position on the numbered scale of the tip of the white
column which has become visible; this represents the Quantab
unit value.
5 Refer to the table on the bottle to convert the Quantab unit value
to chloride concentration; mg/L or ppm.
2
Note: The solution contains salt in a 3ml sample taken from a 12.5cm area.
Estimated salt / area as Sodium Chloride (according to ISO 8502-5):
2 2
µg/cm = 0.4 x concentration in ppm; mg/m = 4.0 x concentration in ppm
www.elcometer.com en-4
R
1
2
3
4
5
6
7
8
9
Q
U
A
N
T
A
B
5
6
7
8
9
Q
U
A
N
T
A
B
1
2
3
4
5
6
7
8
9
Q
U
A
N
T
A
B
1
2
3
4
5
6
7
8
9
Q
U
A
N
T
A
B
3.5 TESTING FOR IRON
1 Remove a test strip from the metal bottle
marked ‘Iron Test’ and replace the cap on
the bottle immediately.
The test strips included in the kit have a
shelf life determined by the manufacturer.
Before using a test strip, always check
that the expiry date has not been
exceeded. The expiry date is marked on
the test strip container. Further
information concerning the use of test
strips can be found in the manufacturers’
instructions included in the test strip
container.
2 Insert the lower end of the test strip
into the solution (pH 1 to 7, 15°C to
25°C) for 1 second.
3 Remove the test strip from the solution
and shake off excess liquid from the strip.
4 Wait 10 seconds.
5 Compare the test strip with the scale on the metal bottle.
Determine which of the scale colours coincides most exactly with
that of the test strip. 2+
6 Read off the corresponding result in mg/I Fe or, if necessary,
estimate an intermediate value.
3+
For determination of Fe and should any other colour changes occur,
refer to the manufacturers’ instructions included with the test strip
container.
Note: The colour of the reaction zone on the test strip may continue to change after
the specified reaction time (10 s) has elapsed. This must not be considered as a
measurement.
If the colour of the reaction zone is equal to or more intense than the darkest
colour on the scale, repeat the measurement using fresh samples diluted with
2+
pure water until a value of less than 500mg/l Fe is obtained. This must then be
multiplied by the corresponding dilution factor.
The reading will be the concentration of iron in 3ml of water. To compare this
reading with that of another collection method, scale the volume of water.
2
The sample is taken from an area of 12.5cm . To compare with another
collection method, scale the area.
www.elcometer.com
en-5
R
3 TEST PROCEDURE (continued)
Iron Test
100 Tests
mg/l Fe
0 3 10 25 50 100 250 500
2+
www.elcometer.com en-6
R

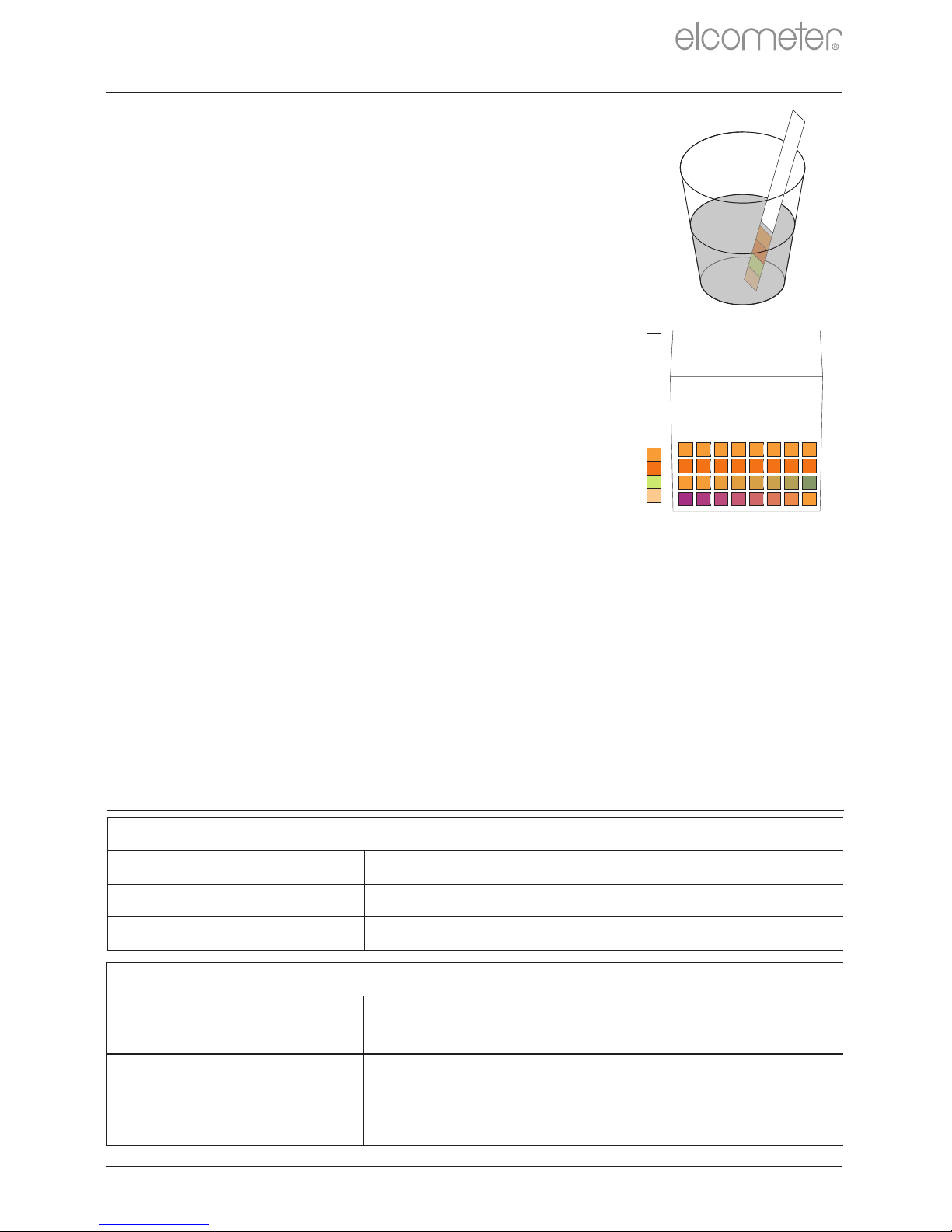

3.6 TESTING FOR pH
1 Remove a test strip from the plastic
container marked ‘pH 0 - 14’ and replace
the lid on the container immediately.
The test strips included in the kit have a
shelf life determined by the manufacturer.
Before using a test strip, always check that
the expiry date has not been exceeded.
The expiry date is marked on the test strip
container. Further information concerning
the use of test strips can be found in the
manufacturers’ instructions included in the
test strip container.
2 Insert the coloured end of the test strip into
the solution to a depth sufficient to cover
all coloured squares.
3 Remove the test strip from the solution
and shake off excess liquid.
4 Holding the test strip as shown, compare the test strip with the
coloured scale on the paper insert inside the plastic container.
Determine which of the scale colour groups coincides most with
that of the test strip.
5 Read of the corresponding pH value (0 to 14).
Note: For weak solutions, leave the test strip immersed in the solution for a period of
up to 10 minutes until there is no colour change, then proceed to step 3 above.
3 TEST PROCEDURE (continued)
pH 0 - 14
4 TECHNICAL SPECIFICATION
4.1 BRESLE PATCH
Patch Size
5cm x 5cm
Test Area
2
12.5cm
Sample Volume
3ml
4.2 TEST STRIPS - MEASURING RANGE
Chloride
-
30 to 600ppm Cl (0.005 - 0.1% NaCI)
2
(12 - 240µg/cm of ISO Salt Mix)
Iron
2+
3 - 10 - 25 - 50 - 100 - 250 - 500mg/l Fe in 3ml of
2
water from 12.5cm area
pH
0 to 14 pH
R
5 SPARES & ACCESSORIES
The Elcometer 138/2 Surface Contamination Kit is complete with all
the items required to get started and take measurements however,
over the life of the kit, replacements may be required. The following
items are available from Elcometer or your local Elcometer supplier.
Description Part Number
Elcometer 135C Bresle Test Patch, Pack of 25 E135----C25
Elcometer 135C Bresle Test Patch, Pack of 100 E135----C100
Elcometer 135B Bresle Patch, Pack of 25 E135----B
Chloride Test Strips, Pack of 40 T13820564
Iron Test Strips, Pack of 100 T13820563
pH Test Strips, Pack of 100 T13820562
Bottle of Pure Distilled Water; 250ml (8.5 oz) T13827259
Syringes, 5ml (0.17 oz); x3 T13818517
Needles (Blunt); x3 T13818518
Plastic Beaker; 30ml (1 oz) T13818519
6 LEGAL NOTICES & REGULATORY INFORMATION
is a registered trademark of Elcometer Limited, Edge Lane, Manchester, M43 6BU.
United Kingdom
All other trademarks acknowledged.
The Elcometer 138/2 Surface Contamination Kit is packed in a cardboard package. Please ensure that
this packaging is disposed of in an environmentally sensitive manner. Consult your local
Environmental Authority for further guidance.
CAUTION
The needles supplied for use with this kit are blunt, but care must be exercised when using
and disposing of these needles to prevent accidental needle stick injuries. It is
recommended that used needles be disposed of as special waste, and not in landfill.
R
TMA-0440 Issue 07 - Text with cover 20571
Guide d'utilisation
Elcometer 138/2
Kit de contamination de surface
www.elcometer.com
R
www.elcometer.com
En cas de doute, merci de vous référer à la version originale anglaise de ce manuel.
Dimensions du Kit : 346 x 292 x 84mm (13.6 x 11.5 x 3.3")
Poids du Kit : 2.1kg (4lb 7oz)
© Elcometer Limited 2010-2016. Tous droits réservés. Aucune partie de ce document ne peut être reproduite,
transmise, transcrite, stockée (dans un système documentaire ou autre) ou traduite dans quelque langue que ce
soit, sous quelque forme que ce soit ou par n'importe quel moyen (électronique, mécanique, magnétique, optique,
manuel ou autre) sans la permission écrite préalable d’Elcometer Limited.
SOMMAIRE
R
fr-1
Section
Page
1
Présentation
fr-2
2
Colisage
fr-2
3
Procédure de test
fr-2
4
Caractéristiques techniques
fr-6
5
Pièces de rechange et accessoires
fr-7
6
Informations légales et règlementaires
fr-7
Table of contents
Languages:
Other Elcometer Measuring Instrument manuals
Elcometer
Elcometer 456 Model E User manual
Elcometer
Elcometer Protovale 331 User manual
Elcometer
Elcometer 106 User manual
Elcometer
Elcometer 3000 Series User manual
Elcometer
Elcometer 456 User manual
Elcometer
Elcometer 138 User manual
Elcometer
Elcometer 224 User manual
Elcometer
Elcometer 2020 User manual
Elcometer
Elcometer 223 User manual
Elcometer
Elcometer 456 User manual
Elcometer
Elcometer 139 User manual
Elcometer
Elcometer 415 User manual
Elcometer
Elcometer Protovale CoverMaster CM52 User manual
Elcometer
Elcometer SAGOLA Classic S1 User manual
Elcometer
Elcometer 319/2 User manual
Elcometer
Elcometer SG80 User manual
Elcometer
Elcometer G116A-1 User manual
Elcometer
Elcometer 319 Standard User manual
Elcometer
Elcometer 345 User manual
Elcometer
Elcometer 102 User manual
