Elcometer 124 User manual

English

Elcometer 124

Foil Thickness Gauge

Operating Instructions

124_TMA_0078_00_01 (Part Number 4364).fm Page -1 Friday, May 8, 2009 11:22 AM

English

is a registered trademark of Elcometer Limited.

All other trademarks acknowledged.

system or otherwise) or translated into any language, in any form or by any means (electronic, mechanical,

magnetic, optical, manual or otherwise) without the prior written permission of Elcometer Limited

A copy of this Instruction Manual is available for download on our Website via www.elcometer.com.

Doc.No. TMA-0078 Issue 05

Text with Cover No: 4364

124_TMA_0078_00_01 (Part Number 4364).fm Page 0 Friday, May 8, 2009 11:22 AM

CONTENTS

Section Page

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Using a foil thickness gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Using the Elcometer 124 with Elcometer 122 Testex tape . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

5 Technical specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

6 Related equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

124_TMA_0078_00_01 (Part Number 4364).fm Page 1 Friday, May 8, 2009 11:22 AM

Thank you for your purchase of the Elcometer 124 Foil Thickness Gauge. Welcome to Elcometer.

Elcometer are world leaders in the design, manufacture and supply of inspection equipment for coatings

and concrete. Our products cover all aspects of coating inspection, from development through application

to post application inspection.

The Elcometer 124 Foil Thickness Gauge is a world beating product. With the purchase of this product you

now have access to the worldwide service and support network of Elcometer. For more information visit our

website at www.elcometer.com

1 INTRODUCTION

The Elcometer 124 Foil Thickness Gauge measures the thickness of sheet material, foils and the size of

small items.

It is mainly used to measure Elcometer 122 Testex Tape, which records surface profiles.

1.1 STANDARDS

Together, your Elcometer 124 Foil Thickness Gauge and Elcometer 122 Testex Tape can be used in

accordance with the following National and International Standards: ASTM D4417-C, BS ISO 8503-5,

NACE RP 0287, US Navy NSI 009-32, US Navy PP1 63101-000.

1.2 WHAT THE BOX CONTAINS

• Elcometer 124 Foil Thickness Gauge

• Operating Instructions

124_TMA_0078_00_01 (Part Number 4364).fm Page 2 Friday, May 8, 2009 11:22 AM

2 USING THE FOIL THICKNESS GAUGE

1. Open the jaws by the lever at the top of the dial

2. Insert the sample between the anvils. Gently release the lever.

3. The long needle indicates small changes in thickness, the short needle shows how many complete

turns made by the long needle.

To set Zero, check that the measuring faces of the anvils are clean. Release the knurled screw on the top

left of the dial and turn the scale until ‘0’ lines up with the end of the long needle. The short needle should

be close to ‘0’.

To calculate the thickness, first look at the short needle to see how many revolutions have been counted

on the small scale. Multiply this number by the full-scale value and add on the long needle reading to obtain

the total thickness.

The two black markers on the outer edge of the dial can be positioned to indicate the upper and lower

specification limits.

124_TMA_0078_00_01 (Part Number 4364).fm Page 3 Friday, May 8, 2009 11:22 AM

3 USING THE ELCOMETER 124 WITH ELCOMETER 122 TESTEX TAPE

Elcometer 122 Testex Tape comprises two layers of plastic; a soft layer which carries an impression of the

rough surface and a hard layer 50 microns (2 mil) thick which acts as a substrate for the soft layer. Only the

thickness of the soft layer needs to be recorded.

The Elcometer 124 can be set to subtract automatically the thickness of the hard layer from the total

thickness of the tape:

• Ensure the faces of the anvil are clean.

• Loosen the knurled screw near the top of the dial and rotate the large scale clockwise until the long

needle points to 150 microns or 8 mil.

• Tighten the knurled screw.

Readings of Elcometer 122 Testex Tape samples will now be shown directly by the long needle, effectively

by having 50 microns (2 mil) subtracted from the total thickness.

4 MAINTENANCE

Elcometer products are designed to give many years reliable service under normal operating and storage

conditions.

Ensure the anvils are kept clean.

124_TMA_0078_00_01 (Part Number 4364).fm Page 4 Friday, May 8, 2009 11:22 AM

5 TECHNICAL SPECIFICATION

Material: Stainless steel

Dimensions: 120 x 95 x 25mm (4.6 x 3.6 x 1.0”)

Weight: 260g (9oz)

Your Elcometer 124 Foil Thickness Gauge may be packed in a cardboard and foam package. Please

ensure that this packaging is disposed of in an environmentally sensitive manner. Consult your local

Environmental Authority for further guidance.

Scale: Metric Imperial

Total range: 5 mm (5000 microns) 0.25" (250 mil)

Each division: 0.002 mm (2 microns) 0.0001" (0.1 mil)

Full scale value: 0.2 mm (200 microns) 0.010" (10 mil)

Revolutions: 25 25

124_TMA_0078_00_01 (Part Number 4364).fm Page 5 Friday, May 8, 2009 11:22 AM

6 RELATED EQUIPMENT

In addition to the Elcometer 124 Foil Thickness Gauge, Elcometer produces a wide range of other thickness

equipment. Users of the Elcometer 124 Foil Thickness Gauge may also benefit from the following Elcometer

product ranges:

• Elcometer 122 Testex Replica Tape

• Elcometer 121 Universal Paint Inspection Gauge

For further information contact Elcometer, your local Elcometer supplier or visit www.elcometer.com

124_TMA_0078_00_01 (Part Number 4364).fm Page 6 Friday, May 8, 2009 11:22 AM

Other manuals for 124

Table of contents

Other Elcometer Measuring Instrument manuals

Elcometer

Elcometer MTG2 User manual

Elcometer

Elcometer 138 User manual

Elcometer

Elcometer CG100ABDL User manual

Elcometer

Elcometer 345 User manual

Elcometer

Elcometer 148 User manual

Elcometer

Elcometer 320 User manual

Elcometer

Elcometer 345 User manual

Elcometer

Elcometer E130-S User manual

Elcometer

Elcometer 112 User manual

Elcometer

Elcometer 106 User manual

Elcometer

Elcometer 456 User manual

Elcometer

Elcometer 138 User manual

Elcometer

Elcometer Novo-Gloss 401 User manual

Elcometer

Elcometer 3505 User manual

Elcometer

Elcometer Adhesion Verification Unit User manual

Elcometer

Elcometer 6700 User manual

Elcometer

Elcometer 102 User manual

Elcometer

Elcometer Elcomotor 312 User manual

Elcometer

Elcometer 331 H User manual

Elcometer

Elcometer G116A-1 User manual

Elcometer

Elcometer 124 User manual

Elcometer

Elcometer 331 Series User manual

Elcometer

Elcometer Protovale 331 User manual

Elcometer

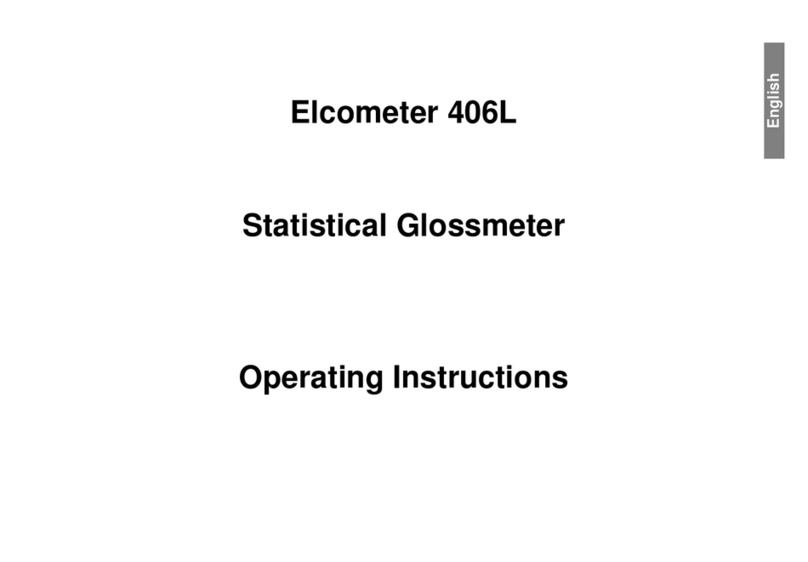

Elcometer 406L User manual
