Cuisinart CGWM-090 User manual
DO NOT RETURN YOUR TABLE TO THE STORE
Before visiting your local retailer, call our customer
service department at 1-866-994-6390 from 9:00 am
to 5:00 pm Eastern time, Monday through Friday.

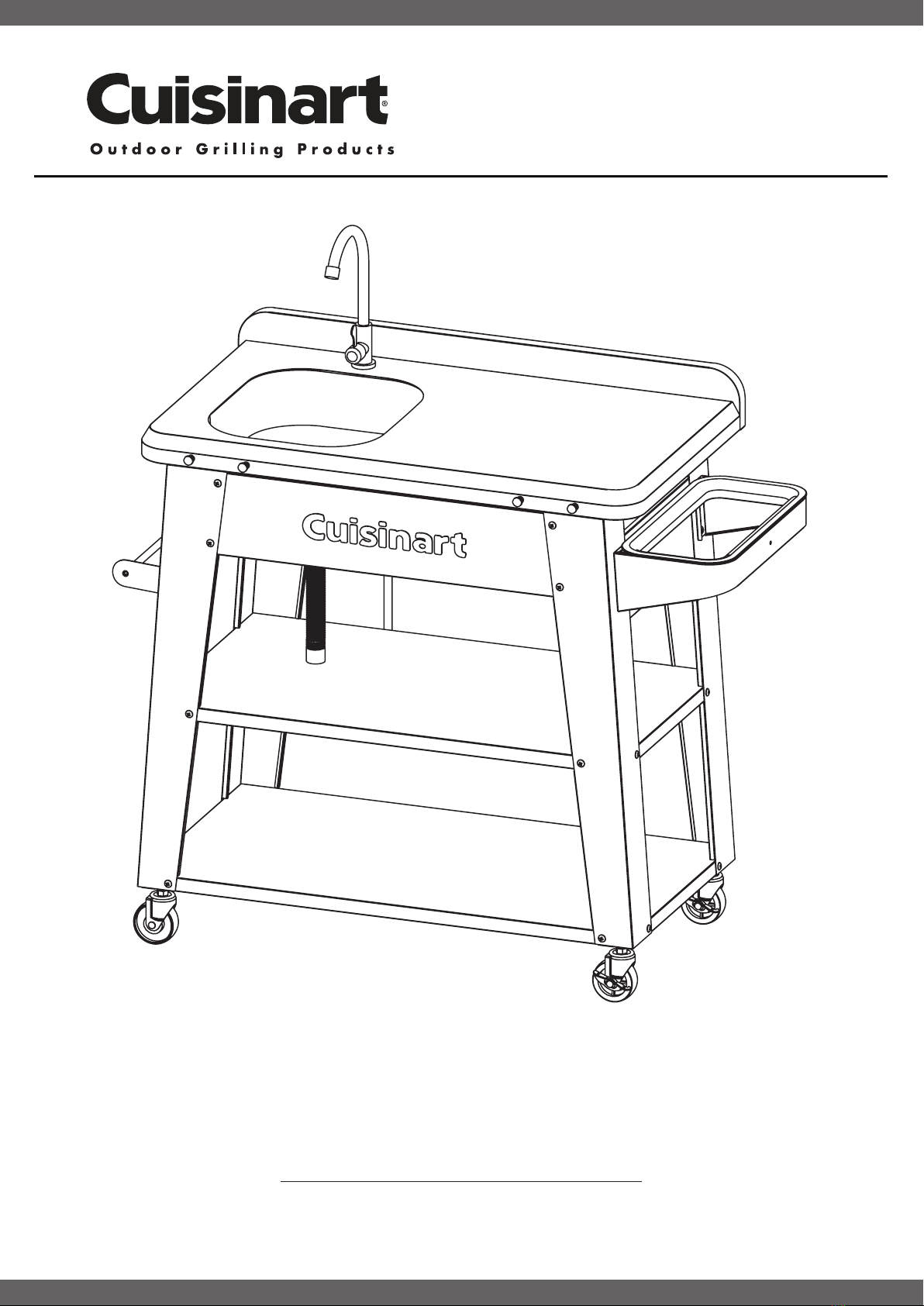

Model NO: CGWM-090
DELUXE OUTDOOR
PREP TABLE
Customer Service Hotline
1-866-994-6390
SAFETY INFORMATION
CARE AND MAINTENANCE
2
WARNINGS AND USAGE
-----------------------------------------------------------------------------------
IMPORTANT: ALL INSTRUCTIONS AND SAFEGUARDS IN THIS SECTION MUST BE FOLLOWED TO
PREVENT DAMAGE AND/OR INJURY.
• Sink to be used for rinsing/washing of hands and non-food items ONLY.
• Not for permanent installation.
• For outdoor use only
• Designed only for connection to a garden hose as the water supply.
• Water supply from garden hose is not intended for human consumption.
• Waste water should only be routed to a bucket and disposed of according to local code.
• Keep use of water away from electrical connections and outlets.
• Use caution with all electric appliances, tools, extension cords and lights on and around table.
• When not in use, disconnect water supply then drain water from faucet by partially opening the faucet knob.
• Do not use in freezing temperatures.
• Disconnect, drain all water lines and cover if leaving in freezing temperatures (recommended cover, model
CGWM-095).
• Surface can become hot in direct sun or high temperatures.
• Maximum top weight load of 50 LBS
• Maximum shelf weight load of 30 LBS
• Use only on level surfaces.
• Before use ensure wheels are height adjusted so that the table does not rock when in use.
• Lock wheels when in use.
• Before use insure drain and faucet function properly and are free of obstructions.
• Do not pour boiling water in the drain and avoid food waste entering the drain.
• Do not allow children to climb the product.
CALIFORNIA PROPOSITION 65 WARNING:
• WARNING: This product can expose you to lead, which is known to the State of California
to cause cancer and birth defects or other reproductive harm. For more information go to
CLEANING
-----------------------------------------------------------------------------------
Painted and Plastic surfaces
Wash with mild detergent or non-abrasive cleaner and warm water.
Stainless steel surfaces
Wash with mild detergent and warm soapy water or use a stainless steel cleaner. Wipe dry with a soft cloth
after each use. Wash only in the direction of the stainless brushed finish to avoid damage.
Stainless steel can rust under certain conditions. This can be caused by acidic marinades, chlorine, saltwater,
exposure to coastal climates, other natural elements, or improper cleaning tools such as wire or steel wool.
Faucet
If faucet ever becomes clogged, turn off the water supply, unscrew the faucet tip, clean the screen and reinstall.
WHAT’S IN THE BOX
2(x1)
(x1)
(x1)
(x1)
(x1)
(x2)
(x1)
(x2)
(x1)
(x4)
(x1)
(x1)
(x2)
(x1)
(x1)
(x1)
(x1)
(x2)
(x40) (x1)
(x1)
(x1)
1
3
4
5
6
7
8
9
13
12
11
10
14
15
16
17
18
19
20
AA
(x40)
BB
CC
PART PARTDESCRIPTION DESCRIPTIONQTY QTY
3
Counter Top
Assembly
Non-Locking
Caster
Garbage Bag
Ring
Garbage Bag
Support
Side Panel
Rear
Support
Water Supply
Hose
Name Plate
Left Back
Leg (LB)
Upper
Shelf
Left Front
Leg (LF)
Right Back
Leg (RB)
Paper Towel
Bar
Right Front
Leg (RF)
Towel Bar End
Lower
Shelf
Drain
Assembly
Screw
Lock Washer
Locking
Caster
Wrench
Faucet
Assembly
Utensil
Hanger
COMPONENTS
-----------------------------------------------------------------------------------
HARDWARE AND TOOLS
-----------------------------------------------------------------------------------
EXPLODED VIEW
4
Assembly Tip: To avoid scratching prep table and to protect floor/patio surfaces, reuse cardboard packaging
and lay parts on top while assembling.
STEP 1
-----------------------------------------------------------------------------------
To create “screw assemblies” for future steps, install all 40 of the lock washers (BB) onto all 40 screws (AA).
Install locking casters (20) and non locking casters (10) on opposing ends as shown. Use the double-ended
open wrench (CC) to attach the 4 casters (20, 10) onto the bottom of the lower shelf (16).
ASSEMBLY INSTRUCTIONS
Please be careful when handling components. Always wear work gloves during assembly and set up. Read
and follow all safety statements, warnings, assembly instructions and use and care instructions before
attempting to assemble and use. Before beginning assembly of product, make sure all parts are present.
Compare parts with package contents list and hardware contents list. If any part is missing or damaged, DO
NOT attempt to assemble the product.
Estimated Assembly Time: 1 hour
Tools required for assembly: (included) Wrench, (not included) Phillips Head Screwdriver (magnetic tip will be
helpful), Gloves
Screw Assembly
AA BB
ASSEMBLY PREPARATION
5
Included Not Included
ASSEMBLY INSTRUCTIONS
STEP 2
-----------------------------------------------------------------------------------
Use screw assemblies to attach the middle portion of left back leg (5) (LB) and the right back leg (17) (RB) to the
upper shelf (16) as shown below.
• Note: it is important to not fully tighten the screws during initial assembly of the parts. Wait until
the end of step 13 to complete assembly by fully tightening all of the screws.
• Note: Legs are punched with markings to indicate position for assembly, (LB, RB, LF, RF).
• Note: Assembly for the next 4 steps is done with the unit laying on its’ back.
STEP 3
-----------------------------------------------------------------------------------
Use screw assemblies to attach the lower shelf (19) assembly to the lower portion of the left back leg (5) (LB)
and the right back leg (17) (RB). Note that the locking casters (20) are to the right and only side screws are
installed into the legs for this step.
6
2
2
2
x 2
x 2
STEP 4
-----------------------------------------------------------------------------------
Use screw assemblies to attach the left front leg (6) (LF) and the right front leg (18) (RF) to the lower shelf (19)
and the upper shelf (16). Note that only side screws are installed into the legs for this step.
STEP 5
-----------------------------------------------------------------------------------
Use screw assemblies to complete attachment of all four legs as shown.
Tip upright to install rear screws.
ASSEMBLY INSTRUCTIONS
7
2
2
x 4
x 8

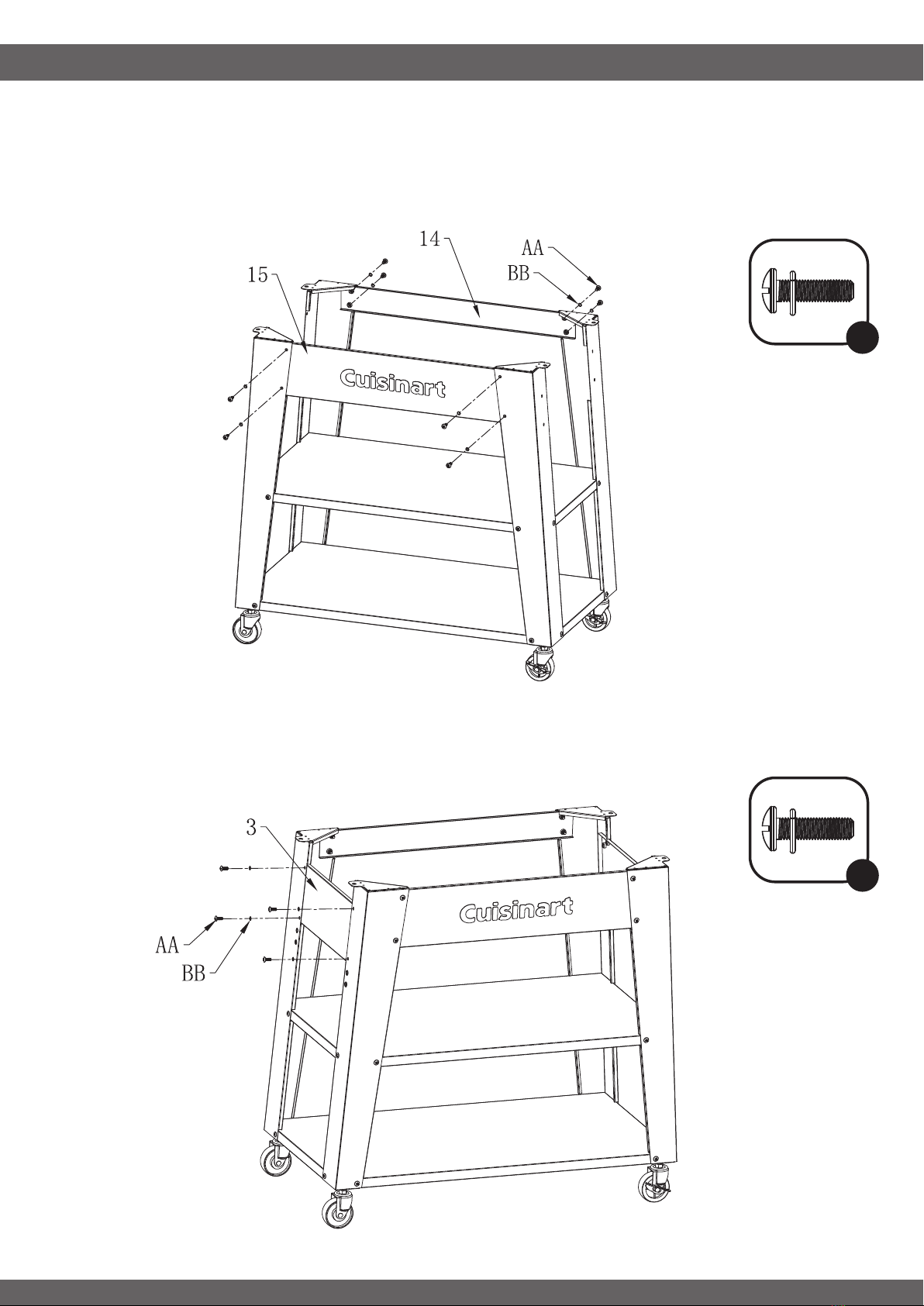

STEP 6
-----------------------------------------------------------------------------------
Use screw assemblies to attach name plate (15) to the left front leg (6) (LF) and the right front leg (18) (RF). Next
use screw assemblies to attach the rear support to the left back leg (5) (LB) and the right back leg (17) (RB).
STEP 7
-----------------------------------------------------------------------------------
Use screw assemblies to attach the side panel (3) to the left leg assembly using four screws.
ASSEMBLY INSTRUCTIONS
8
2
2
2
2
x 4
x 8
STEP 8
-----------------------------------------------------------------------------------
Use screw assemblies to attach the side panel (3) to the right leg assembly using just the top two screws.
Install these screws only half way in to allow for parts to be assembled in the next step.
STEP 9
-----------------------------------------------------------------------------------
Use screw assemblies to attach the garbage bag support (12) to the right leg assembly using the two
previously installed screws and the slotted upper holes. Then install two screws in the lower holes to secure in
place.
ASSEMBLY INSTRUCTIONS
9
2
2
x 2
x 2

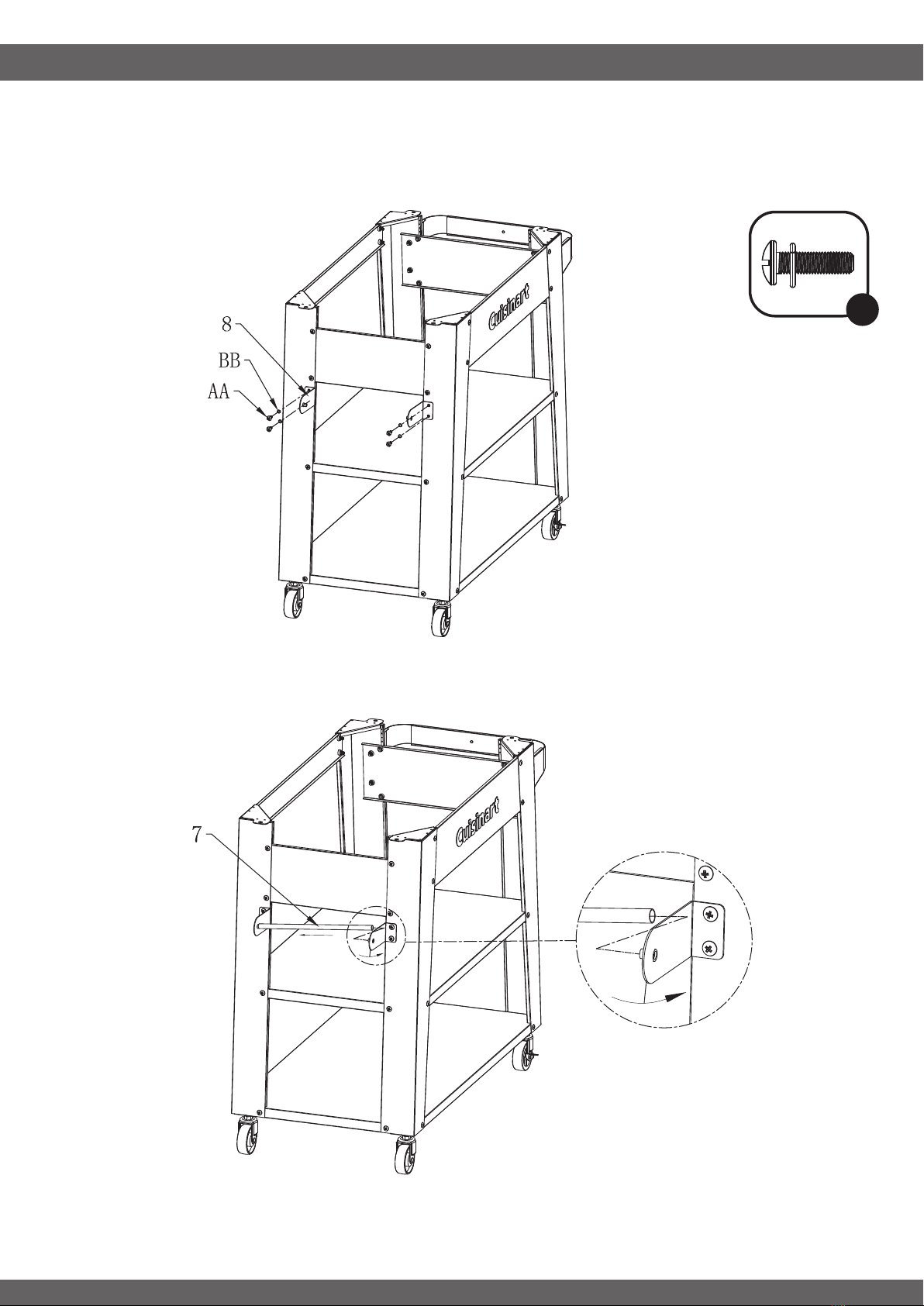

STEP 11
-----------------------------------------------------------------------------------
Install the paper towel bar (7) between the two towel bar ends (8) by flexing them slightly outward inserting bar
and releasing.
STEP 10
-----------------------------------------------------------------------------------
Use screw assemblies to attach both of the towel bar ends (8) to the left leg assembly.
ASSEMBLY INSTRUCTIONS
10
2
2
x 4
