Berkel 823E User manual

3

MEAT TABLE AND CARRIAGE

ASSEMBLY

4

MEAT TABLE AND CARRIAGE

ASSEMBLY

ITEM DESCRIPTION 823E 825E

22 Grub Screw 825-00086 825-00086

26 Gauge Plate 823-00003 825E-00003

27 Gauge Plate Support 823-00004 823-00004

28 Washer 825-00006 825-00006

29 Screw 825-00089 825-00089

41 Screw 825-00021 825-00021

45 Handle, Pusher 825-00080-A 825-00080-A

46 Pusher, Complete 823-00009 825-00009

47 Bushing 823-00079 825-00079

48 Wearing Pad 823-00082 827-00082

49 Shaft 823-00084 825-00084

50 Product Table 823-00008 825-00008

51 Washer 3301-03812 3301-03812

52 Product Table Support 823-00402 823-00402

53 Knob, Carriage 823-00040-A 823-00040-A

54 Handle, Carriage 825-00037-A 825-00037-A

55 Screw 825-00087 825-00087

56 Round Rail 823-00013 823-00013

57 Spring 825-00020 825-00020

58 Bushing 823-00218 823-00218

59 Carriage, Complete 823-00012 823-00012

60 Screw 825-00050 825-00050

62 Screw 825-00017 825-00017

63 Bearing 825-00015 825-00015

64 Washer 825-00016 825-00016

5

KNIFE AND GAUGE PLATE ASSEMBLY

6

KNIFE AND GAUGE PLATE ASSEMBLY

ITEM DESCRIPTION 823E 825E

1Aluminum Knob 823-00403 823-00403

2Center Plate 823-00404 825-00401

3Insert, Center Plate 825-00135 825-00135

4Screw, Knife 825-00074 825-00074

5Knife 823-00073 825-00073

6Ring Guard 823-00408 825-00408

7Knob 827-00103-A 827-00103-A

8Screw 825-00101 825-00101

9Washer 823-00123 823-00123

10 Screw 825-00021 825-00021

11 Rubber Ring Part of #12 Part of #12

12 Pulley Assembly 823-00067-2 823-00067-2

13 Pulley Shaft Part of #12 Part of #12

14 Bearing Part of #12 Part of #12

15 Bearing Part of #12 Part of #12

16 Circlip Part of #12 Part of #12

17 Circlip Part of #12 Part of #12

31 Plate 825-00026 825-00026

32 Screw 825-00032 825-00032

33 Nylon Pin 825-00030 825-00030

34 Support, Assembly 823-00022 823-00022

35 Spring 825-00024 825-00024

36 Nut 2175-00387 2175-00387

37 Grub Screw 825-00031 825-00031

38 Screw, Brass Part of # 34 Part of # 34

39 Nut Part of # 34 Part of # 34

40 Cam Pin 825-00027 825-00027

41 Screw 825-00021 825-00021

42 Index Cam 825-00025 825-00025

43 Washer, Spring 825-00095 825-00095

44 Washer 823-00405 823-00405

7

Housing and Electrical

8

Housing and Electrical

ITEM DESCRIPTION 823E 825E

10 Screw 825-00021 825-00021

18 Housing N/A N/A

19 Knob, Slice Deflector 825-00091 825-00091

20 Slicer Deflector 825-00011 825-00011

21 Grub Screw 823-00061 823-00061

22 Grub Screw 825-00086 825-00086

23 Tie Rod, Center Plate 823-00075-A 823-00075-A

24 Ribbed Belt 825-00066-R 825-00066-R

25 Rubber Foot 825-00093 825-00093

30 Index Knob 825-00035-A 825-00035-A

32 Screw 825-00032 825-00032

36 Nut 2175-00387 2175-00387

41 Screw 825-00021 825-00021

65 Square Rail 823-00014 823-00014

66 Washer 825-00006 825-00006

67 Cover 823-00406 823-00406

68 Spacer 823-00407 823-00407

69 Clamp, Capacitor 825-00043 825-00043

70 Cord Clamp 3675-00224 3675-00224

71 Capacitor 827-00042 827-00042

72 Power Cord 4175-00031 4175-00031

73 Cord Clamp 827-00127 827-00127

74 Switch 823-00039-1 823-00039-1

75 Screw 823-00058 823-00058

76 Washer 825-00006 825-00006

77 Wing Nut 825-00056 825-00056

78 Washer 825-00006 825-00006

79 Plate, Motor 825-00055 825-00055

80 Tie Rod, Motor 825-00053 825-00053

81 Motor 823-00048-R 823-00048-R

82 Pin 825-00060 825-00060

9

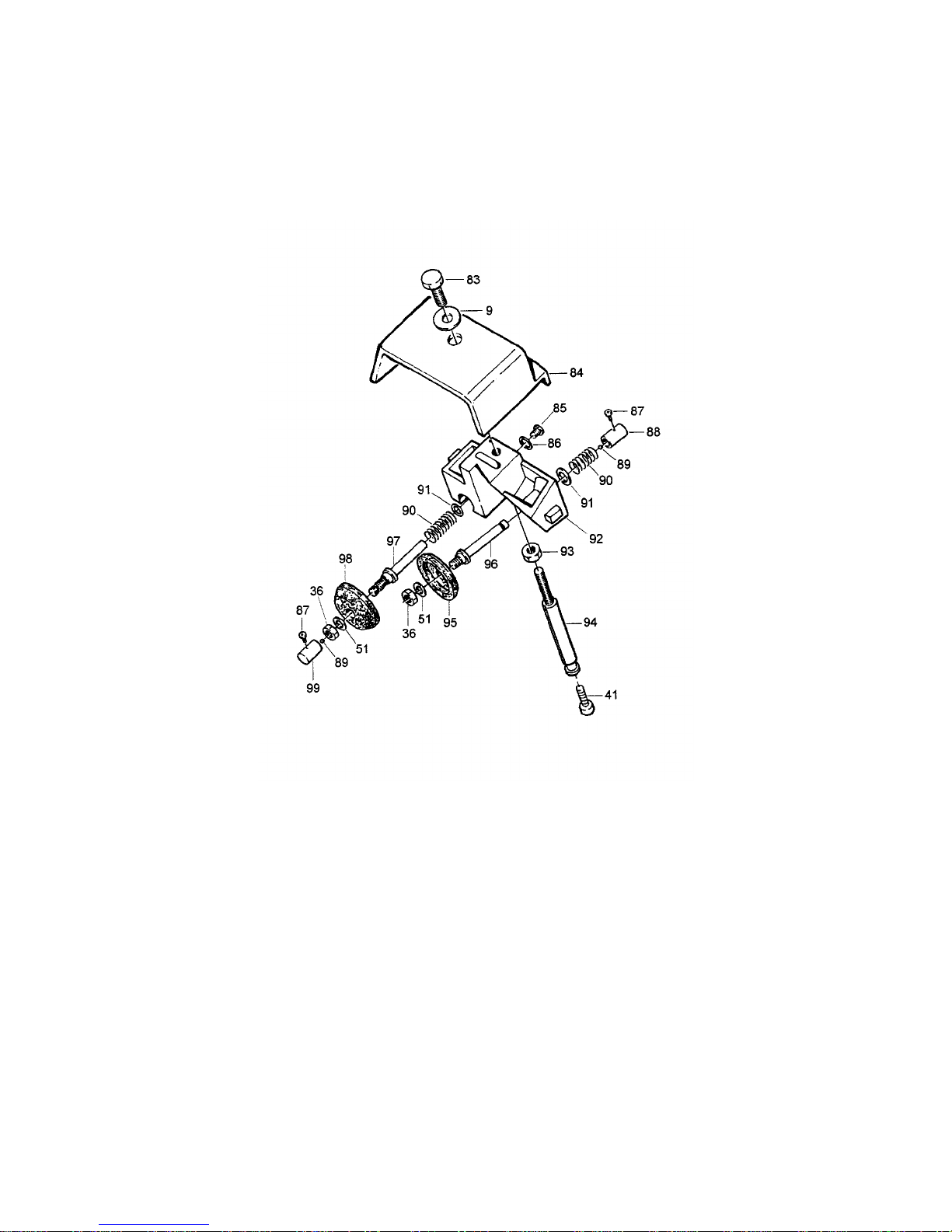

SHARPENER ASSEMBLY

10

SHARPENER ASSEMBLY

ITEM DESCRIPTION 823E 825E

9Washer 823-00123 823-00123

36 Nut 2175-00387 2175-00387

41 Screw 825-00021 825-00021

51 Washer 3301-03812 3301-03812

83 Screw 825-00122 825-00122

84 Cover, Sharpener 823-00400 823-00400

85 Screw S-00781 S-00781

86 Washer 823-00114 823-00114

87 Screw 825-00118 825-00118

88 Push Button 823-00401 823-00401

89 Ball, 1/8 2375-00150 2375-00150

90 Spring 825-00117 825-00117

91 Washer 3301-03812 3301-03812

92 Sharpener Frame 825-00108 825-00108

93 Nut 2101-07041 2101-07041

94 Shaft, Sharpener 823-00104 825-00104

95 Stone 825-00111 825-00111

96 Shaft 825-00109 825-00109

97 Shaft 825-00110 825-00110

98 Stone 825-00112 825-00112

99 Push Button 825-00115 825-00115

99 Push Button 825-00115 825-00115

NS Berkel Flag I2602RED I2602RED

NS Screw for Berkel Flag V6371 V6371

N/S Sharpener Assembly w/Cover 823E-00130 825E-00130

11

825A & 827E

Exploded Views

12

MEAT TABLE AND CARRIAGE

ASSEMBLY
