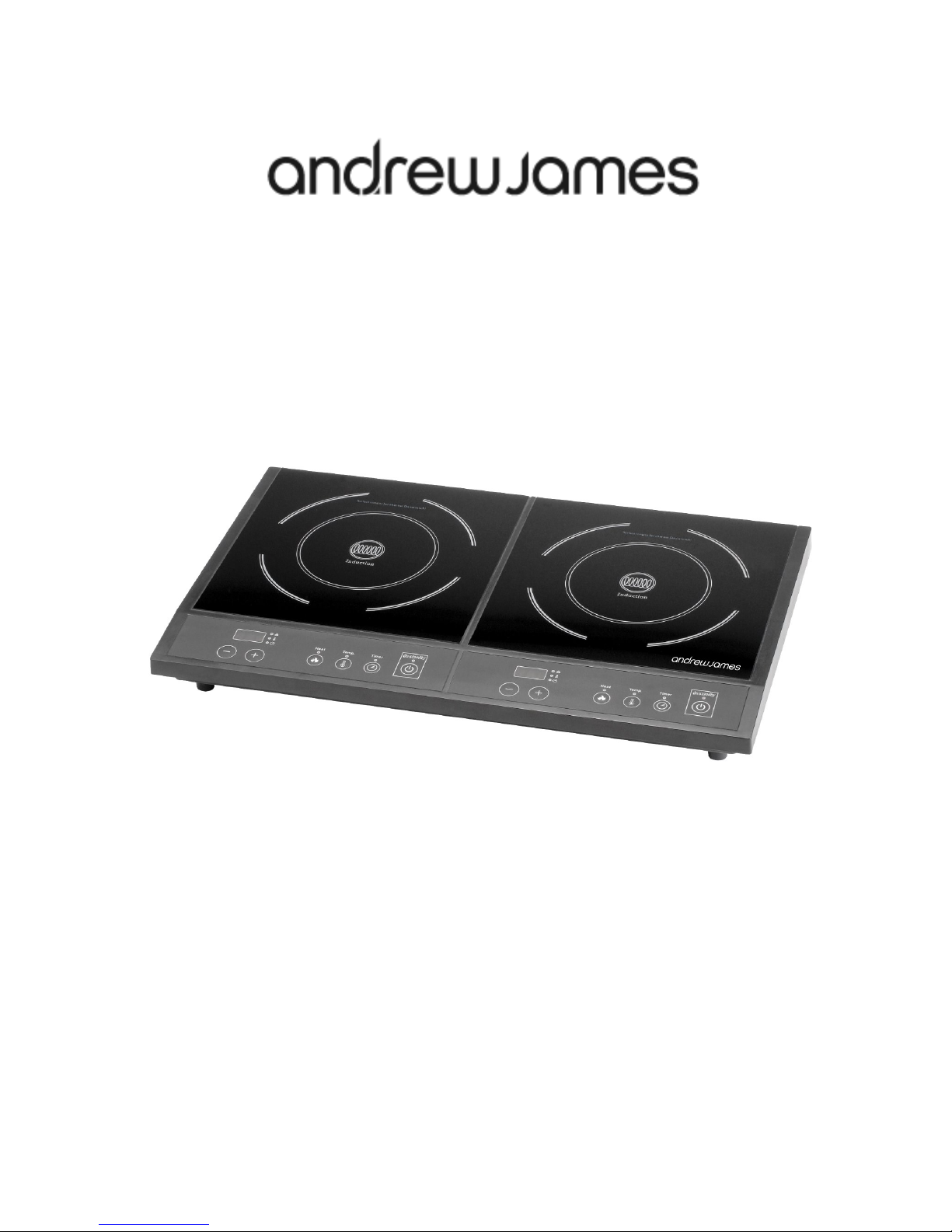

Andrew James Double Induction Cooker User manual

Please read the manual fully before using the appliance and keep the

manual safe for future reference.

Double Inducon Cooker

Contents page

General Safety instrucons

Appliance specic safety instrucons

Page 3

Page 4

Installing the device Page 5

Commissioning the device Page 5

Operang the device Page 6

Cleaning and Maintenance Page 7

Troubleshoong Page 8

Electrical Informaon Page 9

Disposal of the appliance Page 11

UK and EU Guarantee Page 11

General safety instrucons

When using any electrical appliance, basic safety precauons should always be fol-

lowed including:

 This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilies or lack of ex-

perience and knowledge if they have been given supervision or instrucon

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children unless they are older than 8 and

supervised. Keep the appliance and its cord out of reach of children less than

8 years old.

 Always ensure the voltage on the rang label corresponds to the voltage in

your home.

 Check the power cord and plug regularly for any damage. If the cord or the

plug is damaged, it must be replaced by a qualied electrician or a service

repair centre. If in doubt please contact our customer service team.

 The appliance is intended for domesc use only. Industrial or commercial

use will void the warranty. The supplier cannot be held responsible for injury

or damage if the appliance has been used for anything other than its intend-

ed use.

 Incorrect operaon and use can damage the appliance and cause injury to

the user.

 Do not use the appliance if it has been dropped or damaged in anyway. If the

unit has been damaged take the unit for examinaon and or repair by and

authorised service agent.

 Do not immerse or expose the motor assembly, plug or the power cord in

water or any other liquid for any reason.

 If the supply cord is damaged, it must be replaced by the manufacturer or by

someone who is suitably qualied to avoid a potenal hazard.

 Do not let the cord hang over the edge of a table or counter. Ensure that the

cord is not in a posion where it can be pulled or tripped over accidentally.

 Do not allow the cord to touch hot surfaces and do not place the cord near

hot gas or electric burners or in a heated oven.

 Use of an extension cord with this appliance is not recommended. However

if it is necessary to use an extension cord, ensure that the extension cord is

equal to or greater than the power consumpon of the appliance to avoid

overheang of the appliance and extension cord. Do not use any other appli-

ance on the extension cord. Do not place the extension cord in a posion

where it can be pulled on by children or animals or be tripped over.

 Always operate the appliance on a smooth, even and stable surface. Do not

place the unit on a hot surface.

 Always remove the plug of the appliance safely. Do not pull on the

appliances cord to remove the appliance plug from the electrical socket.

 Never handle or operate the appliance with wet hands.

Appliance specic safety instrucons

 Do not move the inducon hotplate during cooking or when it has hot

cookware on top of it.

 Do not place any empty containers on the device.

 Do not place any metal objects on the device.

 Only qualied electricians may perform repairs and maintenance work on

the device using original replacement and accessory parts. Never aempt to

repair the device yourself.

 The appliance is not intended to be operated by means of an external mer

or separate remote-control system. Only use pans that are smaller or of

equal size of the surface area of the inducon hob.

 WARNING: If the surface is cracked, switch o the appliance to avoid the

possibility of electric shock.

 The appliance is not to be used by children or persons with reduced physical,

sensory or mental capabilies, or lack of experience and knowledge, unless

they have been given supervision or instrucon.

 Suitable pot diameter: 16-26cm.

Installing the device

 Place the device on a stable and level surface.

 Never place the device on a ammable surface (e.g. table cloth, carpet, etc.).

 Do not block the venlaon slots of the device. This may overheat the

device. Keep a min distance of 5 to 10 cm to walls or other items.

 Do not place the inducon hotplate next to devices or objects, which react

sensively to magnec elds (e.g. radios, TV’s, cassee recorders, etc.).

 Do not place inducon hotplates next to open res, heaters or other sources

of heat.

 Make sure that the mains connecon cable is not damaged or squashed

beneath the device.

 Make sure that the mains connecon cable does not come into contact with

sharp edges and/or hot surfaces.

Commissioning the device

 Prior to connecng the device, check that the voltage indicated on the rang

plate corresponds to the voltage supply in your home. An incorrect

connecon may lead to serious damage to the device and injury to persons.

 The hotplates surface consists of temperature-resistant ceramics. If any

damage is visible, disconnect the device from the power supply immediately

and contact customer services.

 We recommend not placing metal kitchen utensils, cookware or pan lids,

knives or other metal objects on the hotplate. These may heat up when the

device is turned on.

 In order to avoid overheang, do not place any aluminium foil or metal

plates on the device.

 Do not insert any objects like wires or tools into the venlaon slots.

Aenon: this may cause electric shocks.

 Do not touch the hot surface of the ceramic eld. Please note: the inducon

hot plate does not heat up itself during cooking, but the temperature of the

cookware heats up the hotplate.

 Do not heat up any unopened ns on the inducon hotplate. A heated n

could explode, therefore remove the lid beforehand.

 Scienc tests have proven that inducon hotplates do not pose a risk.

However, persons with a pacemaker should keep a minimum distance of 60

cm to the device while it is in operaon.

Operang the device

 Plug the lead into a suitable power outlet and an acousc signal will sound

 Place inducon compable cookware in the centre of the hotplate. Please

note you can test the suitability of the cookware by placing a magnet (such

as a fridge magnet) onto the boom of the cookware. If the magnet aaches

to the boom of the cookware, the cookware is suitable to use with the

inducon hob.

 Press the On/Standby key once, the LED display will show “L” and the power

indicator light will ash. The cooking funcon is now ready to be selected.

(Note: if no operaon is selected for 30 seconds aer pressing the On/

Standby key, the indicator light will automacally turn o).

 Press the funcon key once, the pre-set power stage “5” is selected and the

device will begin to heat.

 You can change the power seng with the arrow keys at any me from the

power range of 1-10.

 Press the funcon key a second me to select the temperature seng. The

pre-set temperature “120˚C” will automacally be selected.

 The temperature seng can then be changed from a range of 60-240˚C by

using the arrow keys.

 The inducon hob can be changed from the power level seng mode to the

temperature seng mode at any me during the operaon by pressing the

funcon key and selecng the desired funcon. The value last set in the

respecve operang mode will be stored upon switch over.

 Press the funcon key a third me and the me funcon will be selected.

 The display will show the number “0”. The arrow keys can then be used to

select the desired me in 5 minute intervals. (up to a max of 180 minutes)

 The display will then count down the duraon in minutes. Please note that

the me, power level and temperature seng can all be changed

individually during the cooking process.

 Once the cooking or warming process is complete, disconnect the mains plug

from the power outlet.

 Do not place any empty cookware on the ceramic plate. Heang an empty

pot or pan will acvate the overheang protecon and the device will turn

o.

 Do not operate the device if it is damaged in anyway or does not funcon

properly.

 The use of accessories and spare parts not recommended by the

manufacturer may lead to damaging the device and injury to persons.

 Please note that both sides of the inducon hob can be used at the same

me.

Cleaning and Maintenance

 Ensure that the power plug is not connected to a socket prior to cleaning the

device. Do not use any causc cleaning agents and make sure that no water

penetrates the device.

 To protect yourself from electric shocks, never immerse the device , its

cables and the plug in water or other liquids.

 Wipe the appliances ceramic eld with a so cloth and a mild detergent.

 Do not use any petrol products as this will result in damage to the plasc

components and the operang panel.

 Do not use any ammable, acidic or alkaline materials or substances near the

device, as this may reduce the service life of the device and lead to

deagraon when the device is turned on.

 Make sure the boom of the cookware does not scrape across the surface of

the ceramic eld as this could lead to the surface becoming scratched.

 Make sure that the device is properly cleaned before storing it in a dry

place.

Electronic control of low voltage (<160V) Make sure the appliance is connected to

the voltage indicated on the rang label.

Electronic control of excess voltage

(<270V)

Make sure the appliance is connected to

the voltage indicated on the rang label.

IGBT open or short circuit Please send back to customer service

Overheang protecon on power mode

(>150˚C)

Eliminate the course of overheang.

Once the cooktop has cooled, the

appliance can be put into operaon

Temperature sensor open or short

circuit

The temperature sensor underneath the

glass ceramic plate is defecve. Please

send back to customer service.

Overheang protecon on TEMP. mode

(>240˚C)

Eliminate the course of overheang.

Once the cooktop has cooled, the

appliance can be put into operaon

again

Temperature sensor malfuncon Please send back to customer service.

LED ashing “L” then power switching

o

Test that the cookware you are using is

inducon compable. If the cookware is

compable contact customer services.

Troubleshoong

Problem Soluon

Electrical informaon

Please note:

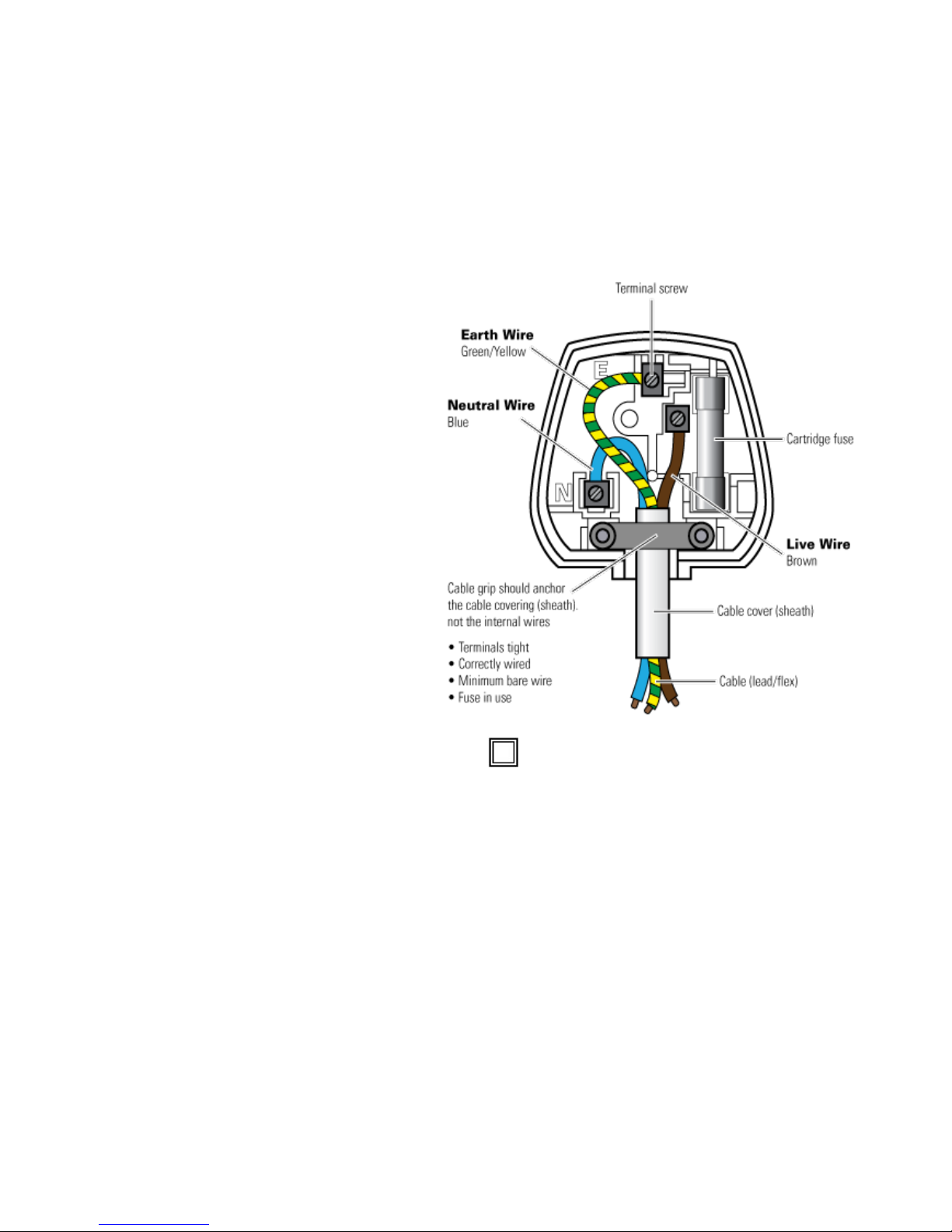

It is extremely important that the wires or cores in the ex are connected to the

correct terminals in the plug. If the colour of the mains lead of the appliance does

not correspond with the coloured markings idenfying the terminals in your plug

proceed as follows:

 The Live (Brown) wire

connects to the right- most

live (L) terminal nearest to

the fuse.

 The Neutral (Blue) wire

connects to the le-most

neutral (N) terminal.

 The Earth (Green and

Yellow) wire connects to

the central, top most

earthed (E) terminal.

Warning:

If the appliance is double insulated

indicated by the double insulated symbol:

it should not have an earth wire or earth connecon.

Plug

The plug must be protected by the correct AMP fuse; this will be indicated on the

case of the plug. Only BSI or ASTA approved fuses should be used. When changing

the fuse always replace it with a fuse that is of the same idencal rang as the

original. If you are unsure about which plug or fuse to use, always refer to a

qualied electrician.

Please note aer replacing the fuse, ensure that the cover is correctly ed back

onto the plug. Never aempt to run the appliance if the plug does not have a cover.

If a moulded plug is ed and has to be removed take great care in disposing of the

plug and severed cable, it must be destroyed to prevent it from engaging into a

socket. If the supply cord is damaged it must be replaced by a service agent or a

similarly qualied person in order to avoid a hazard.

All of our electrical appliances conform to pre-exisng EC Direcves 2006/95/EC

(Low Voltage Direcve) and 2004/108/EC (EMC Direcves).

For further informaon please visit hp://www.esc.org.uk/industry/product-

safety/product-tesng-screening/kitchen-appliances/

Table of contents

Other Andrew James Kitchen Appliance manuals

Andrew James

Andrew James AJ001368 User manual

Andrew James

Andrew James Electric Wine Opener User manual

Andrew James

Andrew James Deluxe Griddle Pan User manual

Andrew James

Andrew James AJ001365 User manual

Andrew James

Andrew James Premium Soup Maker and Blender User manual

Andrew James

Andrew James AJ001080 User manual

Andrew James

Andrew James AJ000401 User manual

Andrew James

Andrew James AJ001403 User manual

Andrew James

Andrew James Hand Blender User manual

Andrew James

Andrew James AJ000629 User manual

Andrew James

Andrew James Food processor User manual

Andrew James

Andrew James AJ000632 User manual

Andrew James

Andrew James Electric Milk Frother User manual

Andrew James

Andrew James Ice Crusher Installation and operating manual

Andrew James

Andrew James Domestic Vacuum Sealer User manual

Andrew James

Andrew James Chocolate Fountain User manual

Andrew James

Andrew James Sandwich Press User manual

Andrew James

Andrew James Deluxe Ice Crusher User manual

Andrew James

Andrew James AS 19 User manual

Andrew James

Andrew James AJ000069 User manual

Andrew James

Andrew James Hand and stand Assembly instructions

Andrew James

Andrew James 5.2 L Food Mixer User manual

Andrew James

Andrew James AJ001231 User manual

Andrew James

Andrew James Digital Food Dehydrator User manual

Popular Kitchen Appliance manuals by other brands

Tayama

Tayama TYG-35AF instruction manual

AEG

AEG 43172V-MN user manual

REBER

REBER Professional 40 Use and maintenance

North American

North American BB12482G / TR-F-04-B-NCT-1 Assembly and operating instructions

Presto

Presto fountain popper instruction manual

Westmark

Westmark 1035 2260 operating instructions

Zanussi

Zanussi ZCG64396XA user manual

HOFFEN

HOFFEN SM-9302M instruction manual

Philips

Philips HD3133 user manual

Ronco

Ronco Beef Jerky User guide and recipes

Hendi

Hendi 470411 user manual

Livoo

Livoo MEN386 user manual

Vogue

Vogue D446 instruction manual

croydon

croydon WR-10313-700 instruction manual

ADE

ADE AUTOMATIC-L operating instructions

Chefman

Chefman RJ43-SQ Series user guide

Vacmaster

Vacmaster VP680 user guide

Jetmaster

Jetmaster 900HG operating instructions
