AUTOMATIC

DRYERS

Electric Model

LE7800XM

and

Gas Model

LG7801XM

Wave Ovens. Trash Compactors, Room Air Condltmners, Dehumldlflers, Automatic Washers, Clothes Dryers, Freezers. Refngerator-Freeze

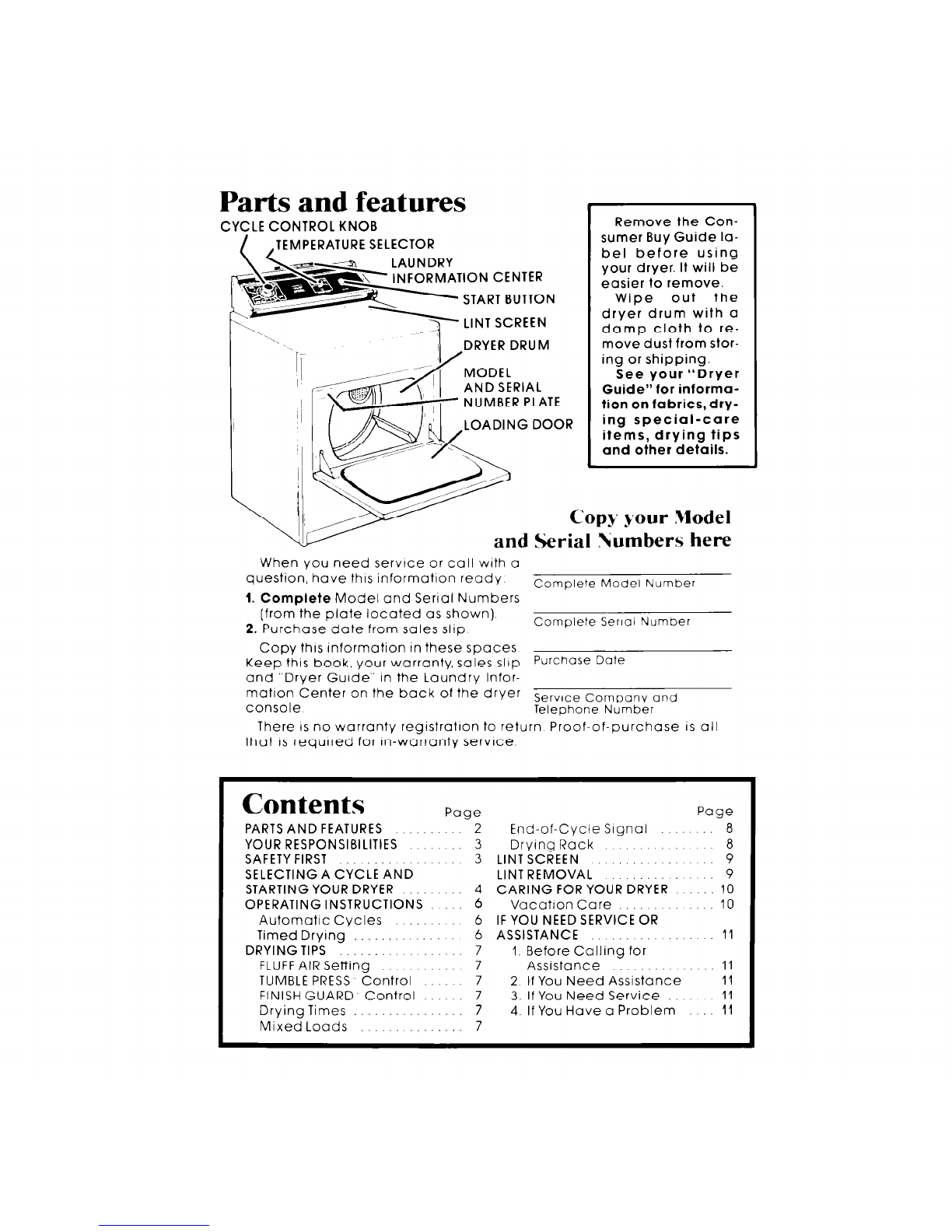

Parts and features

CYCLE CONTROL KNOB

/ ,TEMPERATURE SELECTOR

--.

I -. 1 DRYER DRUM

copy

your Model

and Serial Numbers here

When you need servtce or call with a

question, have this informatton ready

Complete Model Number

1. Complete

Model and Serial Numbers

(from-the plate located as shown)

2. Purchase date from sales slip

Complete Serlcl Number

Copy this Information tn these spaces

Keep this book, your warranty, sales slop Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

console Serv,ce Company and

Telephone Number

There IS no warranty registration to return Proof-of-purchase is all

that IS required for In-warranty service

Remove the Con-

sumer Buy Guide la-

~ bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

See your “Dryer

Guide” for informa-

tion on fabrics, dry-

ing special-care

items, drying tips

and other details.

~Contents

PARTS AND FEATURES

YOUR RESPONSIBILITIES

SAFETY

FIRST

SELECTING A CYCLE AND

STARTINGYOUR DRYER

OPERATING INSTRUCTIONS

Automatic Cycles

Timed Drying

DRYING

TIPS

FLUFF AIR Setting

TUMBLE PRESS Control

FINISH GUARD Control

Drying Times

Mixed Loads

Page 2

End-of-Cycle Signal

Drying Rack

LINT SCREEN

LINT REMOVAL

CARING FOR YOUR idYER

Vacation Care

IF YOU NEED SERVICE OR

ASSISTANCE

1. Before Calling for

Assistance

2 If You Need Assistance

3. If You Need Service

4. If You Have a Problem

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety Information.

You are personally responsible for

making sure that your dryer...

is installed by CI qualified installer.

is properly maintained.

. is installed in an area protected

from the weather.

is properly installed and leveled In

a well ventilated room’ on CI floor

that can support the weight.

is located in an area where the tem-

perature is above 45 F (7.2 C).

is connected to the right kind of out-

let, electric supply and grounding:

is properly connected to fuel and

exhaust systems.*

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

*See the “Installation Instructions” for

complete information.

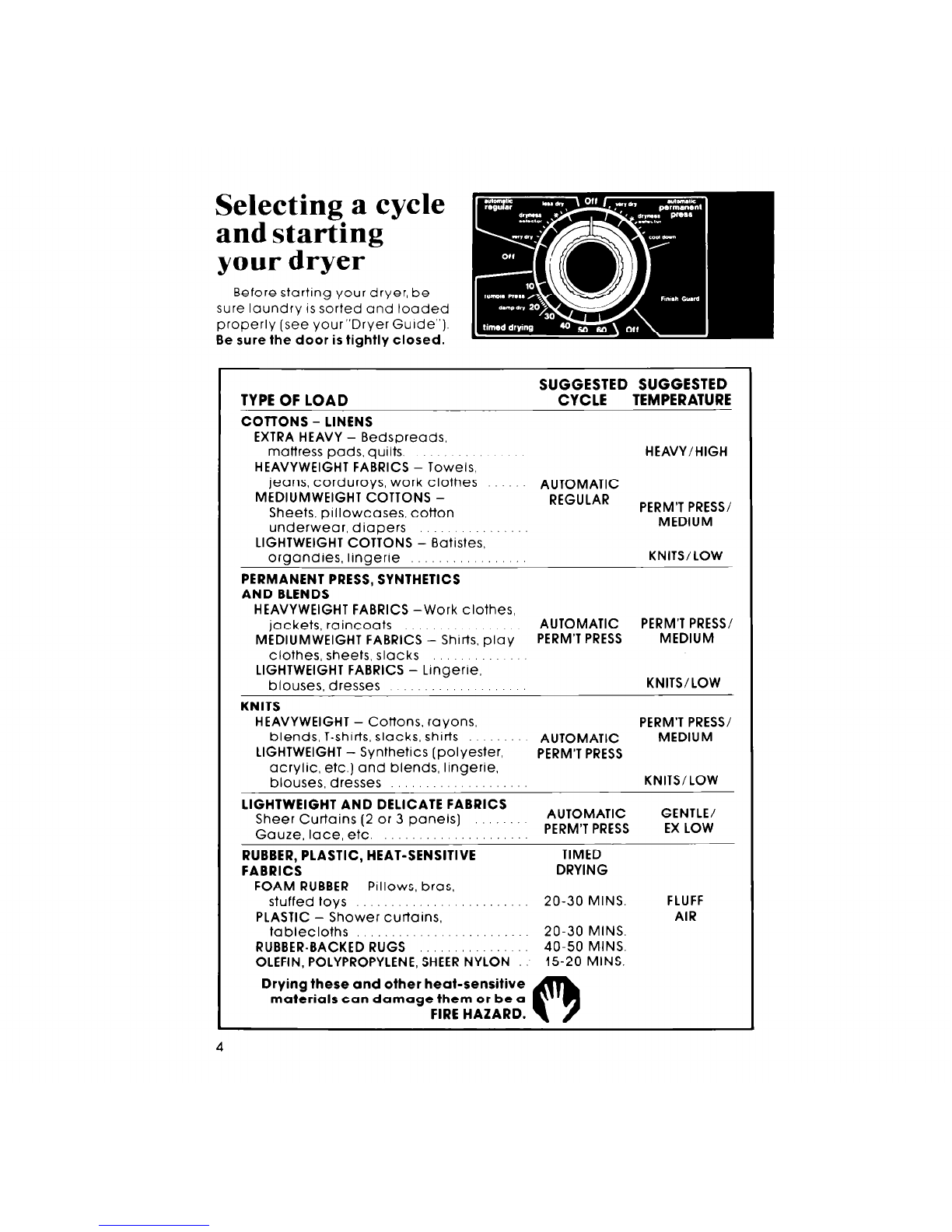

electing a cycle

and starting

your dryer

Before starting your dryer, be

sure laundry is sorted and loaded

properly (see your”Dryer Guide”).

Be sure the door is tightly closed.

TYPE OF LOAD SUGGESTED SUGGESTED

CYCLE TEMPERATURE

COTTONS - LINENS

EXTRA HEAVY

- Bedspreads,

mattress pods, quilts.

HEAVYWEIGHT FABRICS -~i&is, HEAVY/HIGH

jeans, corduroys, work clothes AUTOMATIC

MEDIUMWEIGHT COTTONS - REGULAR

Sheets, pillowcases, cotton

PERMIT PRESS/

underwear, diapers

MEDIUM

LIGHTWEIGHT COTTONS

- Batisles;

organdies, lingerie

PERMANENT PRESS, SYNTHETICS

AND BLENDS

KNITS/LOW

HEAVYWEIGHT FABRICS

-Work clothes,

jackets, raincoats

AUTOMATIC PERM’T PRESS/

MEDIUMWEIGHT FABRICS -

Shirts, ploy

PERMIT PRESS MEDIUM

clothes, sheets. slacks

LIGHTWEIGHT FABRICS

- Lingerie,

blouses, dresses

KNITS/LOW

KNITS

HEAVYWEIGHT - Cottons, rayons, PERM’T PRESS/

blends, T-shirts, slacks, shirts

AUTOMATIC MEDIUM

LIGHTWEIGHT

- Synthetics [polyester,

PERMIT PRESS

acrylic. etc.) and blends, lingerie,

blouses, dresses

KNITS/LOW

LIGHTWEIGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels)

AUTOMATIC GENTLE/

Gauze.

lace, etc. PERM’T PRESS

EX LOW

RUBBER, PLASTIC, HEAT-SENSITIVE TIMED

FABRICS DRYING

FOAM RUBBER

- Pillows, bras.

stuffed toys

20-30

MINS.

FLUFF

PLASTIC

- Shower curtains,

AIR

tablecloths 20-30 MINS.

RUBBER-BACKED RUGS 40-50 MINS.

OLEFIN, POLYPROPYLENE, SHEER NYLON 15-20 MINS.

Drying these and other heat-sensitive

materials can damage them or be a

FIRE HAZARD.

Select a

1. CYCLE Set TEMPERATL’RE

SELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

wont See page 6 for informatron on

the cycles.

Push the

3. START Button

Turn the Temperature Selector to the

needed drying temperature

To stop and restart

the dryer

The dryer will start tumbling when

you push the START Button.

Changing a setting

The setting con be changed at

any

time by turning the Control Knob to a

new setting.

To stop

the dryer, open the door for

turn the Control Knob to OFF).

To restart

the dryer, close the door,

select cycle, if necessary. and push

START

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Control Knob moves and stops

several times until the load reaches

the dryness setting you selected.

Then the knob automatically moves

to OFF and tumbling stops.

weight cotton items.

The load tum-

bles without heat during the last 5

minutes.

This helps make the load

easier to handle.

Use

AUTOMATIC

PERMANENT

PRESS to dry

permanent

press, knits and other synthetic fob-

rics.

The load tumbles without heat

during the last 10 minutes.

This helps

keep wrinkles from setting in

For the first few loads, set the Control

Knob to potnt to an*rn either auto-

matic cycle When the dryer stops,

feel the drred items

If items ore drier than you like, use

a settrng to the right of the*the next

time you dry CI srmilar load.

If items ore not as dry as you like,

use a setting to the left of the*the

next time you dry a similar load.

Timed drying

Use the TIMED DRY Cycle for any

load you wont to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFF AIR heat setting.

Turn the Control Knob to the number

of minutes you wont - from 10 to 60.

The last 5 minutes of this cycle ore

without heat - a cool down time.

This helps make the load easier to

handle.

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows,stuffed toyssneakers.

etc.

1. Turn the Temperature Selector to

FLUFF AIR.

2. Turn the Control Knob to the num-

ber of minutes you want in the

TIMED DRYING Cycle.

3. Push the START Button

Tl‘MHLE PHESS’i Setting

The TUMBLE PRESS setting removes

wrinkles from dry clothing.

Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/MED.

3. Push START Button,

The load will tumble in heated air

for 5 minutes. The heat shuts off and

the dryer continues to tumble the

load for 10 more minutes.

for best results, TUMBLE PRESS only

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops.

FINISII G1~.\RD Control

When you are not able to unload

the dryer as soon as It stops, wrinkles

can form

If you don’t open the door wrthrn 5

mrnutes atter the dryer stops, FINISH

GUARD takes over automatically

to protect the load You don’t have

tosei the Control Knob for FINISH

GUARD.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up

to 40 minutes. This tumbling rear-

ranges and fluffs the load to help

avoid the wrinkles that set in when

the load remains in the warm dryer.

Drying times

Drying times WIII vary depending on

amount of moisture in the clothes.

. type and weight of the fabric.

size of the load

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen.

dryer temperature selection

See page 6 in your “Dryer Gurde”

for more information.

Mixed loads

When drying a load with different

kinds and weights of fabrics, use the

cycle suggested for the lightest

fabrics. When the dryer stops, remove

dry items and reset the control. 7

End-of-cycle signal

The dryer sounds a srgnal to let you know

when the cycle IS frnished The signal cannot be

turned off and IS not adjustable

The srgnal IS helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer stops

[‘sing the drying rack

The drying rack lets You dry Items that you may not want to tumble. for

example, sneakers, stuffed toys, knitted wool. etc

The rack does not move, but the drum turns

Make sure nothing hangs

over the edges of the rack.

:y::, .*:.‘.*.

&’ :i:.:.:.:.:

. . . . .

:.:.>:,I.

. . . . .

\:.;1:.;.

--2 ZtT

__i#

Rear legs on the

rack fit into Indents in

the back wall of the

dryer

PUSH IN \

2. Frt rear legs into

Lower the front

indents Push in against so legs rest on dryer

the springs in the legs opening

4. Put wet rterns on top of the rack

Leave space between them so air

can reach all surfaces

5. Close the door. set time and

temperature, push the START Button

Use a setting In the TIMED DRY Cycle Dryrng time will depend on how

much moisture the items hold The following chart suggests temperature

settings for different kinds of Items that might best be rack drred

To rack dry... Use Temperature setting...

Wool sweaters

KNITS GENTLE LOW

[Block to shape and lay

flat on the rack ]

Stuffed toys or pillows

[Cotton or polyester

fiber filled ]

PERM’T PRESS MED.

Stuffed toys or pillows*

[Foam rubber frlled) FLUFF AIR

Sneakers or canvas shoes*

FLUFF AIR

*WARNING: Drying with heat may damage the

foam

rubber and will be a FIRE HAZARD.

Be sure to take the rack out for normal tumble drying.

Lint screen

Clean the lint screen before each load.

A screen blocked by lint can

Increase drying time and may be a FIRE HAZARD.

Open the lid and pull the lint screen

ROLL

the lint off the ;creen

straight out wrth your fingers.

DO NOT run the

dryer with

DO NOT

rrnse or wash the screen.

the lint

screen loose,

Push the screen firmly back into

damaged or missing.

place.

Doing so can cause over-

heating, can damage fabrics and

can be a FIRE HAZARD.

Lint removal

Lint can gather Inside the dryer and create a fire hazard

This lint

should be removed every 2 to 3 years, or more otten, depending on

dryer usage.

Heat

Element

ELECTRIC DRYERS

--Funnel

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard - unplug power 1.

Remove back panel (electrrc) or

front panel (gas]

supply cord or turn off

electrical power.

2. Avoid damaging wires, ther-

mostats, funnel or igniter.

’ Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is cool.

3. Remove lint from shaded area -

see art - with a so17 brush or

vacuum cleaner.

4. Replace panel; reconnect and re-

level dryer.

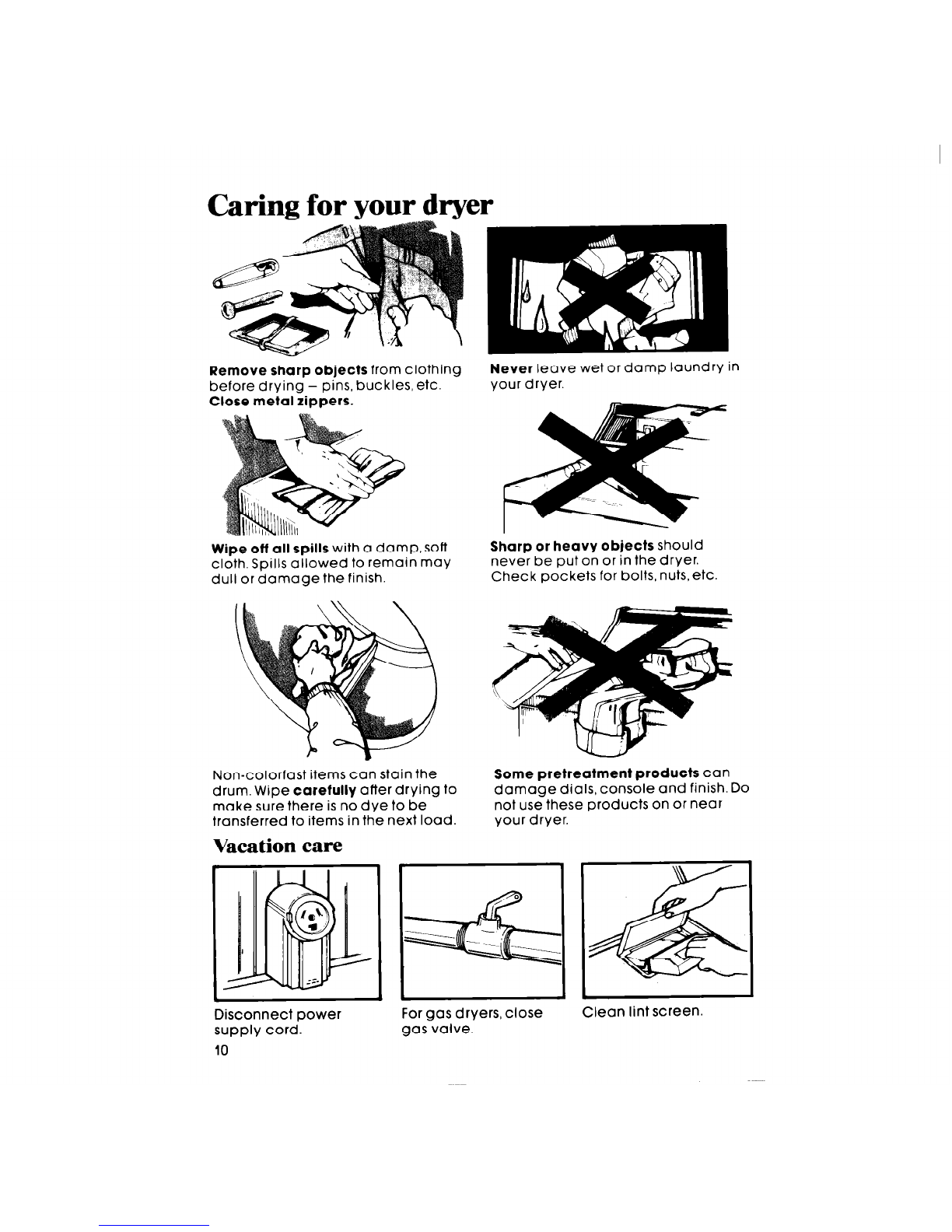

Caring for your dryer

Remove sharp objects from clothing

before drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp, soft Sharp or heavy objects should

cloth. Spills allowed to remain may never be put on or in the dryer.

dull or damage the finish. Check pockets for bolts, nuts, etc.

Never leave wet or damp laundry in

your dryer.

Non-colorfast items can stain the

drum. Wipe carefully after drying to

make sure there is no dye to be

transferred to items in the next load.

Vacation care

Some pretreatment products can

damage dials, console and finish. Do

not use these products on or near

your dryer.

Disconnect power

supply cord.

For gas dryers, close

gas valve. Clean lint screen.

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool WED5200TQ0 User manual

Whirlpool

Whirlpool 7MLGC9545JQ4 User manual

Whirlpool

Whirlpool cabrio WED6200S User manual

Whirlpool

Whirlpool WED97HEXL0 User manual

Whirlpool

Whirlpool LE3000XK User manual

Whirlpool

Whirlpool WGD4800B User manual

Whirlpool

Whirlpool 3406449 User manual

Whirlpool

Whirlpool WED560LHW User manual

Whirlpool

Whirlpool LE7800XP User manual

Whirlpool

Whirlpool DryAire User manual

Whirlpool

Whirlpool CEM2760TQ0 User manual

Whirlpool

Whirlpool REC3622D Installation instructions

Whirlpool

Whirlpool W10224585A User manual

Whirlpool

Whirlpool 29" Wide Models User manual

Whirlpool

Whirlpool WGD9200SQ1 User manual

Whirlpool

Whirlpool AWZ 3520 WP User manual

Whirlpool

Whirlpool GCEM2990TQ0 User manual

Whirlpool

Whirlpool CGM2751TQ1 User manual

Whirlpool

Whirlpool Duet GEQ8858EQ0 User manual

Whirlpool

Whirlpool WED72HEDW0 User manual

Whirlpool

Whirlpool Gold YGEQ9800PW2 User manual

Whirlpool

Whirlpool LET7646AQ2 User manual

Whirlpool

Whirlpool 8578902A User manual

Whirlpool

Whirlpool LGN2000PG User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
