Whirlpool WGD9200SQ1 User manual

TOP AND CONSOLE PARTS

For Models: WGD9200SQ1

(Designer White)

2−08 LITHO IN U.S.A. (LAN) Part No. W10190383 Rev. A

GAS DRYER

TOP AND CONSOLE PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10151593

Use & Care Guide

W10177461

Tech Sheet

W10111226

Guide,

Quick Start

2 3980634 Top

W10111011

Harness, Main

W10116694

Panel, Console

(Includes Item:

20,21.22,27,28)

5 3394427 Clip, Harness

W10006840

Bracket, Console

(Includes Item.12)

7 353424 Connector, Sensor

8 94614 Terminal

9 3936144 Plug, Terminal

W10117943

Badge

11 3390647 Screw, 8−18 x 1/2

W10112267

Foam−Seal

Control Bracket

W10030070

Array, Power

14 3936150 Connector,

7−Circuit

15 3395683 Connector,

(Motor)

16 3390647 Screw, 8−18 x 1/2

17 2203186 Connector,

5−Circuit

W10031420

User−Interface

(Right)

W10031410

User Interface

(Center)

(Includes Item.13)

W10012430

Encoder−Wheel

W10012440

Retainer, Snap

W10012410

Knob, Light Ring

(Includes:

Illus. 21 )

W10012810

Rast, Wheel

Assembly

(Service Only

With Illus. 28 )

W10012450

Detent Wheel

(Service Only

With Illus. 28 )

W10112268

Clip, Harness (4)

W10012820

Knob, Spring (2)

(Service Only

With Illus. 28 )

W10116701

Knob, Control

28 280230 Encoder−Wheel

Kit

(Includes Illus:

23, 24 & 26 )

W10095960

Harness,

Communication

W10111020

Power Cable,

User−Interface

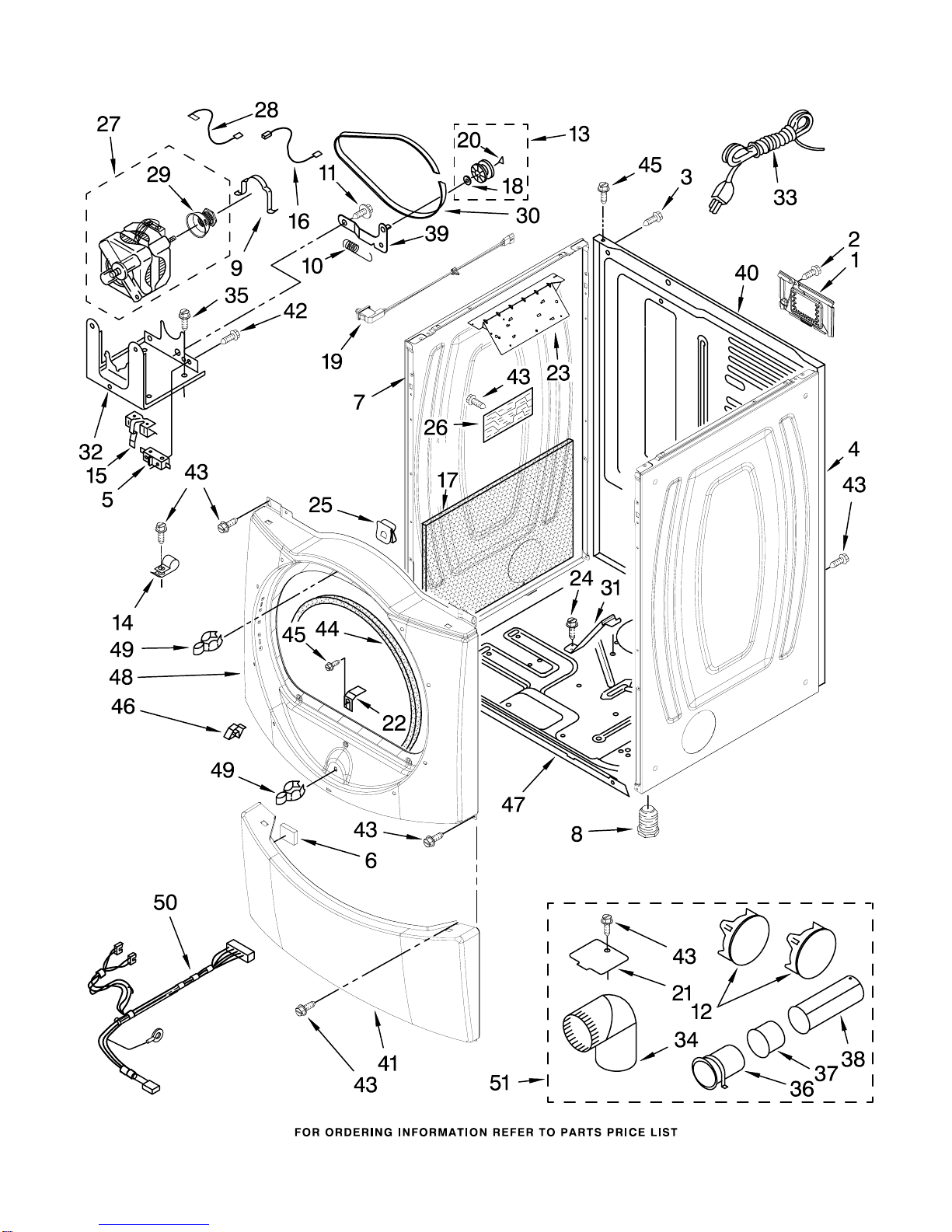

CABINET PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

CABINET PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8317340 Cover,

Terminal Block

2 3390814 Screw, 8−18 x 3/8

3 98139 Screw, 8−32 x 5/8

(Ground)

W10139003

Panel, Side (R.H.)

5 3394881 Switch, Broken

Belt

6 3389682 Space, Toe Panel

W10138989

Panel, Side (L.H.)

8 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

9 660658 Clamp, Motor (2)

10 3387374 Spring, Idler

11 3389420 Retainer, Idler

12 697750 Plug, Multivent

13 3388672 Pulley Assembly

14 3978776 Bracket,

Gas Pipe

15 8066120 Lever, Snap

Switch

W10167612

Wire, Belt Switch

W10128772

Sound Panel

W10121334

Washer

W10128087

Assembly,

Door Switch

20 690997 Tri Ring

21 8066115 Cover−Plate

22 8529053 Ramp, Door

23 8563727 Bracket, Control

24 693995 Screw, 8−18 x 3/8

25 62825 Clip−S Type

W10182366

Control Board

27 8538263 Motor Assembly

60 HZ.

28 3398948 Wire, Jumper

(Broken Belt

Switch)

29 8578220 Pulley 60 HZ.

30 3387610 Belt, Drive

31 8529757 Bracket, Burner

32 3387118 Bracket, Motor

33 3401401 Cord, Power

34 49026 4" − 90 Elbow

35 343641 Screw, 10−16 x 1/2

36 8563747 Exhaust Pipe

& Bracket

37 8563750 Exhaust Pipe

(Short)

38 8563749 Exhaust Pipe

(Long)

39 3388674 Idler Bracket

W10133207

Panel, Rear

W10116271

Panel, Toe

42 98129 Screw,

6−20 x 1 1/16

43 3390647 Screw, 8−18 x 1/2

44 3387242 Seal, Front Panel

45 3393008 Screw, 10−16 x 1/2

46 8519459 Clip, Toe Panel

47 8519207 Base, Cabinet

W10180423

Front Panel

(Includes

Illus. 44)

49 696144 Strike, Door (2)

W10181464

Harness,

Digital Interface

Optional Parts Not Included

Dryer Exhaust Kit

(For Side & Bottom Venting)

51 279818 White

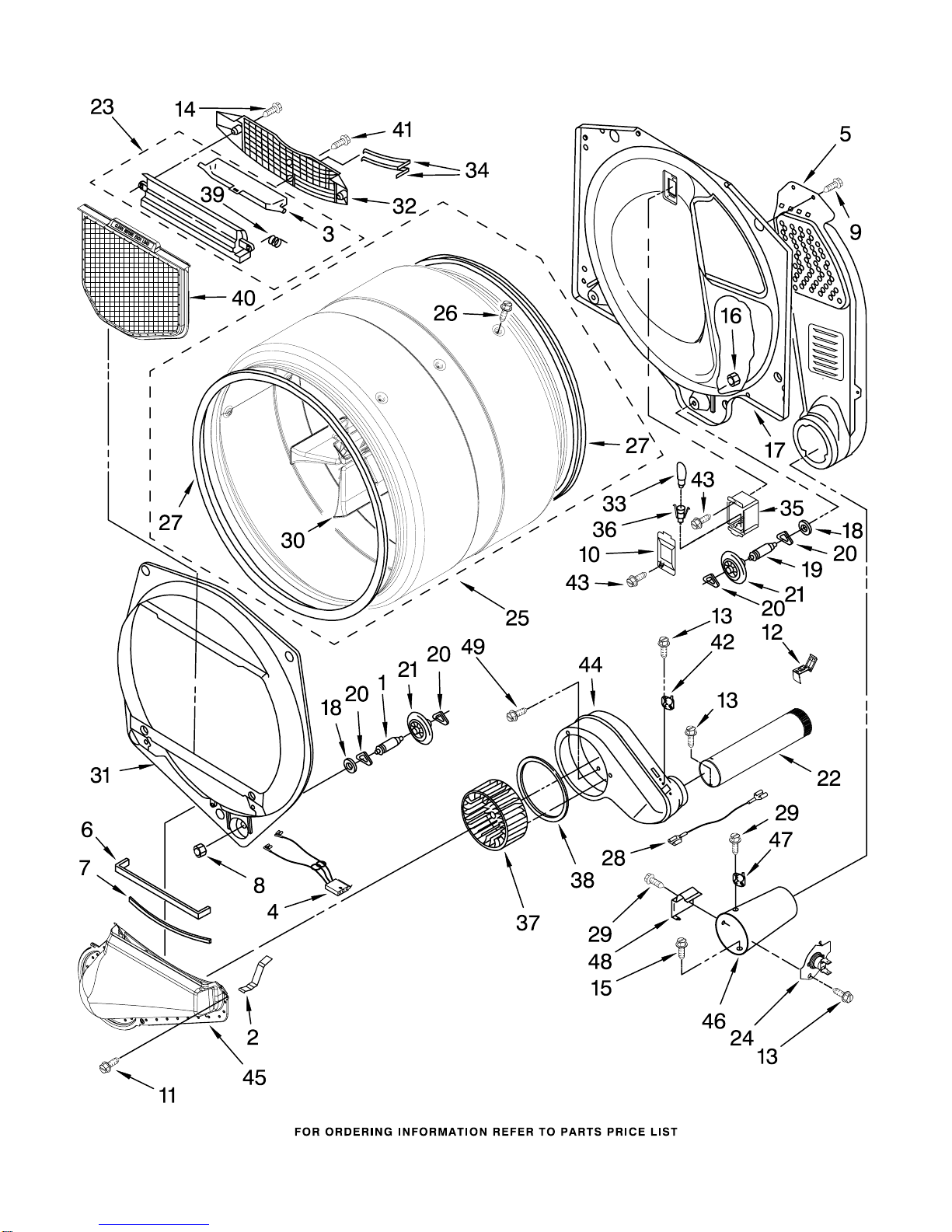

BULKHEAD PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

BULKHEAD PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 8575324 Shaft, R.H. Thread

2 8066208 Clip−Spring

3 3394984 Door, Lint

Screen

4 3406653 Harness, Sensor

5 3394346 Air Duct Assembly

6 697813 Seal, Outlet

Housing

7 697814 Seal, Drum Front

8 3934666 Nut,3/8 x 16(R.H.)

9 3390647 Screw, 8−18 x 1/2

10 3402841 Lens,

Drum Light

11 359625 Screw, 8−18 x 1/2

12 8572105 Clip, Exhaust

Pipe

13 8533971 Screw, 8−18 x 5/16

14 3387230 Screw, 10−16 x 1

15 693995 Screw, 8−18 x 3/8

W10001120

Nut, 3/8−16 (L.H.)

W10080170

Bulkhead, Rear

18 3387459 Washer, Support

19 8575325 Shaft, L.H. Thread

20 690997 Ring, Tri

21 8536973 Roller, Support

22 8563745 Exhaust Pipe

23 3394985 Housing, Outlet

24 8573713 Thermal−Cutoff

W10181466

Complete Drum

Assembly

W10109200

Screw, 11−16 x 3/4

27 697694 Seal, Drum

28 3401710 Jumper−Tco

Hi−Limit

29 90767 Screw, 8−18 x 3/8

W10166807

Baffle, Drum

31 8519245 Bulkhead, Front

32 8299979 Grille, Outlet

33 3406124 Bulb, Light

34 3387223 Electrode, Sensor

35 8578825 Bracket,

Drum Light

W10136369

Socket Assembly

37 697772 Wheel, Blower

38 697770 Seal, Plate Cover

39 3394986 Spring, Lint

Screen Door

W10049370

Lint, Screen

41 695240 Screw, 8−18 x 1/2

42 8577274 Thermistor

43 487909 Screw, 8−15 x 1/2

44 8544362 Housing, Blower

45 8066168 Lint Duct Assembly

46 8573824 Funnel, Burner

47 8573028 Thermostat,

High−Limit 205 F

(96 C)

48 338906 Sensor, Radiant

49 489463 Screw, 8−18 x 5/8

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

8576353 BURNER ASSEMBLY

BA−153A

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION

BA−153A

8576353 BURNER ASSEMBLY

USE WITH TYPE 1 − NATURAL

AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES

1 8576353 Burner Assembly

60 Hz.

(Type 1)

(White Rodgers)

2 688617 Tube, Burner

3 694298 Bracket, Ignitor

4 686590 Ignitor

5 3393909 Screw & Washer

(8−32 x 7/8)

6 343641 Screw, 10−16 x 1/2

7 3389871 Base, Burner

8 3387057 Screw,

8−18 x 3/8

9 Orifice, Burner

15418 Type 1

15422 Type 4 (Butane)

234867 Type 4 (Propane)

W10118347

Valve, Gas

60 Hz. (Complete)

(Includes Pipe &

Illus. #7).

11 694421 Screw,

8−32 x 1/2 (2)

12 694538 Bracket, Coil

13 694540 Coil, 60 Hz.

(2 Terminal)

(Main)

14 694539 Coil, 60 Hz.

(Split)

(3 Terminal)

(Pilot Position)

15 694424 Leak, Limiter

16 694423 Screw, Regulator

Adjustment

17 694422 Spring, Regulator

18 3390647 Screw, 8−18 x 1/2

20 239822 Plug, Pipe

25 3387561 Clamp, Pipe

26 3389889 Bracket, Support

Following Parts Not Illustrated

8576846 Conversion Kit

(Type (1)

to Type (4) LPG).

For Models: WGD9200SQ1

(Designer White)

W10190383

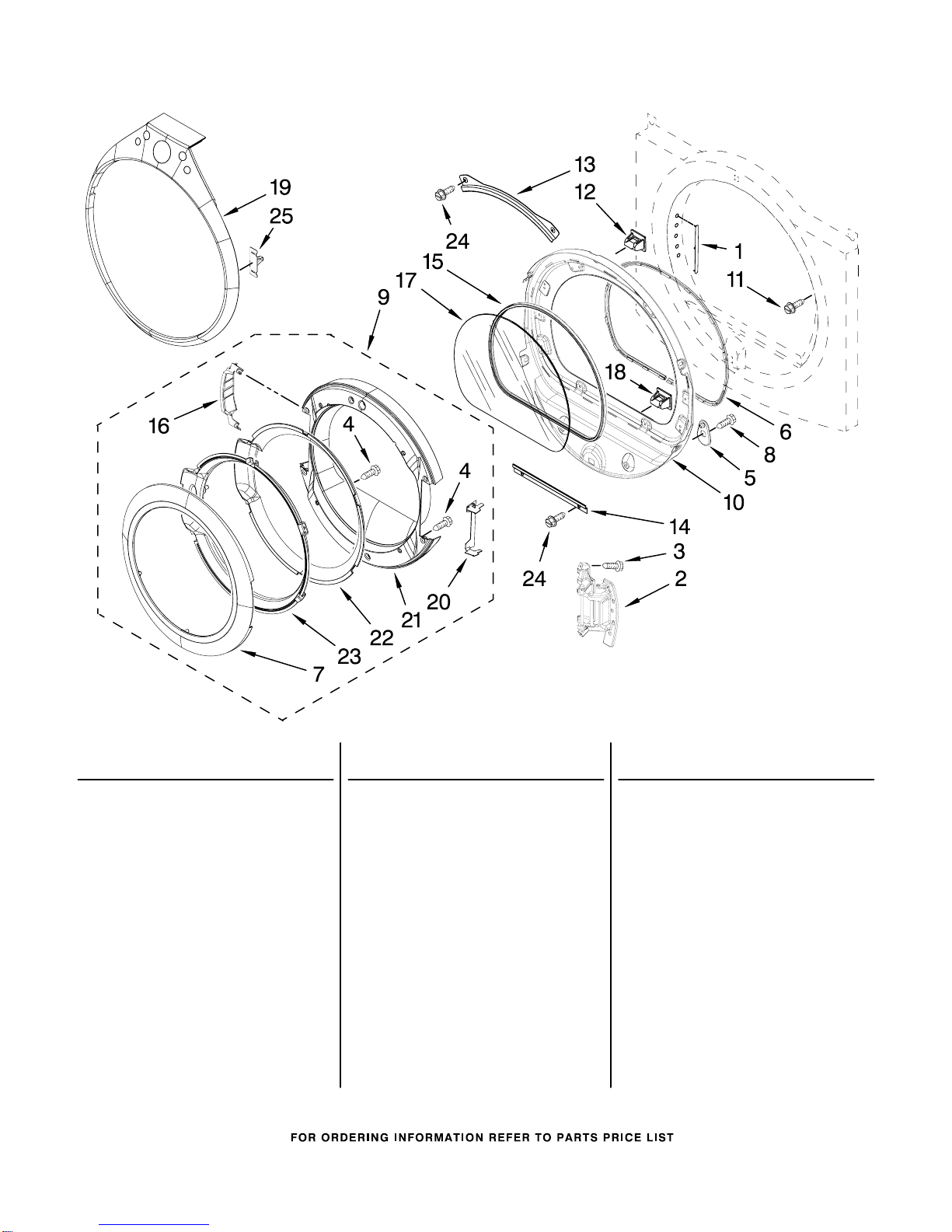

DOOR PARTS

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

W10085210

Label, Hinge Hole

W10139920

Door Hinge

Assembly

W10159996

Screw,

10−24 x 3/64

4 9742177 Screw, 8−18 x 5/8

W10048910

Screw−Plug

W10139457

Seal−Door

7 8578154 Handle, Door

Ring Assembly

8 3400224 Screw, 10−16 x 1/2

W10180111

Door Assembly

(Outer)

10 8578229 Door Assembly

(Inner)

(Includes

Illus. 12)

11 355515 Screw,

8−18 x 11/16

12 3398175 Door Catch

Assembly (Upper)

13 8519356 Retainer−Window

(Upper)

14 8519354 Retainer−Window

(Lower)

15 8579662 Seal−Window

W10180119

Cover−Hinge,

Stationary (LH)

(Following Parts

Not Included)

Cover Hinge

W10181197

Stationary (RH)

17 8566254 Window

18 690081 Door Catch

Assembly (Lower)

W10180493

Tear−Drop Trim &

Clip Assembly

W10180120

Door Shield

W10180118

Door−Intermediate

W10180117

Door Mask

23 8578155 Door Screen

24 3393258 Screw,

10−16 x 3/64

W10129065

Clip, Trim (8)

OPTIONAL PARTS (NOT INCLUDED)

For Models: WGD9200SQ1

(Designer White)

W10190383

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

ACCESSORY PARTS

8529894 Kit,

Hold Down

8579666A Kit,

Door Reversing

8541503 Kit,

Stack Assembly

8521957 Dry Rack

80047 Kit,

Dryer Repair
