Whirlpool GCEM2990TQ0 User manual

c2008 WHIRLPOOL CORPORATION

MODELS

GCEM2990TQ0

GCEM2990TQ1

7−08 Litho in U.S.A. (LT)(BAY) Part No. W10119635 Rev. B

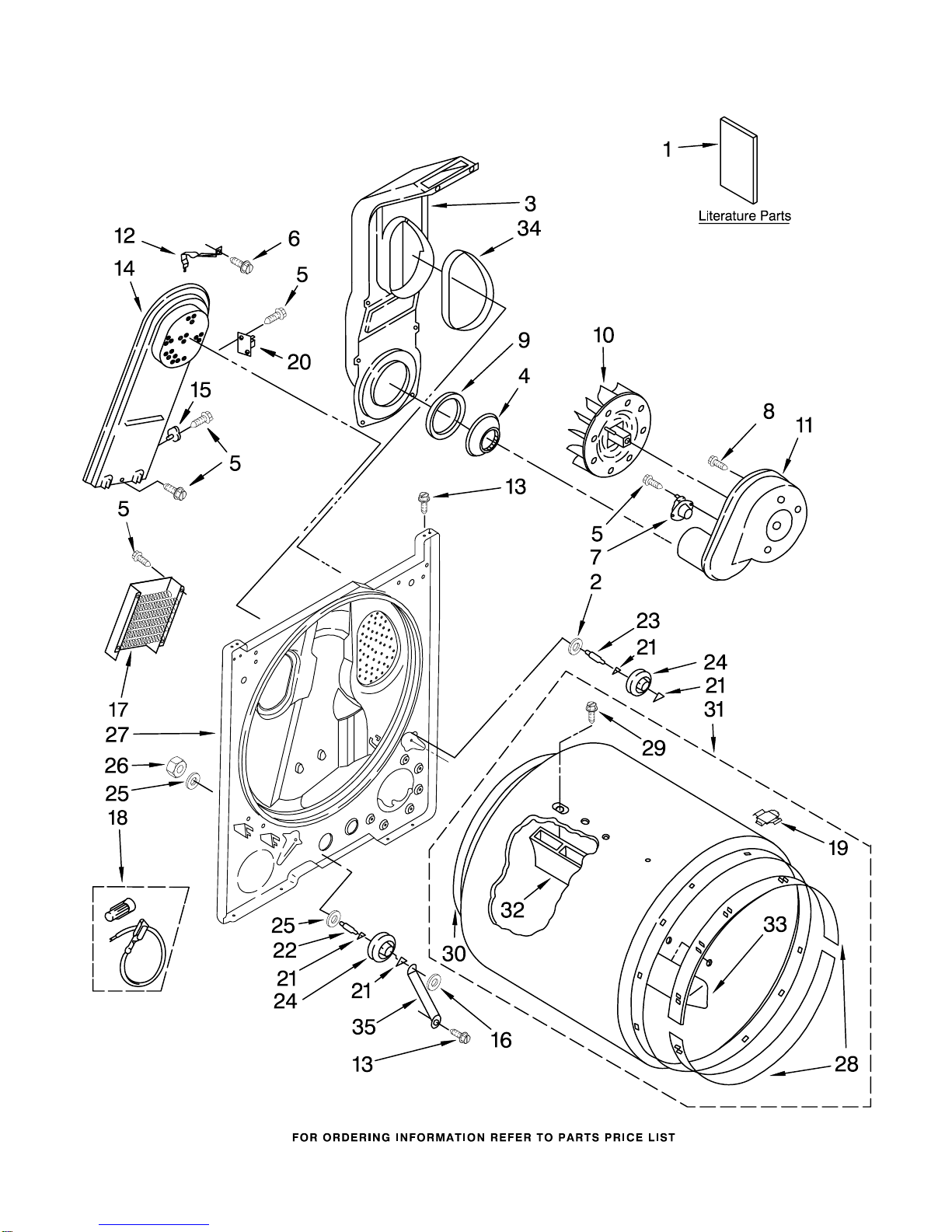

BULKHEAD PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

BULKHEAD PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8527907 Use & Care Guide

8576818 Wiring Diagram

8577213 Instructions,

Installation

W10119635

Service Parts List

2 3388703 Washer, Support

3 348368 Lint Chute

Assembly

4 696302 Shield, Exhaust

5 90767 Screw, 8−18 x 3/8

6 489463 Screw, 8−18 x 5/8

7 3387134 Thermostat,

Internal Bias

8 3390647 Screw, 8−18 x 1/2

9 347139 Seal, Lint Chute

10 694089 Wheel, Blower

11 8577230 Housing, Blower

12 3398161 Clip

13 343641 Screw, 10−16 x 1/2

14 8541818 Box, Heater

15 3977767 Thermostat,

High Limit

221 F

(105 C)

16 90296 Clip

17 3403588 Heater Element

18 279457 Wire Kit

(For Heater

Element Wiring

Harness Repair)

19 8066086 Drum Hole

Plug

20 3977393 Thermal, Cut−Off

(Includes

Illus. 15)

21 690997 Ring, Tri

22 3399506 Shaft, L.H.

23 3399507 Shaft, R.H.

24 3397590 Roller, Support (2)

25 348197 Washer

26 3359452 Nut, 3/8−16 (2)

27 3403410 Bulkhead

28 692526 Ring, Bearing (2)

W10109200

Screw, 11−16 x 3/4

30 3406130 Seal, Rear Drum

31 695587 Drum Assembly

32 692490 Baffle, Drum (2)

33 3403636 Baffle, Drum (1)

34 339956 Seal

35 3976434 Bracket, Support

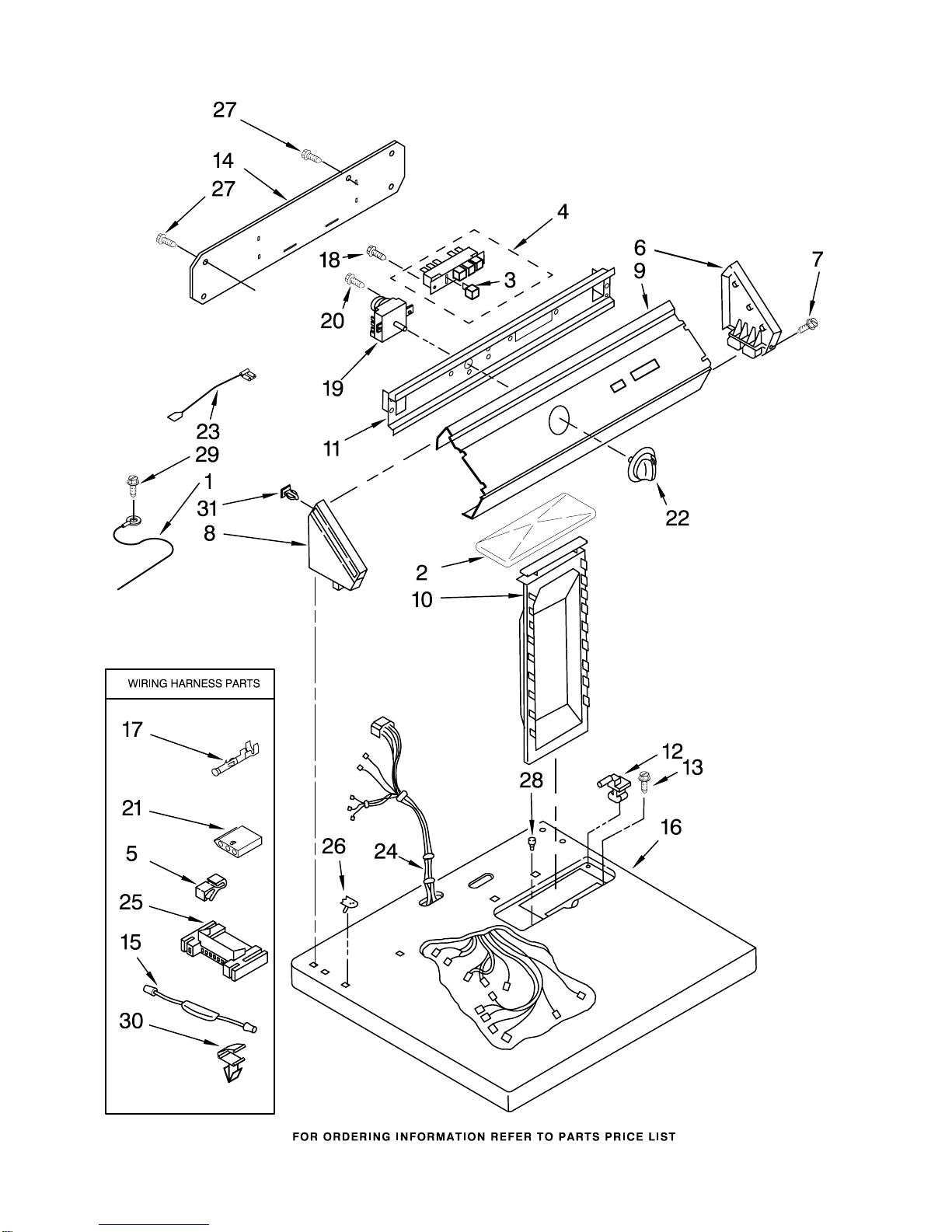

TOP AND CONSOLE PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

TOP AND CONSOLE PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

Illus. Part

No. No. DESCRIPTION

1 3398893 Wire, Ground

2 8283378 Cover, Lint Screen

3 8316433 Button (4)

4 8316437 Switch, Pushbutton

5 357572 Clip, Ground

6 3949737 End Cap (R.H.)

7 97787 Screw, 11−16 x 3/4

8 3949734 End Cap (L.H.)

9 8527826 Panel, Control

10 349639 Screen, Lint

11 8527828 Bracket, Control

12 3978606 Hinge, L.H.

3978605 Hinge, R.H.

13 688983 Screw, 8−18 x 3/8

14 8066156 Panel, Rear

15 3401076 Resistor Assembly

16 8316630 Top

17 94614 Terminal

18 303921 Screw, 8−32 x 3/8

19 3979596 Timer

20 8533971 Screw, 8−18 x 5/16

21 3936144 Connector

22 8529317 Knob, Timer

23 Wire, Jumper

3393811 Violet

3393812 Blue

24 8576540 Harness, Wiring

25 3395683 Connector

(Motor)

26 357213 Nut, Push−In (2)

27 693995 Screw, 8−18 x 3/8

28 297535 Bumper, Lint Lid

29 339554 Screw,

10−16 x 5/16

30 3394427 Clip, Harness

31 689559 Nut, Push In

Following Parts Not Illustrated

10875 Wire, Splicing

(120 Volt)

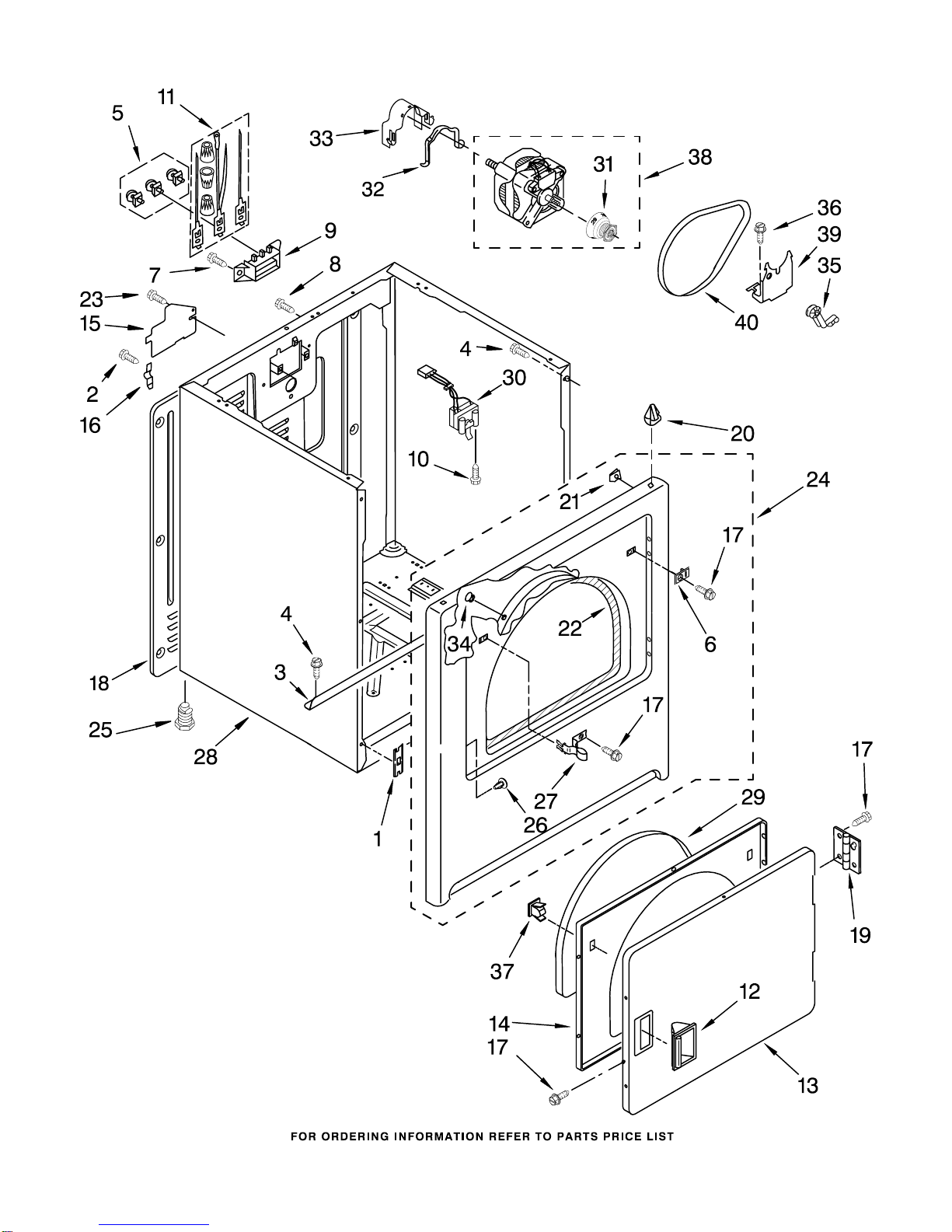

CABINET PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

CABINET PARTS

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

Illus. Part

No. No. DESCRIPTION

1 3394083 Clip, Front Panel

2 388326 Screw,

8−18 x 1−1/4

3 8541400 Bracket, Cabinet

4 343641 Screw, 10−16 x 1/2

5 279393 Screw Kit

(For Terminal

block)

6 3403630 Plug, Strike Hole

7 3393008 Screw, 10−16 x 1/2

8 697776 Screw, 10−32 x 5/8

9 3397659 Terminal Block

10 697773 Screw, 6−20 x 7/8

11 279318 Terminal,

Tinned & Brass (3)

12 3405184 Handle, Door

13 3402335 Door, Front

14 3402341 Door, Rear

15 3396795 Cover, Block

16 8066217 Hinge, Top (2)

17 342055 Screw, 8−18 x 1/2

18 3396805 Panel, Rear

19 3405514 Hinge & Pin

Assembly (2)

20 690363 Lock, Front Top

21 98234 Clip, Ground (2)

22 3406129 Seal & Bearing

Assembly

23 693995 Screw, Hex

Washer Head

24 3403444 Front Panel

Assembly

25 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

26 3404413 Plug, Hinge

Hole

27 3403431 Strike, Door

28 8530603 Cabinet

(Includes

Illus. 3)

29 3405246 Seal, Door

30 3406109 Door Switch

Assembly

31 8066184 Pulley

32 660658 Clamp, Motor

33 3404162 Clamp, Motor

34 685203 Clip, Felt Pad (2)

35 691366 Idler & Pulley

Assembly

36 3400500 Bolt,

5/16−18 x 3/4

37 3389441 Catch, Door

38 8066206 Motor Assembly

39 348780 Base, Motor

W10131364

Belt, Drive

OPTIONAL PARTS (NOT INCLUDED)

For Model: GCEM2990TQ0, GCEM2990TQ1

(White) (White)

W10119635

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

8522199 Kit, Dryer

Vent Testing

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, TOUCH−UP (1 qt.)

799344 White (Uncut)
