Whirlpool LE7800XP User manual

I’

AUTOMATIC

DRYERS

Electric Model

LE7800XP

and

Gas Model

LG7801XP

Parts and features

CYCLE CONTROL KNOB

\ TEMPERATURE SELECTOR

RMATION CENTER

START BUTTON

Remove the Con-

sumer Buy Guide la-

bel before using

your dryer. It will be

easier to remove.

Wipe out the

dryer drum with a

damp cloth to re-

move dust from stor-

ing or shipping.

Copy your Model and Serial Numbers here

When you need service or call wrth a

question, have this information ready

Complete Model Number

1. Complete Model and Serial Numbers

(from-the plate located as shown]

2. Purchase date from sales slop

Complete Serial Number

Copy this information in these spaces

Keep this book, your warranty, sales slop

Purchase Date

and “Dryer Guide” in the Laundry Infor-

mation Center on the back of the dryer

Service Company and

console.

Telephone Number

There is no warranty registratron to return. Proof-of-purchase is all

that is required for in-warranty service

Contents

Page

PARTS AND FEATURES. 2

YOUR RESPONSIBILITIES.. 3

SAFETY FIRST. 3

SELECTING A CYCLE AND

STARTING YOUR DRYER 4

OPERATING INSTRUCTIONS 6

Automatic Cycles 6

Timed Drying 6

DRYING TIPS.. 7

FLUFFAIR Setting 7

FINISH GUARD@ Setting 7

TUMBLE PRESS@Setting

Drying Times r3

Mixed Loads 8

2 01985 Whirlpool Corporation

End-of-Cycle Signal 8

Lint Signal 8

LINT SCREEN. 9

LINT REMOVAL. 9

CARING FOR YOUR DRYER 10

Vacation Care 10

IF YOU NEED SERVICE OR

ASSISTANCE. 11

1. Before Calling for

Assistance 11

2. If You Need Assistance 11

3. If You Need Service 11

4. If You Have a Problem 11

Page

Your

Responsibilities

Read this “Use and Care Guide”

and your “Dryer Guide” carefully for

important use and safety information.

You are personally responsible for

making sure that your dryer...

is installed by a qualified installer.

is properly maintained.

is installed in an area protected

from the weather.

is properly installed and leveled in

a well ventilated room* on a floor

that can support the weight.

is located in an area where the tem-

perature is above 45°F (7.2”C).

is connected to the right kind of out-

let, electric supply and grounding.*

is properly connected to fuel and

exhaust systems:

is used only for jobs normally ex-

pected of home clothes dryers.

is not run where there may be explo-

sive fumes.

is not used by children or anyone

unable to operate it properly.

*See the “Installation Instructions” for

complete information.

FOR YOUR SAFETY

IF YOU SMELLGAS:

OPEN WINDOWS.

DON’T TOUCH ELECTRI-

CAL SWITCHES.

EXTINGUISH ANY OPEN

FLAME.

IMMEDIATELY CALL I

YOUR GAS SUPPLIER.

FOR YOUR SAFETY

DO NOT STOREOR USE

GASOLINE OR OTHER

FLAMMABLE VAPORS AND

LIQUIDS IN THEVICINITY

OF THIS OR ANY OTHER

APPLIANCE.

SUGGESTED SUGGESTED

TYPEOF LOAD CYCLE TEMPERATURE

COTTONS - LtNENS

EXTRA HEAVY - Bedspreads,

mattress pads, quilts. HEAVY

HEAVYWEIGHT FABRICS - Towels, AUTOMATIC HIGH

jeans, corduroys, work clothes

MEDIUMWEIGHT COTTONS - REGULAR

Sheets, pillowcases, cotton PERM’T PRESS

underwear, diapers MED

LIGHTWEIGHT COTTONS - Batistes. KNITS GENTLE

organdies, lingerie LOW

PERMANENT PRESS, SYNTHETICS

AND BLENDS

HEAVYWEIGHT FABRICS -Work clothes,

jackets, raincoats

MEDIUMWEIGHT FABRICS - Shirts, play

clothes, sheets, slacks

LIGHTWEIGHT FABRICS - Lingerie,

blouses, dresses

AUTOMATIC PERMIT PRESS

PERMANENT MED

PRESS

KNITS GENTLE

LOW

KNITS

HEAVYWEIGHT - Cottons, rayons, AUTOMATIC PERMIT PRESS

blend&T-shirts,slacks,shirts _. PERMANENT MED

LIGHTWEIGHT - Synthetics (polyester,

acrylic, etc.) and blends, lingerie, PRESS KNITS GENTLE

blouses, dresses LOW

LtGHTWElGHT AND DELICATE FABRICS

Sheer Curtains (2 or 3 panels) ;;;;F;;;t KNITS GENTLE

Gauze,lace,etc. ._....____ _.. PRESS LOW

RUBBER, PLASTIC, HEAT-SENSITIVE TIMED

FABRICS DRYING

FOAM RUBBER - Pillows, bras,

stuffed toys _. _. _. 20-30 MINS. FLUFF

PLASTIC - Shower curtains, AIR

tablecloths _. _. _. 20-30 MINS.

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,‘SHEER’NY;ON- : : 40-50 MINS.

15-20 MINS.

Select a

1. CYCLE Set TEMPERATURE

SELECTOR

Turn the Control Knob either way to

point to the cycle and setting you

want. See page 6 for information on

the cycles.

Push the

3. START Button

The dryerwill start tumbling when

you push the START Button.

Turn the Temperature Selector to the

needed drying temperature.

To stop and restart

the dryer

TO stop the dryer, open the door (or

turn the Control Knob to OFF].

To restart the dryer, close the door,

select

Cycle,

If necessary, and push

START

The Cycle Control Knob should point to OFF when the dryer is not in use.

Operating instructions

The automatic cycles

The automatic cycles allow you

to select the degree of dryness you

prefer for the clothes being dried.

The Control Knob moves and stops

several times until the load reaches

the dryness setting you selected. Then

the knob automatically moves to

OFF and tumbling stops.

weight cotton items. The load tum-

bles without heat during the last 5

minutes.This helps make the load

easier to handle.

press, knits and other synthetic fab-

rics. The load tumbles without heat

during the last 10 minutes. This helps

keep wrinkles from setting in.

For the first few loads, set the Control

Knob to point to an* in either auto-

matic cycle. When the dryer stops,

feel the dried items.

If items are drier than you like, use

a setting to the right of the * the next

time you dry a similar load.

If items are not as dry as you like,

use a setting to the left of the *the

next time you dry a similar load.

Timeddrying

Use the TIMED DRYING Cycle for

any load you want to dry by time. For

example: small loads, large bulky

items, items to be fluffed or dusted

with the FLUFFAIR heat setting.

Turn the Control Knob to the number

of minutes you want-from 10 to 60.

. The last 5 minutes of this cycle are

without heat - a cool-down time. This

helps make the load easier to

handle.

Drying tips

The dryer does not heat when the

Temperature Selector is set on FLUFF

AIR. This setting can be used to fluff

bedding, plastic tablecloths, foam

rubber pillows, stuffed toys, sneakers,

etc

1. Turn the Temperature Selector to

FLUFFAIR.

2. Turn the Control Knob to the num-

ber of minutes You want in the

TIMED DRYING Cycle.

3. Push the STARTButton.

TUMBLE PRESS@

Setting

The TUMBLE PRESSsetting removes

wrinkles from dry clothing such as

items that may have been packed

in a suitcase, closet, or items not

removed from the dryer.

FINISH GUARD” Setting

When you are unable to unload the

dryer as soon as it stops, wrinkles can

form.

If you don’t open the door within 5

minutes after the dryer stops, FINISH

GUARD takes over automatically to

protect the load. You don’t have to set

the Control Knob for FINISH GUARD.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid the

wrinkles that set in when the load

remains in the warm dryer.

1. Set Control Knob to TUMBLE PRESS.

2. Set Temperature Selector to PERM’T

PRESS/ MED.

3. Push START Button.

The load will tumble in heated air

for 10 minutes. The heat shuts off and

the dryer continues to tumble the

load for 5 more minutes.

For best results, TUMBLE PRESSonly

a few items at a time. Put them on

hangers or fold them as soon as the

dryer stops. 7

Drying times Mixed loads

Drying times will vary depending on.

amount of moisture in the clothes

type and weight of the fabric.

. size of the load.

room temperature around the

dryer.

temperature of the wash rinse

water.

amount of lint in the lint screen

dryer temperature selection.

See page 6 in your”Dryer Guide”

for more Information.

When drying a load with different

kinds and weights of fabrics, use the

Cycle

suggested for the lightest fab-

rics. When the dryer stops, remove

dry items and reset the control.

To reduce wrinkling, take the load

from dryer as soon as tumbling stops.

This is important for permanent press,

knits and synthetic fabrics.

End-of-cycle signal The dryer sounds a signal to let you know

when the cycle is finished. The signal cannot be

turned off and is not adjustable.

The signal is helpful when you are drying

permanent press, synthetics and other items

that should be taken out as soon as the dryer

stops.

Lint signal

Clean lint screen before each load. If you

neglect to clean your lint screen, the signal will

sound. The (whistle tone) signal lets you know

the air flow is being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint screen as

shown on page 9.

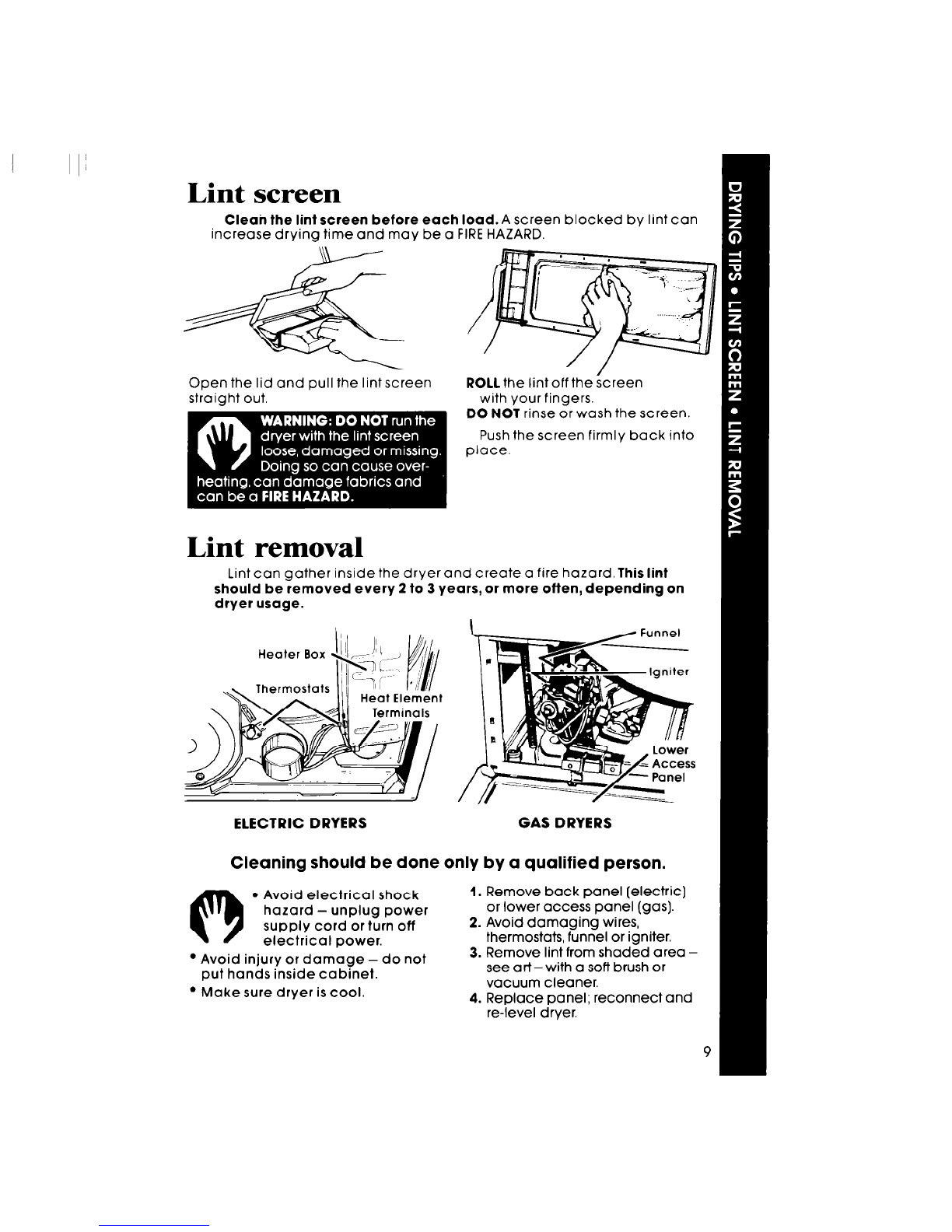

Li.nt screen

Cleah the lint screen before ea

ncrease drying time arid may be

Open the lid and pull the lint screen

straight out. ROLL the lint off the icreen

with your fingers.

DO NOT rinse or wash the screen.

Push the screen firmly back into

place.

Lint removal

Lint can gather inside the dryer and create a fire hazard.This lint

should be removed every 2 to 3 years, or more often, depending on

dryer usage.

ELECTRIC DRYERS GAS DRYERS

Cleaning should be done only by a qualified person.

Avoid electrical shock

hazard-unplug power

supply cord or turn off

electrical power.

Avoid injury or damage - do not

put hands inside cabinet.

Make sure dryer is coot.

Remove back panel (electric]

or lower access panel (gas].

Avoid damaging wires,

thermostats, funnel or igniter.

Remove lint from shaded area -

see art- with a soft brush or

vacuum cleaner.

Replace panel; reconnect and

re-level dryer.

Caring for your dryer

Remove sharp objects from clothing

before drying - pins, buckles, etc.

Close metal zippers.

Wipe off all spills with a damp, soft

cloth. Spills allowed to remain may

dull or damage the finish.

Non-colorfast items can stain the

drum. Wipe carefully after drying to

make sure there is no dye to be

transferred to items in the next load.

Vacation care

Never leave wet or damp laundry in

your dryer.

Sharp or heavy objects should

never be put on or in the dryer.

Check pockets for bolts, nuts, etc.

Some pretreatment products can

damage dials, console and finish. Do

not use these products on or near

your dryer.

Unplug power cord or For gas dryers, close Clean lint screen.

turn off electrical power. gas valve.

This manual suits for next models

Table of contents

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool LE9800XS User manual

Whirlpool

Whirlpool PROD 06SCII User manual

Whirlpool

Whirlpool YWED9050XW User manual

Whirlpool

Whirlpool WED75HEFW User manual

Whirlpool

Whirlpool L0412123 User manual

Whirlpool

Whirlpool WED5100HW1 Operation manual

Whirlpool

Whirlpool 4PLEC8647JQ2 User manual

Whirlpool

Whirlpool WED5700SW0 User manual

Whirlpool

Whirlpool W10088771 User manual

Whirlpool

Whirlpool WETLV27HW User manual

Whirlpool

Whirlpool LE9200XW User manual

Whirlpool

Whirlpool LE9380XT User manual

Whirlpool

Whirlpool HFCX80410 Installation guide

Whirlpool

Whirlpool WGD8127LC User manual

Whirlpool

Whirlpool WED6600VW0 User manual

Whirlpool

Whirlpool WED9400SB1 User manual

Whirlpool

Whirlpool 3SWED5205SQ1 User manual

Whirlpool

Whirlpool DUET W10294021A User manual

Whirlpool

Whirlpool GLE5700XS User manual

Whirlpool

Whirlpool LE6400XK User manual

Whirlpool

Whirlpool LDR3822HQ0 User manual

Whirlpool

Whirlpool 8280525 User manual

Whirlpool

Whirlpool 4KWED4915 User manual

Whirlpool

Whirlpool WGD9450WW - 27" Gas Dryer User guide

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
