Whirlpool W10726005A User manual

INSTALLATION

INSTRUCTIONS

Commercial Dryer

Gas or Electric

www.whirlpoolcommerciallaundry.com

W10726005A

W10726006A

INSTRUCTIONS

D’INSTALLATION

Sécheuse à usage commercial

à gaz ou électrique

TABLE OF CONTENTS

Page

Dryer Safety ............................................................................. 2

Tools & Parts ........................................................................... 5

Dimensions/Clearances ........................................................ 6

Gas Dryer Installation Requirements ................................... 7

Electric Dryer Installation Requirements .......................... 10

Dryer Venting Requirements .............................................. 13

Gas Supply Connection ...................................................... 15

Installing Leveling Legs, Coin Slide, and Coin Box........... 17

Electric Dryer Electrical Connections ............................... 18

Leveling ................................................................................. 22

Complete Installation ........................................................... 23

Reversing Dryer Door Swing ............................................... 24

Maintenance Instructions .................................................... 26

If You Need Assistance ........................................................ 26

Electronic Control Setup Instructions ............................... 27

Warranty ............................................................................... 32

TABLE DES MATIÈRES

Page

Sécurité de la sécheuse........................................................ 33

Outils et pièces ..................................................................... 36

Dimensions/Distances de dégagement ............................. 37

Exigences d’installation pour la sécheuse à gaz ............... 38

Exigences d’installation pour la sécheuse électrique ...... 41

Exigences concernant l’évacuation de la sécheuse ......... 43

Raccordement à la canalisation de gaz ............................. 45

Installation des pieds de nivellement, de la glissière

à monnaie et de la caisse à monnaie ................................. 47

Nivellement ............................................................................ 48

Achever l’installation ............................................................ 49

Inversion du sens d’ouverture de la porte de la sécheuse 50

Instructions d’entretien ......................................................... 52

Si vous avez besoin d’assistance ........................................ 52

Instructions de réglage du tableau

de commande électronique ................................................. 53

Garantie ................................................................................. 59

DRYER SAFETY

QIt is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer

smells gas. This information should be obtained from your gas supplier.

QPost the following warning in a prominent location.

DRYER SAFETY

IMPORTANT: When discarding or storing your old clothes dryer, remove the door.

DRYER SAFETY

QClean dryer lint screen before or after each load.

QDo not use this dryer without the lint screen in place.

QDo not repair or replace any part of the dryer or attempt

any servicing unless specically recommended in this

Installation Instructions or in published user-repair

instructions that you understand and have the skills

to carry out.

QDo not use fabric softeners or products to eliminate static

unless recommended by the manufacturer of the fabric

softener or product.

QDo not use heat to dry articles containing foam rubber

or similarly textured rubber-like materials.

QThe nal part of a tumble dryer cycle occurs without

heat (cool-down cycle) to ensure that the articles are left

at a temperature that ensures that the items will not be

damaged.

QWARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly removed

and spread out so that the heat is dissipated. (Avoids risk

of spontaneous combustion).

QKeep area around the exhaust opening and adjacent

surrounding areas free from the accumulation of lint,

dust, and dirt.

QThe interior of the dryer and dryer exhaust vent should

be cleaned periodically by qualied service personnel.

QSee “Electrical Requirements” section for grounding

instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow basic precautions,

including the following:

SAVE THESE INSTRUCTIONS

QRead all instructions before using the dryer.

QThis dryer is intended only for drying clothes and textiles

that have been washed in water. Do not use for any other

purpose.

QWARNING: If you smell gas, do not use the dryer or any

electrical equipment nearby. Warn other people to clear

the area. Contact the dryer owner immediately.

QDo not place items exposed to cooking oils in your dryer.

Items contaminated with cooking oils may contribute to

a chemical reaction that could cause a load to catch re.

QDo not dry articles that have been previously cleaned

in, washed in, soaked in, or spotted with gasoline,

dry-cleaning solvents, other ammable, or explosive

substances as they give off vapors that could ignite

or explode.

QDo not dry unwashed items in the dryer.

QDo not allow children to play on or in the dryer. Close

supervision of children is necessary when the dryer

is used near children.

QBefore the dryer is removed from service or discarded,

remove the doors to the dryer compartment.

QDo not reach into the dryer if the drum is moving.

QDo not open door while dryer is in operation. It will stop.

QDo not install or store the dryer where it will be exposed

to water and/or the weather.

QDo not tamper with controls.

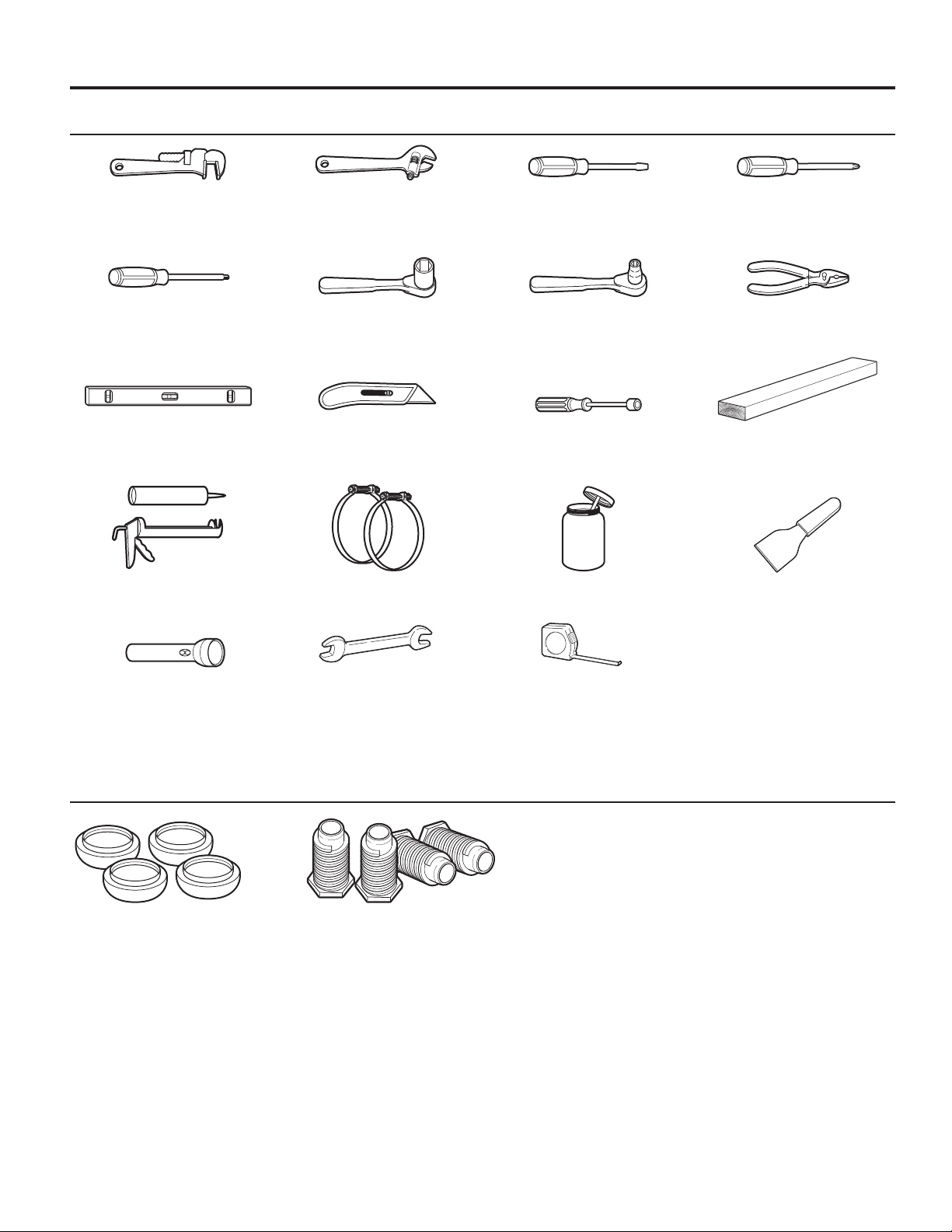

Tools Needed:

8" (200 mm) 8" (200 mm) or 10" (250 mm) Flat-Blade Screwdriver Phillips Screwdriver

or 10" (250 mm) Adjustable Wrench

Pipe Wrench that opens to 1" (25 mm)

Torx T-20®† Security 1" (25 mm) Hex-Head 1⁄4" Socket Wrench Pliers (that open to

Screwdriver or Bit Socket Wrench 19/16" [39 mm])

Level Utility Knife 1/4" (6 mm) Nut Driver 27" (686 mm)

Wood Block

Caulk Gun and Caulk Vent Clamps Pipe-Joint Compound Putty Knife

(for installing new exhaust vent) suitable for gas type

Flashlight (optional) 1" (25 mm) Ruler or Measuring Tape

Open-End Wrenches

TOOLS & PARTS

®† TORX and T20 are registered trademarks of Acument Intellectual Properties, LLC.

Parts Supplied:

Foot Boots (4) Leveling Legs (4)

DIMENSIONS/CLEARANCES

Front View Side View Back View

Dimensions

Clearances

Recessed Front View Closet Side View

Bottom Exhaust

Your dryer can be installed in a basement, laundry room,

or recessed area.

This dryer is not intended for installation in a mobile home.

Companion appliance location requirements should also be

considered.

IMPORTANT: Do not install or store the dryer where it will be

exposed to water and/or the weather. Proper installation is your

responsibility.

You will need:

QA grounded electrical outlet located within 6 ft. (1.8 m) of

where the power cord is attached to the back of the dryer.

See “Electrical Requirements.”

QA level oor with a maximum slope of 1" (25 mm) under

entire dryer. Installing the dryer on soft oor surfaces,

such as carpets or surfaces with foam backing, is not

recommended.

Gas dryer installation clearances

QThe location must be large enough to allow the dryer door

to be fully opened.

QAdditional spacing should be considered for ease of

installation and servicing. The door opens more than 180°.

QAdditional clearances might be required for wall, door,

and oor moldings.

QAdditional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

When installing a gas dryer:

IMPORTANT: Observe all governing codes and ordinances.

QCheck code requirements: Some codes limit or do not

permit installation of clothes dryers in garages, closets,

or sleeping quarters. Contact your local building inspector.

QMake sure that lower edges of the cabinet, plus the back

and bottom sides of the dryer, are free of obstructions to

permit adequate clearance of air openings for combustion

air. See “Recessed Area and Closet Installation Instructions”

below for minimum spacing requirements.

Location Requirements

GAS DRYER INSTALLATION REQUIREMENTS

Recessed Area and Closet Installation Instructions

This dryer may be installed in a recessed area or closet. For

recessed area and closet installations, minimum clearances

can be found on the warning label on the rear of the dryer

or in “Dimensions/Clearances.”

The installation spacing is in inches and is the minimum

allowable. Additional spacing should be considered for ease

of installation, servicing, and compliance with local codes

and ordinances.

If closet door is installed, the minimum unobstructed air

opening in the top and bottom is required. Louvered doors

with equivalent air openings are acceptable.

The dryer must be exhausted outdoors.

No other fuel-burning appliance may be installed in the same

closet as the dryer.

24 in.2

(155 cm

48 in.2

(310 cm2)3"

(76 mm)

Closet

door

Front

View

Closet

Door

Front

View

Gas Dryer Grounding

IMPORTANT: The dryer must be electrically grounded in

accordance with local codes and ordinances or, in the absence

of local codes, with the National Electrical Code, ANSI/NFPA

70, latest edition, or Canadian Electrical Code, CSA C22.1.

If codes permit and a separate ground wire is used, it is

recommended that a qualied electrical installer determine

that the ground path is adequate.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park, Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, Ohio 44131-5575

QDo not ground to a gas pipe.

QDo not have a fuse in the neutral or ground circuit.

QA 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical

circuit is required. A time-delay fuse or circuit breaker is also

recommended. It is recommended that a separate circuit

serving only this dryer be provided.

QThis dryer is equipped with a power supply cord having

a 3-prong grounding plug.

QTo minimize the possibility of shock, the cord must be

plugged into a mating, 3 prong, grounding-type outlet,

grounded in accordance with local codes and ordinances.

If a mating outlet is not available, it is the personal

responsibility and obligation of the customer to have the

properly grounded outlet installed by a qualied electrician.

QIf codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that

the ground path is adequate.

QCheck with a qualied electrician if you are not sure

the dryer is properly grounded.

GAS DRYER INSTALLATION REQUIREMENTS

Electrical Requirements

GROUNDING INSTRUCTIONS

SAVE THESE INSTRUCTIONS

■For a grounded, cord-connected dryer:

This dryer must be grounded. In the event of malfunction or

breakdown, grounding will reduce the risk of electric shock

by providing a path of least resistance for electric current.

This dryer is equipped with a cord having an equipment-

grounding conductor and a grounding plug. The plug must

be plugged into an appropriate outlet that is properly

installed and grounded in accordance with all local codes

and ordinances.

WARNING: Improper connection of the equipment-

grounding conductor can result in a risk of electric shock.

Check with a qualied electrician or service representative

or personnel if you are in doubt as to whether the dryer is

properly grounded. Do not modify the plug provided with

the dryer: if it will not t the outlet, have a proper outlet

installed by a qualied electrician.

IMPORTANT: Observe all governing codes and ordinances.

This installation must conform with all local codes and

ordinances. In the absence of local codes, installation must

conform with American National Standard, National Fuel Gas

Code ANSI Z223.1/NFPA 54 or CAN/CSA B149.

A copy of the above code standards can be obtained from:

National Fire Protection Association

One Batterymarch Park, Quincy, MA 02269

CSA International

8501 East Pleasant Valley Road

Cleveland, Ohio 44131-5575

The design of this dryer has been certied by CSA International

for use at altitudes up to 10,000 feet (3048 m) above sea level

at the B.T.U. rating indicated on the model/serial plate. Burner

input adjustments are not required when the dryer is operated

up to this elevation.

When installed above 10,000 feet (3048 m), a four percent

(4%) reduction of the burner B.T.U. rating shown on the model/

serial plate is required for each 1,000 foot (305 m) increase in

elevation. For assistance when converting to other gas types

and/or installing above 10,000 feet (3048 m) elevation, contact

your local service company.

Gas Supply

GAS DRYER INSTALLATION REQUIREMENTS

Gas supply pressure required to operate this dryer is

a minimum of 5.2" wc (1.30 kPa) and a maximum of

10.5" wc (2.62 kPa).

Your dryer can be installed in a basement, laundry room,

or recessed area.

This dryer is not intended for installation in a mobile home.

Companion appliance location requirements should also be

considered.

IMPORTANT: Do not install or store the dryer where it will be

exposed to water and/or the weather. Proper installation is your

responsibility.

You will need:

QA grounded electrical outlet located within 6 ft. (1.8 m) of

where the power cord is attached to the back of the dryer.

See “Electrical Requirements.”

QA level oor with a maximum slope of 1" (25 mm) under

entire dryer. Installing the dryer on soft oor surfaces,

such as carpets or surfaces with foam backing, is not

recommended.

Electric dryer installation clearances

QThe location must be large enough to allow the dryer door

to be fully opened.

QAdditional spacing should be considered for ease of

installation and servicing. The door opens more than 180°.

QAdditional clearances might be required for wall, door,

and oor moldings.

QAdditional spacing of 1" (25 mm) on all sides of the dryer

is recommended to reduce noise transfer.

Recessed Area and Closet Installation Instructions

This dryer may be installed in a recessed area or closet. For

recessed area and closet installations, minimum clearances

can be found on the warning label on the rear of the dryer

or in “Dimensions/Clearances.”

The installation spacing is in inches and is the minimum

allowable. Additional spacing should be considered for ease

of installation, servicing, and compliance with local codes

and ordinances.

If closet door is installed, the minimum unobstructed air

opening in the top and bottom is required. Louvered doors

with equivalent air openings are acceptable.

Location Requirements

The dryer must be exhausted outdoors.

24 in.2

(155 cm

48 in.2

(310 cm2)3"

(76 mm)

(76 mm

)

Closet

door

Front

View

ELECTRIC DRYER INSTALLATION REQUIREMENTS

Closet

Door

Front

View

Electrical Requirements – U.S.A. only

It is your responsibility:

QTo contact a qualied electrical installer.

QTo be sure that the electrical connection is adequate and in

conformance with the National Electrical Code, ANSI/NFPA

70-latest edition and all local codes and ordinances.

QThe National Electrical Code requires a 4-wire power supply

connection for homes built after 1996, dryer circuits involved

in remodeling after 1996, and all mobile home installations.

QA copy of the above code standards can be obtained from:

National Fire Protection Association, One Batterymarch

Park, Quincy, MA 02269.

QTo supply the required 3 or 4 wire, single phase, 120/240

volt, 60 Hz., AC only electrical supply (or 3 or 4 wire,

120/208 volt electrical supply, if specied on the serial/

rating plate) on a separate 30-amp circuit, fused on both

sides of the line. A time delay fuse or circuit breaker is

recommended. Connect to an individual branch circuit.

Do not have a fuse in the neutral or grounding circuit.

QDo not use an extension cord.

QIf codes permit and a separate ground wire is used, it is

recommended that a qualied electrician determine that

the ground path is adequate.

This manual suits for next models

Table of contents

Languages:

Other Whirlpool Dryer manuals

Whirlpool

Whirlpool Gold GEX9868JQ1 User manual

Whirlpool

Whirlpool YWED7500VW2 User manual

Whirlpool

Whirlpool Cabrio WED6400SW0 User manual

Whirlpool

Whirlpool 3396311 Installation instructions

Whirlpool

Whirlpool 3LCGD9100 User manual

Whirlpool

Whirlpool Duet Steam User manual

Whirlpool

Whirlpool HYBRIDCARE YWHD560CHW0 User manual

Whirlpool

Whirlpool FFT M22 8X2BS BE User manual

Whirlpool

Whirlpool AWZ 481 E - SERVICE User manual

Whirlpool

Whirlpool Gold GGX9868JQ0 User manual

Whirlpool

Whirlpool LE5530XK User manual

Whirlpool

Whirlpool HybridCare WED99HEDW User manual

Whirlpool

Whirlpool Duet Sport W10151582A User manual

Whirlpool

Whirlpool GGN2000H User manual

Whirlpool

Whirlpool L0412123 User manual

Whirlpool

Whirlpool WED5800SG0 User manual

Whirlpool

Whirlpool WGD6600VU User manual

Whirlpool

Whirlpool LE5795XP User manual

Whirlpool

Whirlpool WED8000DW User manual

Whirlpool

Whirlpool LGQ8000JQ1 User manual

Whirlpool

Whirlpool MAYTAG MLG-52 User manual

Whirlpool

Whirlpool LE9805XPW0 User manual

Whirlpool

Whirlpool LEC8858EQ1 User manual

Whirlpool

Whirlpool LDR3422A User manual

Popular Dryer manuals by other brands

Bosch

Bosch WTA79200GB Installation and operating instructions

Amana

Amana W10233410A Use and care guide

Miele

Miele TWH 780 WP operating instructions

Asko

Asko T760 user guide

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Original instructions

Bosch

Bosch Logixx 10 WTB76556GB Instruction manual and installation instructions

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Operation and installation

Electrolux

Electrolux EW2H328R2 user manual

Beko

Beko DS8433RX1M user manual

Dawlance

Dawlance Spinner DS 6000 C owner's manual

Electrolux

Electrolux TP5080TW user manual

AEG

AEG TR838P4OB user manual

Indesit

Indesit IDV 75 instruction manual

Infiniton

Infiniton SD-DG85C manual

BOMANN

BOMANN WT 5019 instruction manual

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Installation

Asko

Asko T793C operating instructions

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer installation instructions
