Whirlpool 3XLER5435HQ1 User manual

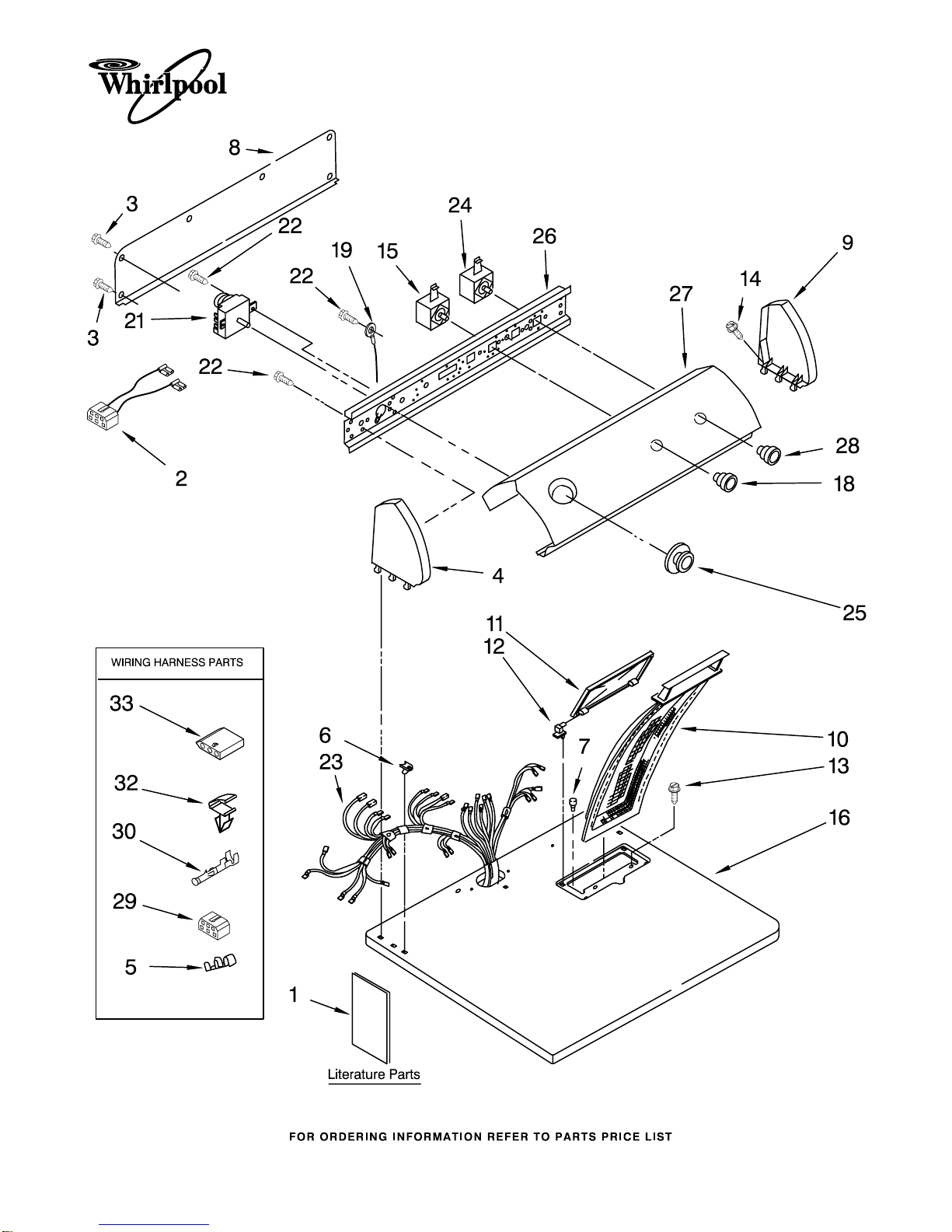

TOP AND CONSOLE PARTS

For Model: 3XLER5435HQ1

(Designer White)

4−02 Litho in U.S.A. (djc) Part No. 8179857

29" Electric Dryer

TOP AND CONSOLE PARTS

OPTIONAL PARTS (NOT INCLUDED)

For Model: 3XLER5435HQ1

(Designer White)

8179857

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

LIT3401012

Use & Care Guide

LIT3397626

Installation

Instructions

(Spanish)

LIT3397627

Installation

Instructions

(English)

LIT8528131

Wiring Diagram

Following May Be Purchased

DO−IT−YOURSELF

REPAIR MANUALS

LIT677818

Dryer

2 3396028 Wire Jumper

(Temperature)

3 693995 Screw, Hex Head

4 3950975 Cap, End (L.H.)

5 357572 Clip, Ground

6 357213 Nut, Push−In

7 297535 Bumper, Lint Lid

8 3397545 Panel, Rear

Console

9 3950974 Cap, End (R.H.)

10 349639 Handle & Lint

Screen Assembly

11 8283378 Cover, Lint Screen

12 3978605 Hinge, R.H.

3978606 Hinge, L.H.

13 688983 Screw, 8−18 x 5/8

14 388326 Screw, Console

15 3399638 Switch,

Temperature

16 8530642 Top

18 3950759 Knob, Control

19 690853 Wire, Ground

21 3396215 Timer 60 Hz.

22 3390646 Screw, 8−18 x 5/16

23 8529856 Harness, Wiring

24 3395382 Switch,

Push−To−Start

25 3406143 Knob, Timer

26 8054298 Bracket, Control

27 3401065 Panel, Control

28 3406133 Knob,

Push−To−Start

29 3347243 Connector, 6−Circuit

30 94614 Terminal

32 3394427 Clip, Harness

33 3936144 Connector

Illus. Part

No. No. DESCRIPTION

ACCESSORY PARTS

279948 Kit,

Dryer Repair

3404351 Dry Rack

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY

(12 oz.)

350930 White

350938 Primer, Gray

PAINT, BULK (1 qt.)

799344 White (Uncut)

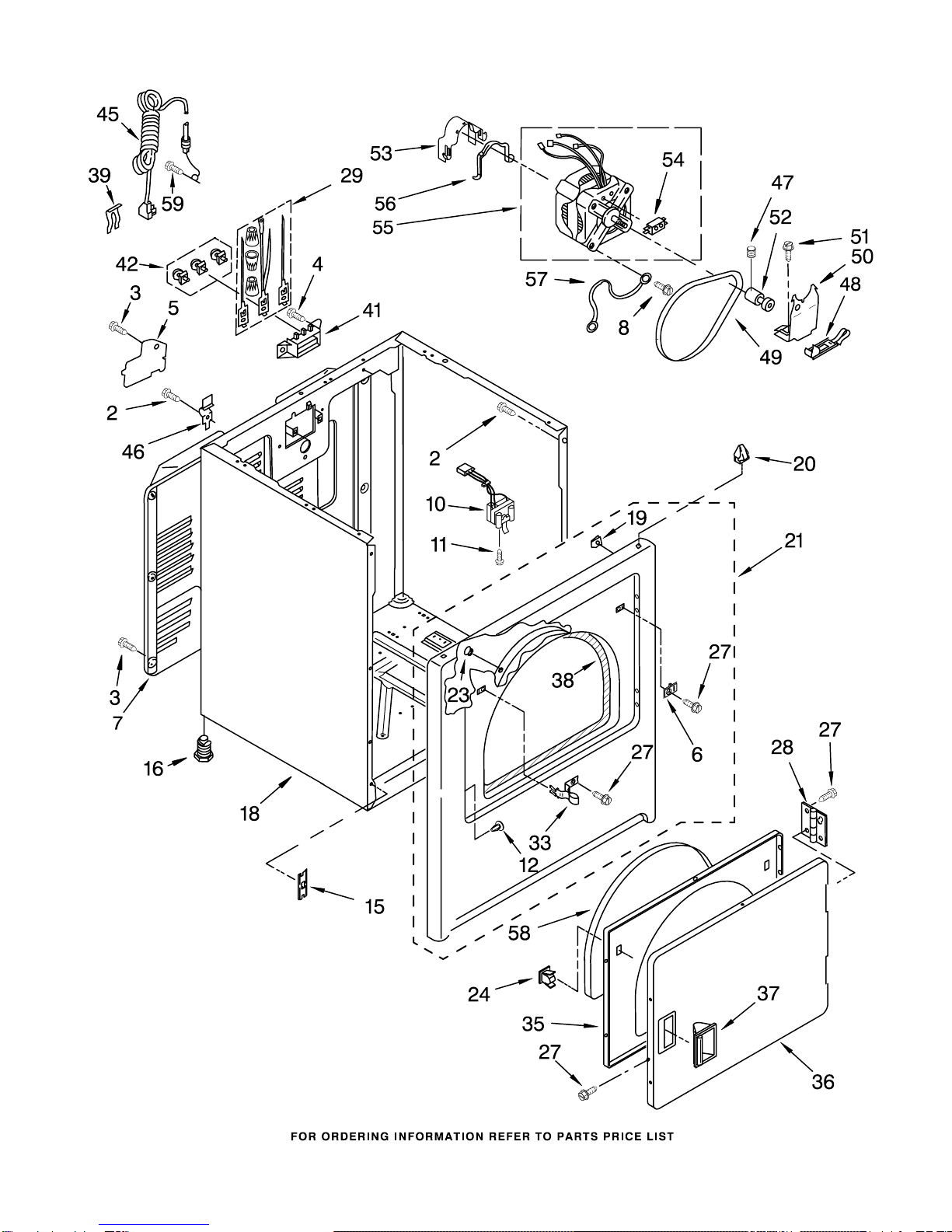

CABINET PARTS

For Model: 3XLER5435HQ1

(Designer White)

8179857

CABINET PARTS

For Model: 3XLER5435HQ1

(Designer White)

8179857

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

2 343641 Screw, 10−16 x 1/2

3 693995 Screw, Hex

Washer Head

4 3393008 Screw, 10−16 x 1/2

5 3396795 Cover, Terminal

Block

6 3403630 Plug, Strike

Hole

7 3396805 Panel, Rear

8 3394926 Screw, 10−16 x 1/2

10 3406109 Switch, Door

11 697773 Screw, 6−20 x 7/8

12 3404413 Plug, Hinge

Hole (4)

15 3394083 Clip, Front Panel

16 3392100 Foot (4)

18 8530603 Cabinet

19 98234 Clip, Ground (2)

20 690363 Lock, Front Top (2)

21 3403444 Front Panel

Assembly

23 685203 Clip, Felt Pad (2)

24 690081 Catch, Door

27 342055 Screw, 8−18 x 1/2

28 3405514 Hinge & Pin

Assembly

29 279318 Terminal, Tinned

& Brass (3)

(Includes Illus. 42)

33 3403431 Strike, Door

35 3402341 Door, Rear

36 3402335 Door, Front

37 3405184 Handle, Door

38 3406129 Seal & Bearing

Assembly

39 694415 Clip,

Strain Relief

41 3397659 Block, Terminal

42 279393 Terminal Block

Kit For

Terminal Block

45 3387258 Cord, Power

46 238088 Hinge, Top (2)

47 690046 Screw, Set

48 3394332 Idler & Slide

Assembly

49 8066065 Belt, Drive

50 348780 Base, Motor

51 3400500 Bolt,

5/16−18 x 3/4

52 685064 Pulley, 50 Hz.

(Includes Item

No. 47)

53 3404162 Clamp, Motor

54 3388235 Switch, Motor

55 685815 Motor Assembly,

50 Hz.

56 660658 Clip, Motor (2)

57 690236 Wire, Ground

58 3405246 Seal, Door

59 697776 Screw, 10−32 x 5/8

(Grounding)

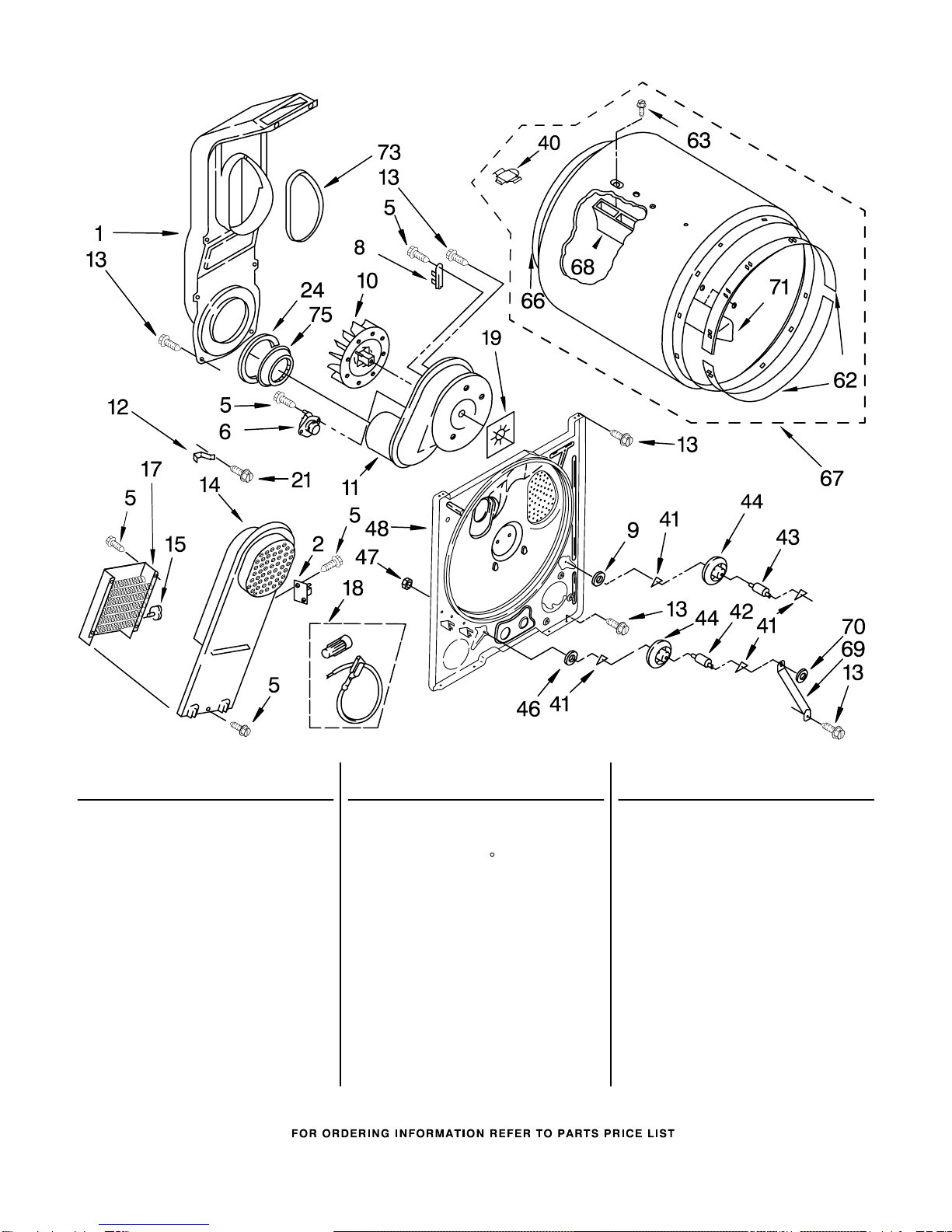

BULKHEAD PARTS

For Model: 3XLER5435HQ1

(Designer White)

8179857

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 348368 Lint Chute

Assembly

2 3977393 Thermal Cut−Off

(Includes

Illus. 15)

5 90767 Screw, 8−18 x 3/8

6 3387137 Thermostat,

Internal−Bias

8 694511 Thermal Fuse

9 3388703 Washer, Support

10 694089 Wheel, Blower

(Includes

Illus. 19)

11 3405016 Housing, Blower

12 8066155 Clip

13 343641 Screw, 10−16 x 1/2

14 3397566 Box, Heater

15 3977749 Thermostat,

(High Limit)

200 /120F

17 3403586 Element, Heater

18 279457 Wire Kit (For

Heater Element

Wiring Harness

Repair)

19 3394196 Seal, Blower

21 489463 Screw, 8−18 x 5/8

24 347139 Seal, Lint

Chute

40 8066086 Drum Hole

Plug

41 690997 Ring, Tri

42 3399506 Shaft, L.H.

43 3399507 Shaft, R.H.

44 3397588 Roller, Support

46 348197 Washer

Support

47 3359452 Nut, 3/8−16

48 3403491 Bulkhead

62 692526 Ring, Bearing

63 97787 Screw, 11−16 x 3/4

66 3406130 Seal, Rear Drum

67 695587 Drum Assembly

68 692490 Baffle, Drum (2)

69 3976434 Bracket, Support

70 90296 Clip

71 3403636 Baffle, Drum (1)

73 339956 Seal

75 696302 Shield, Exhaust
